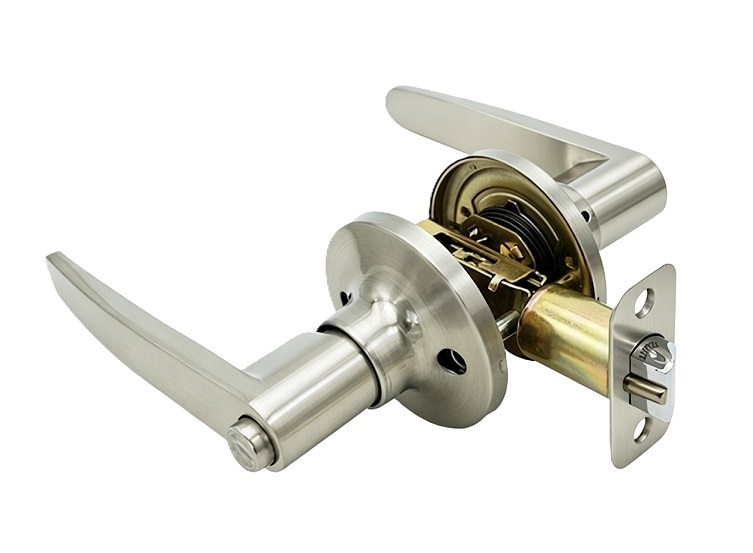

Wholesale Residential Tubular Privacy Slipped Door Lever
- Product Information
Features
| Model No. | 6412-SN |
|---|---|
| Brand Name | WingsTec |
| Usage | Wooden Door |
| Design Style | Modern / Western Style |
| Type | Residential / Easy Installation |
| Warranty | Exceeds 200,000 Cycles, 5 Years Lifetime |
| Certification | ANSI/BHMA 156.2 Grade 3 |
| Application | Interior Residential Doors, Bathroom, Bedroom |
| Hand Orientation | Reversible Lever |
B2B Information
| Place of Origin | China |
|---|---|
| Sample | Available within 3 days |
| OEM/ODM | Logo laser engraving welcomed |
| MOQ | 500pcs (Negotiable) |
| Lead Time | 25-35 Days |
| Submit an RFQ | Click Here To Fill |
| Sample & Prototype | Verified Buyers are Sample Free |
Technical Specifications
| Material | Zinc Alloy |
|---|---|
| Function | BK (Privacy) standard; DM:0 (Dummy), BK:2 (Privacy), PS: 3(Passage) ET:1 (Entrance) optional |
| Finish | SN/US15 standard; SC/26D, PB/US3 optional |
| Door Prep | Cross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"×2-1/4" (25.4×57mm) |
| Door Thickness | Fits doors 1-3/8" (35mm) to 2" (50mm) thick |

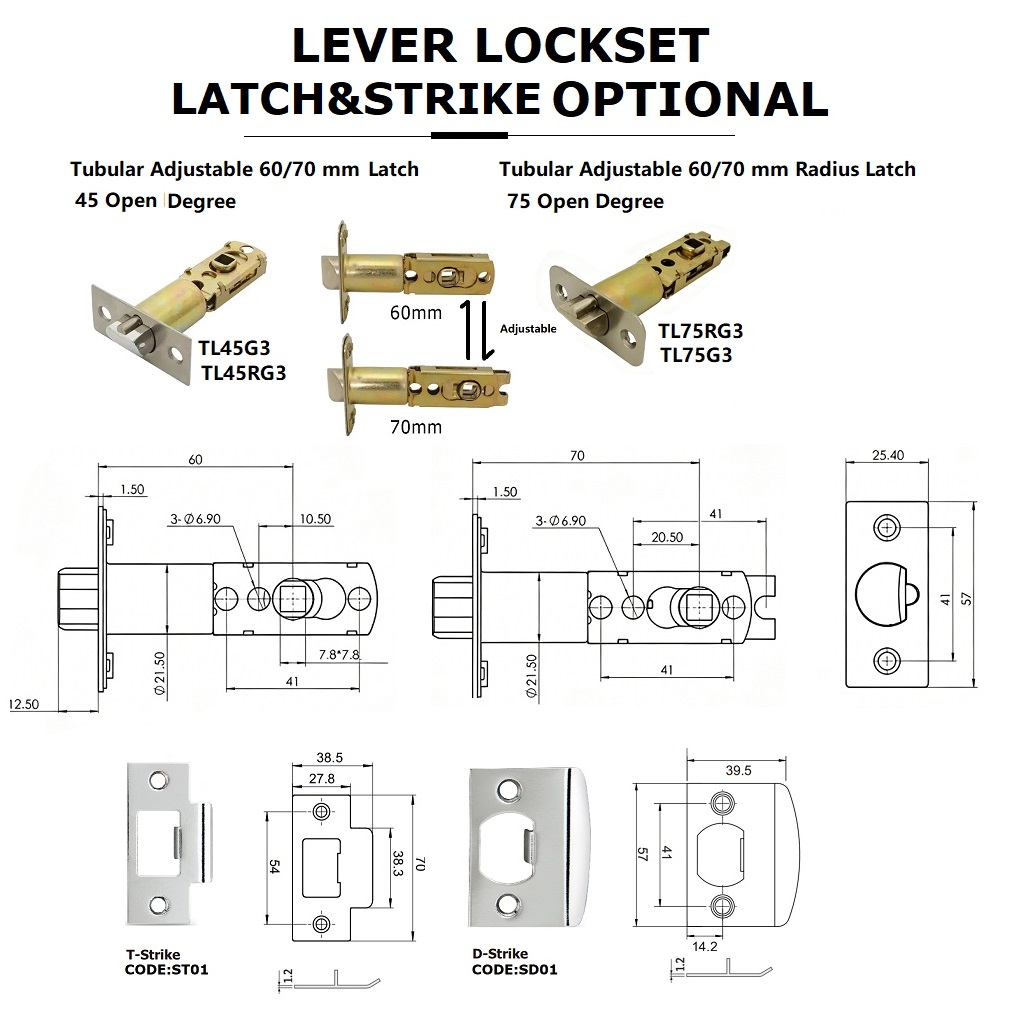

| Lock Latch | 2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional |
| Thumbturn | optional |
| Faceplate | Square corner 1"×2-1/4" (25.4×57mm) standard; radius corner available |
| Strike | T-Strike 1-1/2"×2-3/4" (38×70mm) standard; D-Strike 1-1/2"×2-1/4" (39.5×57mm) optional |

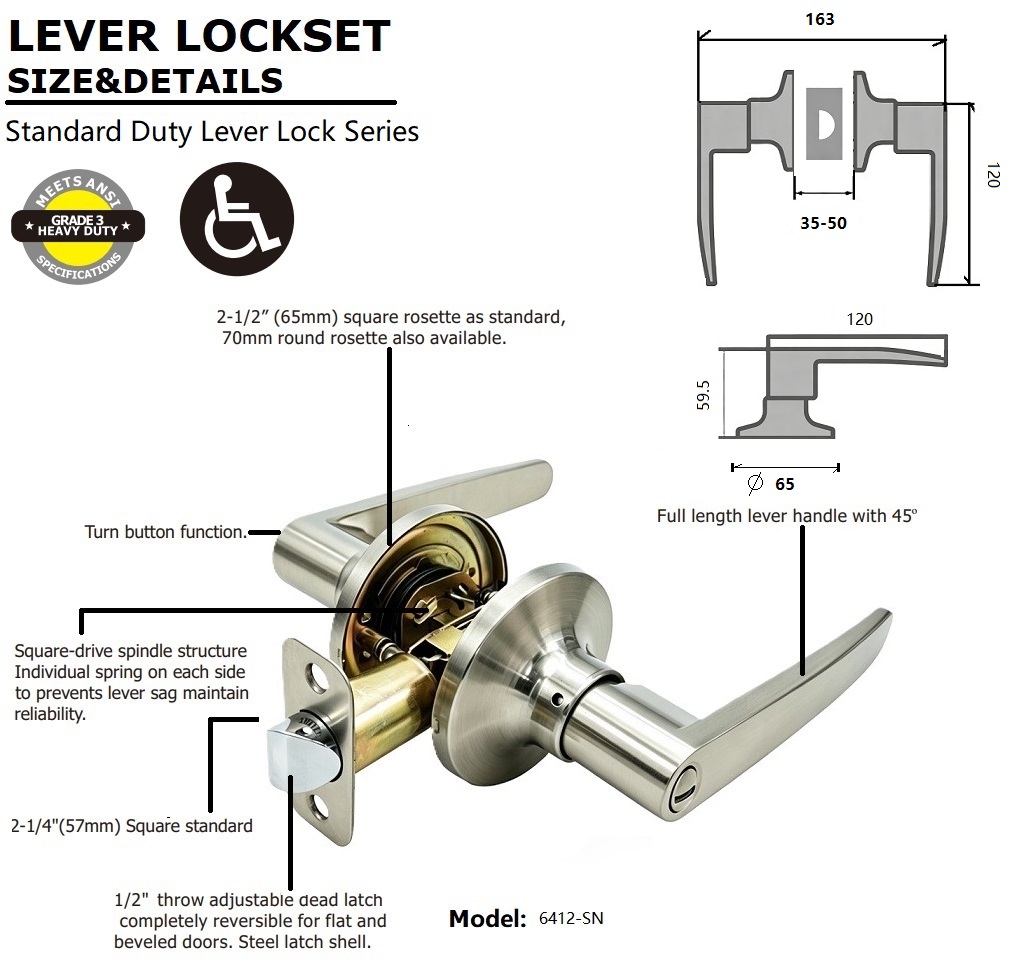

| Technical Drawing |
Packaging Information
| Packing Way | 1 pair in 1 white box; custom design color boxes & blister pack available |
|---|---|
| Package Size | 25 × 10 × 5 CM |
| Single Box G.W | 1 KGS |




- FAQ
FAQs About Modern Straight Bar Privacy Tubular Door Lever Lock
What is a modern straight bar privacy tubular door lever, and where to install it?
This modern straight bar privacy tubular door lever is a minimalist contemporary style American residential door hardware, designed for interior private spaces including bathrooms, bedrooms, powder rooms and home offices. It features a sleek flat bar lever handle with a clean round rosette base, adding a sophisticated modern touch to any home interior. The privacy function includes a turn-button lock on the interior side and an emergency pin hole on the exterior lever for accidental lock-in situations — no exterior key cylinder required. Built with standard tubular lock construction, it fits all standard pre-drilled residential door holes across USA, Canada and Australia.
Is this straight bar privacy lever lock residential grade suitable for US bathroom doors?
Yes, this residential grade tubular privacy door lever with modern straight bar design fully complies with North American residential door hardware standards, compatible with most 1-3/8" to 1-3/4" thick interior wooden doors in American houses, apartments and townhomes. It comes with a standard 2-3/8" backset tubular latch pre-installed, perfectly fitting standard pre-bored 2-1/8" cross bore tubular door holes commonly found in US residential bathroom and bedroom doors. No additional drilling or modification required for standard installations.
What material and finish does this satin nickel modern privacy door handle use?
The straight bar lever handle and round rosette are constructed with solid zinc alloy base, finished with premium brushed satin nickel coating that resists fingerprints, water spots and daily wear — ideal for humid bathroom environments. The internal tubular latch mechanism features a solid brass housing with stainless steel latch bolt, ensuring smooth, quiet operation and corrosion resistance for long-term residential use. All internal spring and mechanical components are heavy-duty cycle tested to guarantee reliable, smooth lever action for years of daily household operation.
How does the privacy lock emergency unlock pin hole work?
The small round emergency pin hole on the exterior lever is a standard safety feature of all privacy function residential locks, especially important for bathroom and bedroom doors. If someone accidentally locks the door from inside — such as a child locking themselves in the bathroom or an elderly person needing assistance — you can insert a small flat screwdriver, paper clip or dedicated emergency release pin into the hole to push the internal mechanism and unlock the door from outside without damaging the hardware or door. This emergency unlock design meets North American residential building safety codes for bathroom and bedroom privacy locks.

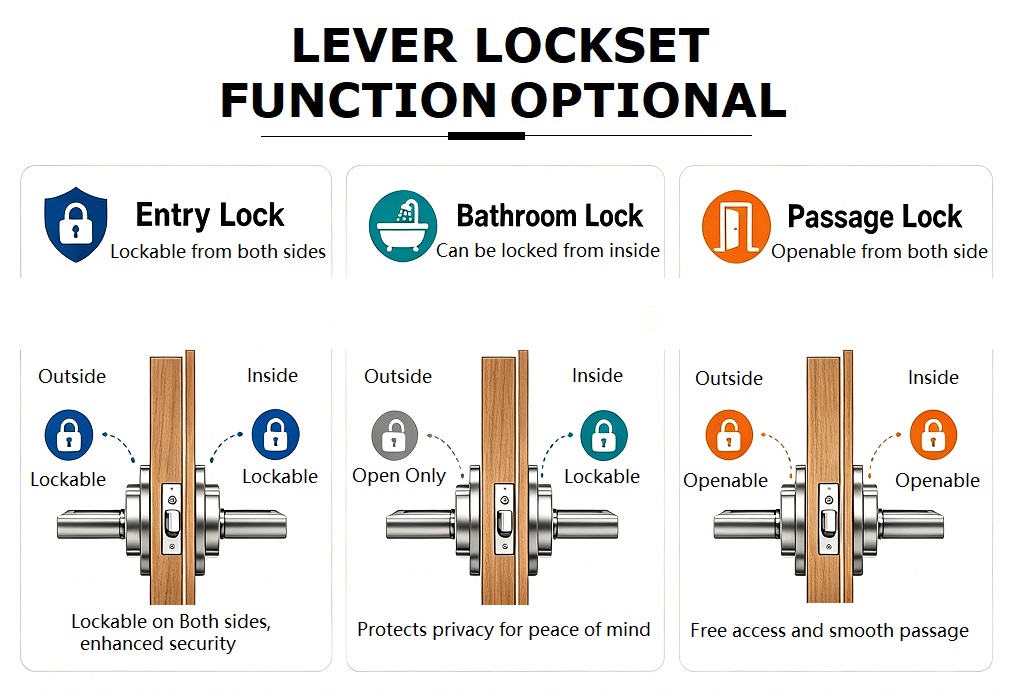

What is the difference between privacy, passage and keyed entry door levers?
1. Privacy Function: Features interior turn-button lock and exterior emergency pin hole, no key cylinder. Designed for bathrooms, bedrooms and private interior rooms where temporary privacy locking is needed but keyed security is not required.
2. Passage Function: Non-locking design with free-turning levers on both sides. Used for hallways, closets, pantries and laundry rooms where no locking is needed at all.
3. Keyed Entry Function: Features full key cylinder on exterior side and interior thumb-turn lock. Designed for front doors, back doors and exterior entry doors requiring keyed security protection.
All three functions are available in the same modern straight bar design and tubular installation structure, allowing you to maintain a consistent minimalist aesthetic throughout your entire home.

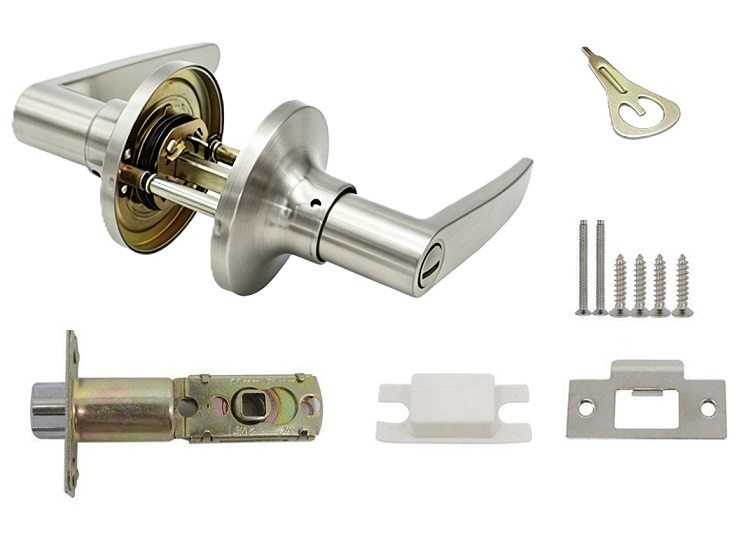

Does this modern residential tubular privacy door lever include all installation hardware?
Each straight bar privacy lever lock set comes with complete residential installation accessories: tubular latch assembly, matching round strike plate, mounting screws, paper installation template and step-by-step English installation manual. No extra parts or special tools required — homeowners can finish DIY installation within 10 minutes on standard American pre-drilled interior doors using only a basic screwdriver. The minimalist straight bar design coordinates perfectly with modern bathroom fixtures, contemporary door hinges and sleek interior decor styles.
Can this satin nickel modern privacy lever be reversed for left and right hand doors?
This residential tubular privacy door lever with modern straight bar design features fully reversible handed design, compatible with both left-handed and right-handed swing interior doors. You can easily flip the flat bar lever handle direction in seconds without disassembling the entire lock body or privacy mechanism, making it flexible for all bathroom and bedroom door layout configurations in modern American residential homes.
What is the durability of this modern residential privacy door lever?
This modern straight bar American residential privacy lever lock has passed 200,000 opening-closing cycle tests, fully meeting standard residential hardware durability requirements. The premium brushed satin nickel finish effectively prevents oxidation, corrosion and surface wear, maintaining its sleek minimalist appearance even with daily use in humid bathroom environments. Suitable for long-term installation in family homes, rental properties, modern apartment buildings and contemporary residential renovation projects.
Will this modern straight bar lever style match my contemporary bathroom interior?
Absolutely, this straight bar privacy door lever with round rosette is a perfect choice for contemporary, minimalist, modern and mid-century modern interior design styles. The clean flat bar lever profile paired with the simple round rosette base creates a streamlined, uncluttered look that complements flat-panel interior doors, modern bathroom vanities and minimalist home decor. The satin nickel finish coordinates beautifully with brushed nickel, chrome and matte black bathroom fixtures, towel bars and cabinet hardware, making it a popular choice for modern home renovations and new residential construction projects across America.
