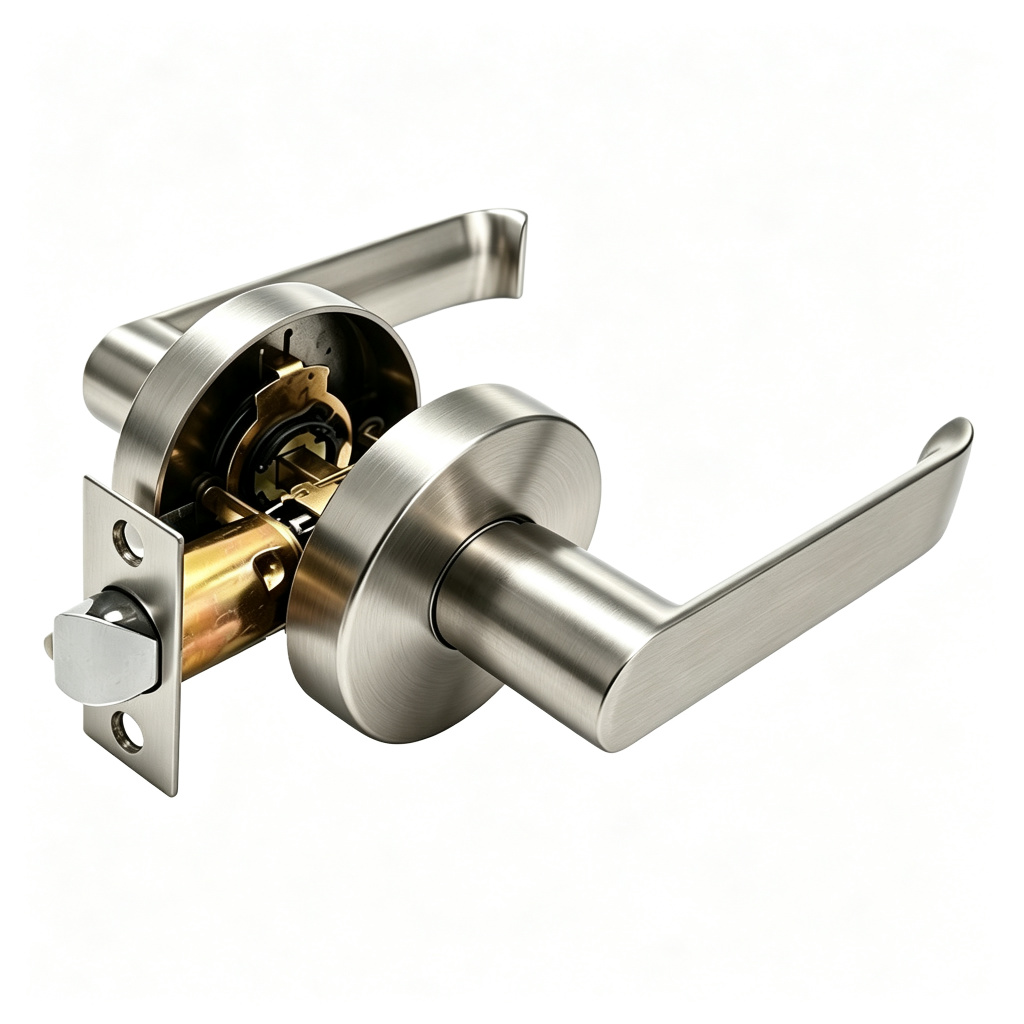

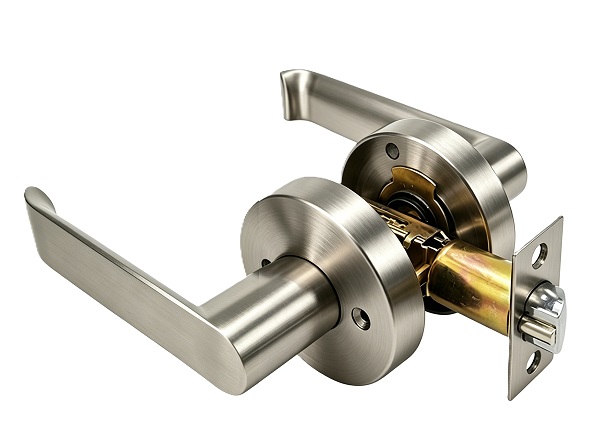

Modern Round Rosette Tubular Passage Door Lever - Satin Nickel
Designed for non-locking interior spaces including hallways, closets, pantries, living rooms and storage areas, this passage lever features free operation from both sides for unobstructed access. Rated for over 200,000 operating cycles and certified to ANSI/BHMA Grade 3 standards, it comes with a fully reversible non-handed design and adjustable 60/70mm latch to fit all standard North American residential doors.The classic round rosette base and ergonomic lever handle complement a wide range of interior design styles, from modern and transitional to traditional home interiors.
- Product Information
Features
| Model No. | 6932R-SN |
|---|---|
| Brand Name | WingsTec |
| Usage | Wooden Door |
| Design Style | Modern / Western Style |
| Type | Residential / Easy Installation |
| Warranty | Exceeds 200,000 Cycles, 5 Years Lifetime |
| Certification | ANSI/BHMA 156.2 Grade 3 |
| Application | Interior Residential Doors, Hallway, Entryway |
| Hand Orientation | Reversible Lever |
B2B Information
| Place of Origin | China |
|---|---|
| Sample | Available within 3 days |
| OEM/ODM | Logo laser engraving welcomed |
| MOQ | 500pcs (Negotiable) |
| Lead Time | 25-35 Days |
| Submit an RFQ | Click Here To Fill |
| Sample & Prototype | Verified Buyers are Sample Free |
Technical Specifications
| Material | Zinc Alloy |
|---|---|
| Function | PS (Passage) ; DM (Dummy), BK (Privacy), PS (Passage) ET (Entrance) are optional |
| Finish | SN/US15 standard; SC/26D, PB/US3 AB AC GP are optional |

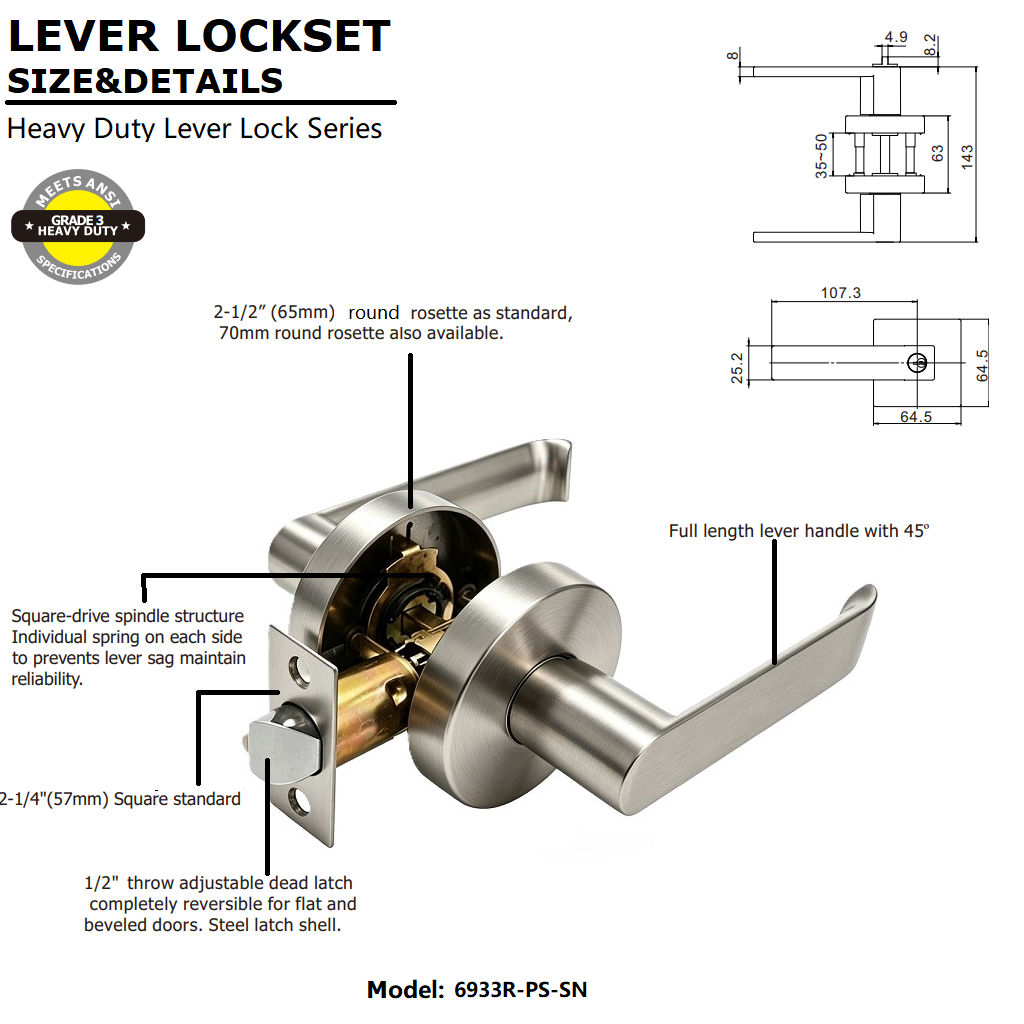

| Door Prep | Cross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"×2-1/4" (25.4×57mm) |
| Door Thickness | Fits doors 1-3/8" (35mm) to 2" (50mm) thick |

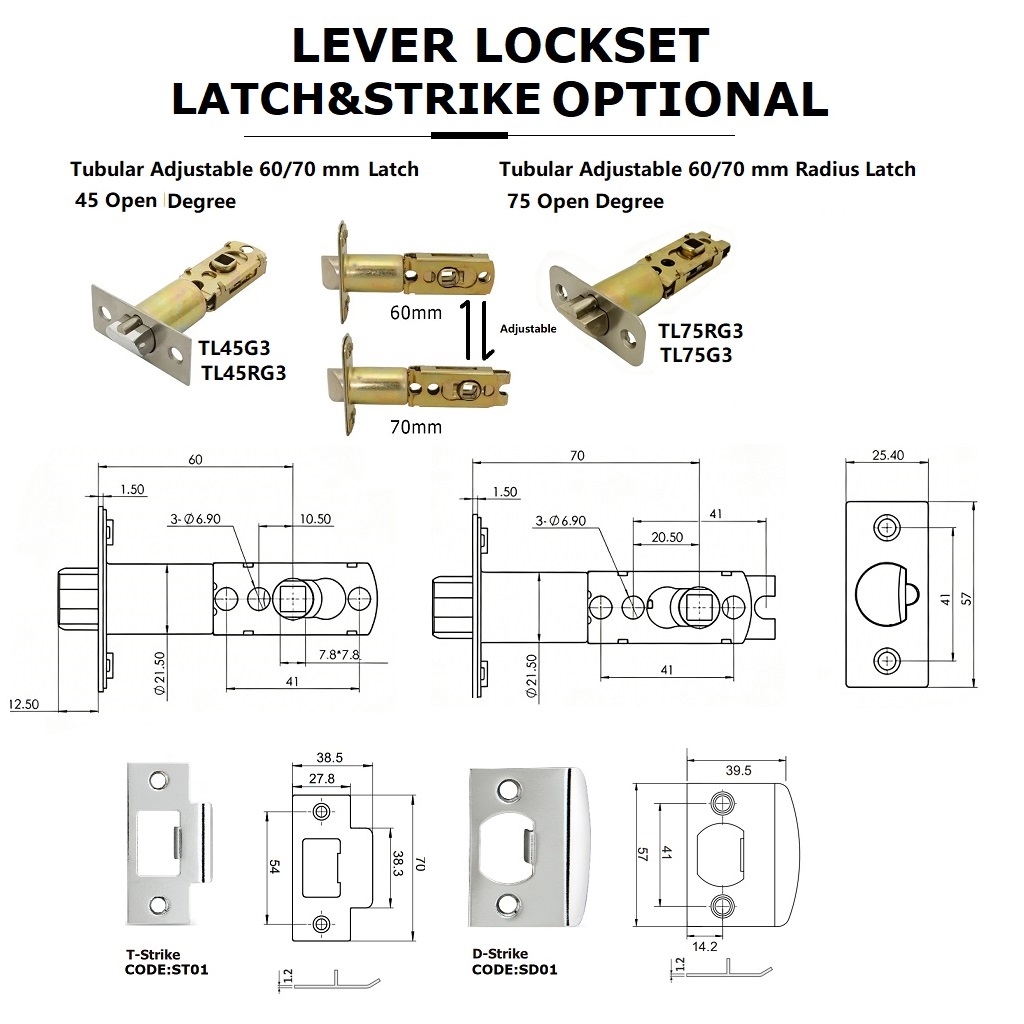

| Lock Latch | 2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional |
| Faceplate | Square corner 1"×2-1/4" (25.4×57mm) standard; radius corner available |
| Strike | T-Strike 1-1/2"×2-3/4" (38×70mm) standard; D-Strike 1-1/2"×2-1/4" (39.5×57mm) optional |
| Technical Drawing | Click Here To Download |
Packaging Information
| Packing Way | 1 pair in 1 white box; custom design color boxes & blister pack available |
|---|---|
| Package Size | 25 × 10 × 5 CM |
| Single Box G.W | 1 KGS |
- FAQ
Frequently Asked Questions
Product Specifications & Functions

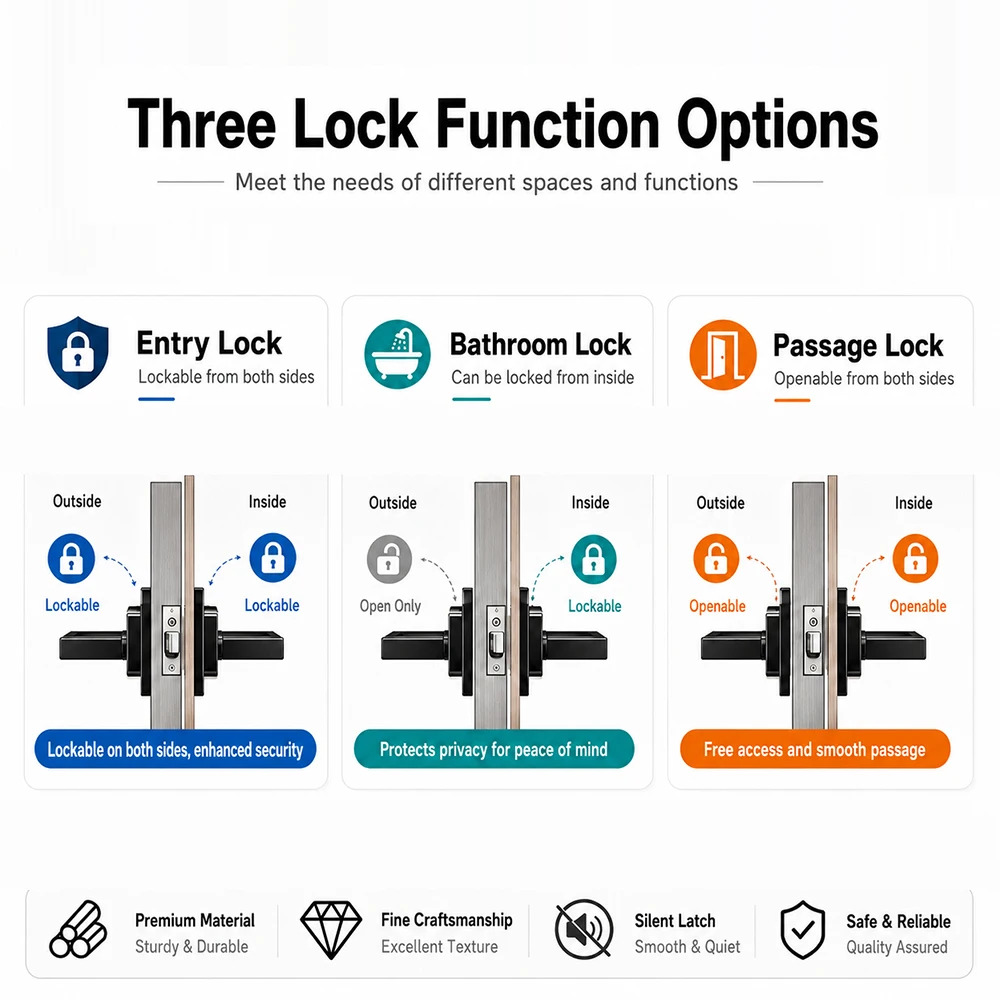

What lock functions are available for this lever lockset?
We offer 3 standard function configurations to match different space requirements:
Entry Lock: Key-operated from the exterior, thumb-turn operated from the interior; lockable from both sides, designed for exterior doors and restricted-access areas.
Bathroom / Privacy Lock: Lockable from inside via thumb-turn with an emergency release slot on the outside; ideal for restrooms, private offices and changing rooms.
Passage / Hall Lock: Non-locking function, operable freely from both sides; intended for hallways, closets and interior doors where unobstructed access is required.
Is this lock non-handed (reversible)?
Yes, this lever lock is fully reversible and non-handed. It works on both left-hand and right-hand swing doors without any modification, which simplifies inventory management and on-site installation for contractors.
What backset sizes do you support?
The standard backset is 2-3/8" (60mm), with 2-3/4" (70mm) available as an optional configuration. Adjustable latch options are also available for bulk project orders to accommodate varying door preparations.
Materials, Finishes & Durability
What materials are used in construction?
The lock chassis and internal mechanism use high-strength zinc alloy and hardened steel components for structural durability and anti-saw resistance. The lever handles and rose are constructed from premium zinc alloy with precision surface treatment.

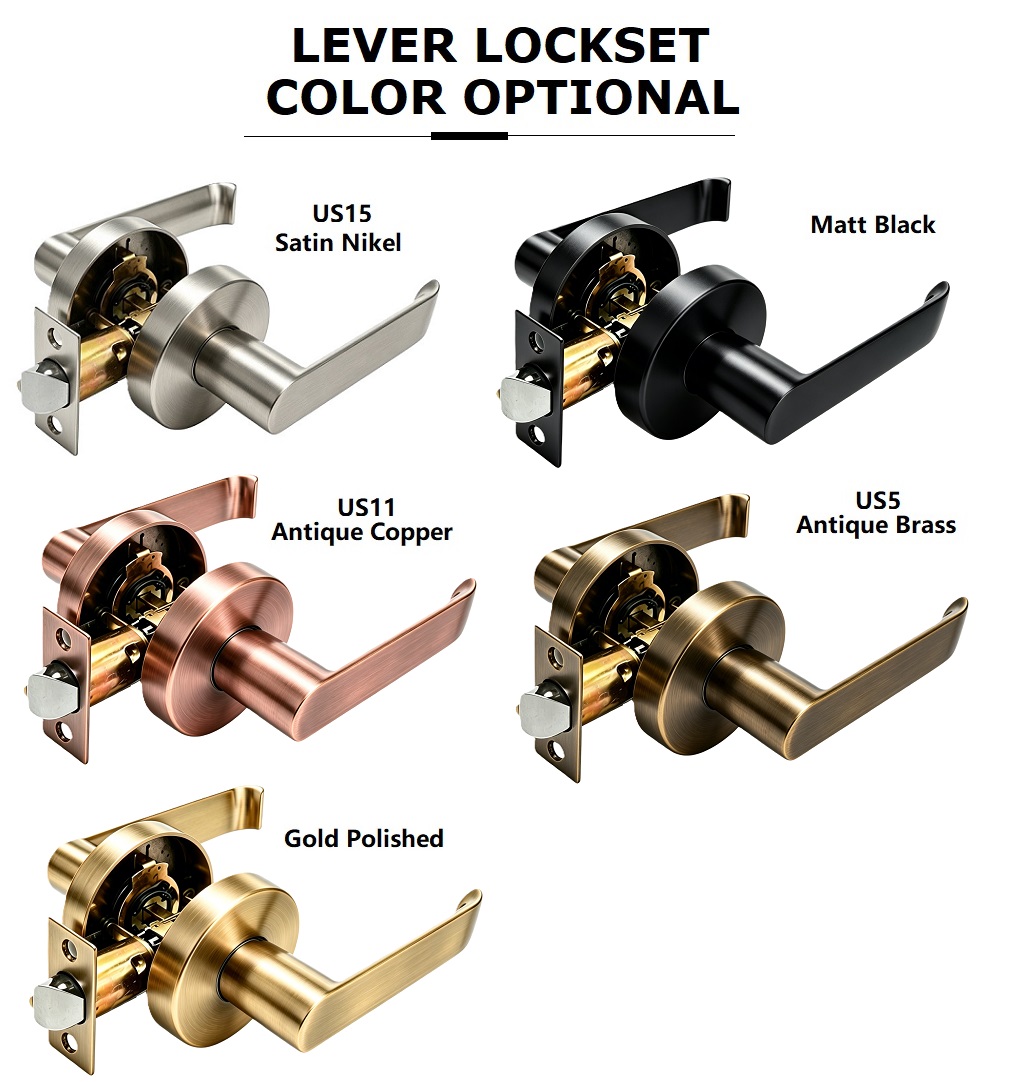

What surface finishes do you offer?
We provide a full range of standard architectural finishes: Satin Nickel (Brushed Nickel), Satin Chrome, Polished Chrome, Matte Black, Antique Bronze, Brushed Copper, and PVD Brushed Gold. Custom finish matching is available for volume project orders.
How durable are the finishes against corrosion and wear?

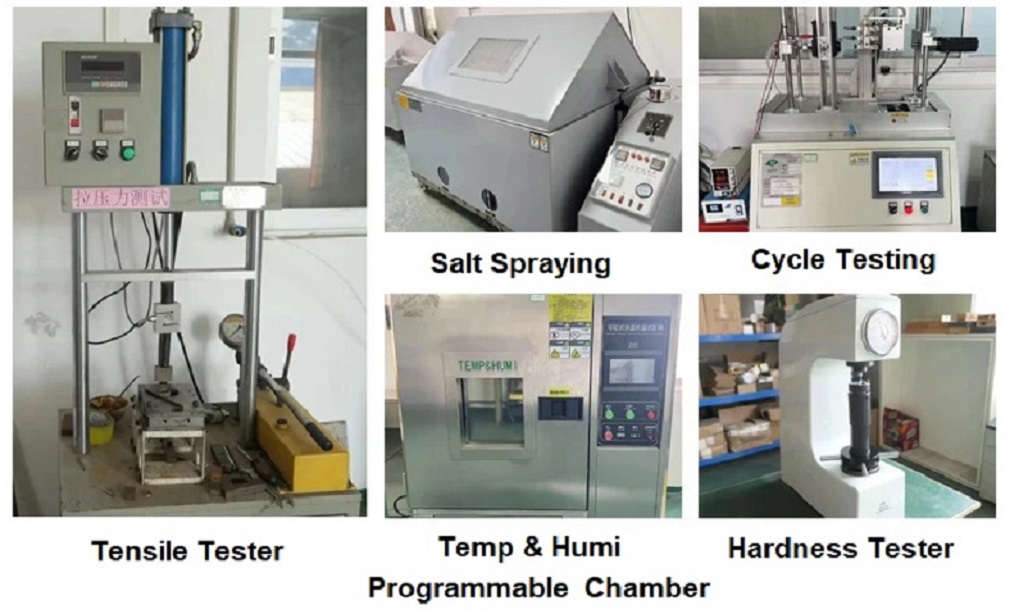

All plated finishes pass standard salt-spray and abrasion testing for commercial interior use. PVD finishes offer superior scratch and corrosion resistance, making them suitable for coastal, high-humidity or high-traffic environments.
Installation & Door Compatibility
What door thickness does this lock fit?
It fits standard commercial and residential doors from 1-3/8" (35mm) to 1-3/4" (44mm) thick. Extended spindles for doors up to 2" thick are available upon request for bulk orders.
What door preparation is required?
This is a standard cylindrical lockset that fits industry-standard door prep: 2-1/8" (54mm) cross bore and 1" (25mm) edge bore. It is compatible with wood, metal, hollow metal and composite doors.
Can these locks replace existing cylindrical locksets without re-drilling?
Yes. Our lever locks follow ANSI-standard dimensions and can directly retrofit most major brand cylindrical locksets, making them ideal for renovation, refurbishment and facility upgrade projects.
Certifications & Compliance
Do these locks meet ANSI/BHMA standards?
Our commercial lever locks are tested and certified to ANSI/BHMA A156.2 Grade 2, rated for over 400,000 operating cycles — suitable for medium-to-high traffic environments including offices, retail, hospitality and multi-family buildings. Grade 1 upgrade is available for heavy-traffic and high-security projects.
Are they ADA compliant?
Yes. The lever handle design fully meets ADA accessibility requirements, allowing operation with a closed fist or single hand without tight grasping or twisting. This ensures compliance with US and Canadian building accessibility codes.
Do you offer fire-rated versions?
Yes, UL-listed fire-rated models are available for use on 3-hour fire-rated door assemblies, compliant with commercial building fire safety codes for stairwells, corridors and exit doors.
Ordering, MOQ & Customization
What is your minimum order quantity (MOQ)?
For standard stock finishes and functions, we offer flexible MOQs for wholesale and trade buyers. For custom finishes, private labeling or custom keying systems, project-based MOQs apply. Contact our sales team for a tailored quotation.
Can you supply keyed alike, master keyed or grand master keyed systems?
Yes. We provide full keying services — keyed alike (KA), keyed different (KD), master keyed (MK) and grand master keyed (GMK) — ideal for multi-unit properties, office buildings and facility management portfolios. We use standard 6-pin cylinders compatible with common industry keyways.
Do you offer OEM / private label services?
Yes. We provide full OEM manufacturing and private labeling, including custom packaging, branded rosettes, and custom product documentation for hardware distributors and building supply brands.
Delivery, Packaging & After-sales
What is the typical lead time for bulk orders?
7–15 working days for standard stock items. For custom finishes, special keying or large project orders, lead time is 25–40 working days depending on specification and volume.
How are products packaged for export?
Each lockset is individually boxed with all mounting screws, strike plate and installation instructions included. Bulk orders are packed in reinforced export cartons suitable for international sea/air freight. Custom branded packaging is available for OEM orders.
What warranty do you provide?
We offer a standard 2-year mechanical warranty against manufacturing defects for commercial use. Extended warranty terms are available for large project orders, and we provide ongoing replacement parts support for post-warranty maintenance.
