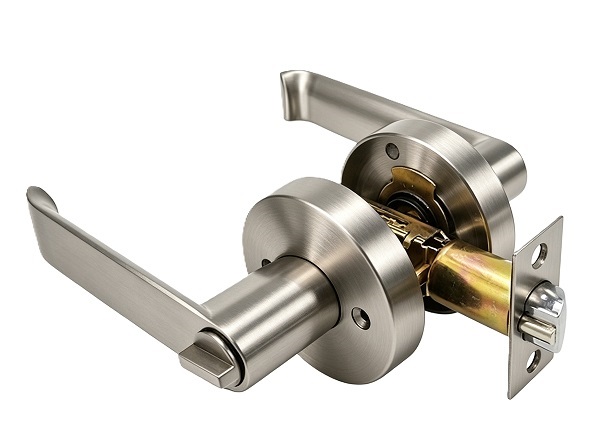

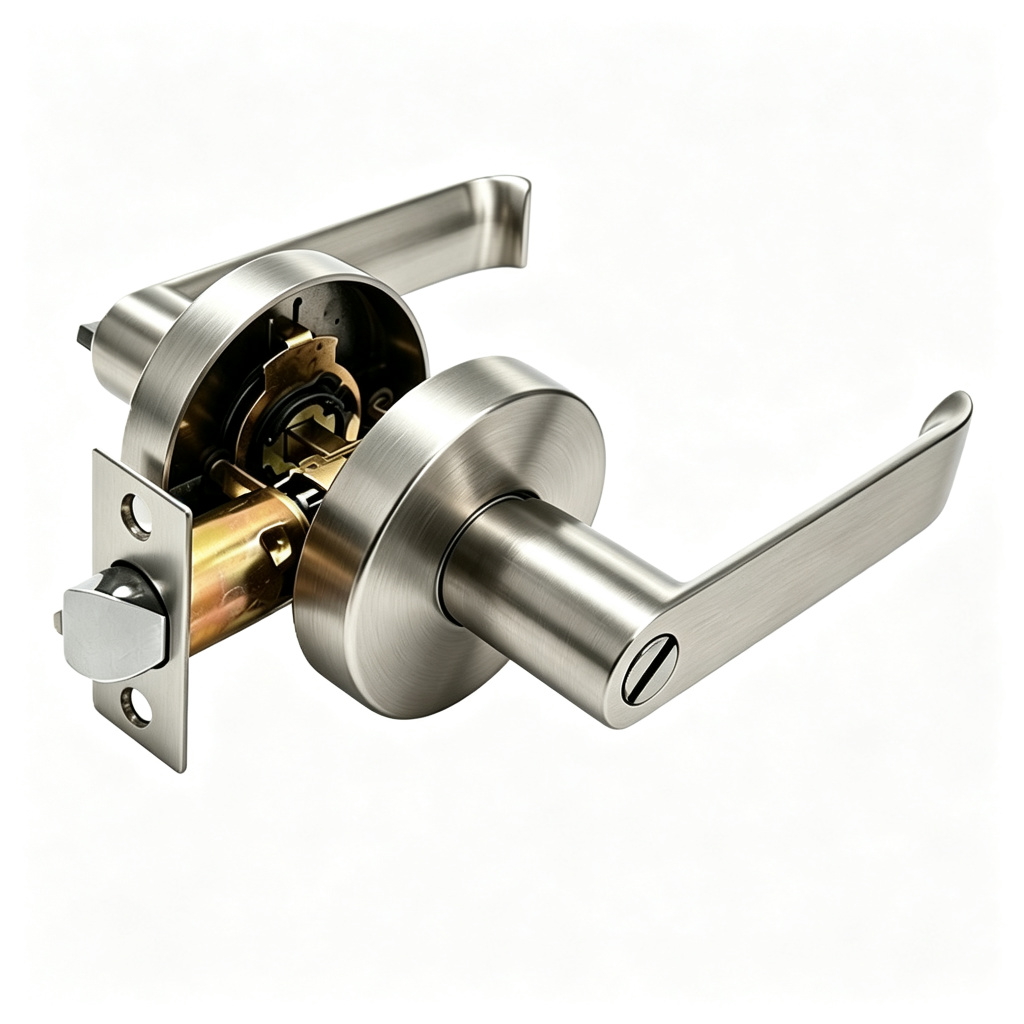

Modern Round Rosette Tubular Privacy Door Lever - Satin Nickel
Designed for interior private spaces including bathrooms, bedrooms, guest rooms and home offices, this privacy lever locks from the inside with a smooth thumb-turn knob and features a built-in emergency release slot on the exterior for safety. Rated for over 200,000 operating cycles and certified to ANSI/BHMA Grade 3 standards, it comes with a fully reversible non-handed design and adjustable 60/70mm latch to fit all standard North American residential doors.
The elegant round rosette base and ergonomic curved lever handle complement traditional, transitional and modern interior styles, while the ADA-compliant design ensures easy operation for all users.
- Product Information
Features
| Model No. | 6932R-SN |
|---|---|
| Brand Name | WingsTec |
| Usage | Wooden Door |
| Design Style | Modern / Western Style |
| Type | Residential / Easy Installation |
| Warranty | Exceeds 200,000 Cycles, 5 Years Lifetime |
| Certification | ANSI/BHMA 156.2 Grade 3 |
| Application | Interior Residential Doors, Bathroom, Bedroom |
| Hand Orientation | Reversible Lever |
B2B Information
| Place of Origin | China |
|---|---|
| Sample | Available within 3 days |
| OEM/ODM | Logo laser engraving welcomed |
| MOQ | 500pcs (Negotiable) |
| Lead Time | 25-35 Days |
| Submit an RFQ | Click Here To Fill |
| Sample & Prototype | Verified Buyers are Sample Free |
Technical Specifications
| Material | Zinc Alloy |
|---|---|
| Function | BK (Privacy) standard; DM:0 (Dummy), BK:2 (Privacy), PS: 3(Passage) ET:1 (Entrance) optional |
| Finish | SN/US15 standard; SC/26D, PB/US3 optional |
| Door Prep | Cross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"×2-1/4" (25.4×57mm) |
| Door Thickness | Fits doors 1-3/8" (35mm) to 2" (50mm) thick |

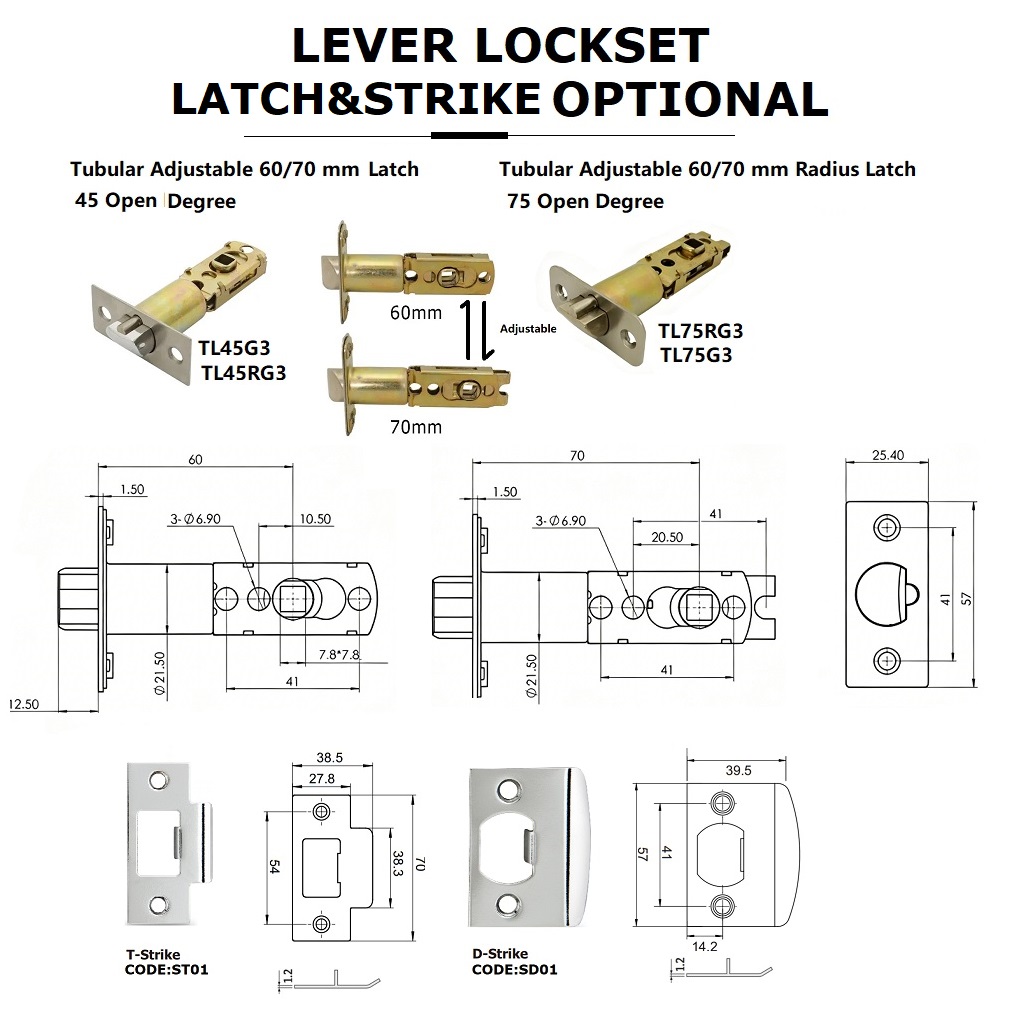

| Lock Latch | 2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional |
| Thumbturn | optional |
| Faceplate | Square corner 1"×2-1/4" (25.4×57mm) standard; radius corner available |
| Strike | T-Strike 1-1/2"×2-3/4" (38×70mm) standard; D-Strike 1-1/2"×2-1/4" (39.5×57mm) optional |
| Technical Drawing | Click Here To Download |
Packaging Information
| Packing Way | 1 pair in 1 white box; custom design color boxes & blister pack available |
|---|---|
| Package Size | 25 × 10 × 5 CM |
| Single Box G.W | 1 KGS |
- FAQ
Frequently Asked Questions
Model & Core Specifications

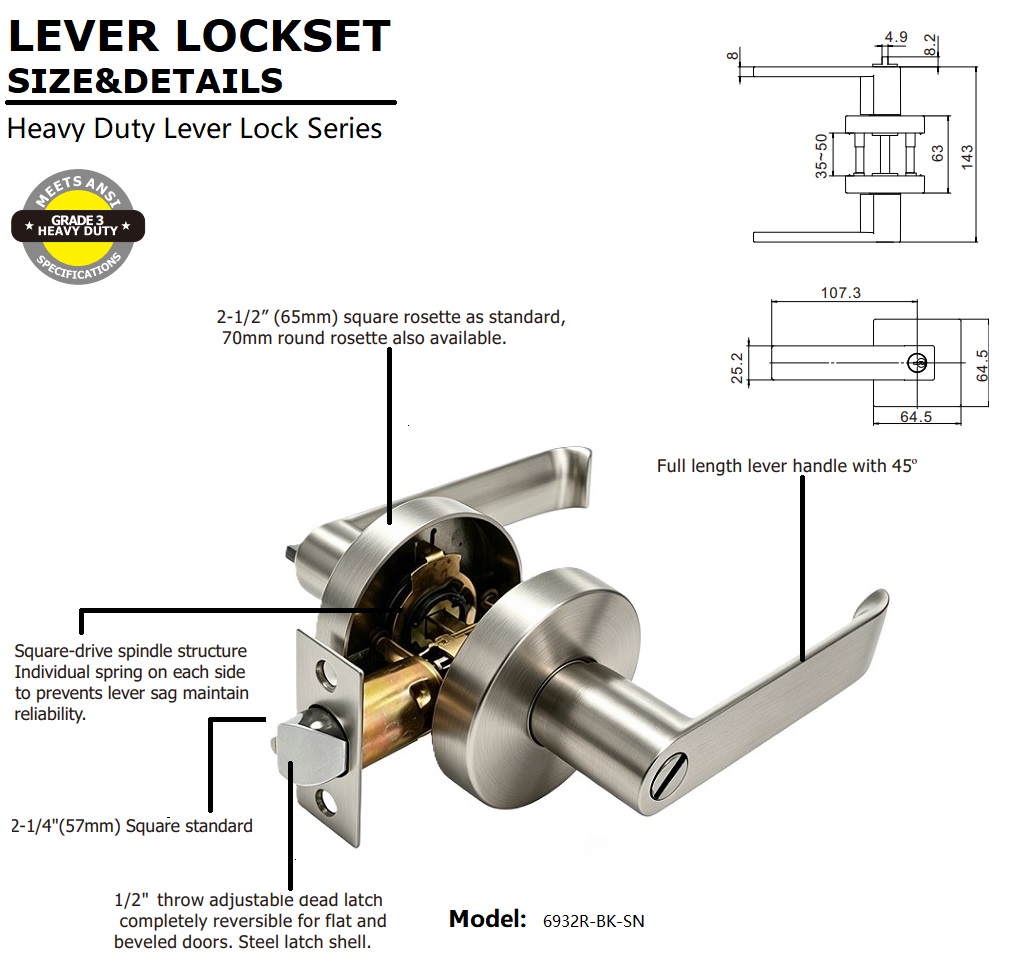

What is the model number of this round heavy duty lever lockset?
The model displayed is 6932R-BK-SN, belonging to our Heavy Duty Lever Lock Series, finished in premium brushed satin nickel. This round rosette design supports entry, privacy, passage and dummy function configurations for all interior and light exterior residential doors.
What rosette sizes and shapes are available for this lock?
This lock comes with a standard 70mm round rosette. We also offer a 2-1/2" (65mm) square rosette as an alternative option for bulk project orders to match different interior design styles.
What is the standard faceplate dimension included?
A 2-1/4" (57mm) square faceplate is included as standard, fully compatible with standard North American residential and light commercial door preps.
Mechanical Structure & Handle Features
What spindle design does this lever lock adopt?
It features a square-drive spindle with an independent return spring installed on each side of the handle. This dual-spring design effectively eliminates lever sag after long-term frequent use and maintains consistent smooth operation for years.
What is the opening angle of the full-length lever handle?
The full-length ergonomic lever handle is engineered with a 45° opening angle, delivering soft, effortless operation and a comfortable grip for daily use.
What type of latch bolt is supplied with this lockset?
It is equipped with a 1/2" throw adjustable dead latch with a solid steel latch shell. The latch assembly is fully reversible, and works perfectly with both flat and beveled door edges without extra adjustments.
Installation & Door Compatibility
What door thickness can this round lever lock fit?
This lock fits door thickness ranging from 35mm to 50mm (1-3/8" to 2"), covering nearly all standard wooden residential interior and entry doors.
Is this lock reversible for left-hand and right-hand swing doors?
Yes, both the lever handle and dead latch are fully reversible with no extra tools or modification required. It works on left-handed and right-handed doors equally, simplifying contractor inventory and on-site installation.
Does this lock match standard ANSI door cutout sizes?
Yes, it follows standard cylindrical lock door prep dimensions: 54mm cross bore and 25mm edge bore, matching pre-drilled doors for North American residential markets.
Certifications & Durability Performance
What ANSI performance grade does this heavy duty lever lock meet?

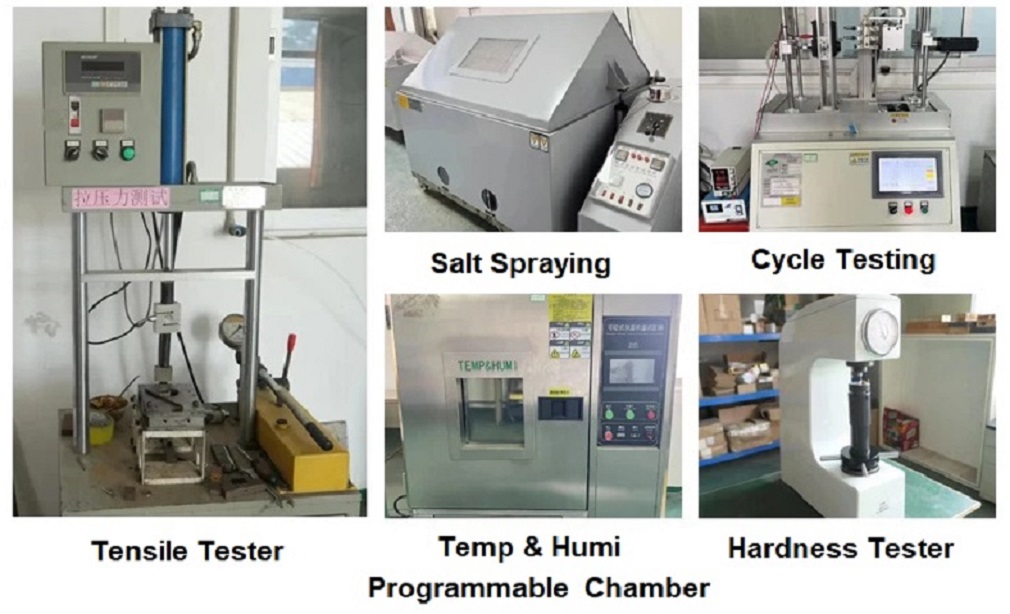

This lockset fully meets ANSI/BHMA A156.2 Grade 3 heavy duty specifications, rigorously tested to withstand over 200,000 operating cycles, ideal for standard residential and light commercial high-traffic applications.
Is this lever handle ADA accessibility compliant?
Yes. The curved lever design satisfies all ADA accessibility requirements. It can be operated easily with a closed fist or single hand without tight grasping or twisting, complying with US and Canadian building accessibility codes.
Trim Finish & Function Configurations
What surface finish options are available for model 6932R-BK-SN?
Standard finish is Brushed Satin Nickel (SN). Optional architectural finishes include Matte Black, Antique Bronze, Polished Chrome, Satin Chrome and PVD Brushed Gold for project customization.

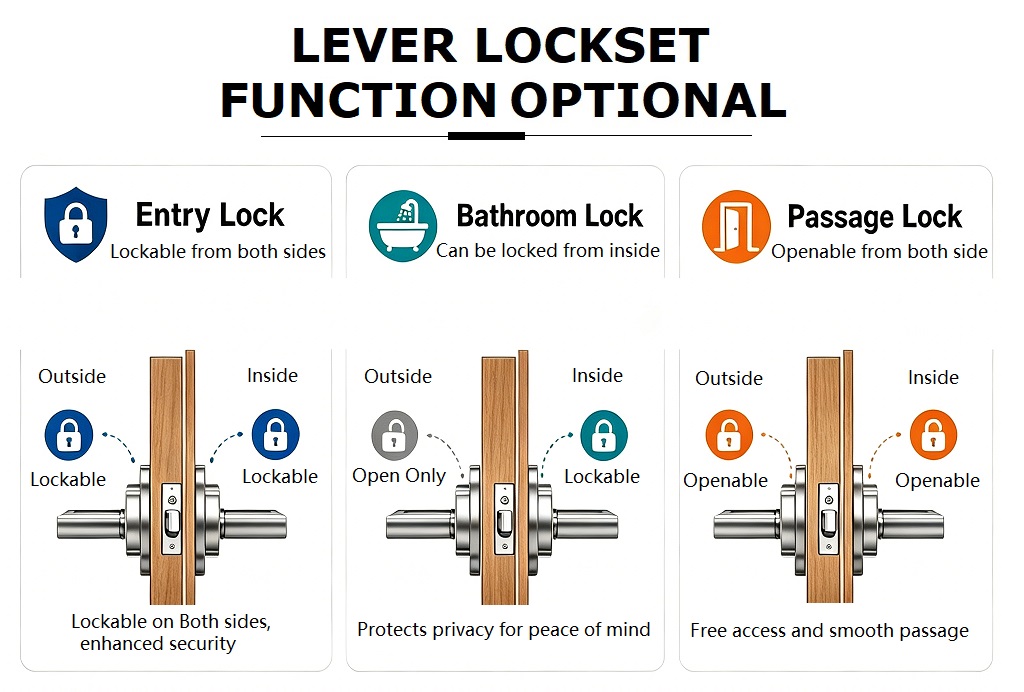

What lock functions are supported in this 6932R lever series?
We offer four complete function options to match all room use cases:
Entry (ET): Keyed exterior lock with interior thumb-turn for front entry doors
Privacy (BK): Bathroom/bedroom lock with emergency release slot for private rooms
Passage (PS): Non-locking free-operating handle for hallways, closets and pantries
Dummy (DM): Non-functional decorative handle for inactive double doors
