Modern Square Rosette Tubular Privacy Door Lever - Satin Nickel

Modern Square Rosette Tubular Privacy Door Lever - Satin Nickel

Upgrade your bathroom and bedroom doors with our modern square rosette tubular privacy door lever. Crafted from heavy-duty zinc alloy with a premium brushed satin nickel anti-fingerprint finish, this residential-grade privacy lock delivers clean contemporary style combined with reliable daily performance.
Designed for interior private spaces including bathrooms, bedrooms, guest rooms and home offices, this privacy lever locks from the inside with a smooth thumb-turn knob and features a built-in emergency release slot on the exterior for safety. Rated for over 200,000 operating cycles and certified to ANSI/BHMA Grade 3 standards, it comes with a fully reversible non-handed design and adjustable 60/70mm latch to fit all standard North American residential doors.
The sharp square rosette base and ergonomic L-shape lever handle complement modern, minimalist and geometric interior styles, adding a sleek architectural touch to any home.
  • Product Information

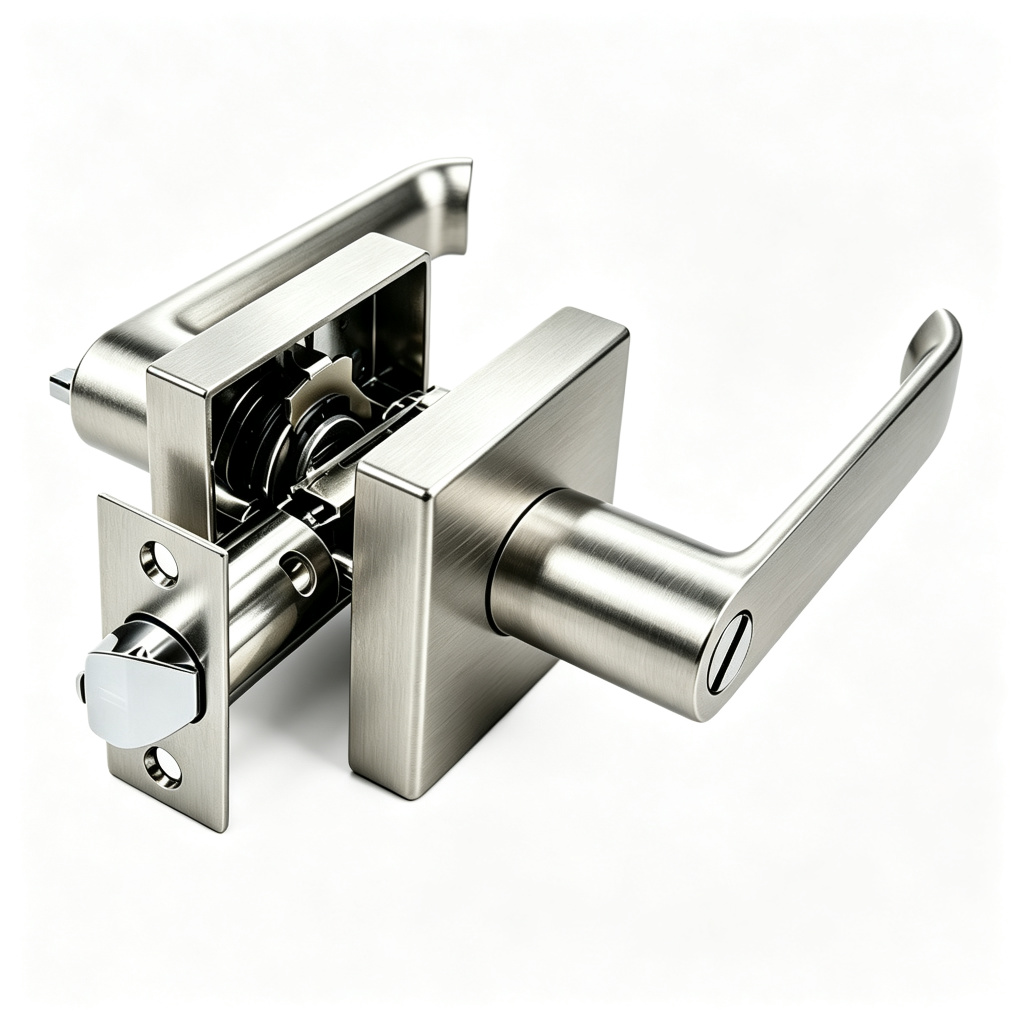

Square Rosette Tubular Privacy Door Lever Internal Lock Mechanism - Satin Nickel

Features
Model No.6932-SN
Brand NameWingsTec
UsageWooden Door
Design StyleModern / Western Style
TypeResidential / Easy Installation
WarrantyExceeds 200,000 Cycles, 5 Years Lifetime
CertificationANSI/BHMA 156.2 Grade 3
ApplicationInterior Residential Doors, Bathroom, Bedroom
Hand OrientationReversible Lever
B2B Information
Place of OriginChina
SampleAvailable within 3 days
OEM/ODMLogo laser engraving welcomed
MOQ500pcs (Negotiable)
Lead Time25-35 Days
Submit an RFQClick Here To Fill
Sample & PrototypeVerified Buyers are Sample Free
Technical Specifications
MaterialZinc Alloy
Function BK (Privacy) standard; DM:0 (Dummy), BK:2 (Privacy), PS: 3(Passage) ET:1 (Entrance) optional
FinishSN/US15 standard; SC/26D, PB/US3 optional
Door PrepCross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"×2-1/4" (25.4×57mm)
Door ThicknessFits doors 1-3/8" (35mm) to 2" (50mm) thick
Lock Latch2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional
Thumbturnoptional
FaceplateSquare corner 1"×2-1/4" (25.4×57mm) standard; radius corner available
StrikeT-Strike 1-1/2"×2-3/4" (38×70mm) standard; D-Strike 1-1/2"×2-1/4" (39.5×57mm) optional
Technical DrawingClick Here To Download
Packaging Information
Packing Way1 pair in 1 white box; custom design color boxes & blister pack available
Package Size25 × 10 × 5 CM
Single Box G.W1 KGS
Door Handle Product Spec Table

Morden Bathroom Door Lever with Lock

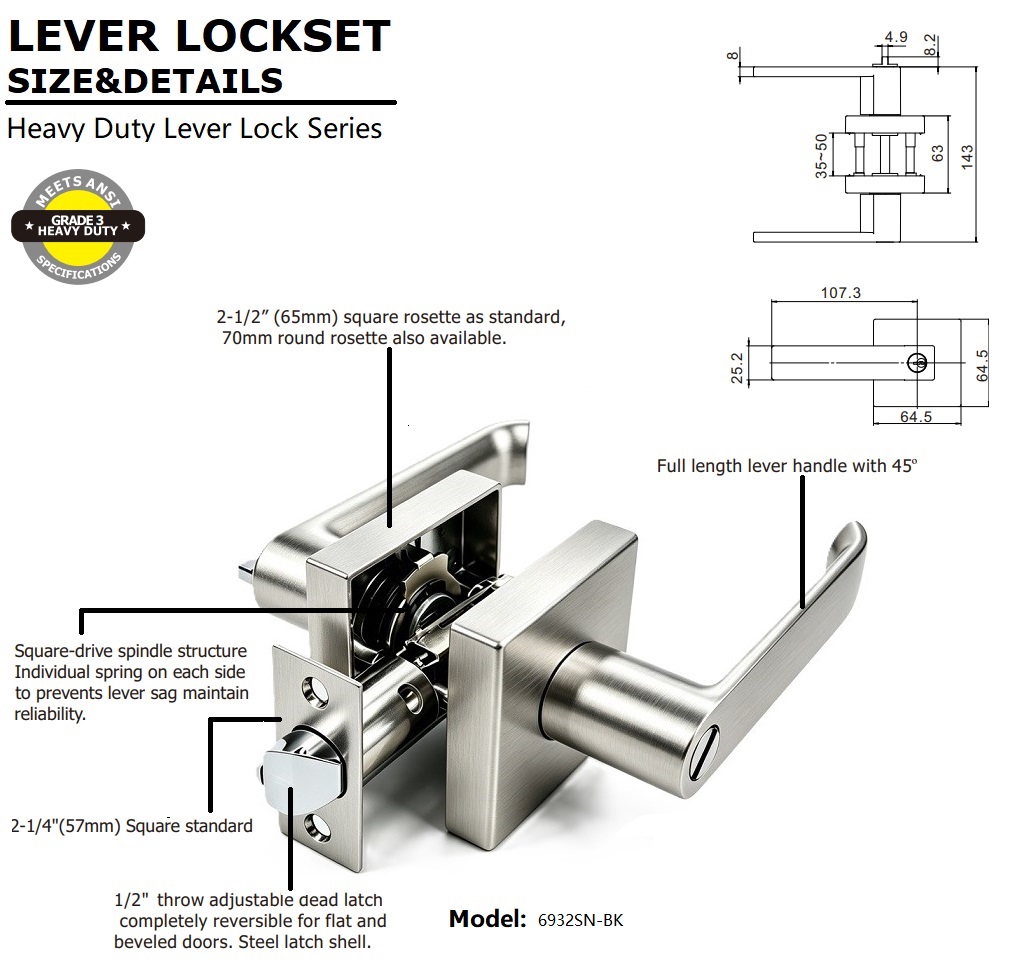

Heavy Duty Door Lever Lockset

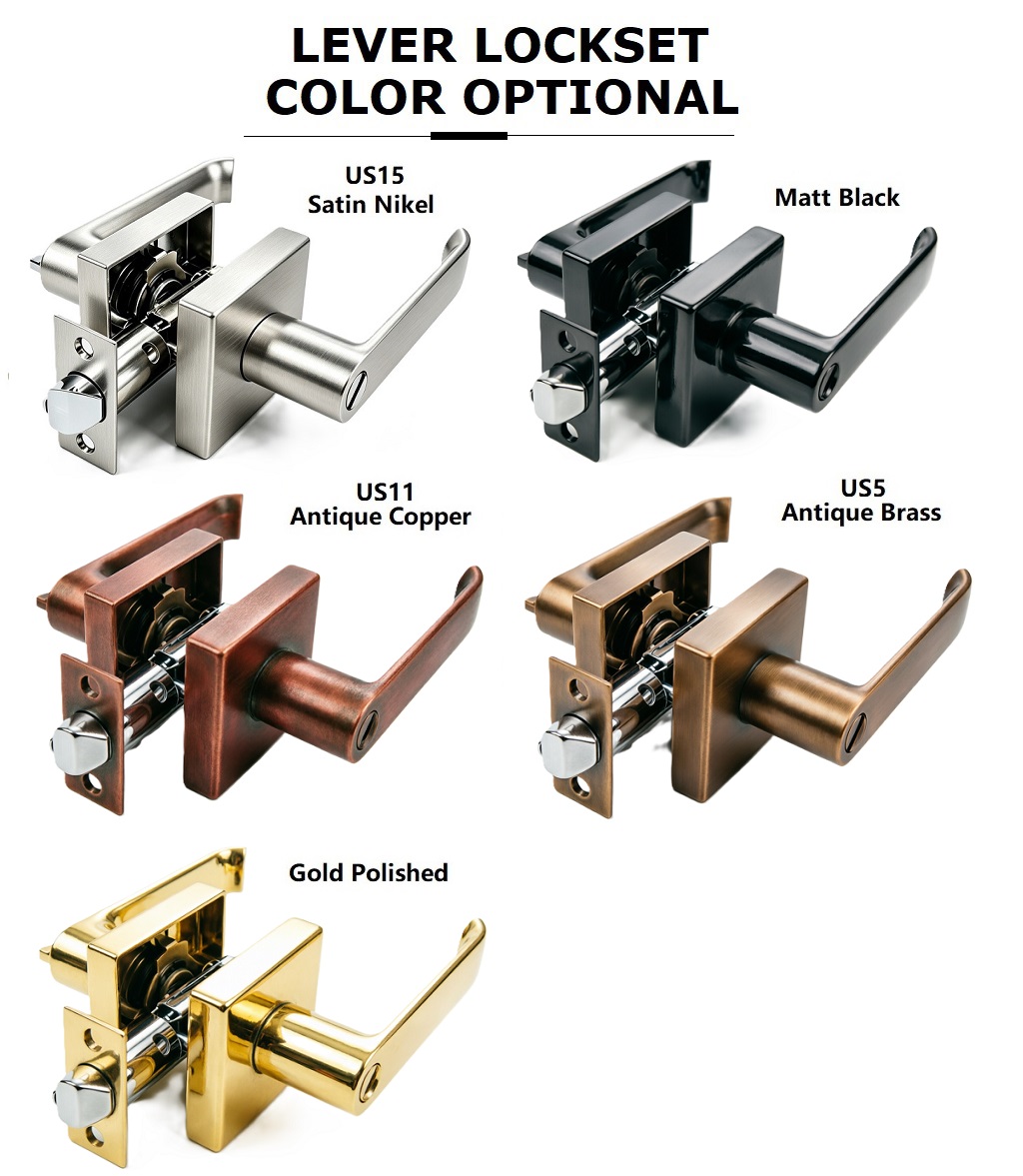

Square Lever Lockset Colors

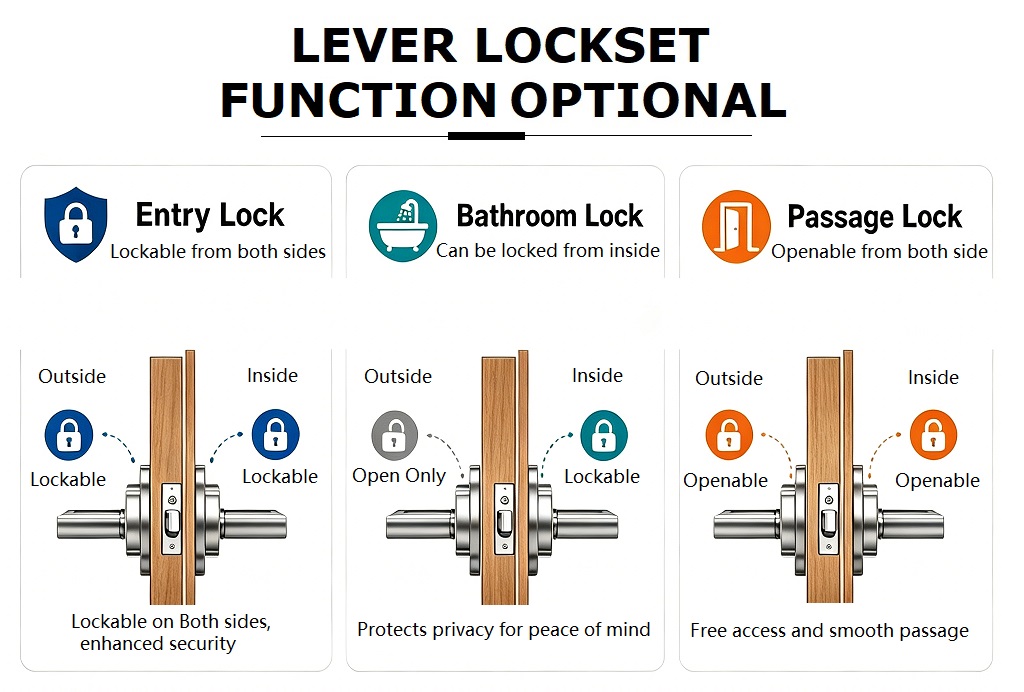

Door Lever Lockset Function

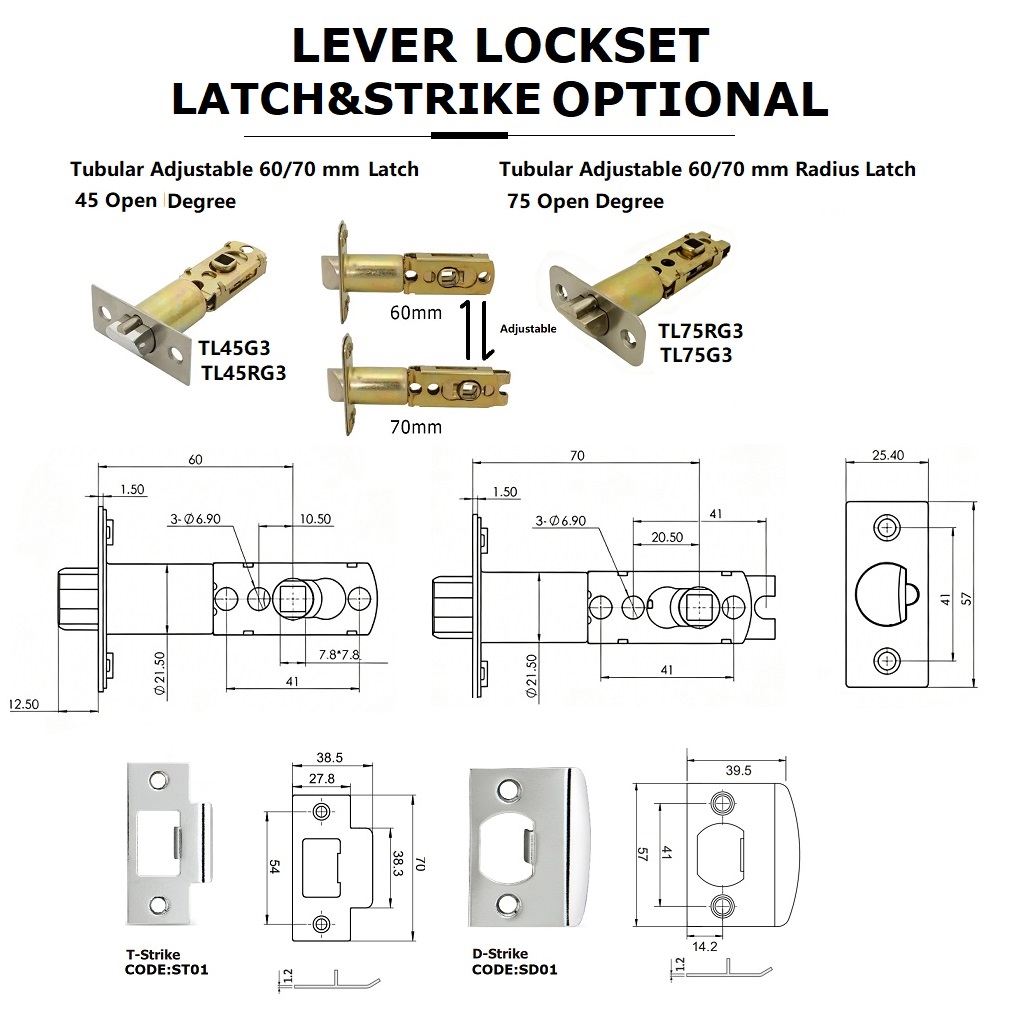

Latch and Strike of Lever Lockset

Lever Locksets package

Lever Locksets Certification

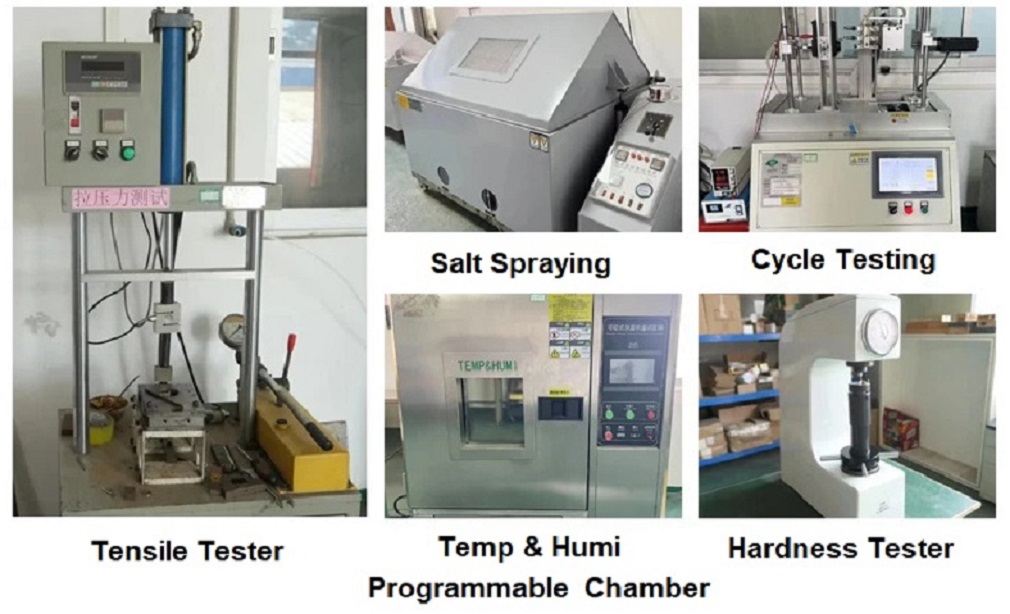

Lever Locksets quality controll
