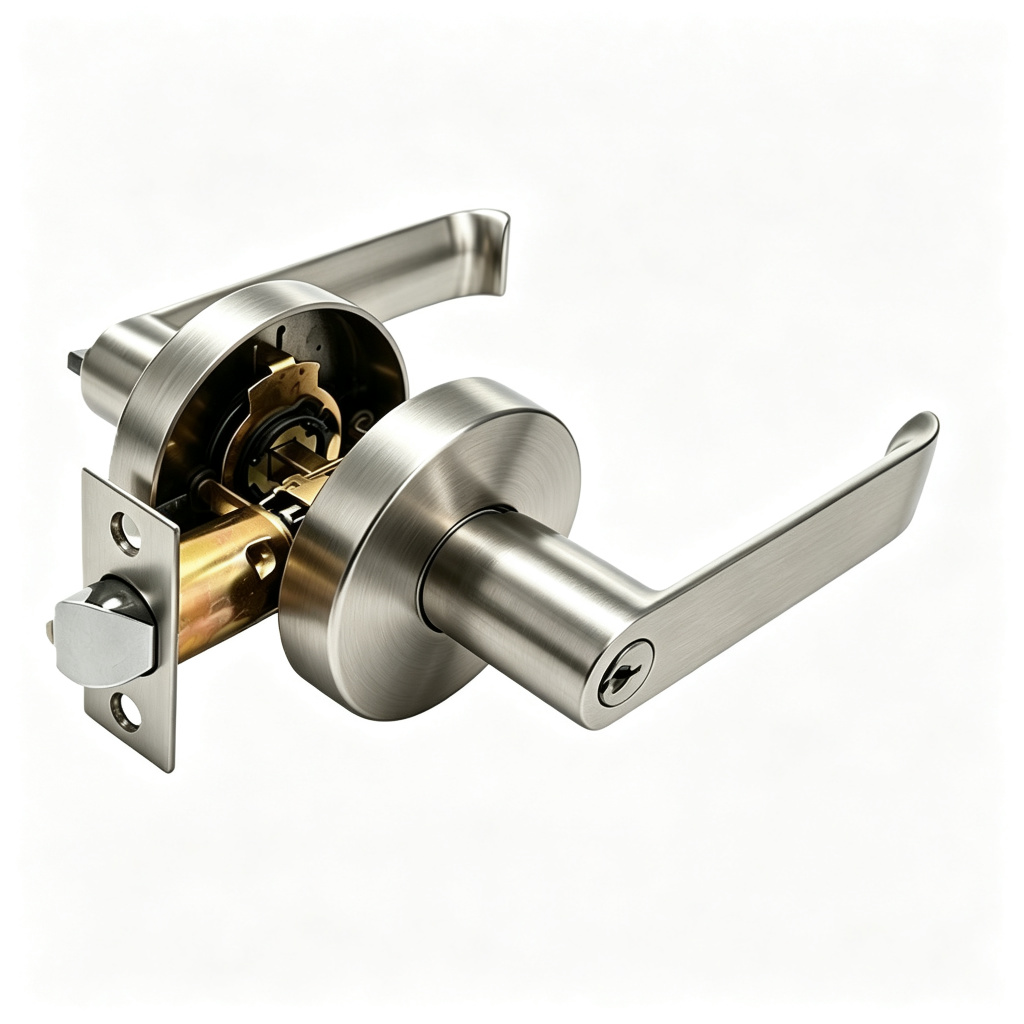

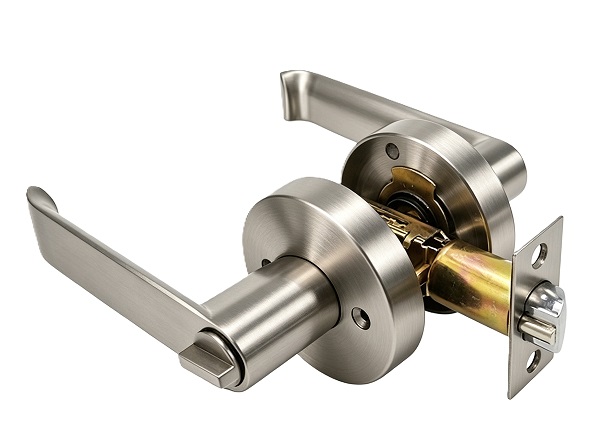

Round Rosette Keyed Entry Door Lever Internal Lock Mechanism - Satin Nickel
Designed for exterior front doors, entryways, home offices and storage rooms that require keyed access, this entry lever features a high-precision 5-pin brass cylinder on the exterior and a convenient interior turn-button for quick locking. Rated for over 200,000 operating cycles and certified to ANSI/BHMA Grade 3 standards, it comes with a fully reversible non-handed design and adjustable 60/70mm latch to fit all standard North American residential doors.
The elegant round rosette base and ergonomic lever handle complement all architectural styles, while the ADA-compliant design ensures easy operation for all users. Supports master keyed, keyed alike and construction keyed systems for multi-unit projects.
- Product Information
Features
| Model No. | 6911R-SN |
|---|---|
| Brand Name | WingsTec |
| Usage | Wooden Door |
| Design Style | Modern / Western Style |
| Type | Residential / Easy Installation |
| Warranty | Exceeds 200,000 Cycles, 5 Years Lifetime |
| Certification | ANSI/BHMA 156.2 Grade 3 |
| Application | Exterior Residential Doors, Entryways, Home Offices and Storage Rooms |
| Hand Orientation | Reversible Lever |
B2B Information
| Place of Origin | China |
|---|---|
| Sample | Available within 3 days |
| OEM/ODM | Logo laser engraving welcomed |
| MOQ | 500pcs (Negotiable) |
| Lead Time | 25-35 Days |
| Submit an RFQ | Click Here To Fill |
| Sample & Prototype | Verified Buyers are Sample Free |
Technical Specifications
| Material | Zinc Alloy |
|---|---|
| Function | ET (Entrance) standard; DM (Dummy), BK (Privacy), PS (Passage) optional |
| Finish | SN/US15 standard; SC/26D, PB/US3 optional |
| Door Prep | Cross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"×2-1/4" (25.4×57mm) |
| Door Thickness | Fits doors 1-3/8" (35mm) to 2" (50mm) thick |

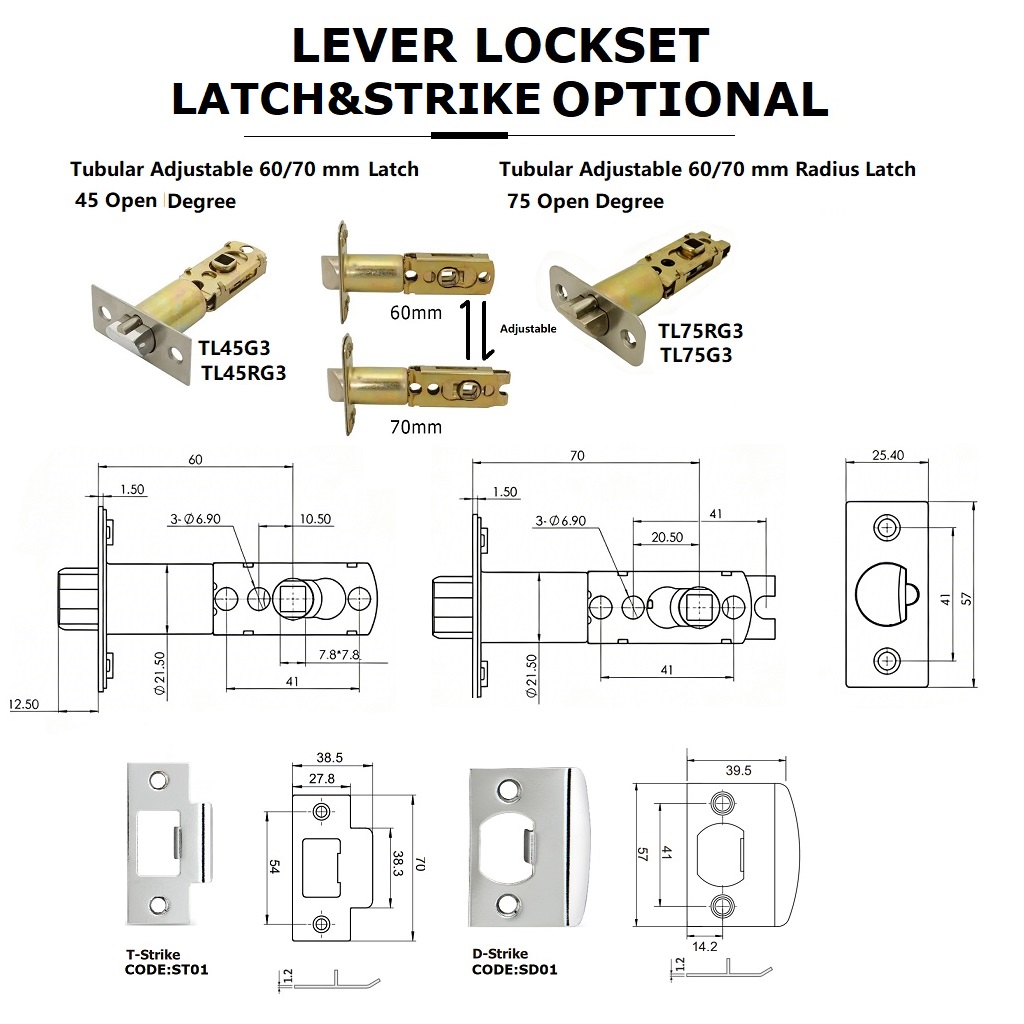

| Lock Latch | 2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional |
| Cylinder | 5-pin removable core; Schlage C Keyway, Kwikset, Yale or C4 keyway optional |
| Faceplate | Square corner 1"×2-1/4" (25.4×57mm) standard; radius corner available |
| Strike | T-Strike 1-1/2"×2-3/4" (38×70mm) standard; D-Strike 1-1/2"×2-1/4" (39.5×57mm) optional |
| Technical Drawing | Click Here To Download |
Packaging Information
| Packing Way | 1 pair in 1 white box; custom design color boxes & blister pack available |
|---|---|
| Package Size | 25 × 10 × 5 CM |
| Single Box G.W | 1 KGS |
- FAQ
Frequently Asked Questions
Model & Core Specifications
What is the model number of this keyed entry lever lockset?

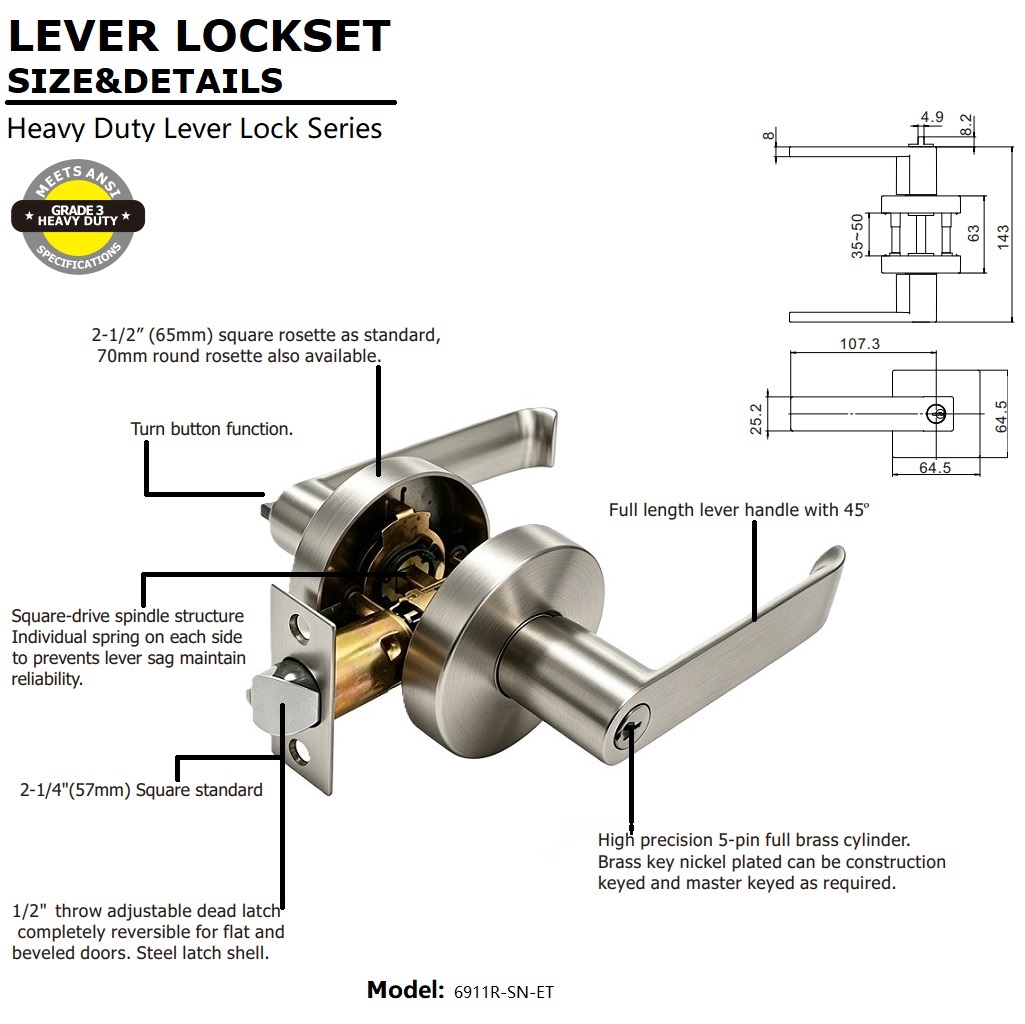

The model shown is 6911R-SN-ET, a heavy-duty keyed entry tubular lever lock from our Heavy Duty Lever Lock Series, finished in premium brushed satin nickel.
What rosette sizes and shapes are available for this lock?
The standard configuration comes with a 2-1/2" (65mm) square rosette. A 70mm round rosette is available as an alternative option for bulk project orders to match different interior design styles.
What is the standard faceplate dimension included?
A 2-1/4" (57mm) square faceplate is included as standard, which fits standard North American residential and light commercial door prep standards.
Mechanical Structure & Entry Function Features
What spindle structure does this entry lever lock adopt?
It features a square-drive spindle with an independent return spring installed on each side of the handle. This dual-spring design effectively prevents lever sag after long-term frequent use and maintains consistent smooth operation over years of use.
What is the opening angle of the full-length lever handle?
The ergonomic full-length lever handle is designed with a 45° opening degree, delivering soft, effortless operation and a comfortable grip for daily entry access.
What type of latch bolt is equipped on this keyed entry lockset?
This lock comes with a 1/2" throw adjustable dead latch with a solid steel latch shell. The latch assembly is fully reversible, and works perfectly with both flat and beveled door edges without extra modification.
Does this keyed entry lock include an interior turn button?
Yes. This entry function model is fitted with an inside turn button, allowing users to lock and unlock the door conveniently from the interior side without a key.
Cylinder & Master Keying System

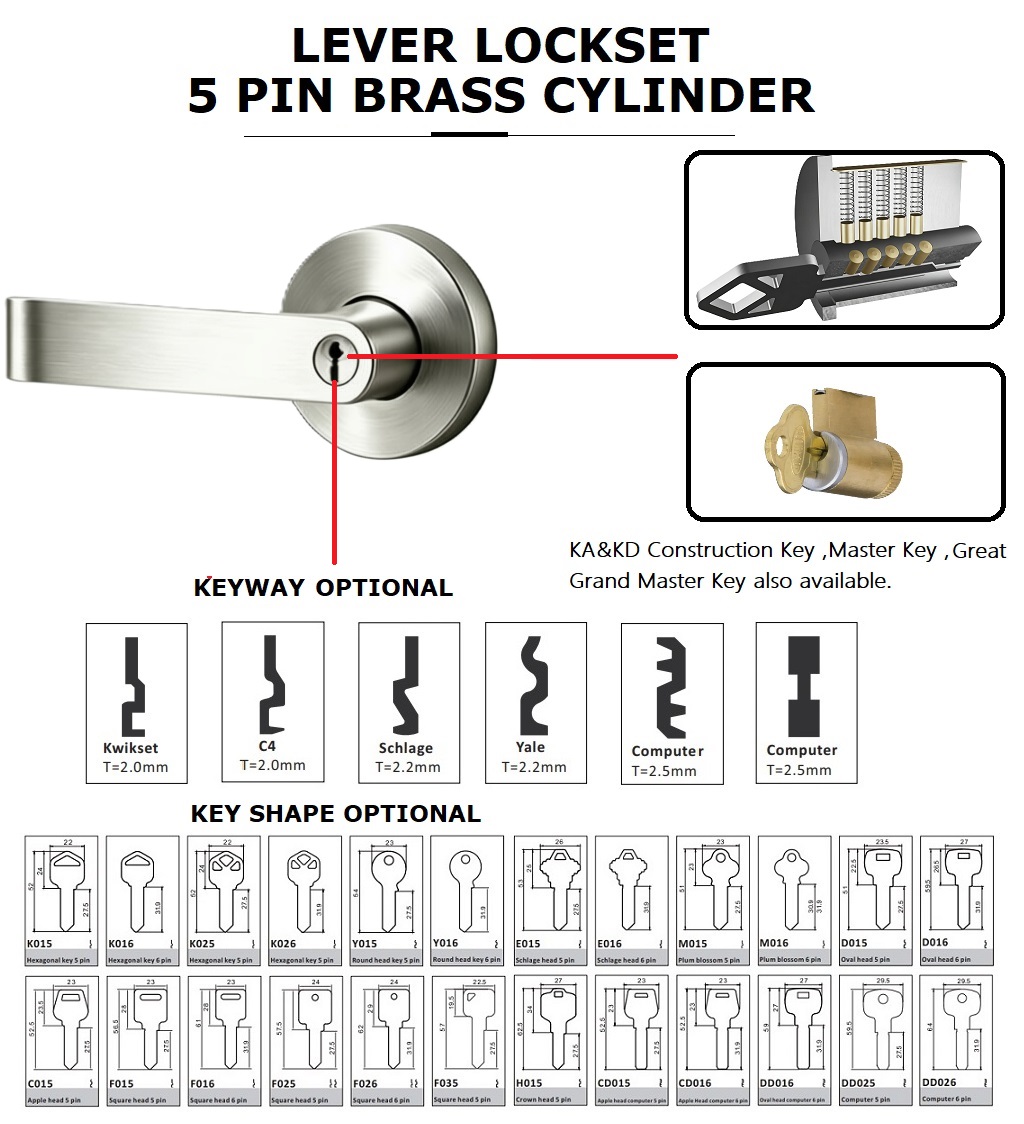

What cylinder is built into this keyed entry lever lock?
It uses a high-precision 5-pin full brass cylinder, paired with nickel-plated brass keys for ultra-smooth operation, strong corrosion resistance and extended service life.
Does this cylinder support construction keying and master key systems?
Yes. This lock cylinder supports construction keyed, master keyed (MK), grand master keyed (GMK), keyed alike (KA) and keyed different (KD) configurations, ideal for multi-unit apartments, residential communities and commercial building projects.
Installation & Door Compatibility
What door thickness can this keyed entry lever lock fit?
It fits standard door thickness ranging from 1-3/8" (35mm) to 2" (50mm), covering most residential wooden exterior doors and light commercial interior entry doors.
Is this lock reversible for left-hand and right-hand swing doors?
Yes, both the lever handle and dead latch are fully reversible without extra tools or modification required. It works on left-handed and right-handed doors equally, simplifying contractor inventory management and on-site DIY installation.
Does this lock match standard ANSI door cutout dimensions?
Yes, it complies with standard cylindrical lock door prep: 2-1/8" (54mm) cross bore and 1" (25mm) edge bore, perfectly matching pre-drilled doors for North American residential markets.
Certifications & Durability Performance
What ANSI performance grade does this heavy duty entry lever lock meet?
This lockset fully meets ANSI/BHMA A156.2 Grade 3 heavy duty specifications, rigorously tested to withstand over 200,000 operating cycles, suitable for standard residential exterior entry doors and light commercial high-traffic areas.
Is this lever handle ADA accessibility compliant?
Yes. The full-length curved lever design satisfies all ADA accessibility requirements. It can be operated easily with a closed fist or single hand without tight grasping or twisting, complying with US and Canadian building accessibility codes.
Trim Finish & Series Function Options
What surface finish options are available for model 6911R-SN-ET?
The standard finish is Brushed Satin Nickel (SN). Optional architectural finishes include Matte Black, Antique Bronze, Polished Chrome, Satin Chrome and PVD Brushed Gold for custom project orders.

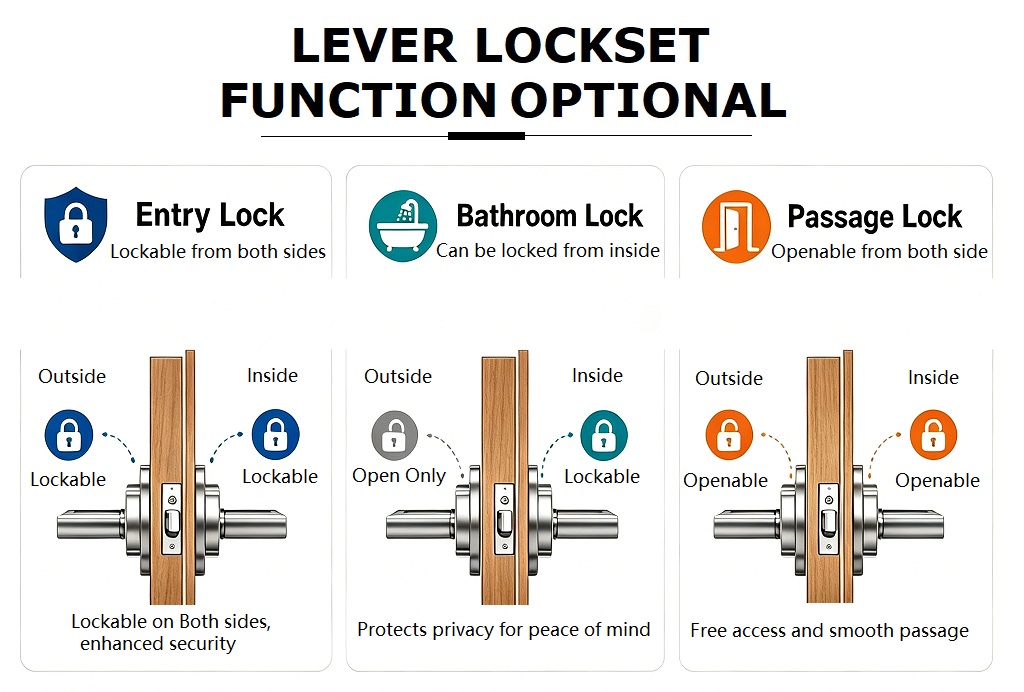

What other lock functions are supported in this 6911R lever series?
This heavy duty lever series supplies four complete function configurations with identical trim design:
Entry (ET): Keyed entry lock with interior turn button (this model), for exterior front entry doors
Privacy (BK): Bathroom / bedroom lock with emergency release slot for private interior rooms
Passage (PS): Non-locking free-operating handle for hallways, closets and pantries
Dummy (DM): Non-functional decorative handle for inactive double decorative doors
Can I switch the square rosette to a round rosette for this entry lock?
Yes. Matching 70mm round rosette trim kits are available for bulk project orders, allowing you to adjust the appearance without replacing the whole lock mechanical assembly.
