Affordable Residential Tubular Slipped Privacy Door Lever
Affordable Residential Tubular Slipped Privacy Door Lever

Affordable Residential Tubular Slipped Privacy Door Lever

Budget slipped privacy lever, zinc alloy satin nickel anti-fingerprint finish. ANSI Grade 3, 200,000-cycle test, built-in emergency release, reversible L/R, adjustable 60/70mm latch for rental bathroom & bedroom doors.
  • Product Information
Features
Model No.6422-SN
Brand NameWingsTec
UsageWooden Door
Design StyleModern / Western Style
TypeResidential / Easy Installation
WarrantyExceeds 200,000 Cycles, 5 Years Lifetime
CertificationANSI/BHMA 156.2 Grade 3
ApplicationInterior Residential Doors, Bathroom, Bedroom
Hand OrientationReversible Lever
B2B Information
Place of OriginChina
SampleAvailable within 3 days
OEM/ODMLogo laser engraving welcomed
MOQ500pcs (Negotiable)
Lead Time25-35 Days
Submit an RFQClick Here To Fill
Sample & PrototypeVerified Buyers are Sample Free
Technical Specifications
MaterialZinc Alloy
Function BK (Privacy) standard; DM:0 (Dummy), BK:2 (Privacy), PS: 3(Passage) ET:1 (Entrance) optional
FinishSN/US15 standard; SC/26D, PB/US3 optional
Door PrepCross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"×2-1/4" (25.4×57mm)
Door ThicknessFits doors 1-3/8" (35mm) to 2" (50mm) thick
Lock Latch2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional
Thumbturnoptional
FaceplateSquare corner 1"×2-1/4" (25.4×57mm) standard; radius corner available
StrikeT-Strike 1-1/2"×2-3/4" (38×70mm) standard; D-Strike 1-1/2"×2-1/4" (39.5×57mm) optional
Technical Drawing

Click Here To Download

Packaging Information
Packing Way1 pair in 1 white box; custom design color boxes & blister pack available
Package Size25 × 10 × 5 CM
Single Box G.W1 KGS
Door Handle Product Spec Table

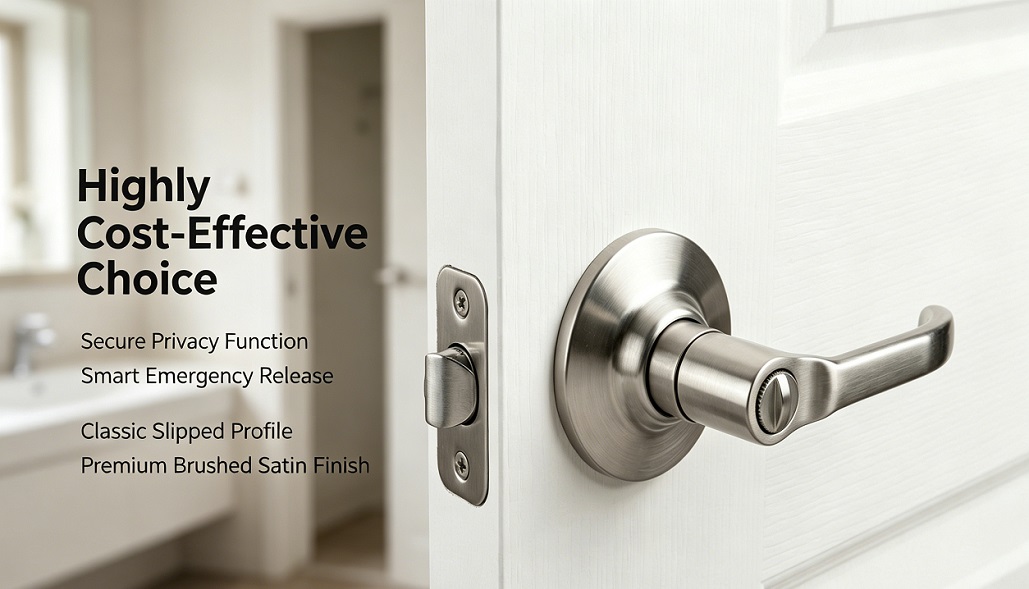

Door Lever Lock Installation and Application

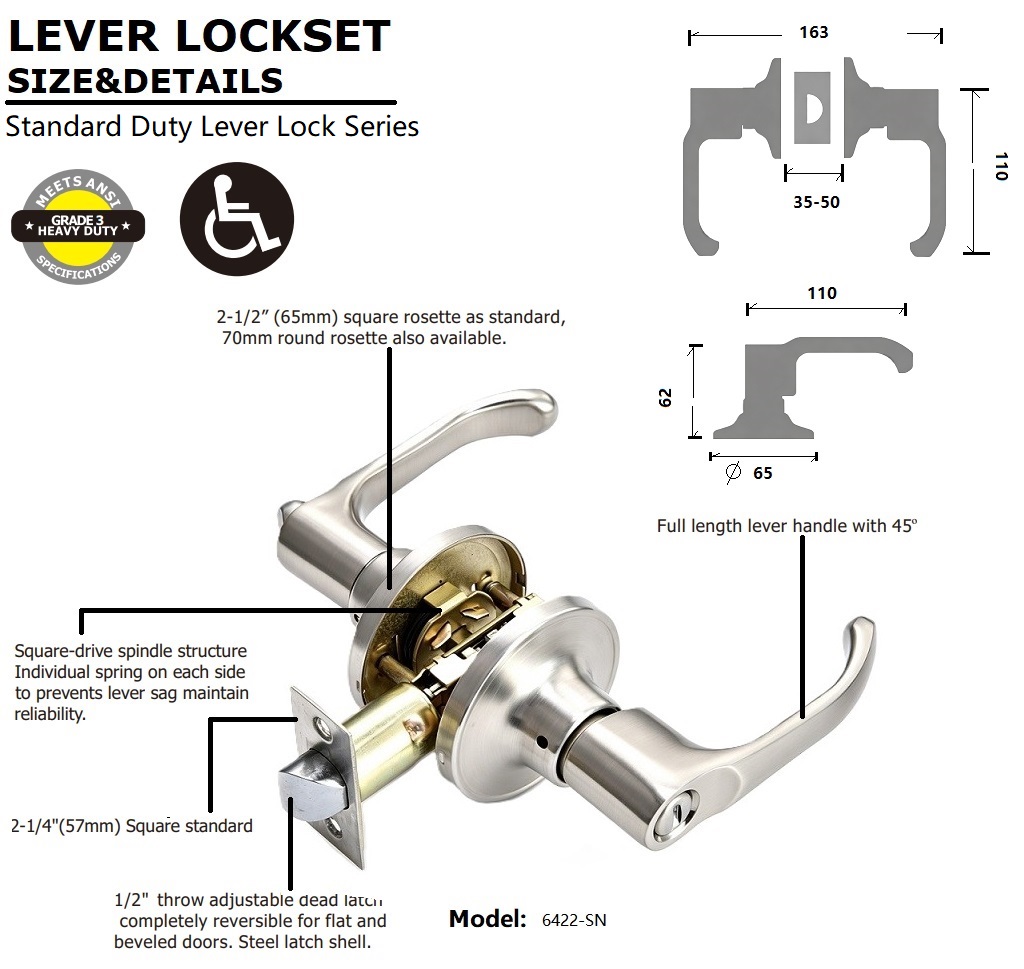

Tubular Privacy Lever Lock size and details

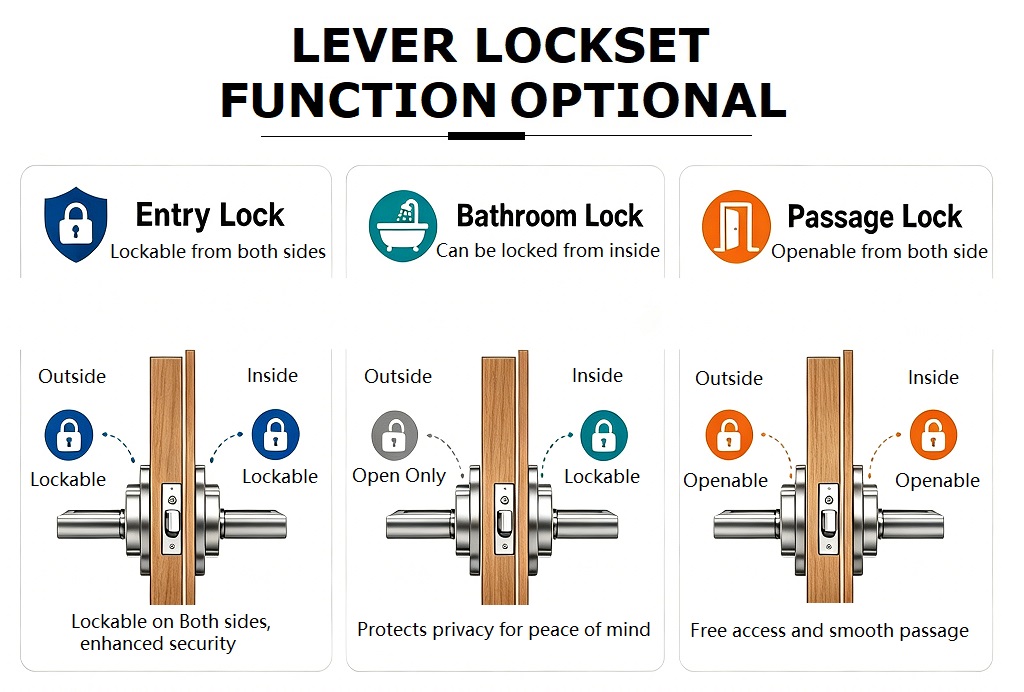

Door Lever Lock Functions

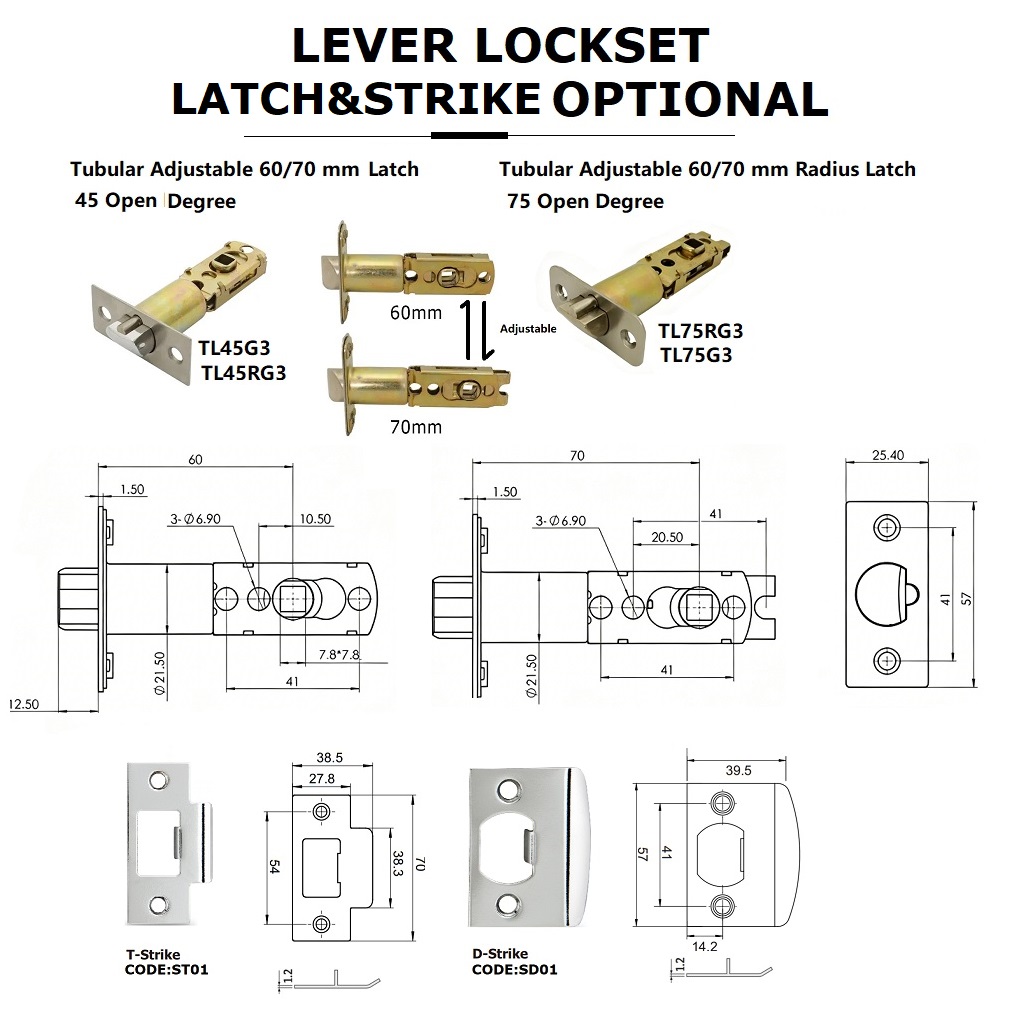

Door Lever Lock Latch and Strike Details

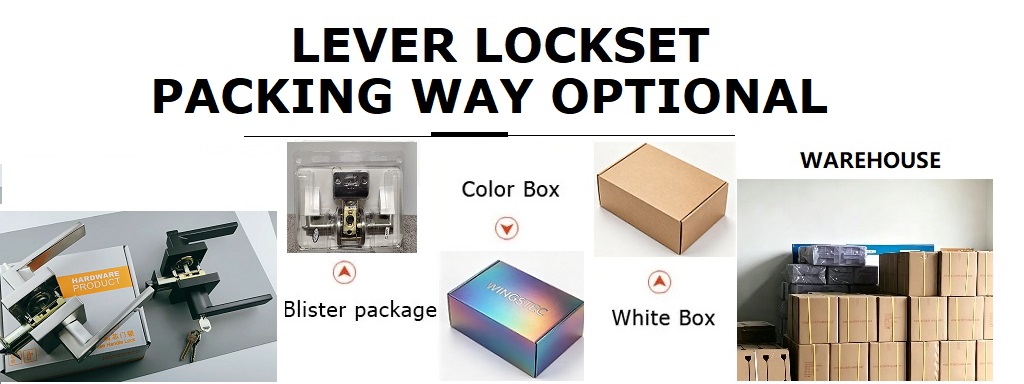

Door Lever Lock Package

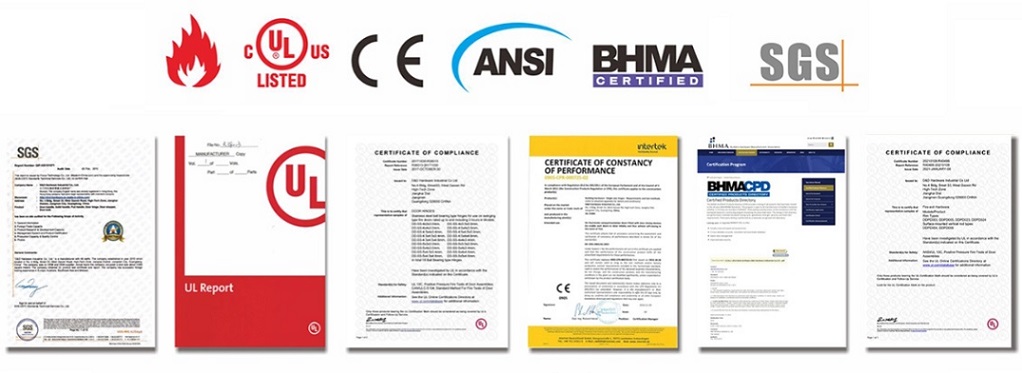

Door Lever Lock Certifications

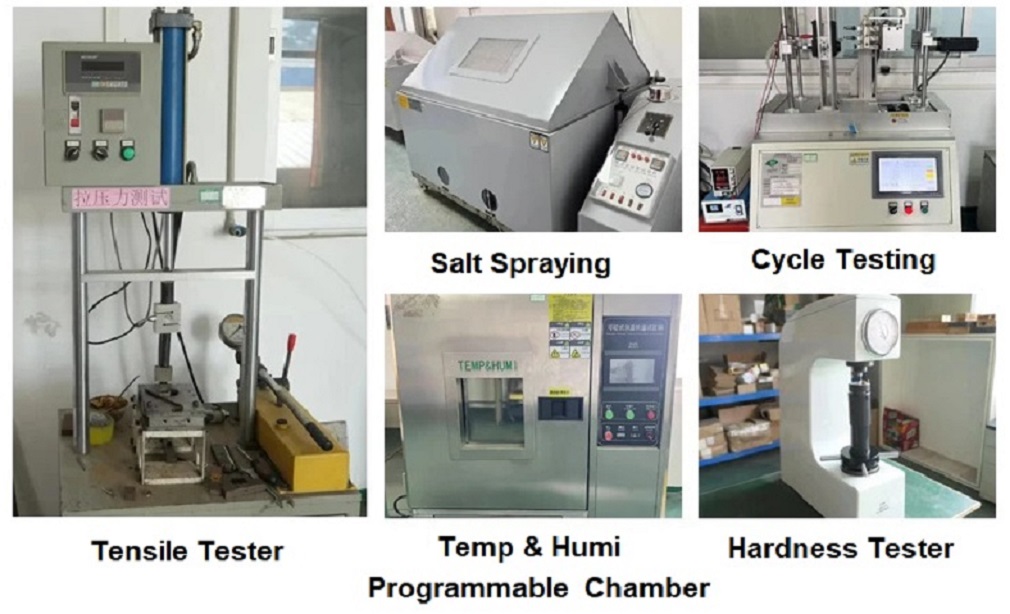

Door Lever Lock QC Controll


  • FAQ

FAQs About Classic Wave Privacy Tubular Door Lever Lock

What is a classic wave privacy tubular door lever, and where to install it?

This classic wave privacy tubular door lever is a traditional style American residential door hardware, designed for interior private spaces including bathrooms, bedrooms, powder rooms and home offices. It features a timeless wave-shaped lever handle with a round rosette base, offering an elegant, classic look that complements traditional and transitional home interiors. The privacy function includes a turn-button lock on the interior side and an emergency pin hole on the exterior lever for accidental lock-in situations — no exterior key cylinder required. Built with standard tubular lock construction, it fits all standard pre-drilled residential door holes across USA, Canada and Australia.

Is this classic privacy lever lock residential grade suitable for US bathroom and bedroom doors?

Yes, this residential grade tubular privacy door lever with classic wave design fully complies with North American residential door hardware standards, compatible with most 1-3/8" to 1-3/4" thick interior wooden doors in American houses, apartments and townhomes. It comes with a standard 2-3/8" backset tubular latch pre-installed, perfectly fitting standard pre-bored 2-1/8" cross bore tubular door holes commonly found in US residential bathroom and bedroom doors. No additional drilling or modification required for standard installations.

What material and finish does this satin nickel classic privacy door handle use?

The classic wave lever handle and round rosette are constructed with solid zinc alloy base, finished with premium brushed satin nickel coating that resists fingerprints, water spots and daily wear — ideal for humid bathroom environments. The internal tubular latch mechanism features a solid brass housing with stainless steel latch bolt, ensuring smooth, quiet operation and corrosion resistance for long-term residential use. All internal spring and mechanical components are heavy-duty cycle tested to guarantee reliable, smooth lever action for years of daily household operation.

How does the privacy lock emergency unlock pin hole work?

The small round emergency pin hole on the exterior lever is a standard safety feature of all privacy function residential locks, especially important for bathroom and bedroom doors. If someone accidentally locks the door from inside — such as a child locking themselves in the bathroom or an elderly person needing assistance — you can insert a small flat screwdriver, paper clip or dedicated emergency release pin into the hole to push the internal mechanism and unlock the door from outside without damaging the hardware or door. This emergency unlock design meets North American residential building safety codes for bathroom and bedroom privacy locks.

What is the difference between privacy, passage and keyed entry door levers?

1. Privacy Function: Features interior turn-button lock and exterior emergency pin hole, no key cylinder. Designed for bathrooms, bedrooms and private interior rooms where temporary privacy locking is needed but keyed security is not required.
2. Passage Function: Non-locking design with free-turning levers on both sides. Used for hallways, closets, pantries and laundry rooms where no locking is needed at all.
3. Keyed Entry Function: Features full key cylinder on exterior side and interior thumb-turn lock. Designed for front doors, back doors and exterior entry doors requiring keyed security protection.
All three functions are available in the same classic wave design and tubular installation structure, allowing you to maintain a consistent traditional aesthetic throughout your entire home.

Does this classic residential tubular privacy door lever include all installation hardware?

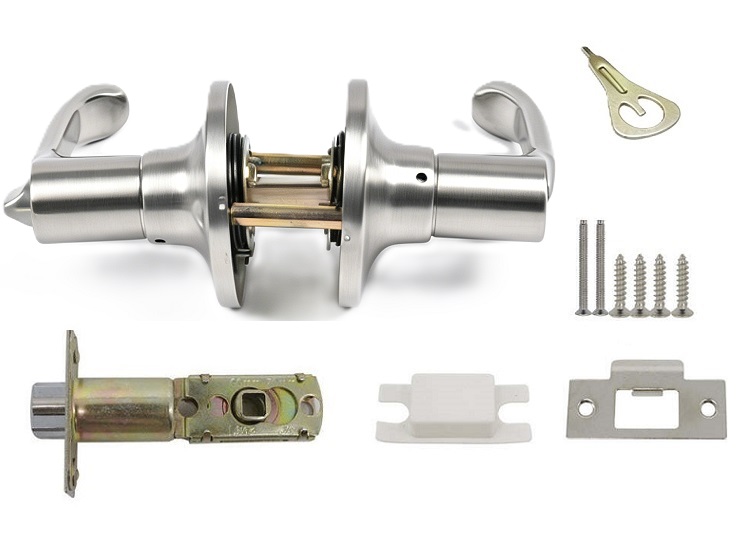

Each classic wave privacy lever lock set comes with complete residential installation accessories: tubular latch assembly, matching round strike plate, mounting screws, paper installation template and step-by-step English installation manual. No extra parts or special tools required — homeowners can finish DIY installation within 10 minutes on standard American pre-drilled interior doors using only a basic screwdriver. The traditional wave lever design coordinates perfectly with classic bathroom fixtures, traditional door hinges and vintage-style interior decor.

Can this satin nickel classic privacy lever be reversed for left and right hand doors?

This residential tubular privacy door lever with classic wave design features fully reversible handed design, compatible with both left-handed and right-handed swing interior doors. You can easily flip the wave-style lever handle direction in seconds without disassembling the entire lock body or privacy mechanism, making it flexible for all bathroom and bedroom door layout configurations in traditional American residential homes.

What is the durability of this classic residential privacy door lever?

This classic wave American residential privacy lever lock has passed 200,000 opening-closing cycle tests, fully meeting standard residential hardware durability requirements. The premium brushed satin nickel finish effectively prevents oxidation, corrosion and surface wear, maintaining its timeless traditional appearance even with daily use in humid bathroom environments. Suitable for long-term installation in family homes, rental properties, historic home renovations and traditional residential projects.

Will this classic wave lever style match my traditional or transitional bathroom decor?

Absolutely, this wave-style privacy door lever with round rosette is a timeless classic that works beautifully with traditional, colonial, transitional and even farmhouse interior design styles. The elegant curved wave lever profile paired with the classic round rosette base creates a warm, familiar look that complements traditional bathroom vanities, raised-panel interior doors and vintage-inspired home decor. The satin nickel finish coordinates perfectly with brushed nickel, chrome and stainless steel bathroom fixtures, towel bars and cabinet hardware, making it a reliable choice for both new residential construction and traditional home renovation projects across America.
