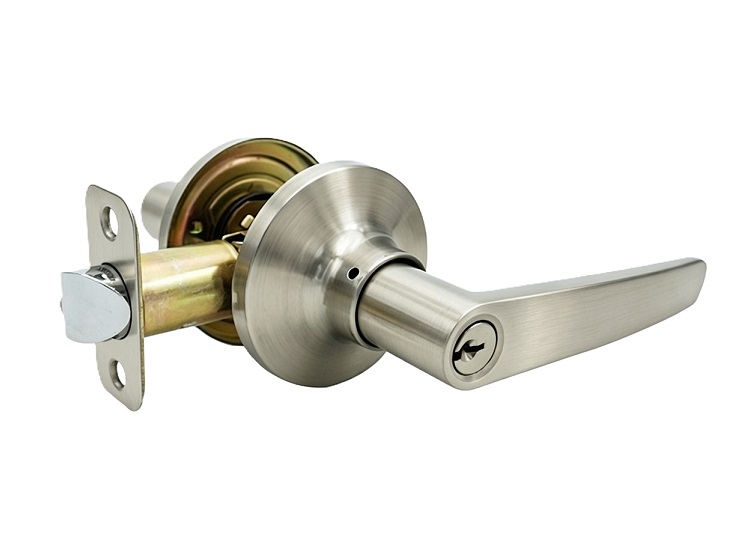

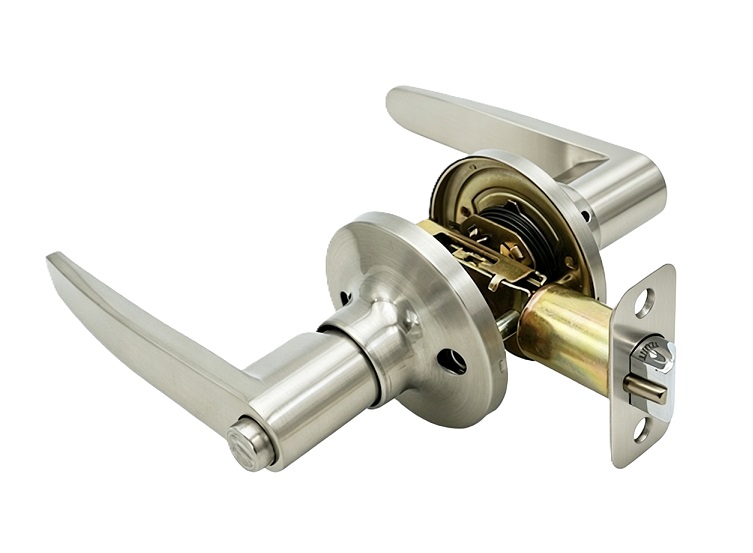

Wholesale Residential Tubular Keyed Entry Slipped Lever
Wholesale Residential Tubular Keyed Entry Slipped Lever
Wholesale Residential Tubular Keyed Entry Slipped Lever
Wholesale Residential Tubular Keyed Entry Slipped Lever

Wholesale Residential Tubular Keyed Entry Slipped Lever

Budget slipped keyed entry lever, zinc alloy satin nickel anti-smudge finish. ANSI Grade 3, 200,000-cycle test, brass 5-pin cylinder, reversible design, adjustable 60/70mm latch for rental front entry doors.
  • Product Information
Features
Model No.6411SN
Brand NameWingsTec
UsageWooden Door
Design StyleModern / Western Style
TypeResidential / Easy Installation
WarrantyExceeds 200,000 Cycles, 5 Years Lifetime
CertificationANSI/BHMA 156.2 Grade 3
ApplicationExterior Residential Doors, Entryways, Home Offices and Storage Rooms
Hand OrientationReversible Lever
B2B Information
Place of OriginChina
SampleAvailable within 3 days
OEM/ODMLogo laser engraving welcomed
MOQ500pcs (Negotiable)
Lead Time25-35 Days
Submit an RFQClick Here To Fill
Sample & PrototypeVerified Buyers are Sample Free
Technical Specifications
MaterialZinc Alloy
FunctionET (Entrance) standard; DM (Dummy), BK (Privacy), PS (Passage) optional
FinishSN/US15 standard; SC/26D, PB/US3 optional
Door PrepCross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"×2-1/4" (25.4×57mm)
Door ThicknessFits doors 1-3/8" (35mm) to 2" (50mm) thick
Lock Latch2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional
Cylinder5-pin removable core; Schlage C Keyway, Kwikset, Yale or C4 keyway optional
FaceplateSquare corner 1"×2-1/4" (25.4×57mm) standard; radius corner available
StrikeT-Strike 1-1/2"×2-3/4" (38×70mm) standard; D-Strike 1-1/2"×2-1/4" (39.5×57mm) optional
Technical DrawingClick Here To Download
Packaging Information
Packing Way1 pair in 1 white box; custom design color boxes & blister pack available
Package Size25 × 10 × 5 CM
Single Box G.W1 KGS
Door Handle Product Spec Table

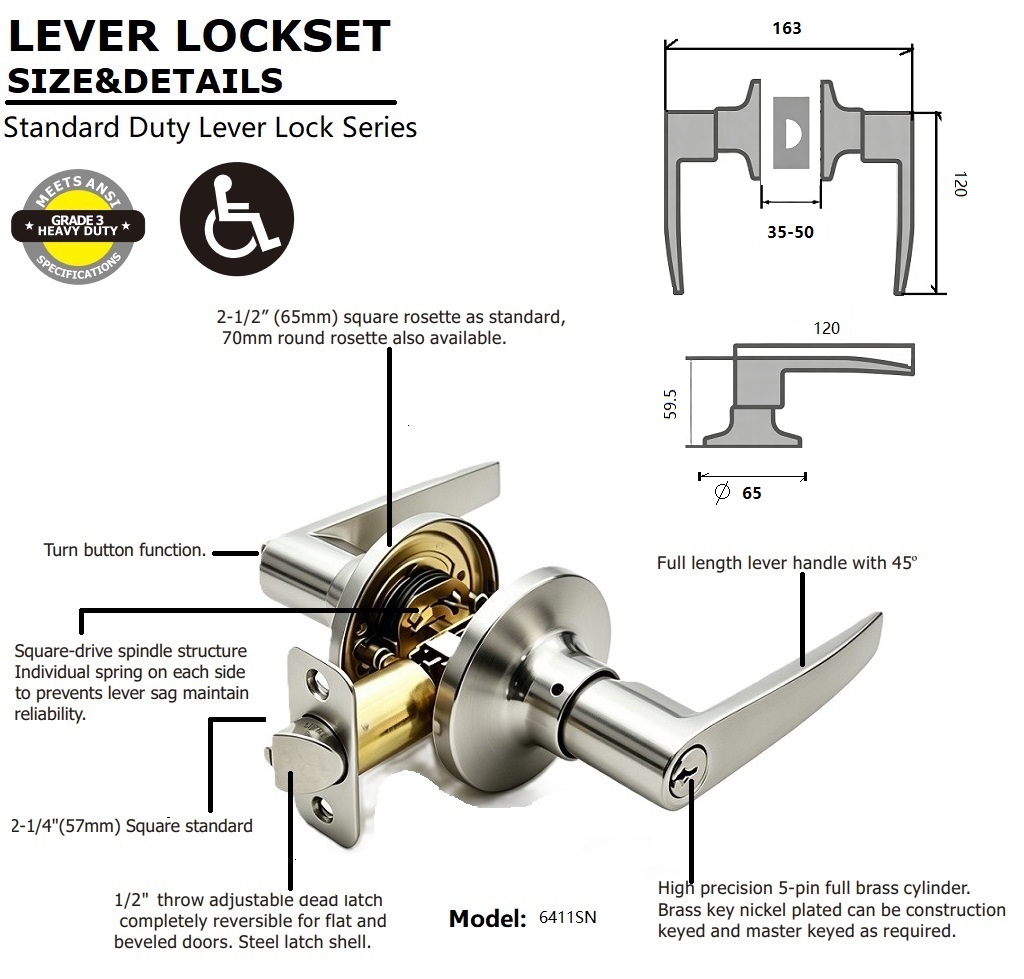

Tubular Entrance Lever Lock size and details

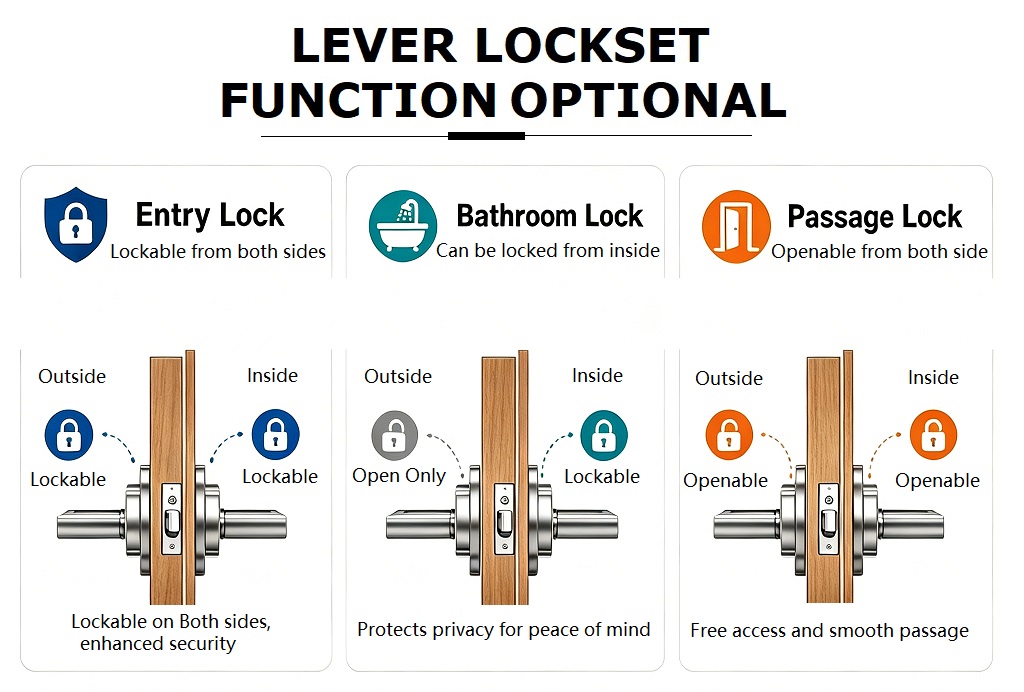

Door Lever Lock Functions

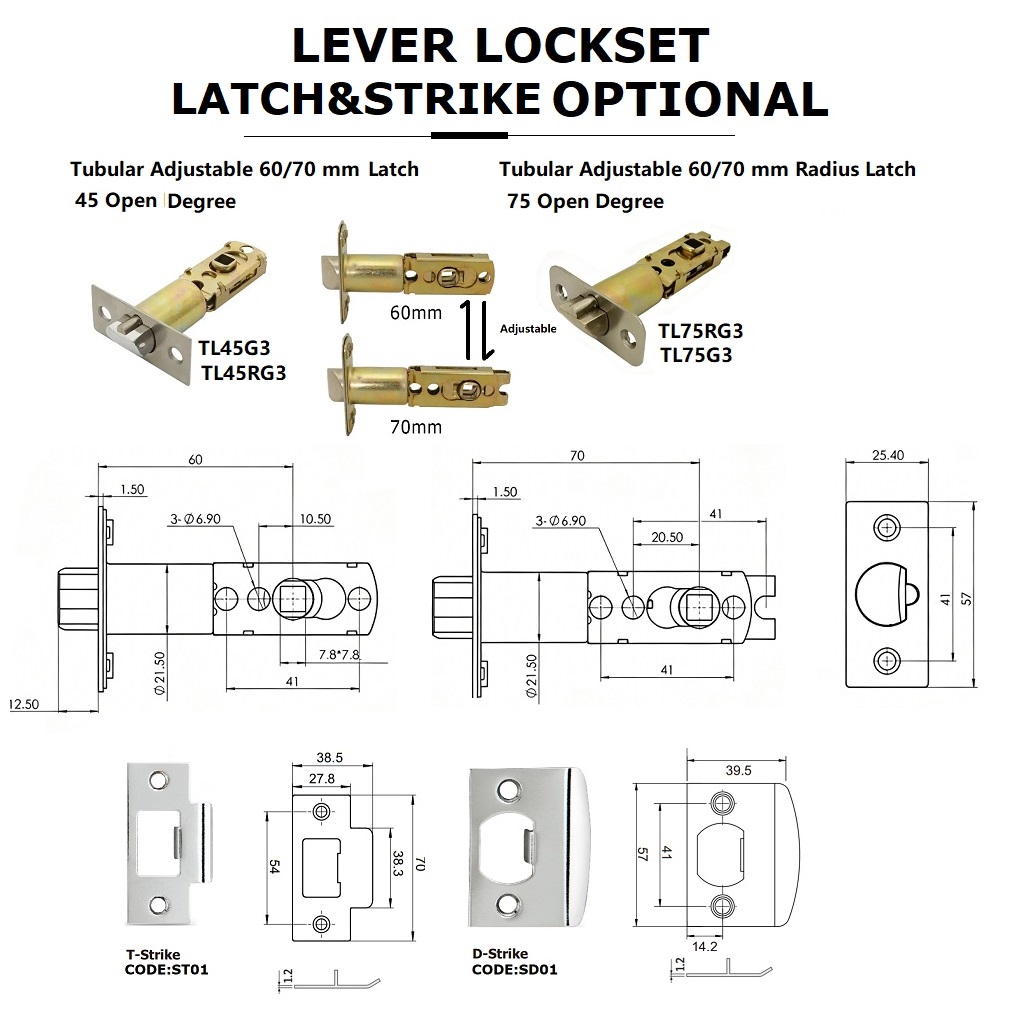

Door Lever Lock Latch and Strike Details

Door Lever Lock Package

Door Lever Lock Certifications

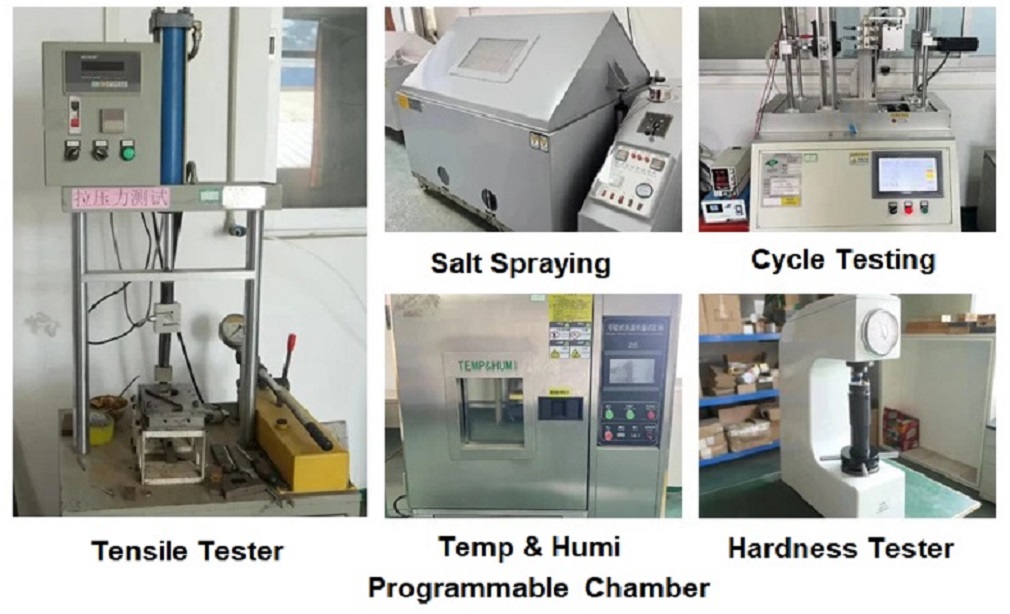

Door Lever Lock QC Controll

  • FAQ

FAQs About Modern Straight Bar Entrance Tubular Door Lever Lock

What is a modern straight bar entrance tubular door lever, and where to install it?

This modern straight bar entrance tubular door lever is a minimalist contemporary style American residential exterior door hardware, designed for entry doors that require keyed security access. It features a sleek flat bar lever handle with a clean round rosette base, adding a sophisticated modern curb appeal to your home exterior. The entrance function includes a solid brass key cylinder on the exterior side and a thumb-turn locking mechanism on the interior side, allowing you to lock and unlock from outside with a matching key, or from inside by simply turning the thumb-turn knob. Built with standard tubular lock construction, it fits all standard pre-drilled residential door holes across USA, Canada and Australia.

Is this straight bar entrance lever lock residential grade suitable for US front doors?

Yes, this residential grade tubular entrance door lever with modern straight bar design fully complies with North American residential door hardware standards, compatible with most 1-3/8" to 1-3/4" thick exterior wooden doors and steel entry doors in American houses, townhomes and modern apartments. It comes with a standard 2-3/8" backset adjustable tubular latch pre-installed, perfectly fitting standard pre-bored 2-1/8" cross bore tubular door holes commonly found in US residential front entry doors. No additional drilling or modification required for standard installations.

What material and security features does this modern entrance door lever have?

The straight bar lever handle and round rosette are constructed with heavy-duty solid zinc alloy base, finished with premium brushed satin nickel coating that resists weather exposure, scratches and daily wear for long-lasting exterior use. The exterior key cylinder is made of solid brass with anti-pick pin tumbler mechanism, providing reliable residential security against unauthorized entry. The internal latch assembly features stainless steel deadlocking latch bolt with anti-saw protection, while all internal spring and mechanical components are heavy-duty cycle tested to ensure smooth, reliable operation for years of residential entrance security service.

How many keys come with this modern residential entrance tubular door lock?

Each straight bar entrance lever lock set comes standard with 2 identical brass cut keys, sufficient for typical residential household use. The pin tumbler cylinder adopts a standard residential keyway design, which allows homeowners to have the lock rekeyed by a professional locksmith to match your existing house key set. This is especially convenient when you purchase multiple entry door levers for the same property, enabling all exterior entry doors to operate with one single unified key for maximum residential convenience.

What is the difference between entrance, privacy and passage door levers?

1. Entrance Function: Features full key cylinder on exterior side and interior thumb-turn lock, designed for exterior front doors and entry doors requiring keyed security access and home entry protection.
2. Privacy Function: Features interior turn-button lock and exterior emergency pin hole, no key cylinder. Used for bathrooms, bedrooms and private interior rooms.
3. Passage Function: Non-locking design with free-turning levers on both sides. Used for hallways, closets, pantries and laundry rooms where no locking is needed.
All three functions are available in the same modern straight bar design and tubular installation structure, allowing you to maintain a consistent minimalist aesthetic throughout your entire home, both inside and out.

Does this modern residential tubular entrance door lever include all installation hardware?

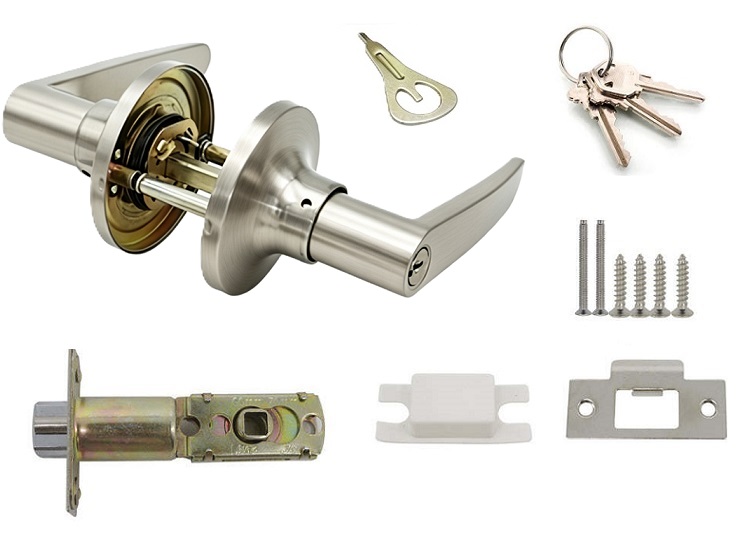

Each straight bar entrance lever lock set comes with complete residential installation accessories: adjustable tubular latch assembly, security strike plate with reinforced screws, matching mounting hardware, paper installation template and step-by-step English installation manual. No extra parts or special tools required — homeowners can finish DIY installation within 15 minutes on standard American pre-drilled entry doors using only a basic screwdriver. The security strike plate with long screws provides added forced-entry resistance for residential front door protection.

Can this satin nickel modern entrance lever be reversed for left and right hand doors?

This residential tubular entrance door lever with modern straight bar design features fully reversible handed design, compatible with both left-handed and right-handed swing exterior entry doors. You can easily flip the flat bar lever handle direction in seconds without disassembling the entire lock body or key cylinder, making it flexible for all front door, side door and back door layout configurations in modern American residential homes. The reversible design also eliminates the need to order specific left-hand or right-hand versions separately.

What is the durability and weather resistance of this modern entrance door lever?

This modern straight bar American residential entrance lever lock has passed 200,000 opening-closing cycle tests, fully meeting standard residential hardware durability requirements. The premium brushed satin nickel finish is treated with weather-resistant coating, effectively preventing oxidation, corrosion and surface wear from outdoor exposure. Suitable for long-term installation on covered exterior entry doors of family homes, rental properties and modern-style residential houses. For fully exposed exterior doors without overhead protection, we recommend adding a door awning or periodic cleaning to maximize the finish lifespan.

Will this modern straight bar lever style match my contemporary home exterior?

Absolutely, this straight bar entrance door lever with round rosette is a perfect choice for contemporary, minimalist, modern farmhouse and mid-century modern home exterior styles. The clean flat bar lever profile paired with the simple round rosette base creates a streamlined, uncluttered look that complements modern flat-panel entry doors, sleek porch designs and minimalist home exteriors. The satin nickel finish coordinates perfectly with brushed nickel exterior light fixtures, modern door knockers and contemporary house numbers, making it a popular choice for modern home renovations and new residential construction projects across America.
