ANSI Grade 2 Certified: Engineered to meet strict North American standards for high-frequency institutional and commercial use.

No MOQ Restrictions: Flexible wholesale purchasing with zero minimum order quantity required for standard items.

Custom OEM Packaging: Full support for tailored brand packaging and commercial private labeling solutions.

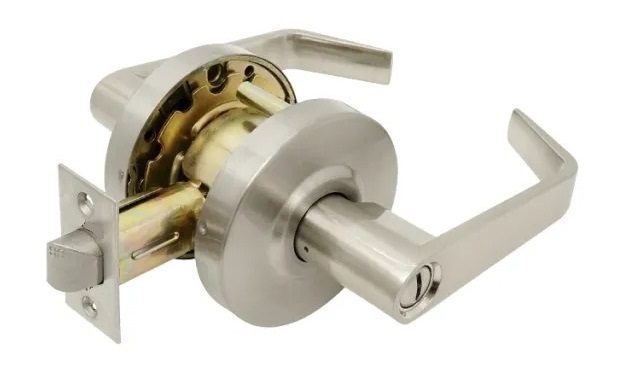

Keyed Privacy Function: Perfect for restrooms and hospital environments, enabling dual safety with interior locking and exterior key override.

Premium Stainless Steel: High-quality satin stainless steel finish provides excellent durability and superior corrosion resistance.

Door Prep: Cross bore 2-1/8"(54mm), Edge bore 1"(25mm).

Door Thick : 1-3/8"(35mm) to 1-3/4"(50mm) thickness Door.

Backset: 2-3/4"(70mm) standard. 2-3/8"(60mm) optional.

Latch: 1/2 throw dead latch and spring latch

Cylinder:6-pin removable core, Schlage C Keyway ，(Kwikset, or C4 keyway optional).

Clutch:Clutch (free wheel) function available for ET (Entry)

Faceplate: Square corner 1"x1/8"2-1/4"(25.4x57mm) standard, 1"&2-1/4"(25.4x57mm)optional.

Strikes: T-Strike 2-3/4"x2-3/4" (44x70mm) standard, ASA-Strike 4-7/8" x 1-1/4"(123.8x31.7mm) optional.

Function: DM(0:Dummy), ET(1:Entrance), BK(2:Privacy), PS(3:Passage), ST(4:Storeroom),CL(5:Classroom) CM(8:Communication).

                 Ex(9.Exit).
