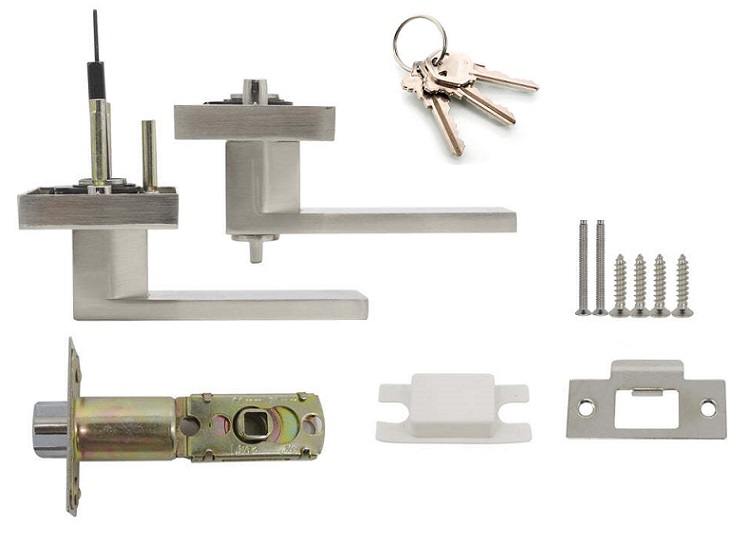

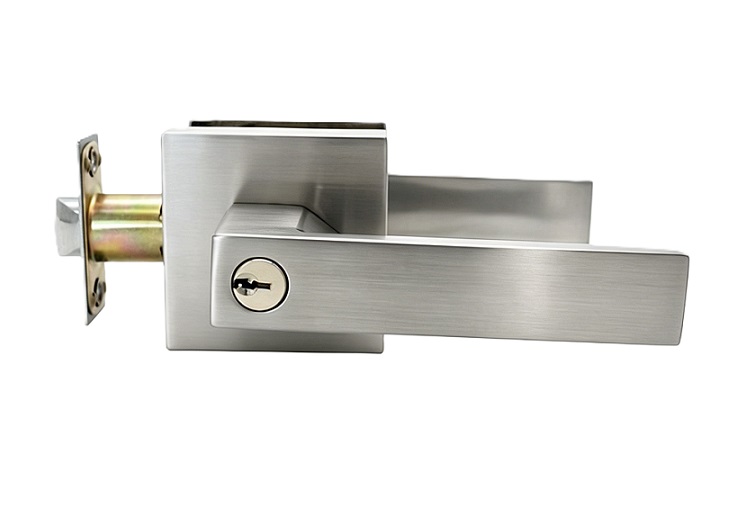

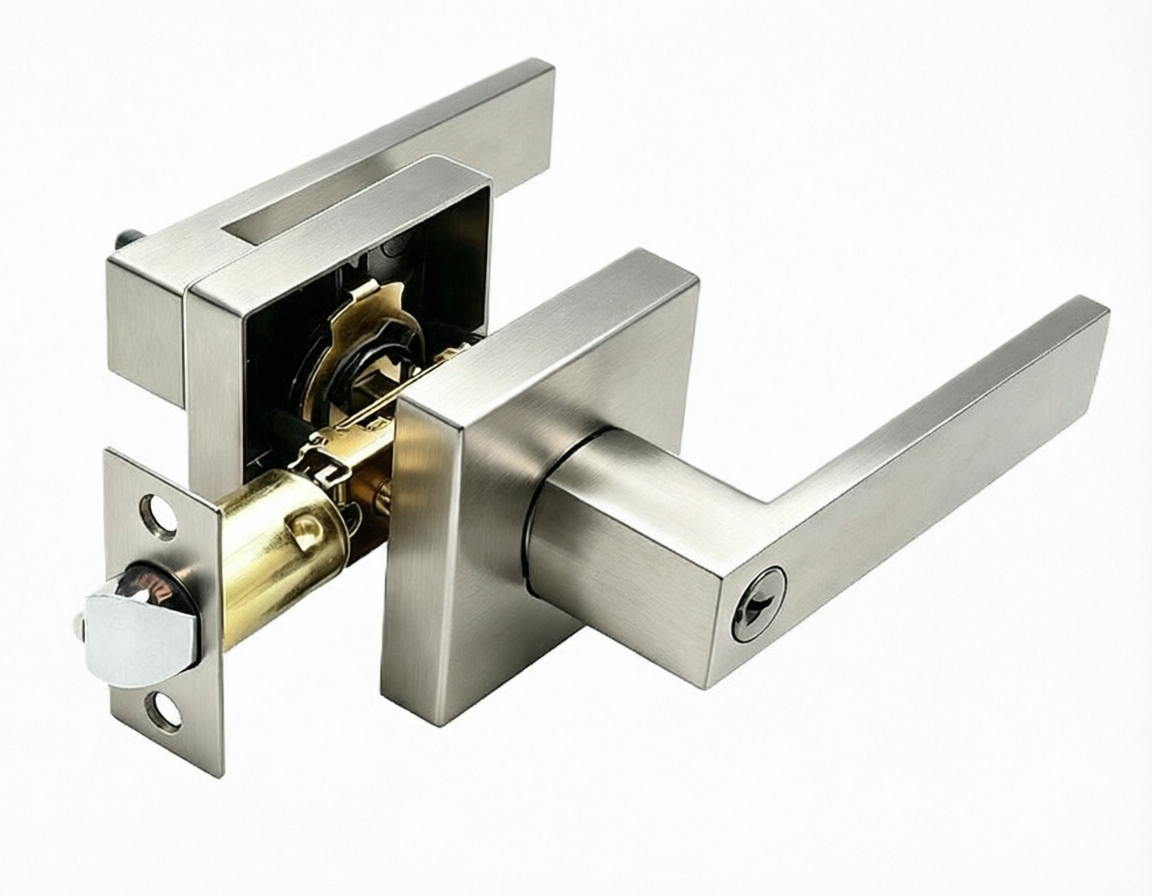

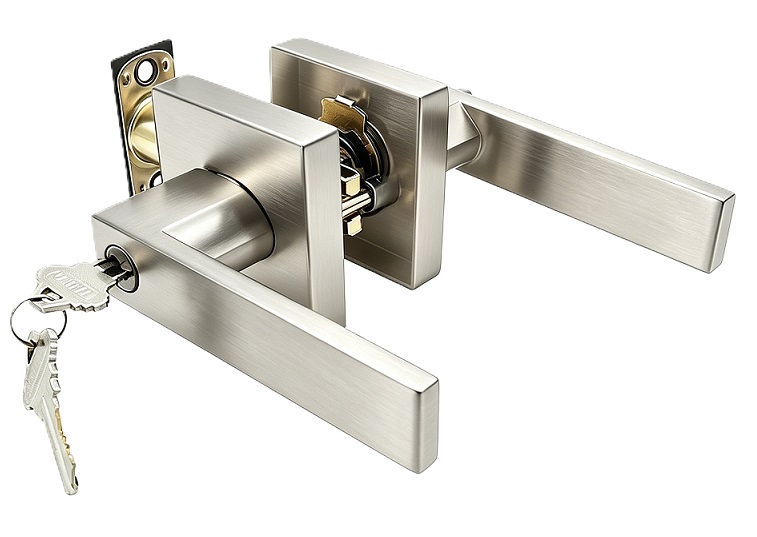

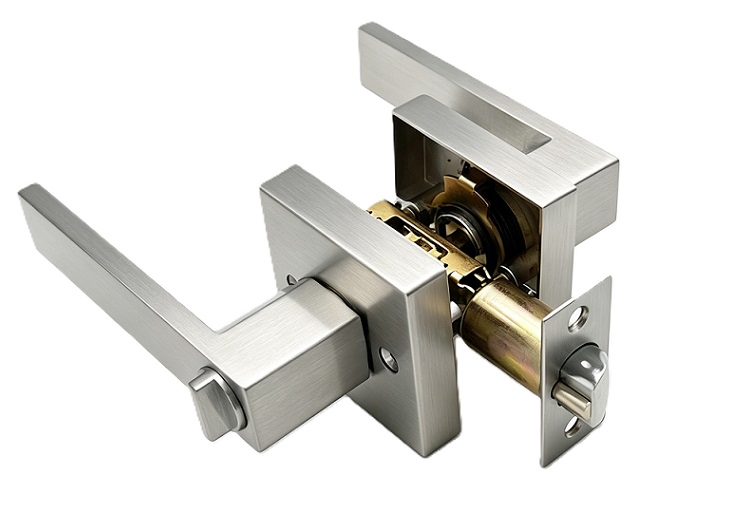

Modern Square Rosette Tubular Entry Door Lever - Satin Nickel
Designed for exterior front doors, back entry doors, home offices and storage rooms that require keyed access, this entry lever features a high-precision 5-pin brass cylinder on the exterior and a convenient interior turn-button for quick locking. Rated for over 200,000 operating cycles and certified to ANSI/BHMA Grade 3 standards, it comes with a fully reversible non-handed design and adjustable 60/70mm latch to fit all standard North American residential doors.
The elegant Square rosette base paired with a geometric square-bar lever handle complements modern, contemporary, farmhouse, industrial and traditional architectural styles. Supports master keyed, keyed alike and construction keyed systems for multi-unit projects.
- Product Information
Features
| Model No. | 6911SN-ET |
|---|---|
| Brand Name | WingsTec |
| Usage | Wooden Door |
| Design Style | Modern / Western Style |
| Type | Residential / Easy Installation |
| Warranty | Exceeds 200,000 Cycles, 5 Years Lifetime |
| Certification | ANSI/BHMA 156.2 Grade 3 |
| Application | Exterior Residential Doors, Entryways, Home Offices and Storage Rooms |
| Hand Orientation | Reversible Lever |
B2B Information
| Place of Origin | China |
|---|---|
| Sample | Available within 3 days |
| OEM/ODM | Logo laser engraving welcomed |
| MOQ | 500pcs (Negotiable) |
| Lead Time | 25-35 Days |
| Submit an RFQ | Click Here To Fill |
| Sample & Prototype | Verified Buyers are Sample Free |
Technical Specifications
| Material | Zinc Alloy |
|---|---|
| Function | ET (Entrance) standard; DM (Dummy), BK (Privacy), PS (Passage) optional |

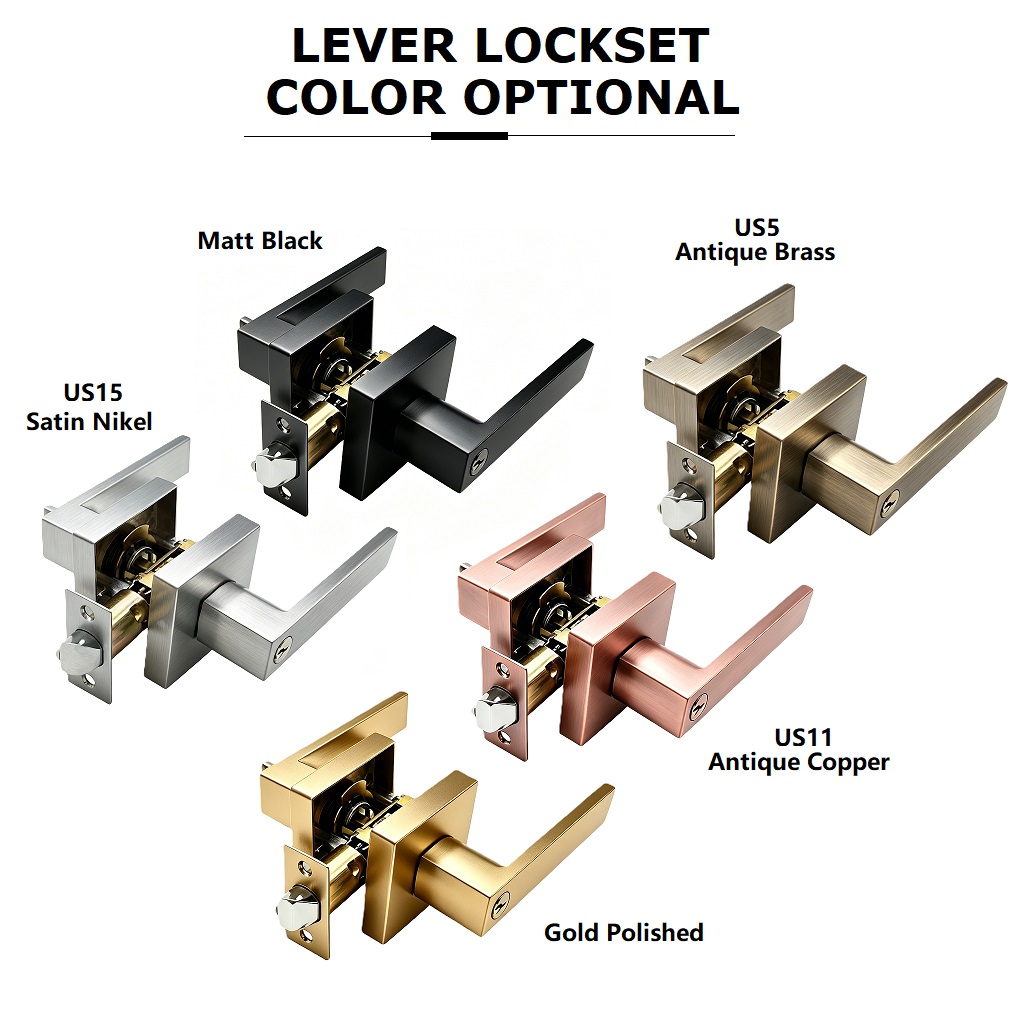

| Finish | SN/US15 standard; SC/26D, PB/US3 optional |
| Door Prep | Cross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"x2-1/4" (25.4x57mm) |
| Door Thickness | Fits doors 1-3/8" (35mm) to 2" (50mm) thick |

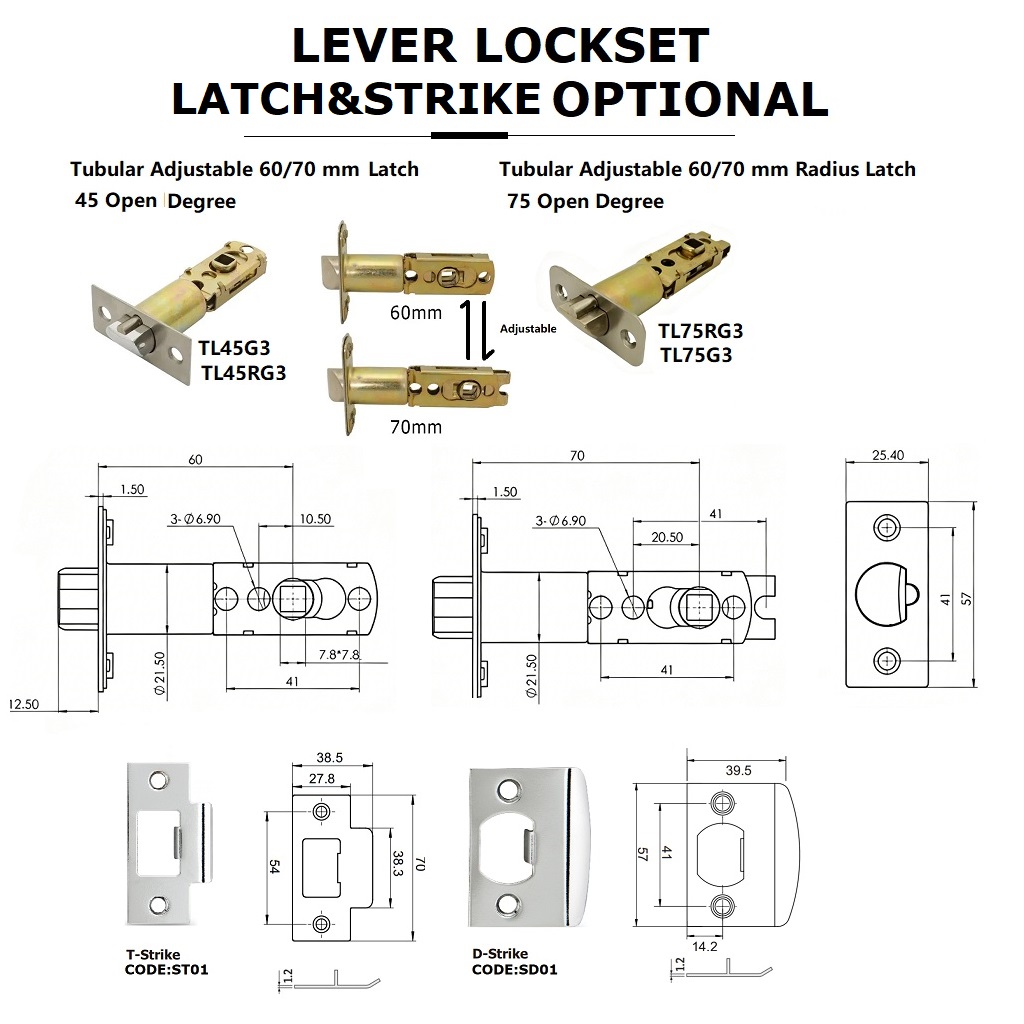

| Lock Latch | 2-3/4" (70mm) or 2-3/8" (60mm) fixed standard; adjustable 60/70mm optional |

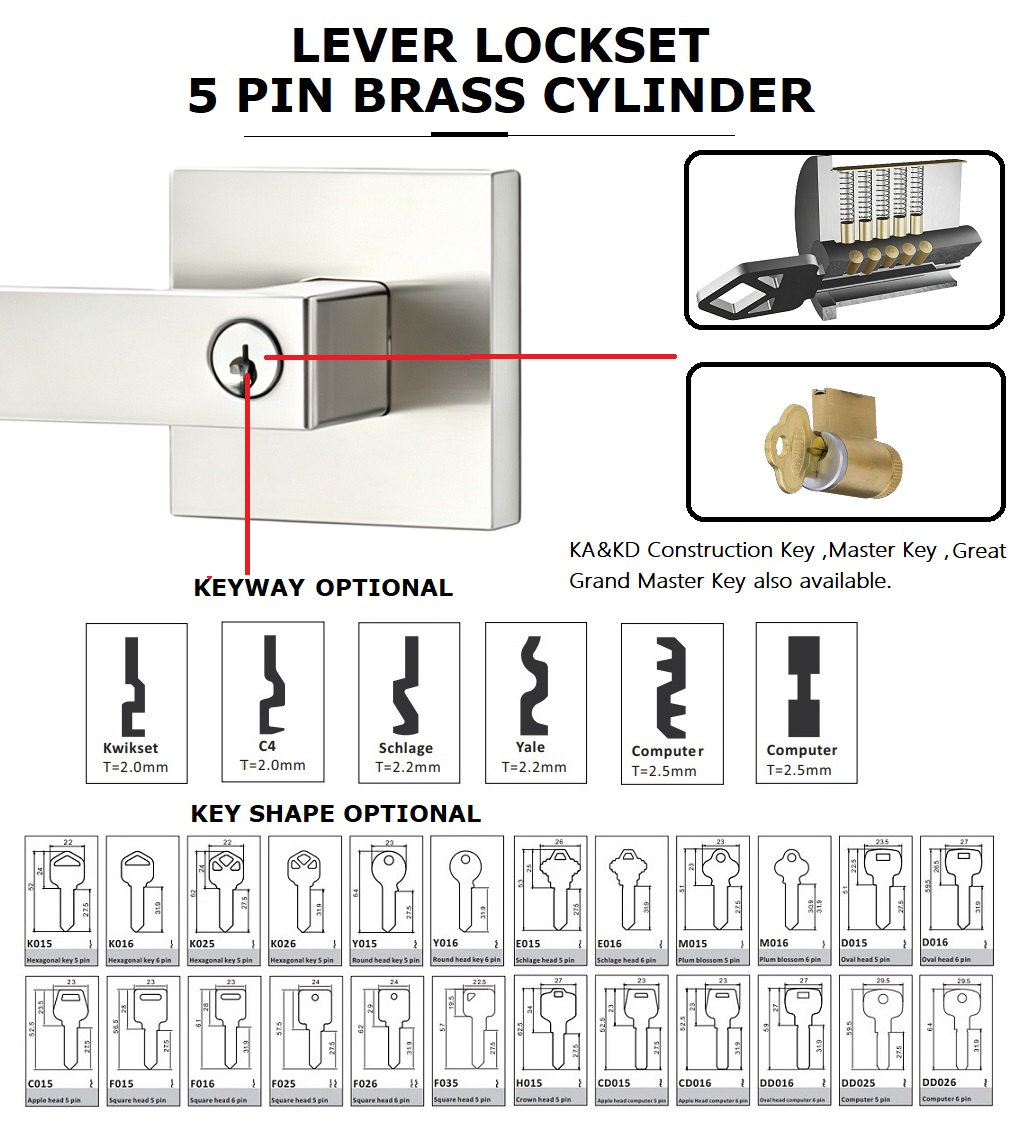

| Cylinder | 5-pin removable core; Schlage C Keyway, Kwikset, Yale or C4 keyway optional |
| Faceplate | Square corner 1"x2-1/4" (25.4x57mm) standard; radius corner available |
| Strike | T-Strike 1-1/2"x2-3/4" (38x70mm) standard; D-Strike 1-1/2"x2-1/4" (39.5x57mm) optional |
| Technical Drawing | Click Here To Download |
Packaging Information
| Packing Way | 1 pair in 1 white box; custom design color boxes & blister pack available |
|---|---|
| Package Size | 25 x 10 x 5 CM |
| Single Box G.W | 1 KGS |
Keying Options
Keyed Different (Standard): Each lock is opened by its own unique key that does not open any other lock.
Keyed Alike: Multiple cylinders are keyed to the same code and can be opened by the same key. This option provides "same key" convenience and eliminates the need for multiple keys.
Master Keyed: In a Master Key system, a master key opens all the locks in the system, although each lock also has its own unique key.
Lock Backset & Lock Strike Plates
Lock Backset
Backset refers to the measurement that comes from the edge of the door to the center of the lock hole. Measure the distance from the edge of the door to the centerline of the lock hole. 2-3/4" is the standard backset for commercial doors. The faceplate of standard 2-3/4" B.S. latch is 1-1/8" wide. All of the locks on our website come with a standard 2-3/4" backset latch. See our Lock Parts and Accessories category for 2-3/8" latches.
Lock Strike Plates
A strike plate is a metal plate affixed to a door jamb with a hole or holes for the latch or bolt of the lock. When the door is closed, the latchbolt extends into the hole in the strike plate, holding the door closed. Here are the most common lock strike plates. All of the cylindrical locks on our website come with a standard ASA strike plate. See our Lock Parts and Accessories category for other strike plates.
Lock Grades
The American National Standards Institute (ANSI) and Builders Hardware Manufacturers Association (BHMA) have developed durability, strength and performance standards for every type of door hardware on the market, including locks. Products that receive ANSI/BHMA certification are designated as Grade 1, Grade 2 or Grade 3. The product grades indicate progressive levels of performance. Locks that are Grade 1 offer the highest level of strength and security. Grade 2 or Grade 3 products must also pass certain standards tests, but the requirements are less stringent. These products are generally used at a lesser frequency and in less abusive environments. Dozens of tests are performed on each product. They may include: tension loading, impact/force, deadbolt torque, retraction deadbolt, pound exertion, bolt or latch strength, security and finish durability. We only provide locks that meet Grade 1 and Grade 2 standards. Grade 3 is intended for residential use.

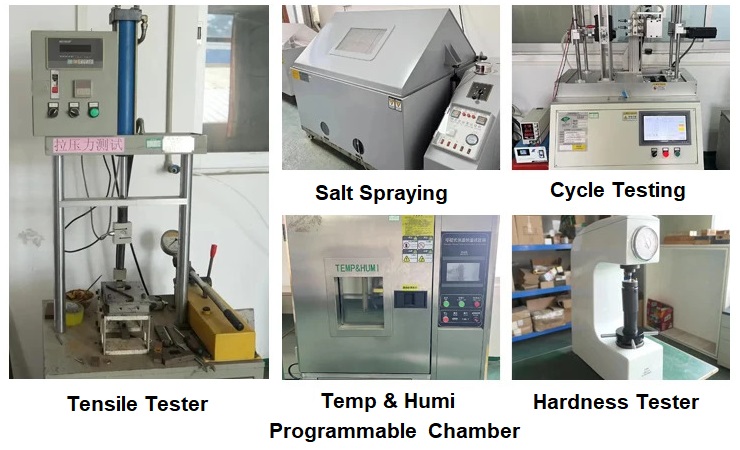

Quality Control Procedure

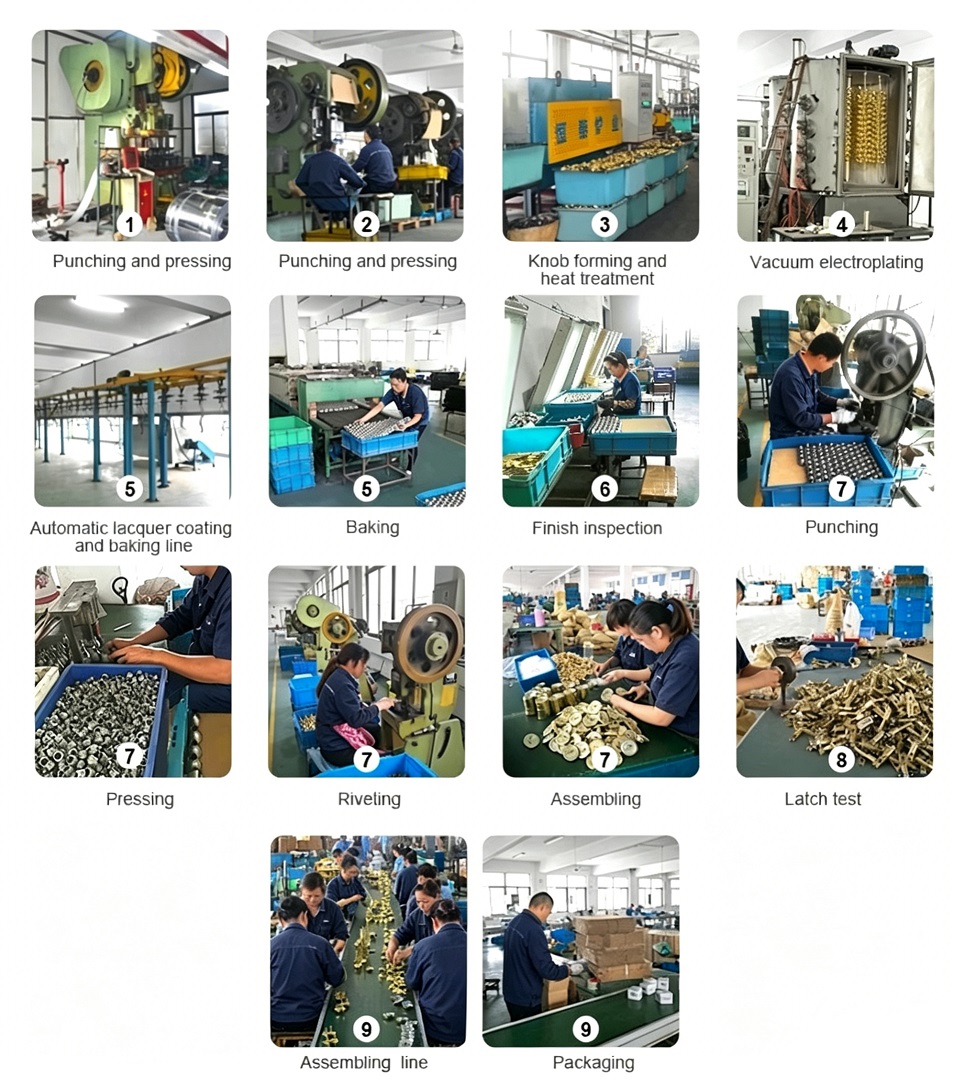

Factory Production Line
- FAQ
Frequently Asked Questions
Model & Core Specifications

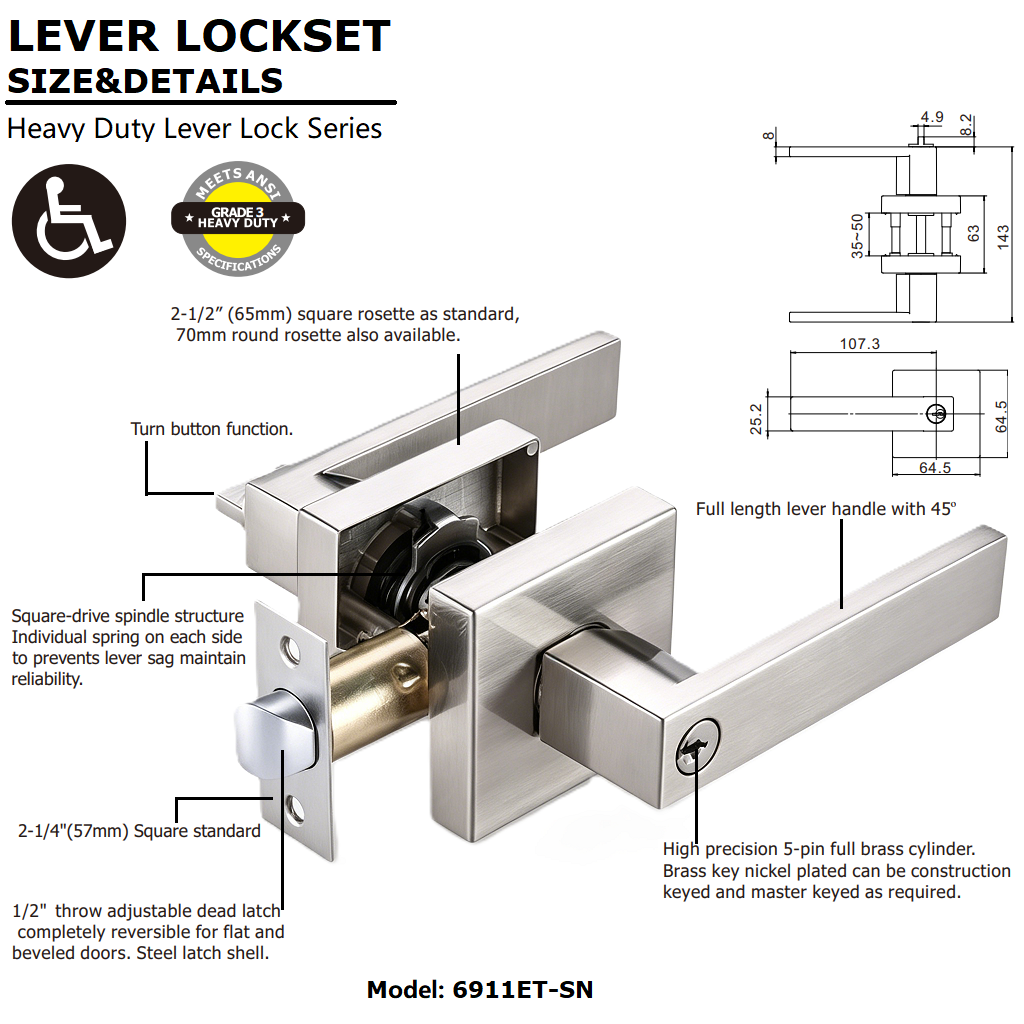

What is the exact model number of this square lever lockset?
The model shown is 6911ET-SN, part of our Heavy Duty Lever Lock Series. It is a keyed entry function lockset with Satin Nickel finish.
What is the standard rosette size and shape?
The standard configuration features a 2-1/2" (65mm) square rosette. A 70mm round rosette is also available as an alternative for project orders to match different design requirements.
What is the standard faceplate size?
It comes with a 2-1/4" (57mm) square faceplate as standard, which conforms to common residential and light commercial door preparation standards.
Mechanical Structure & Features
What spindle structure does this lever lock use?
It adopts a square-drive spindle structure, with an individual spring installed on each side. This design effectively prevents lever sag over long-term use and maintains consistent operational reliability.
What is the opening angle of the lever handle?
The full-length lever handle is designed with a 45° opening degree, delivering smooth ergonomic operation and comfortable grip.
What type of latch does this lockset include?
It is equipped with a 1/2" throw adjustable dead latch with a steel latch shell. The latch is completely reversible and works with both flat and beveled doors.
Does the entry function include an inside turn button?
Yes. The entry function model features an inside turn button, allowing users to lock and unlock the door conveniently from the interior side.
Cylinder & Keying System
What type of cylinder is used in this lockset?
It uses a high-precision 5-pin full brass cylinder, paired with nickel-plated brass keys for smooth operation, corrosion resistance and long service life.
Do you support construction keying and master key systems?
Yes. This cylinder supports construction keyed and master keyed configurations as required. It is also compatible with keyed alike (KA) and keyed different (KD) setups, ideal for multi-unit residential and apartment projects.
Installation & Door Compatibility
What door thickness is compatible with this lever lock?
It fits standard door thicknesses from 1-3/8" (35mm) to 2" (50mm), covering most residential wooden doors and light commercial interior doors.
Is this lock reversible for left-hand and right-hand doors?
Yes, the latch and lever are fully reversible. It works on both left-hand and right-hand swing doors without modification, simplifying inventory management and on-site installation.
Certifications & Performance
What ANSI grade does this heavy duty lever lock meet?
This lockset meets ANSI/BHMA A156.2 Grade 3 heavy duty specifications, tested to withstand over 200,000 operating cycles, suitable for standard residential and light commercial applications.
Is this lever handle ADA accessible compliant?
Yes. The lever-style handle design fully meets ADA accessibility requirements. It can be operated with a single hand or closed fist without tight grasping, complying with accessible building codes.
Trim Options & Configurations
Can I order this model with a round rosette instead of square?
Yes. While the 65mm square rosette is standard, a 70mm round rosette is available for bulk orders, allowing you to match different interior design styles and project specifications.

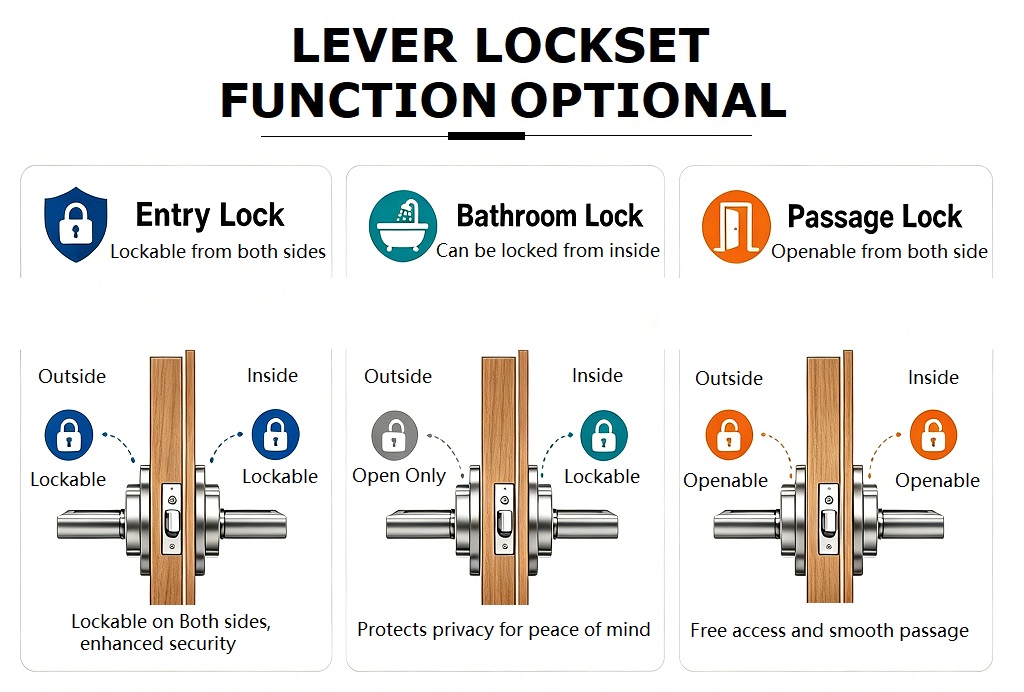

What other functions are available in this lever series?
This heavy duty series supports multiple function configurations:
Entry: keyed lock for exterior and restricted-access doors
Privacy: bathroom/bedroom lock with interior turn button
Passage: non-locking set for halls and closets
Dummy: inactive decorative handle for non-latching doors
