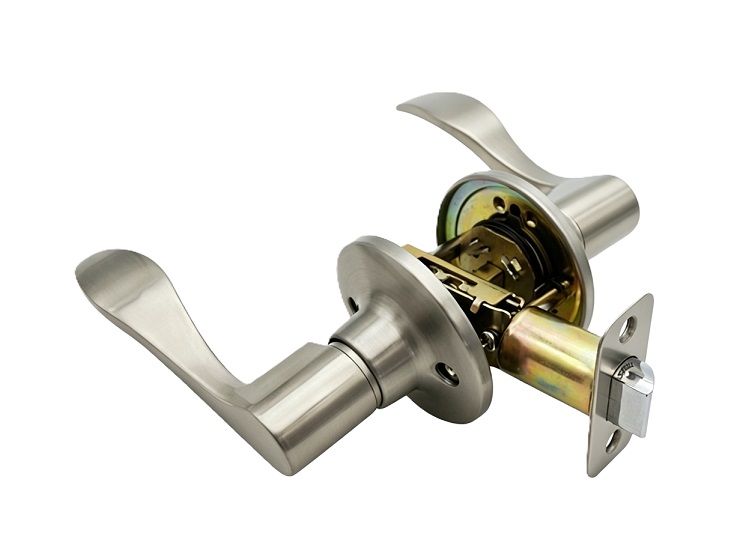

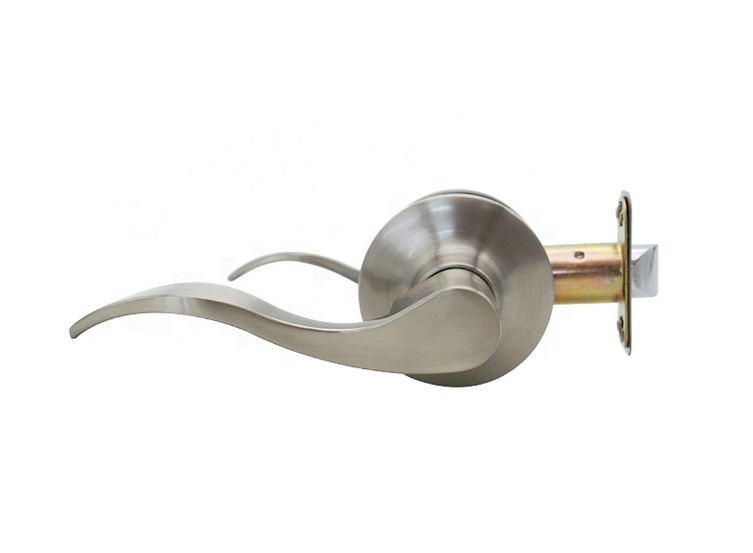

A wave lever tubular passage door lock is a non-locking interior door handle featuring an ergonomic curved (wave-shaped) lever and a round rosette base. Built with a standard tubular lock mechanism for residential use, the passage function means there is no locking cylinder — both sides of the lever operate freely at all times, allowing unobstructed access through interior doors.

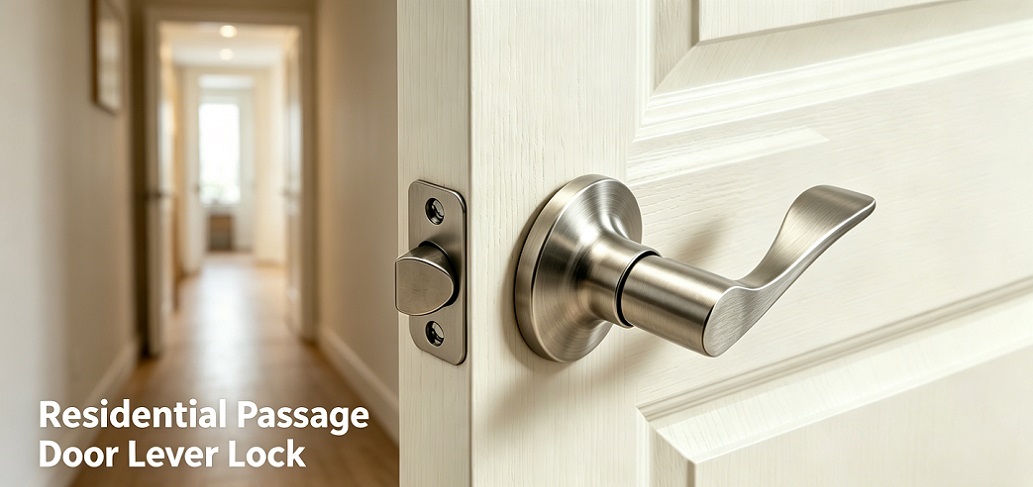

This wave-style tubular passage lever is perfect for interior doors where privacy locking is not needed: hallways, closets, pantries, laundry rooms, living rooms, dining rooms, home offices, and kids' bedrooms. It is NOT intended for exterior entry doors (which require keyed entry locks) or for bathrooms/bedrooms that require private locking.

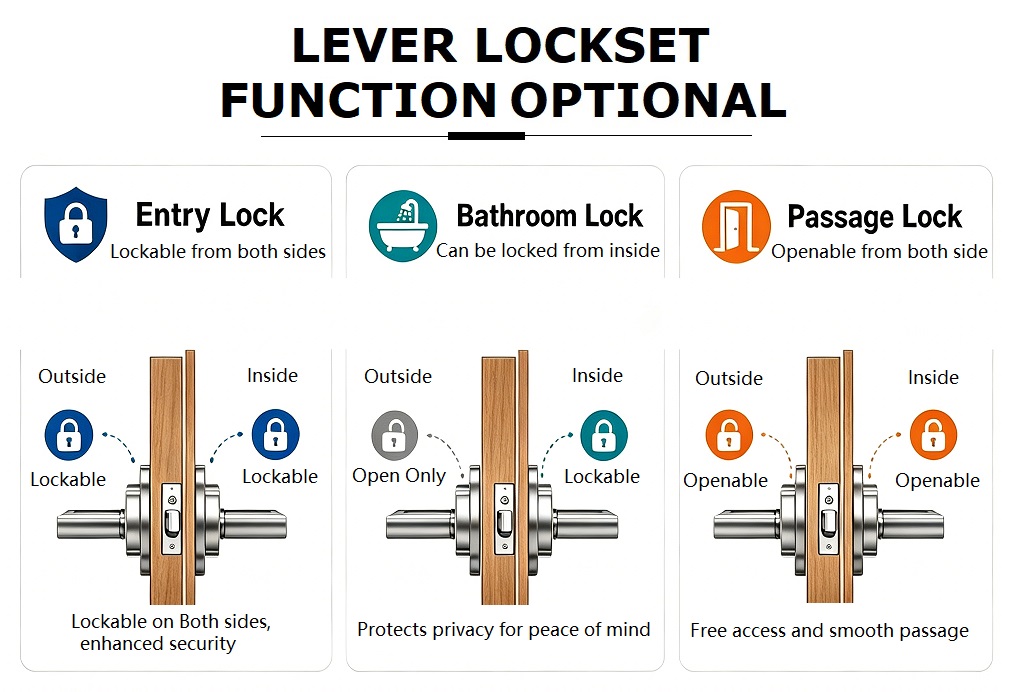

• Passage Function: Non-locking, free operation from both sides — for hallways, closets and pantries.

• Privacy Function: Locks from inside with a thumb-turn, emergency release slot outside — for bathrooms and bedrooms.

• Entry Function: Key-operated from outside, thumb-turn inside — for exterior front doors and secured rooms.

• Dummy Function: Non-operational decorative pull — for inactive double doors or cabinet doors.

No. Passage function locksets contain no locking cylinder and do not require or include keys. If you need a keyed lock for an exterior door, please see our matching entry function model with the same wave lever design and satin nickel finish.

This passage lock features a classic wave lever (curved lever) design with a round rosette base. The ergonomically curved handle provides a comfortable, natural grip, while the traditional round base offers a timeless look that complements traditional, transitional, colonial, craftsman and casual contemporary home decor styles.

The standard round rosette measures approximately 2-3/4" (70mm) in diameter. This size cleanly covers standard 2-1/8" door bore holes and provides a balanced, proportional appearance on most residential interior doors.

The wave lever handle and round rosette are constructed from heavy-duty zinc alloy for structural strength, impact resistance and long-lasting durability. The internal tubular mechanism uses precision steel and brass components for smooth, reliable daily operation in residential environments.

The finish shown is classic Satin Nickel (SN / US15). This warm silver-toned finish features a fine brushed texture that resists fingerprints, smudges and minor surface scratches — making it a popular and versatile choice for residential interior doors.

Wipe surfaces gently with a soft, damp microfiber cloth. For heavier smudges, use mild soap diluted in warm water. Do not use abrasive cleaners, steel wool, scouring pads or harsh chemical cleaners — these will scratch and damage the satin nickel finish over time.

Yes, a tubular lock (also called a cylindrical lock) is the standard residential lock type where the mechanism installs through a single bored hole in the door. Tubular locks are the most common type for homes — they are affordable, easy to install, and reliable for everyday interior use. The "tubular" name refers to the cylindrical body that houses the latch mechanism.

Simply push down on the wave lever from either side of the door to retract the spring-loaded latch bolt and open the door. When released, the internal return spring brings the lever back to its horizontal position, and the latch automatically extends to hold the door closed. There is no lock, thumb-turn or key cylinder included.

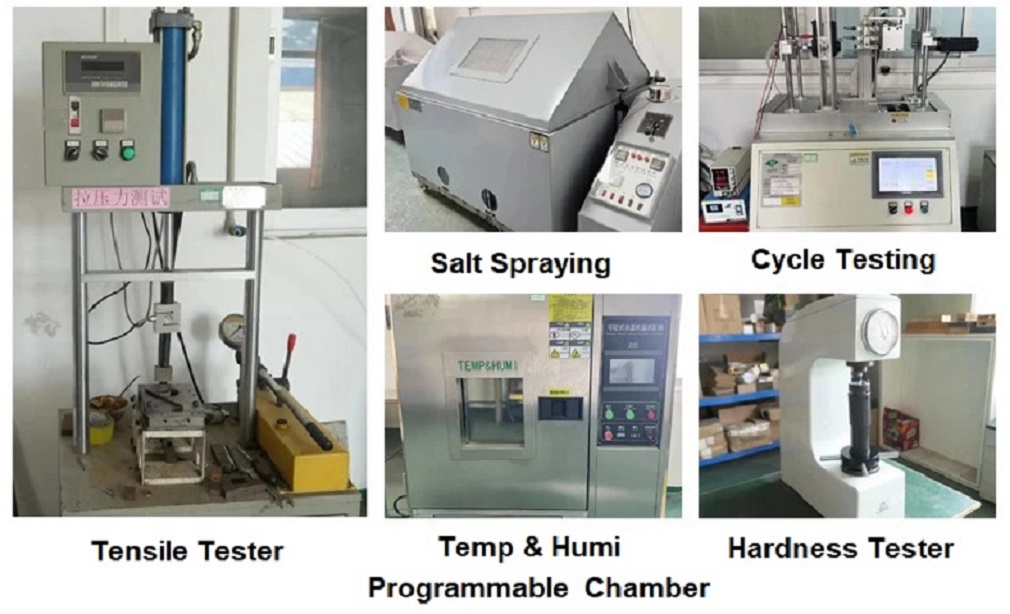

Yes, this is a residential grade tubular passage lock built for standard home use. The internal mechanism is tested and rated for over 200,000 smooth operating cycles, providing years of reliable daily performance for typical residential interior doors.

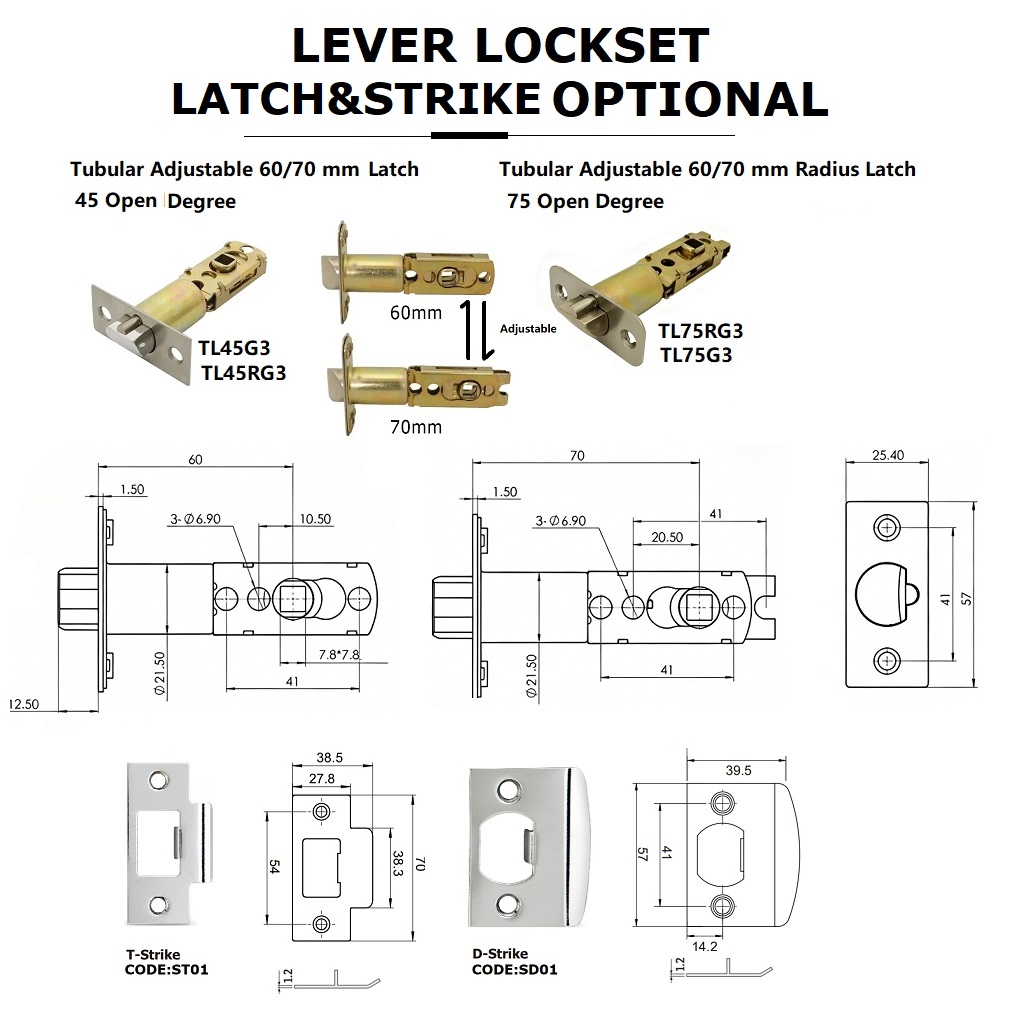

It includes a 1/2" throw adjustable dead latch with a steel latch face. The latch is fully reversible and can be flipped to fit both flat and beveled door edges. It also adjusts between 2-3/8" (60mm) and 2-3/4" (70mm) backsets to match standard North American door preparations.

Yes! The curved wave lever design is ergonomically shaped to fit the natural curve of your hand, providing a comfortable and secure grip. The lever-style handle is also easier to operate than a round door knob for people with arthritis, limited hand strength or accessibility needs — and it can be opened with an elbow or forearm when your hands are full.

This tubular passage lever fits standard residential interior doors from 1-3/8" (35mm) to 1-3/4" (45mm) thick, which covers nearly all interior wood, composite and hollow core doors found in North American homes.

It comes with an adjustable latch that fits both standard residential backsets: 2-3/8" (60mm) and 2-3/4" (70mm). This means it will work with almost any pre-drilled interior door without requiring additional parts or modification.

Yes! This passage lever features a universal reversible design. Both the wave lever handle and latch bolt work on left-handed and right-handed swing doors with no extra tools or modification needed. This makes it easy to buy in bulk for whole-house projects without worrying about door handing.

This is a standard tubular lockset that fits industry-standard residential door preparation: 2-1/8" (54mm) cross bore through the door face and 1" (25mm) edge bore for the latch. If your door already has an existing tubular lock or door knob, this will fit directly without re-drilling.

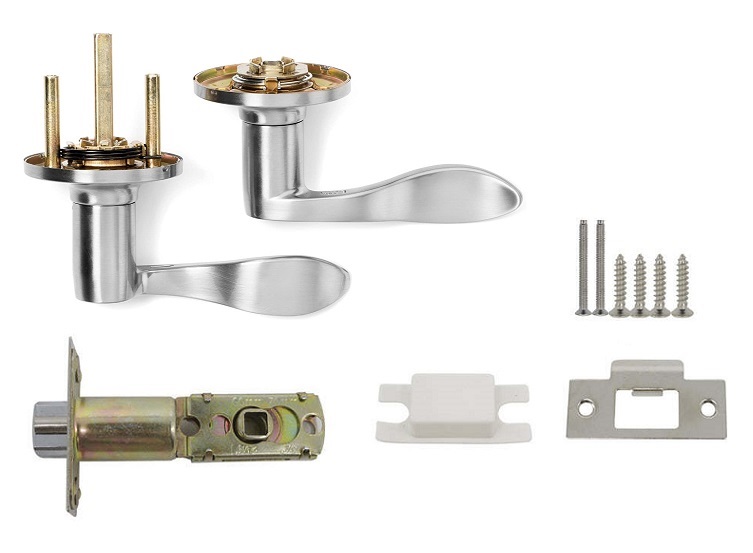

Installation is simple and DIY-friendly. You only need a standard Phillips screwdriver. All mounting hardware — including the adjustable latch, strike plate, matching screws and illustrated step-by-step installation guide — is included in the package. Most homeowners complete installation in 15 to 30 minutes.

Yes! This wave lever passage lock follows standard residential tubular lock dimensions and can directly replace most major brand door knobs and lever locksets. It's an easy, affordable way to upgrade the look and accessibility of your interior doors during a home renovation or refresh.

This wave lever series offers four complete function configurations with identical trim for a consistent, coordinated look throughout your home:

• Passage: Non-locking free operation for hallways and closets (this model)

• Privacy: Bathroom / bedroom lock with thumb-turn and emergency release

• Entry: Keyed entry lock for exterior front doors and secured rooms

• Dummy: Non-functional decorative handle for inactive double doors

While Satin Nickel is our most popular finish, this wave lever series is also available in Polished Brass, Polished Chrome, Oil Rubbed Bronze and Matte Black. Coordinate all doors with the same finish for a cohesive look, or mix finishes by room to match different design themes.

Yes. The wave lever handle design meets ADA accessibility guidelines. It can be operated with a single hand or closed fist without tight grasping or twisting, making it suitable for homes with accessibility needs, elderly residents or people with limited hand mobility.

Yes, we offer competitive wholesale and bulk pricing for home builders, contractors, property managers, hardware distributors and real estate investors. Bulk orders are available for new construction developments, apartment buildings, multi-family housing and renovation projects. Contact our sales team for a customized quotation with volume discounts.

We stand behind the quality of our products with a limited lifetime mechanical warranty for residential use, covering defects in materials and workmanship of the internal mechanism. The finish is warranted for a period of 5 years under normal residential use and proper care conditions.
