A tubular passage door lever is a non-locking interior door handle built with a tubular lock mechanism for residential applications. Unlike keyed entry or privacy locks, the passage function has no locking cylinder — both interior and exterior levers operate freely at all times, allowing unobstructed access through interior doors.

This square-style tubular passage lever is ideal for hallways, closets, pantries, laundry rooms, living rooms, dining rooms, home offices and all other interior doors where privacy locking is unnecessary. It is NOT intended for exterior entry doors or rooms requiring secured access control.

• Passage Function: Non-locking, free operation from both sides — for hallways, closets and pantries where no lock is needed.

• Privacy Function: Locks from inside with a thumb-turn, features emergency release slot outside — for bathrooms and bedrooms.

• Entry Function: Key-operated from outside, thumb-turn inside — for exterior front doors and restricted-access rooms.

A passage lever has a fully functional spring-loaded latch bolt that keeps the door securely closed and retracts when the handle is turned. A dummy lever is a fixed, non-operational decorative pull with no latch mechanism, used only for cabinet doors, bi-fold doors or the inactive side of double doors.

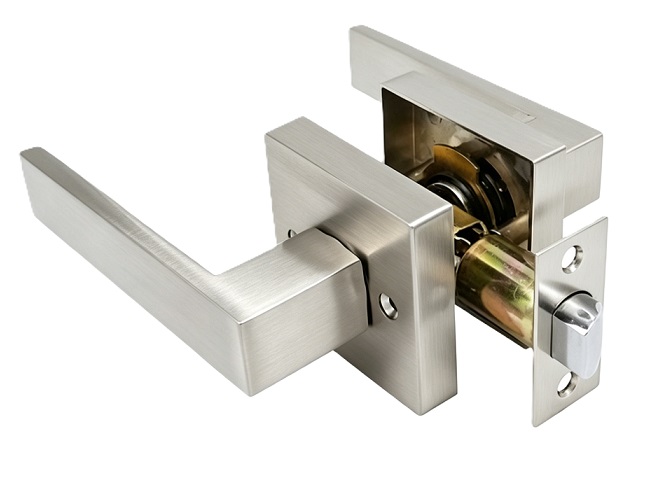

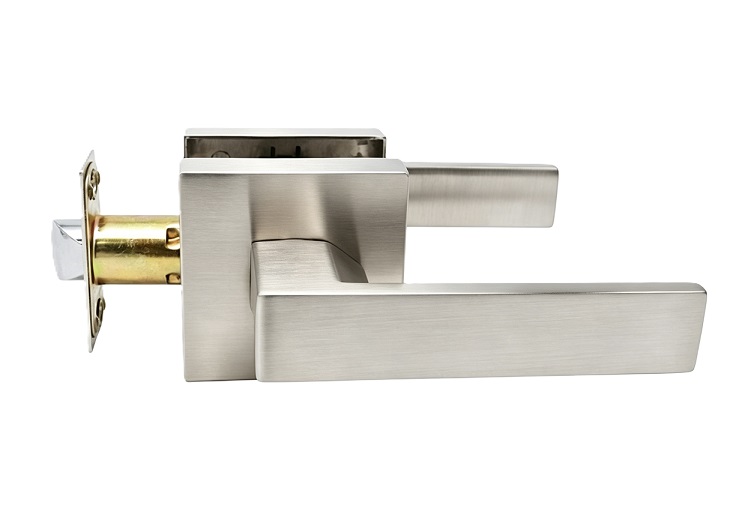

This passage lever features a modern square rosette design with clean geometric lines and a minimalist contemporary aesthetic. The square trim pairs perfectly with modern farmhouse, mid-century modern, industrial and transitional home decor styles.

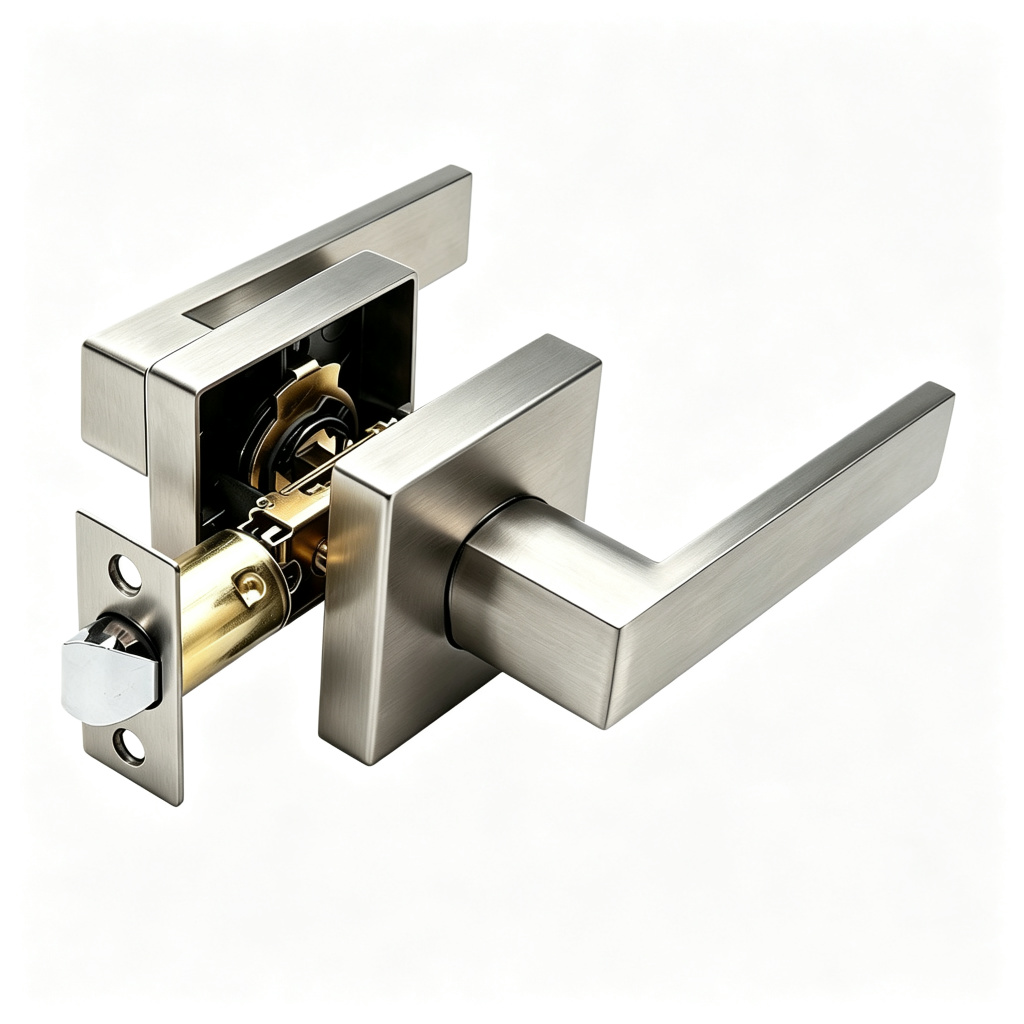

The lever handle and square rosette are constructed from heavy-duty zinc alloy for structural strength and durability. The internal tubular mechanism uses high-quality steel and brass components for smooth, reliable long-term operation in residential settings.

The finish shown is premium Brushed Satin Nickel (SN). The uniform brushed texture resists fingerprints, smudges and minor surface wear, delivering a warm silver tone that complements both warm and cool interior color palettes.

Wipe the surface gently with a soft, damp cloth; mild soap may be used for heavier smudges. Avoid abrasive cleaners, harsh chemicals, steel wool or scouring pads, as these will scratch and damage the brushed satin finish over time.

A tubular lock (also called a cylindrical lock) is a type of lockset where the operating mechanism is housed in a cylindrical body that installs through a single bored hole in the door. Tubular locks are the standard for residential applications — they are easy to install, affordable and reliable for everyday interior use.

Simply push down on the lever from either side of the door to retract the spring-loaded latch bolt and open the door. When released, the internal return spring brings the lever back to its neutral position, and the latch automatically engages to hold the door closed. There is no lock, thumb-turn or key cylinder included.

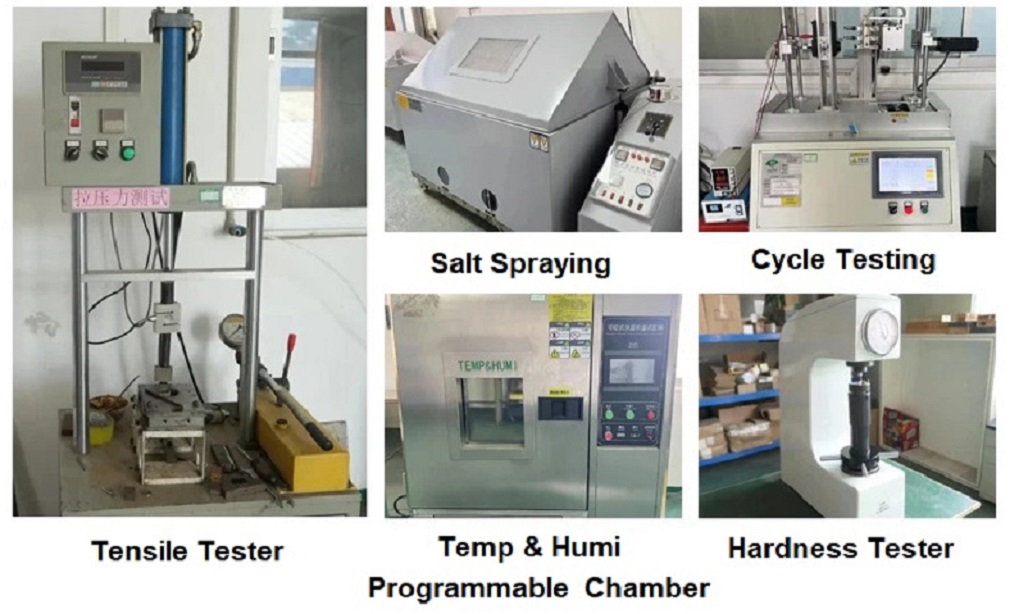

Yes, this is a residential grade tubular passage lock built for standard home use. The internal mechanism is rated for over 200,000 operating cycles, ensuring smooth, reliable performance for years of daily use in typical residential interior spaces.

No. As a passage-function lockset, it contains no locking cylinder and does not require or include keys for normal operation. If you need a keyed lock, please see our matching entry function model in the same square design and satin nickel finish.

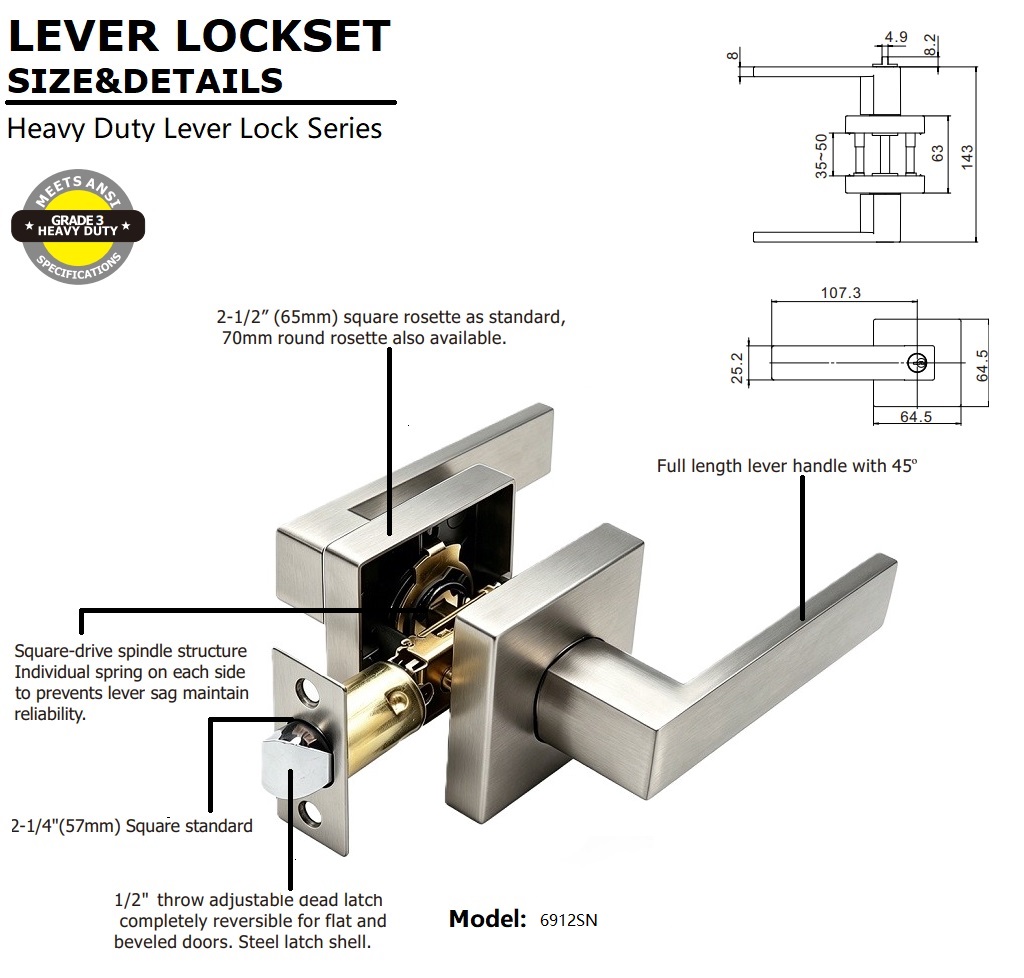

This tubular passage lever fits standard residential interior doors ranging from 1-3/8" (35mm) to 1-3/4" (45mm) in thickness, which covers nearly all residential interior door specifications.

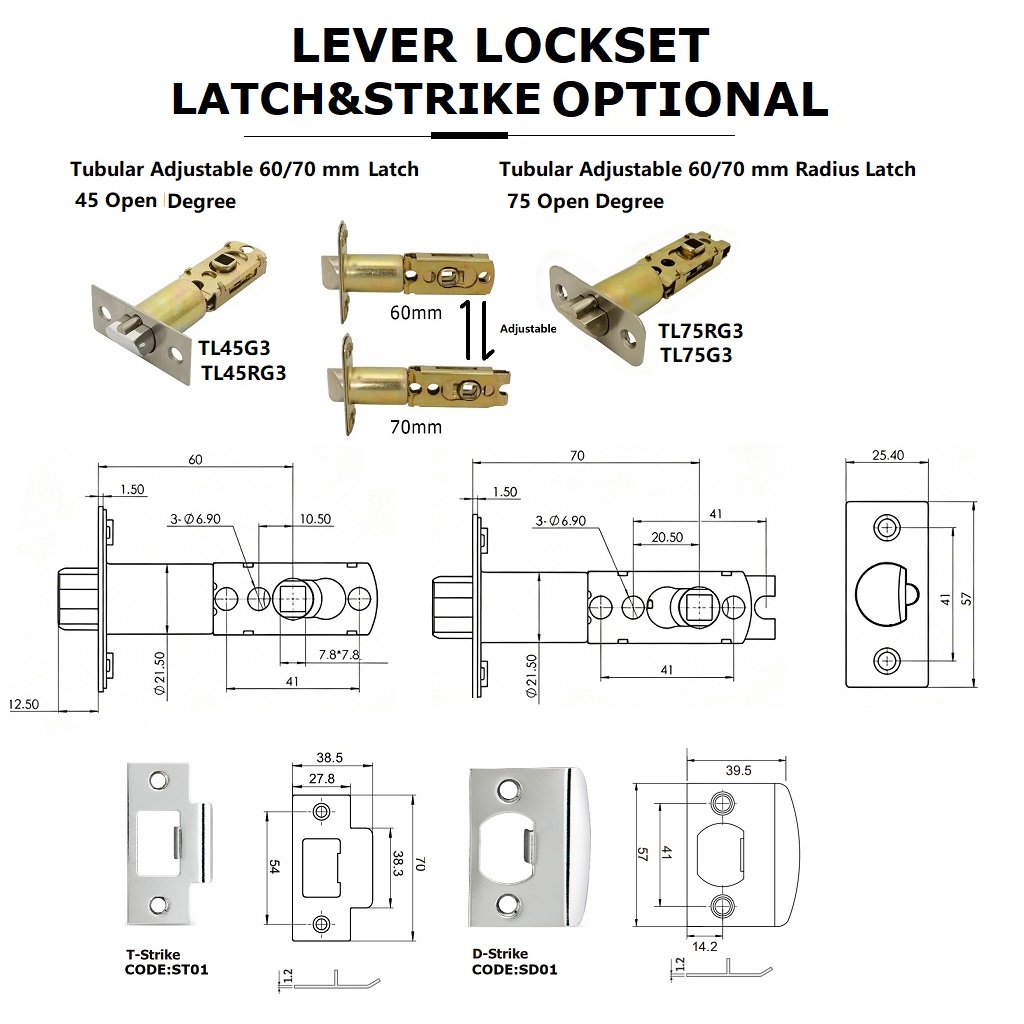

It includes an adjustable latch that fits both standard residential backsets: 2-3/8" (60mm) and 2-3/4" (70mm). It works with most standard pre-drilled door preparations in North American homes.

Yes. The lever features a universal reversible design, so it works seamlessly on both right-handed and left-handed swing doors without any extra modification or additional parts.

This is a standard tubular lockset that fits industry-standard residential door prep: 2-1/8" (54mm) cross bore and 1" (25mm) edge bore. It is compatible with standard wood, composite and hollow core interior doors.

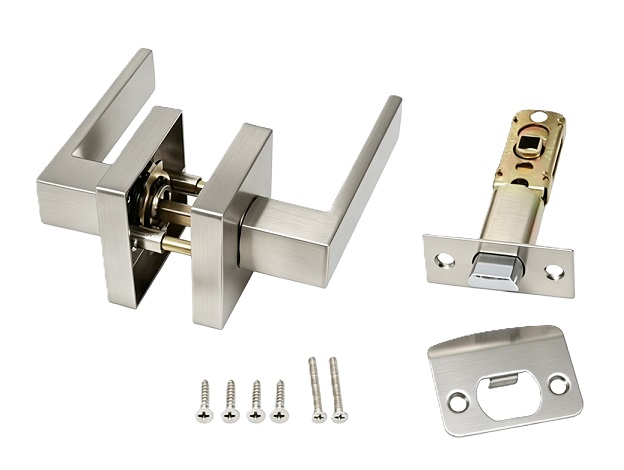

Only a standard Phillips screwdriver is required. All mounting hardware — including the adjustable latch, strike plate, matching screws and step-by-step installation guide — is included in the package. A typical DIY installation takes approximately 15–30 minutes.

Yes. This passage lever follows standard residential tubular lock dimensions and can directly retrofit most major brand tubular locksets, making it ideal for home renovation, refresh and upgrade projects.

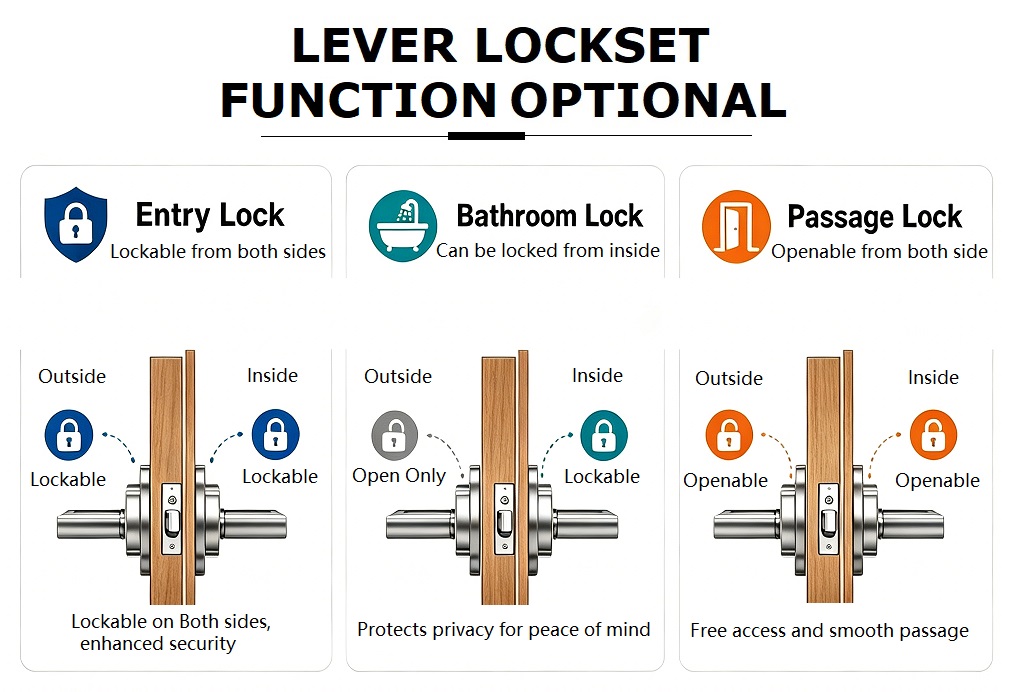

This square tubular lever series supports four complete function configurations with identical trim design for a consistent look throughout your home:

• Passage: Non-locking free operation for hallways and closets (this model)

• Privacy: Bathroom / bedroom lock with interior thumb-turn and emergency release

• Entry: Keyed entry lock for exterior front doors and secured rooms

• Dummy: Non-functional decorative handle for inactive double doors

This unit is engineered exclusively as a non-locking passage set. If you require locking functionality, we recommend selecting our matching privacy or entry lever models in the same square design and satin nickel finish for a cohesive look.

While Satin Nickel is the most popular finish, this square lever series is also available in Matte Black, Polished Chrome, Satin Chrome and Antique Bronze to match different interior design schemes and hardware finishes throughout your home.

Yes, we offer flexible wholesale pricing for contractors, builders, property managers and hardware distributors. Bulk orders are available for multi-unit residential projects, apartment buildings and new construction developments. Contact our sales team for a customized quotation.
