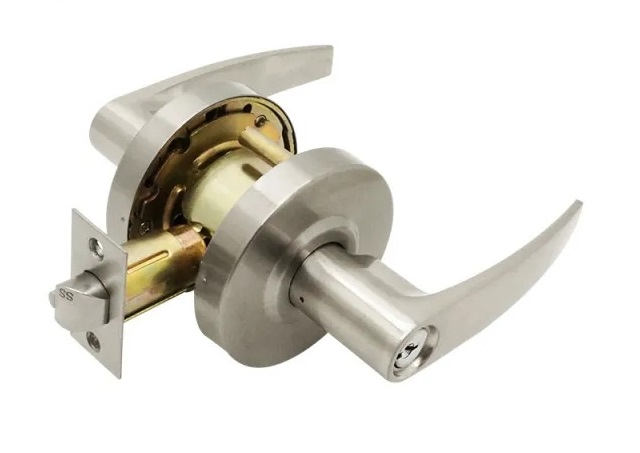

Grade 2 Commercial Storeroom Keyed Door Lever Lock Set
This ANSI Grade 2 heavy-duty commercial storeroom door lever lock set is specifically designed for secure, restricted-access areas. The exterior lever remains constantly locked and rigid, requiring a key to retract the latch for entry, while the interior lever always allows free immediate egress to comply with fire safety codes. Built with a robust cylindrical chassis and finished in premium satin stainless steel, it complies fully with rigorous North American quality standards, making it ideal for utility closets, mechanical rooms, and storage spaces.
- Product Information
Door Prep: Cross bore 2-1/8"(54mm), Edge bore 1"(25mm).
Door Thick : 1-3/8"(35mm) to 1-3/4"(50mm) thickness Door.
Backset: 2-3/4"(70mm) standard. 2-3/8"(60mm) optional.
Latch: 1/2 throw dead latch and spring latch
Cylinder:6-pin removable core, Schlage C Keyway ，(Kwikset, or C4 keyway optional).
Clutch:Clutch (free wheel) function available for ET (Entry)
Faceplate: Square corner 1"x1/8"2-1/4"(25.4x57mm) standard, 1"&2-1/4"(25.4x57mm)optional.
Strikes: T-Strike 2-3/4"x2-3/4" (44x70mm) standard, ASA-Strike 4-7/8" x 1-1/4"(123.8x31.7mm) optional.
Function: DM(0:Dummy), ET(1:Entrance), BK(2:Privacy), PS(3:Passage), ST(4:Storeroom),CL(5:Classroom) CM(8:Communication).
Ex(9.Exit).
