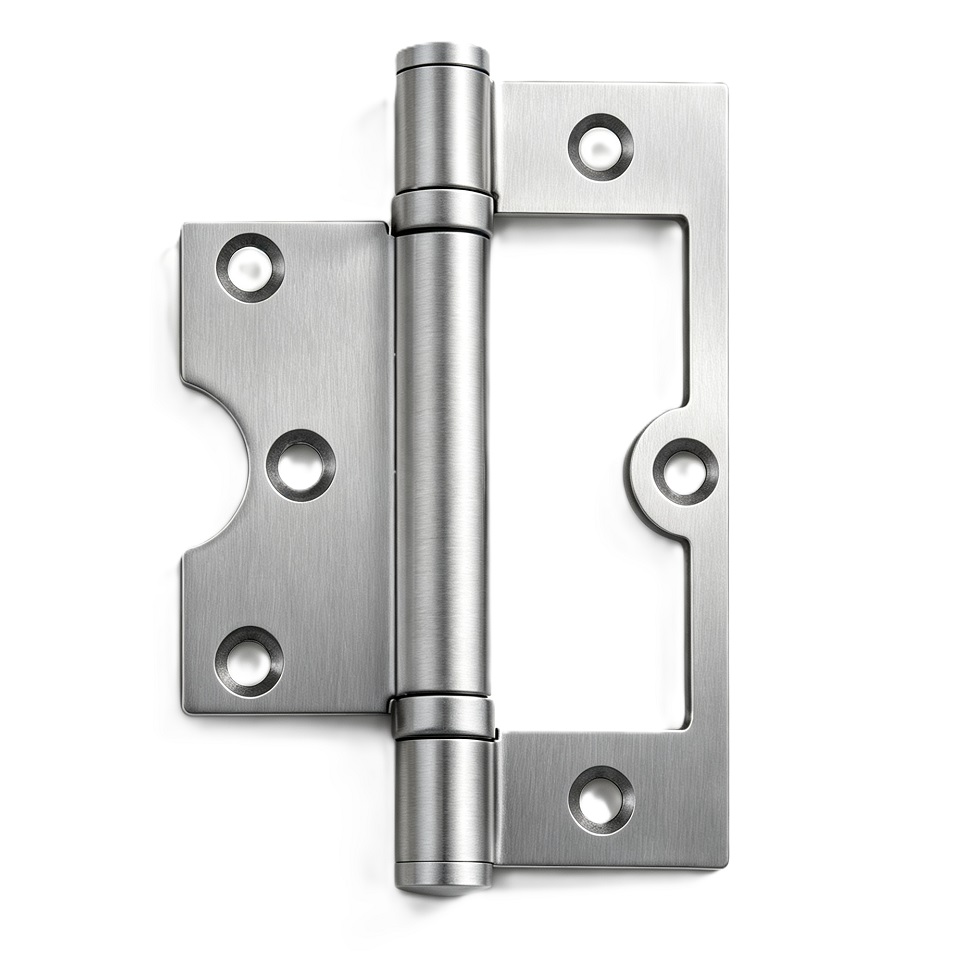

Cut‑Out Profile Flush Non‑Mortise Butt Hinge SS‑FH‑A‑Series (Decorative No‑Cut Flush Door Hinge)
| Model No. | Dimension (H × W × T) |
|---|
2.0mm Thickness Hinges: 25 ~ 40Kgs Per Door
2.5mm Thickness Hinges: 40 ~ 60Kgs Per Door
3.0mm Thickness Hinges: For heavier interior door applications
Recommendation: 3 pieces per door
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
Interior doors without mortise routing, renovation & retrofit projects
Residential room doors, office interior doors with decorative requirements
Commercial light‑medium duty door assemblies
Coastal / high‑humidity projects(SUS316 option)
Decorative Cut‑Out Leaf Profile‑Unique cut‑out shape delivers special visual effect besides hinge function.
Non‑Mortise Flush‑Mount Design‑No slot cutting needed, quick & simple installation, ideal for renovation jobs.
Two Size & Thickness Options‑Standard 2.5mm and heavy‑duty 3.0mm leaf for different door weight demands.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, cover different budget and corrosion‑resistance demand.
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
