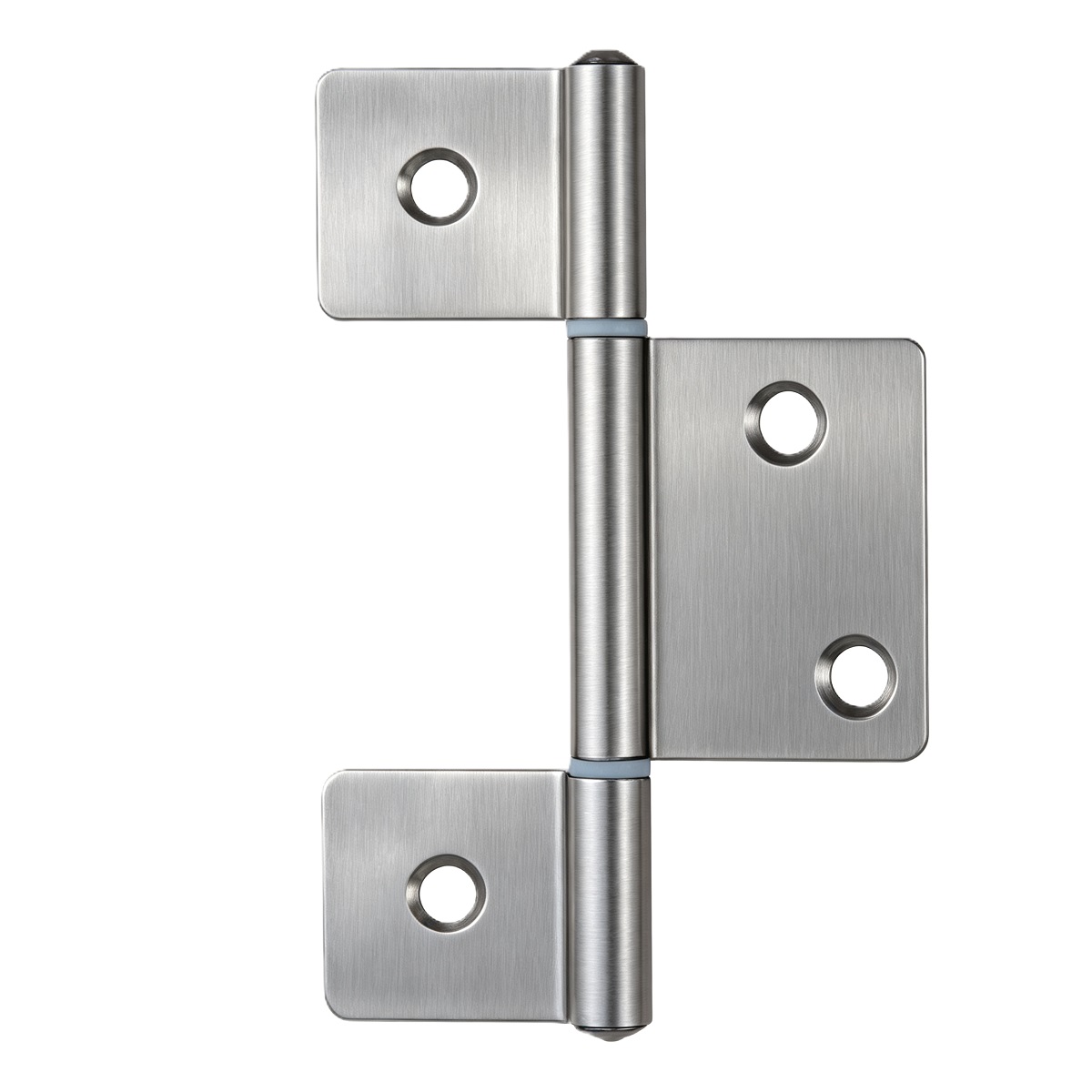

SS‑TL‑01 Stainless Steel Offset Butt Hinge (Offset Clearance Door Hinge)
MODEL SELECT
VIEW OPTION
APPEARANCE
Please select item to display preview
Select model to view product information
MATERIAL GRADE
SURFACE FINISHES
Please select finish option
MATERIAL & SPEC NOTE
Select variant to view specification
Product Description
SS‑TL‑01 offset butt hinge features offset leaf geometry to create extra clearance for door panel, avoids door edge collision against frame. Solid one‑piece non‑removable pin structure, cannot be lifted‑off. 1.5mm thin leaf for light‑weight interior doors. Stainless steel construction with multiple decorative surface finishes. Suitable for doors requiring offset clearance without disassembly function. Recommend 3 pieces per door.
Specification & Dimension Table
| Model No. | Dimension (H × W × T) |
|---|
Load‑Rating Recommendation
1.5mm Thickness Hinges: 10 ~ 25Kgs Per Door
Recommendation: 3 pieces per door
Material Grade Application Scope
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
Application Scenarios
Light‑weight interior doors needing offset clearance
Residential room doors, cabinet doors, renovation projects
Commercial light‑duty door assemblies
Coastal / high‑humidity projects(SUS316 option)
Product Advantages
Offset‑Leaf Clearance Design‑Offset geometry provides extra gap, prevents door edge collision with frame.
Solid Non‑Removable Pin‑Fixed pin construction, no lift‑off disassembly feature for stable door operation.
Compact Light‑Duty Size‑Optimized dimension for light‑weight interior doors.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, cover different budget and corrosion‑resistance demand.
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
