- Product Information

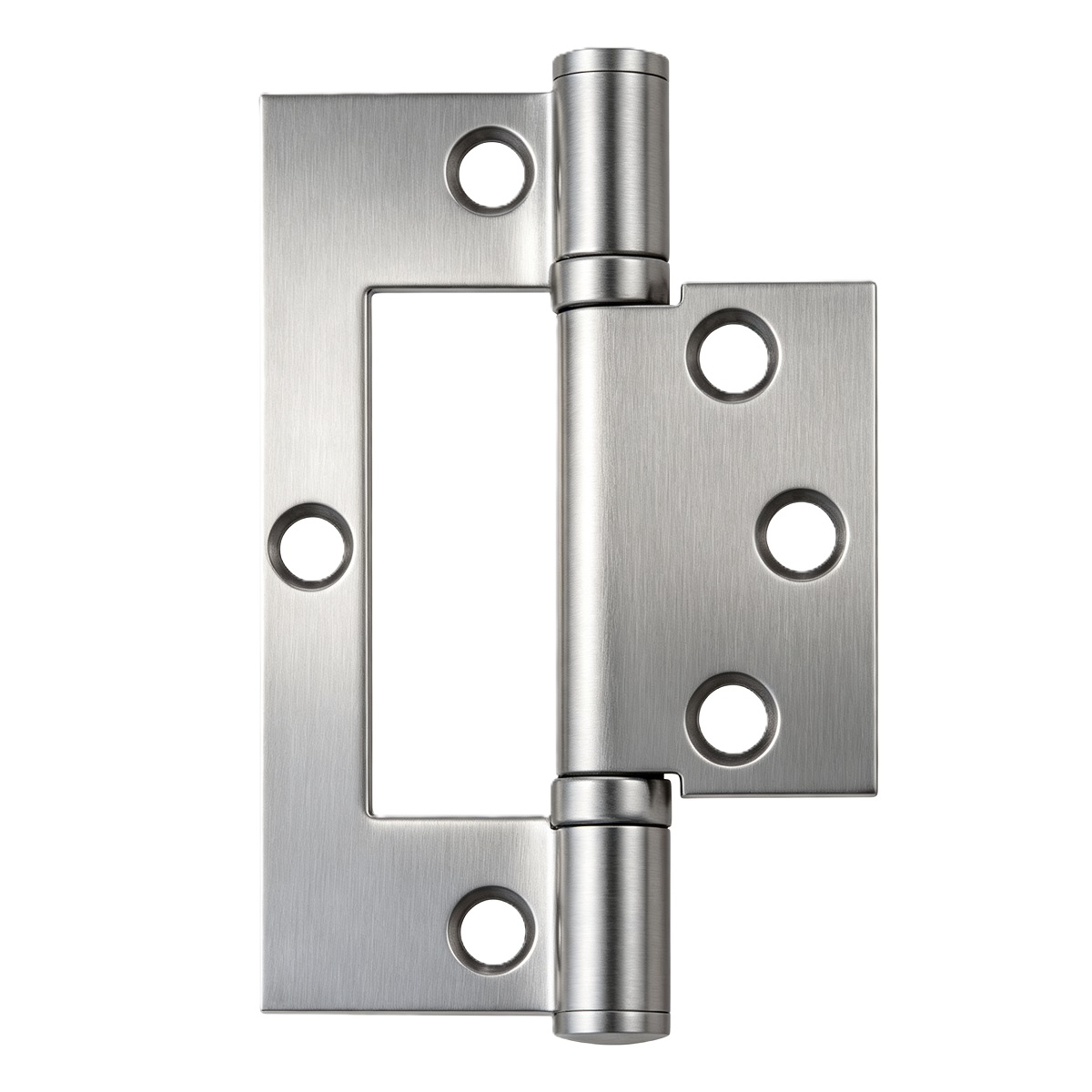

Flush Mount Non‑Mortise Butt Hinge SS‑FH‑B‑Series (No‑Cut Flush Door Hinge)
| Model No. | Dimension (H × W × T) |
|---|
2.0mm Thickness Hinges: 25 ~ 40Kgs Per Door
2.5mm Thickness Hinges: 40 ~ 60Kgs Per Door
Recommendation: 3 pieces per door
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
Interior doors without mortise routing, renovation & retrofit projects
Residential room doors, office interior doors
Commercial light‑medium duty door assemblies
Coastal / high‑humidity projects(SUS316 option)
Non‑Mortise Flush‑Mount Design‑No slot cutting needed, quick & simple installation, ideal for renovation jobs.
Inter‑leaf Flush Profile‑Two leaves nest together when door closes for neat flush appearance.
Multiple Size Options‑3 available dimensions covering common interior door requirements.
2.5mm Heavy‑Duty Leaf‑Supports door weight up to 60Kgs.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, cover different budget and corrosion‑resistance demand.
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
