CE EN1154 Fire Rated Commercial Door Hydraulic Closer for European Market
- Product Information
Silver
Black Aluminium
White Aluminium
Antique Brass

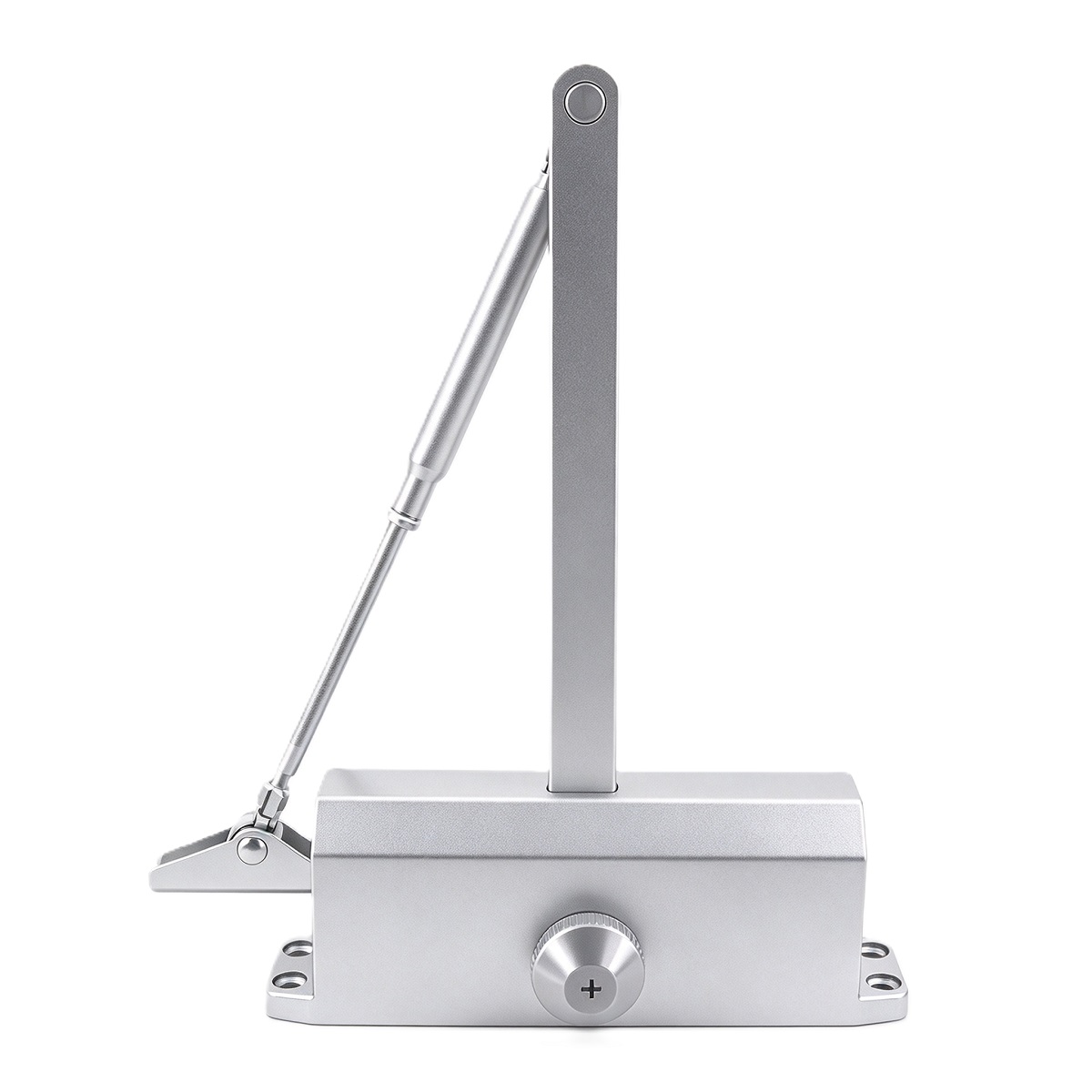

DC-068 CE‑EN1154 Fire‑Rated Commercial Door Hydraulic Closer for European Market
DC‑068 CE‑marked European‑market commercial fire‑rated overhead hydraulic door closer manufactured by WINGTEC. Die‑cast aluminium‑alloy housing paired with steel arm assembly, equipped with precision gear‑shaft, fixed‑force EN3 spring, piston and premium leak‑proof sealing assemblies, filled with imported German FUCHS hydraulic oil. Fixed EN3 power‑size rating for door weight 40‑65KG, max door width up to 950 mm. Max 180‑degree opening angle, two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation design, optional mechanical hold‑open positioning function. CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, passes 500,000‑cycle durability test. Supports standard‑arm, top‑jamb and parallel‑arm universal overhead mounting. Developed specifically for European commercial and residential fire‑door projects conforming to EU building hardware regulations. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale CE‑compliant European‑market fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | CE‑Marked Die‑Cast Aluminium‑Alloy EN1154 Fire‑Rated Commercial Hydraulic Overhead Door Closer for European Market |
| Operation | Hydraulic‑spring auto‑closing, overhead surface‑mount, non‑handed fit, optional hold‑open positioning, max 180° opening angle, two‑valve adjustable closing & latching speed, CE‑Marked, BS‑EN1154 & EN1634 fire‑safety certified |
| Material | Die‑Cast Aluminum‑Alloy housing, steel arm, precision gear‑shaft, fixed‑force EN3 spring, piston, seal‑ring assembly, imported FUCHS hydraulic oil |
| Core Functions | Fixed EN3 power rating, CE EU‑market compliance, non‑handed universal mounting, dual‑speed independent tuning, optional hold‑open, EN1634 120‑min fire‑rated, 500,000‑cycle durability |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, European‑Spec Office‑Retail‑Apartment Commercial‑Residential Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 100 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
European‑Spec Commercial & Residential Installations
DC‑068 CE‑EN1154 fire‑rated hydraulic door closer is purpose‑built for European‑spec office, retail and apartment fire‑rated door‑sets, fully meeting EU construction hardware requirements. Fixed EN3 spring delivers stable auto‑closing performance for 40‑65KG doors up to max 950mm door width. True non‑handed universal mounting removes separate left‑right‑hand SKU stocking burden for large‑volume European tender projects. CE‑Marked with BS‑EN1154 and EN1634 120‑minute fire‑resistance certification, satisfies European fire‑door assembly compliance requirements.
Multi‑Material Door New‑Build & Renovation
This CE‑compliant overhead hydraulic door closer uses premium imported FUCHS hydraulic oil and reliable leak‑proof sealing components for long‑term stable closing performance. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated interior‑exterior door‑sets for new‑construction and retrofit renovation European commercial‑residential hardware assignments.
Architectural Hardware Tender Specification Projects
Complete arm‑type mounting hardware kit included, universal mounting supports standard‑arm, top‑jamb and parallel‑arm installation. Optional mechanical hold‑open variant available. CE test reports, datasheet and installation drawings are available for tender‑submission documentation for EU‑market commercial‑residential building projects.
Product Characteristics
Die‑cast aluminium‑alloy housing plus steel arm assembly, premium leak‑proof sealing components, filled with imported German FUCHS hydraulic oil; CE‑marked construction hardware solution optimized for European market fire‑door operation
Fixed EN3 power‑rating for door weight 40‑65KG, max door width up to 950 mm, full 180‑degree maximum opening angle
Classic overhead arm‑type surface‑mount installation, true non‑handed left‑right universal fit; two‑valve independent adjustment for closing speed and latching speed; optional mechanical hold‑open positioning function
CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance, passes 500,000‑cycle durability test
Universal overhead arm‑type mounting; EU‑spec compliant for wooden, metal, steel and fire‑rated interior‑exterior door assemblies
Full‑set arm‑type installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale European‑project bulk orders
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, steel arm and internal fixed‑spring hydraulic‑components
Bulk wholesale supply for architectural construction and European‑market CE‑compliant fire‑safety‑door tender projects; optional hold‑open variant and multiple surface‑finish custom options available
2D installation drawing and product‑performance‑specification datasheet including CE‑EN compliance statement available for tender‑submission documentation
Frequently Asked Questions
What certifications does DC‑068 hold?
DC‑068 carries CE‑Mark, fully complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, and passes 500,000‑cycle durability test for European‑market overhead door‑control hardware.
What door weight and dimension fits DC‑068?
DC‑068 adopts fixed EN3 spring power, suitable for door weight range 40‑65KG and maximum door width up to 950 mm, max opening angle reaches full 180‑degree.
What projects suit DC‑068 CE‑compliant door closer?
DC‑068 is designed for European‑spec commercial offices, retail premises and residential apartment fire‑door assemblies requiring CE‑EN1154 / EN1634 compliance. Hold‑open function is available as optional upgrade subject to local EU fire‑code regulations.
