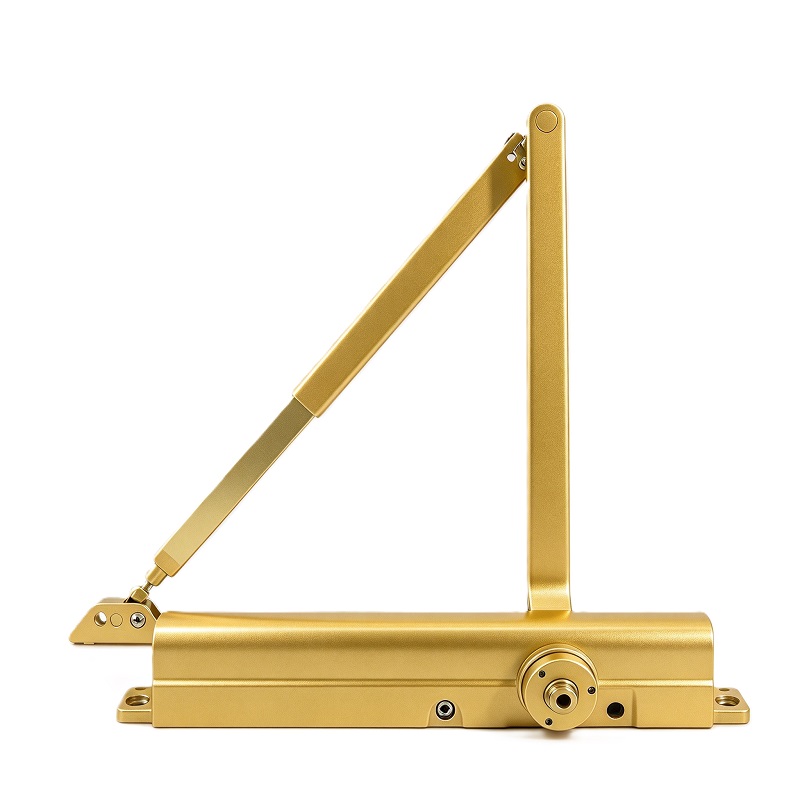

UL Listed America Style Aluminum Force Adjustable Surface Mount Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Golden
DC-059 UL‑Listed America‑Style Aluminum Force‑Adjustable Surface‑Mount Door Closer
DC‑059 American‑style force‑adjustable surface‑mount overhead hydraulic fire‑rated door closer manufactured by WINGTEC. Heavy‑duty die‑cast aluminium‑alloy American‑profile housing with reinforced steel arm assembly, equipped with precision gear‑shaft, full‑range multi‑grade adjustable spring, piston and premium leak‑proof sealing assemblies, filled with imported German FUCHS hydraulic oil, built‑in back‑check opening buffer protection. Multi‑adjustable EN1‑EN6 power‑size rating for door weight 20‑150KG, max door width up to 1500 mm. Max 180‑degree opening angle, two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation, optional mechanical hold‑open positioning function. UL‑Listed UL10C 3‑Hour fire‑rated(UL File No.R40717), ANSI‑156.4 and BS‑EN1154 compliant, passes 90‑minute fire‑resistance test and 500,000‑cycle durability test. Supports standard‑arm, top‑jamb and parallel‑arm universal overhead mounting. American‑spec surface‑mount design built for North‑American market high‑traffic commercial entry fire‑door assemblies. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale architectural American‑style UL‑compliant fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | UL‑Listed Die‑Cast Aluminium‑Alloy America‑Style Force‑Adjustable Surface‑Mount Hydraulic Overhead Fire‑Rated Door Closer |
| Operation | Hydraulic‑spring auto‑closing with built‑in back‑check buffer, American‑style surface‑mount, non‑handed fit, optional hold‑open positioning, max 180° opening angle, two‑valve adjustable closing & latching speed, UL‑Listed, ANSI‑156.4 & BS‑EN1154 fire‑safety certified |
| Material | Die‑Cast Aluminum‑Alloy American‑profile housing, reinforced steel arm, precision gear‑shaft, multi‑grade adjustable‑toughness spring, piston, seal‑ring assembly, imported FUCHS hydraulic oil |
| Core Functions | Adjustable EN1‑EN6 full‑range power rating, built‑in back‑check opening buffer, American‑spec surface‑mount profile, non‑handed universal mounting, dual‑speed independent tuning, optional hold‑open, 90‑min fire‑rated, 500,000‑cycle durability |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, North‑American‑Style Hotel‑Retail‑Office‑Commercial Building Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 100 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
North‑American‑Style Commercial Entry Installations
DC‑059 UL‑listed American‑style surface‑mount force‑adjustable door closer is purpose‑built for North‑American‑spec hotel, retail storefront and office lobby high‑traffic fire‑rated entry door sets. Classic American‑profile surface‑mount housing, built‑in back‑check buffer absorbs violent opening impact to protect door frame and hardware. Full‑range adjustable EN1‑EN6 spring power covers ultra‑wide 20‑150KG door weight spectrum up to max 1500mm door width. True non‑handed universal mounting eliminates separate left‑right‑hand SKU stocking pressure for large‑volume public‑building tender projects. UL‑Listed UL10C, ANSI‑156.4 and BS‑EN1154 dual‑standard certifications satisfy North‑American and European fire‑safety hardware requirements for commercial fire‑door assemblies.
Multi‑Material Door New‑Build & Renovation
This American‑style surface‑mount door closer uses premium imported FUCHS hydraulic oil and reliable leak‑proof sealing components for long‑term stable closing performance. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated interior‑exterior door sets for new‑construction and retrofit renovation commercial hardware assignments.
Architectural Hardware Tender Specification Projects
Complete arm‑type mounting hardware kit included, universal mounting supports standard‑arm, top‑jamb and parallel‑arm installation. Optional mechanical hold‑open variant available, speed valves are field‑adjustable on‑site. Compliance reports, datasheet and installation drawings are available for tender‑submission documentation for hotel, retail and office commercial building projects.
Product Characteristics
Heavy‑duty die‑cast aluminium‑alloy American profile housing plus reinforced steel arm assembly, built‑in back‑check opening buffer, premium leak‑proof sealing components, filled with imported German FUCHS hydraulic oil.
Full‑range multi‑grade adjustable EN1 / EN2 / EN3 / EN4 / EN5 / EN6 power‑rating for door weight 20‑150KG, max door width up to 1500 mm, full 180‑degree maximum opening angle.
Classic overhead arm‑type surface‑mount installation, true non‑handed left‑right universal fit; two‑valve separate adjustment for closing speed and latching speed; optional mechanical hold‑open positioning function.
UL‑Listed UL10C 3‑Hour fire‑rated, complies with ANSI‑156.4 & BS‑EN1154, passes 90‑minute fire‑resistance test and 500,000‑cycle durability test.
Universal overhead arm‑type mounting; American‑spec profile suitable for wooden, metal, steel and fire‑rated interior‑exterior door assemblies.
Full‑set arm‑type installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale commercial project bulk orders.
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, reinforced steel arm and internal multi‑adjustable spring plus hydraulic components.
Bulk wholesale supply for architectural construction and commercial fire‑safety door tender projects; optional hold‑open variant and multiple surface‑finish custom options available.
2D installation drawing and product‑performance specification datasheet including UL‑ANSI‑BS‑EN compliance statement available for tender‑submission documentation.
Frequently Asked Questions
What certifications does DC-059 hold?
DC‑059 is UL‑Listed UL10C 3‑Hour fire‑rated(UL File No.R40717), complies fully with ANSI‑156.4 and BS‑EN1154, also passes 90‑minute fire‑resistance test and 500,000‑cycle durability test for American‑style overhead door control hardware.
What door weight and dimension fits DC-059?
DC‑059 full‑range adjustable EN1‑EN6 spring power, suitable for door weight range 20‑150KG and maximum door width up to 1500 mm, max opening angle reaches full 180‑degree.
What is back‑check function for DC-059?
Built‑in back‑check buffer absorbs sudden strong opening impact, prevents door or frame damage caused by wind or forceful pushing. Hold‑open function is available as optional upgrade subject to local fire‑code regulations.
