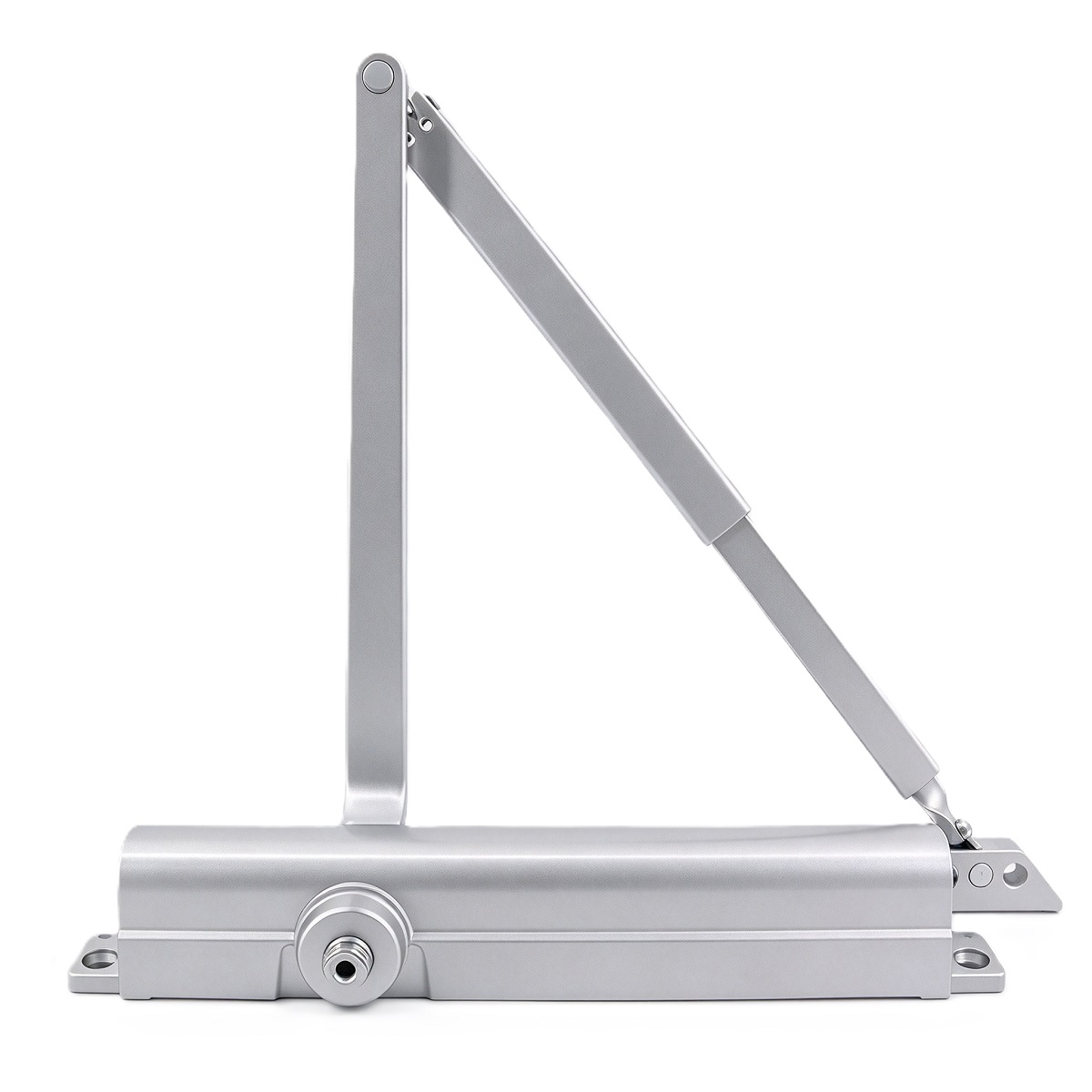

UL Standard Fire Rate Delay Action Heavy Duty Wood Auto Door Closers
- Product Information
Silver
Black Aluminium
White Aluminium
Golden
DC059DA UL‑Standard Fire‑Rate Delay‑Action Heavy‑Duty Wood Auto Door Closers
DC059DA heavy‑duty delay‑action overhead hydraulic fire‑rated wood door closer manufactured by WINGTEC. Heavy‑duty die‑cast aluminium‑alloy American‑style housing with reinforced steel arm assembly, equipped with precision gear‑shaft, full‑range multi‑grade adjustable spring, dedicated independent delay‑action hydraulic valve, built‑in back‑check opening buffer, piston and premium leak‑proof sealing assemblies, filled with imported German FUCHS hydraulic oil. Adjustable EN1‑EN6 power‑size rating for door weight 20‑150KG, max door width up to 1500 mm. Max 180‑degree opening angle, field adjustable 3‑15‑seconds delay‑action timer, plus two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation, optional mechanical hold‑open positioning function. UL‑Listed UL10C 3‑Hour fire‑rated(UL File No.R40717), ANSI‑156.4 and BS‑EN1154 compliant, passes 90‑minute fire‑resistance test and 2,000,000‑cycle heavy‑duty durability test. Supports standard‑arm, top‑jamb and parallel‑arm universal overhead mounting. Specially optimized for heavy‑weight wooden fire‑rated doors, widely used in hospital, school, retail and high‑traffic public building assemblies. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale architectural delay‑action heavy‑duty fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | UL‑Listed Die‑Cast Aluminium‑Alloy Delay‑Action Heavy‑Duty Hydraulic Overhead Fire‑Rated Wooden Auto Door Closer |
| Operation | Hydraulic‑spring auto‑closing with 3‑15s adjustable delay‑action timer and built‑in back‑check buffer, overhead surface‑mount, non‑handed fit, optional hold‑open positioning, max 180° opening angle, two‑valve adjustable closing & latching speed, UL‑Listed, ANSI‑156.4 & BS‑EN1154 fire‑safety certified |
| Material | Die‑Cast Aluminum‑Alloy housing, reinforced steel arm, precision gear‑shaft, multi‑grade adjustable‑toughness spring, dedicated delay‑action valve plus back‑check buffer unit, piston, seal‑ring assembly, imported FUCHS hydraulic oil |
| Core Functions | Adjustable EN1‑EN6 full‑range power rating, 3‑15‑seconds field‑adjustable delay‑action timer, built‑in back‑check impact buffer, heavy‑duty design optimized for heavy wooden fire doors, universal non‑handed installation, optional hold‑open, UL10C 3‑hour fire rated, 2 million cycle service life |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, Hospital, School, Retail, High‑Traffic Public Building Architectural Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 100 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
High-Traffic Public & Healthcare Building Installations
DC059DA UL‑listed delay‑action fire‑rated hydraulic door closer is engineered for heavy‑weight wooden fire doors in hospitals, schools and retail premises. Adjustable EN1‑EN6 power covers 20‑150kg doors with maximum width up to 1500mm. The 3‑15 second adjustable delay timer allows users extra time to pass through before automatic closing. Built‑in back‑check buffer prevents door slamming hard against wall or frame. UL10C 3‑hour fire rating meets North American fire code requirements for commercial fire door assemblies.
Heavy Wooden Fire Door New‑Build & Retrofit
This American style overhead hydraulic door closer uses imported FUCHS hydraulic oil and reliable leak‑proof sealing components, tested to 2,000,000 cycles. It works reliably for heavy wooden, metal, steel and fire‑rated interior and exterior door sets in new construction and renovation projects. Non‑handed universal mounting reduces inventory SKUs for large building projects.
Architectural Hardware Tender Specification Projects
Full mounting hardware kit included. Supports standard‑arm, top‑jamb and parallel‑arm installation. Optional mechanical hold‑open function available. UL test reports, product datasheet and installation drawings are available for tender documentation for North American commercial and institutional building projects.
Product Characteristics
Heavy‑duty die‑cast aluminium‑alloy American‑style housing plus reinforced steel arm assembly, premium leak‑proof sealing components, filled with imported German FUCHS hydraulic oil; UL10C 3‑hour fire rated overhead door control hardware for North American commercial fire door applications
Adjustable EN1‑EN6 full range power rating for door weight 20‑150KG, max door width up to 1500 mm, full 180‑degree maximum opening angle
Classic overhead arm‑type surface‑mount installation, true non‑handed left‑right universal fit; 3‑15s adjustable delay‑action timer, built‑in back‑check buffer, two‑valve independent adjustment for closing speed and latching speed; optional mechanical hold‑open positioning function
UL‑Listed UL10C 3‑Hour fire‑rated(UL File No.R40717), complies with ANSI‑156.4 and BS‑EN1154, passes 90‑minute fire‑resistance test and 2,000,000‑cycle heavy‑duty durability test
Universal overhead arm‑type mounting; optimized for heavy wooden fire doors, also fits wooden, metal, steel and fire‑rated interior‑exterior door assemblies
Full‑set arm‑type installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale North American institutional and commercial bulk tender orders
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, reinforced steel arm and internal adjustable spring hydraulic components
Bulk wholesale supply for architectural construction and North American UL‑compliant fire‑safety door tender projects; optional hold‑open variant and multiple surface‑finish custom options available
2D installation drawing and product‑performance‑specification datasheet including UL compliance statement available for tender‑submission documentation
Frequently Asked Questions
What certifications does DC059DA hold?
DC059DA carries UL Listing UL10C 3‑Hour Fire Rated (UL File No.R40717), fully complies with ANSI‑156.4 and BS‑EN1154, and passes 90‑minute fire resistance test and 2,000,000‑cycle durability test for North American overhead door control hardware.
What door weight and dimension fits DC059DA?
DC059DA adopts adjustable EN1‑EN6 spring power, suitable for door weight range 20‑150KG and maximum door width up to 1500 mm, max opening angle reaches full 180‑degree.
What projects suit DC059DA delay‑action fire door closer?
DC059DA is designed for hospitals, schools, retail and high‑traffic public buildings requiring UL10C fire rating. The delay action timer gives extra passage time, and back‑check buffer protects door and wall. Hold‑open function available as optional upgrade subject to local fire‑code regulations.
