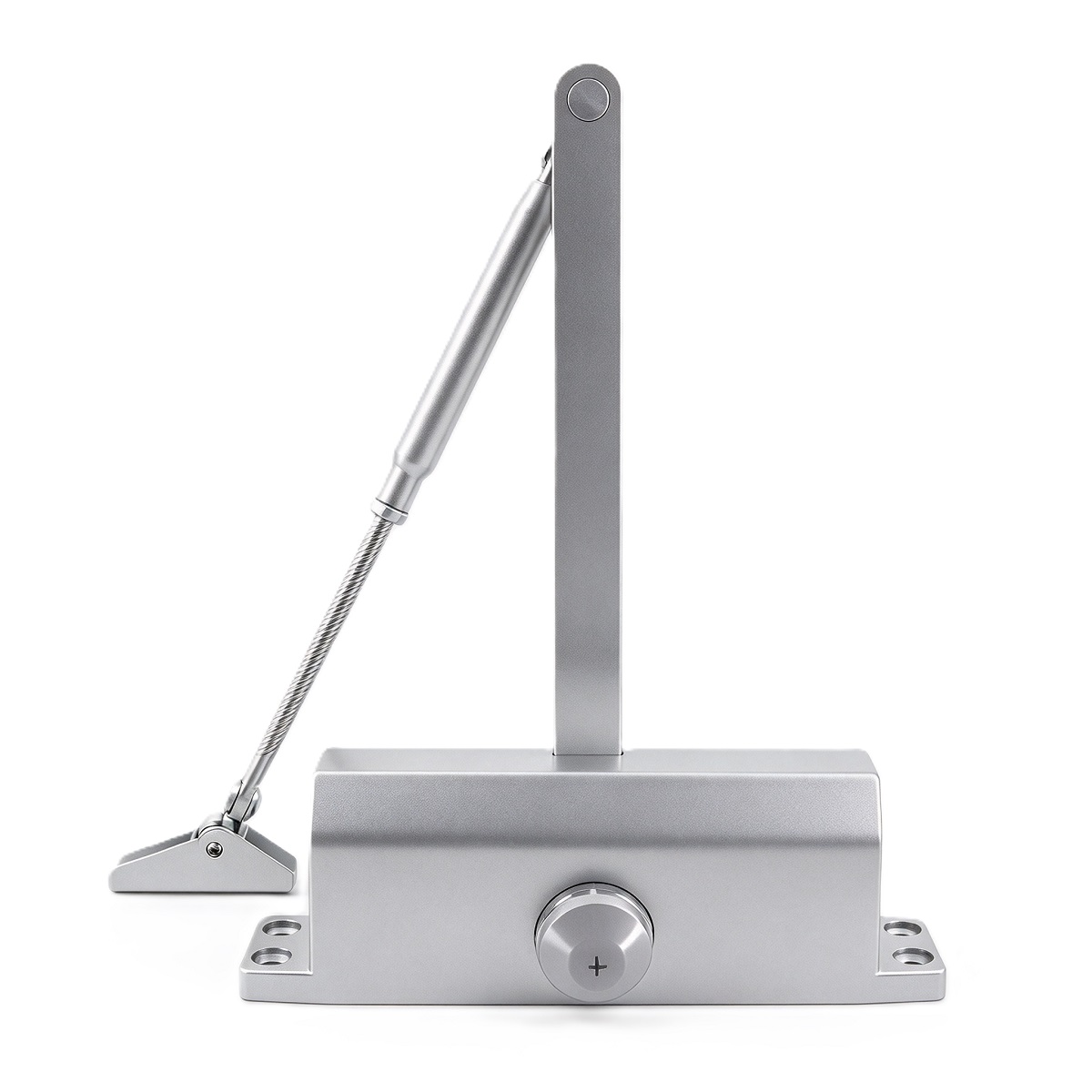

CE EN1154 Fire Rated Adjustable Hydraulic Overhead Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Gold
DC‑070 CE‑EN1154 Fire‑Rated Adjustable Hydraulic Overhead Door Closer
DC‑070 adjustable‑power overhead hydraulic fire‑rated door closer manufactured by WINGTEC. Robust cast‑aluminum‑alloy housing dimension L193×W41×H65mm, reinforced steel arm assembly, precision gear‑shaft, adjustable EN1‑EN3 spring unit, piston and premium leak‑proof sealing gaskets, filled with imported German FUCHS hydraulic oil. Adjustable EN1‑EN3 power‑size rating for door weight 40‑65KG, max door width up to 950 mm. Max 180‑degree opening angle, two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation, optional mechanical hold‑open positioning function. CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, passes 500,000‑cycle durability test. Supports standard‑arm, top‑jamb and parallel‑arm universal overhead mounting. Developed for European‑spec commercial and residential fire‑door projects complying with EU‑CPR construction‑product regulations. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door‑sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale CE‑compliant European‑market fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | CE‑Marked Cast‑Aluminium‑Alloy EN1154 Adjustable‑Power Fire‑Rated Overhead Hydraulic Door Closer |
| Operation | Hydraulic‑spring auto‑closing with adjustable EN1‑EN3 spring force, overhead surface‑mount, non‑handed fit, optional hold‑open positioning, max 180° opening angle, two‑valve adjustable closing & latching speed, CE‑Marked, BS‑EN1154 & EN1634 fire‑safety certified |
| Material | Cast‑aluminum‑alloy housing, reinforced steel arm assembly, precision gear‑shaft, adjustable EN1‑EN3 spring unit, piston, high‑grade anti‑leakage gaskets, imported FUCHS hydraulic oil |
| Core Functions | Field‑adjustable EN1‑EN3 spring power rating, dual‑valve independent closing‑latching speed tuning, non‑handed universal mounting, optional hold‑open, EN1634 120‑min fire‑rated, 500,000‑cycle service life |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, European‑Spec Hospital‑Hotel‑Office‑Apartment Commercial‑Residential Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
European‑Spec Commercial & Residential Installations
DC‑070 CE‑CPR compliant adjustable‑power overhead door closer is purpose‑built for European‑spec hospital, hotel, office and apartment fire‑rated door‑sets, fully meeting EU Construction‑Products‑Regulation fire‑safety hardware requirements. Field‑adjustable EN1‑EN3 spring power adapts for different 40‑65KG door weights up to max 950mm door width. True non‑handed universal mounting removes separate left‑right‑hand SKU stocking burden for large‑volume European tender projects. CE‑Marked with BS‑EN1154 and EN1634 120‑minute fire‑resistance certification, satisfies European fire‑door assembly compliance requirements.
Multi‑Material Door New‑Build & Retrofit
This CE‑compliant adjustable‑power hydraulic door closer uses premium imported anti‑leak gaskets and German FUCHS hydraulic oil for long‑term stable closing performance. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated interior‑exterior door‑sets for new‑construction and retrofit renovation European commercial‑residential hardware assignments. Supports standard‑arm, top‑jamb and parallel‑arm overhead mounting options. Complete mounting bracket and screw accessories included for quick field fitting.
Architectural Hardware Tender Specification Projects
Multiple finish color options match popular European residential and commercial exterior hardware aesthetics. Datasheet, installation drawings and full CE‑CPR compliance documentation are supplied for tender‑submission documentation for EU‑market commercial‑residential building projects. Optional mechanical hold‑open variant can be selected subject to local fire‑code restrictions. Custom surface finishes and custom‑packing are available for large‑volume B2B orders.
Product Characteristics
Heavy‑duty cast‑aluminum‑alloy housing dimension L193×W41×H65mm plus reinforced steel arm assembly, high‑quality anti‑leak sealing gaskets, filled with imported German FUCHS hydraulic oil; CE‑CPR marked construction hardware solution optimized for European market fire‑door operation
Field‑adjustable EN1‑EN3 power‑rating for door weight 40‑65KG, max door width up to 950 mm, full 180‑degree maximum opening angle
Classic overhead arm‑type surface‑mount installation, true non‑handed left‑right universal fit; two‑valve independent adjustment for closing speed and latching speed; optional mechanical hold‑open positioning function
CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance, passes 500,000‑cycle durability test, meets EU‑CPR construction‑product regulation requirements
Universal overhead arm‑type mounting (standard‑arm / top‑jamb / parallel‑arm); suitable for wooden, metal, steel and fire‑rated interior‑exterior door assemblies
Full‑set arm‑type installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale European‑project bulk tender orders
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, steel arm and internal adjustable‑spring hydraulic‑components.
Bulk wholesale supply for architectural construction and European‑market CE‑CPR compliant fire‑safety‑door tender projects; optional hold‑open variant and multiple surface‑finish custom options available upon request.
2D installation drawing and product‑performance‑specification datasheet including CE‑EN compliance statement available for tender‑submission documentation.
Frequently Asked Questions
What certifications does DC‑070 hold?
DC‑070 carries CE‑Mark complying with EU‑CPR regulation, fully complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, and passes 500,000‑cycle durability test for European‑market overhead door‑control hardware.
What door weight and dimension fits DC‑070?
DC‑070 features field‑adjustable EN1‑EN3 spring power, suitable for door weight range 40‑65KG and maximum door width up to 950 mm, max opening angle reaches full 180‑degree. Overall housing dimension L193 × W41 × H65 mm.
Can DC‑070 be fitted with hold‑open function?
Mechanical hold‑open positioning function is offered as optional upgrade variant. Please note hold‑open modification must comply with local EU fire‑code requirements for fire‑rated door assemblies.
