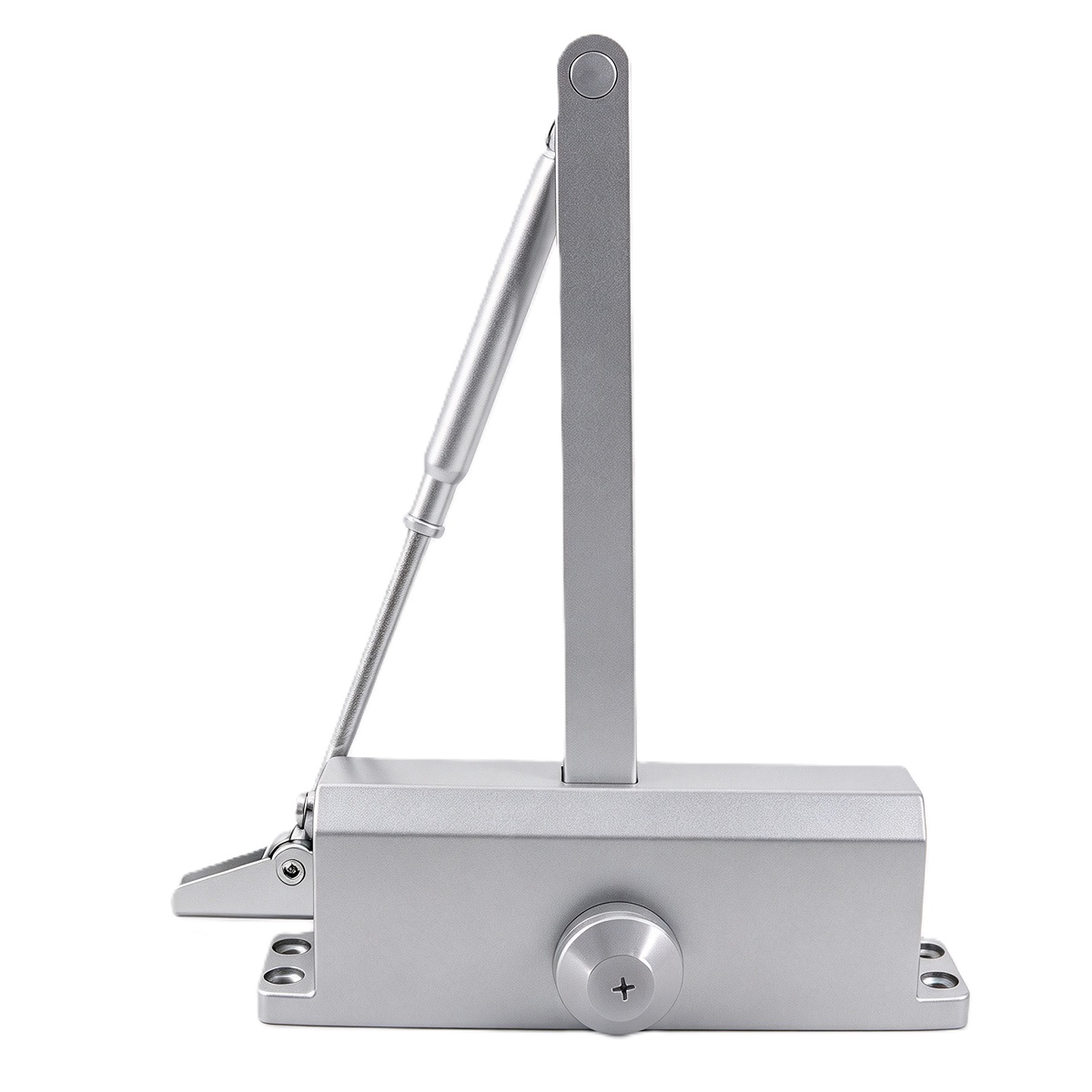

CE EN1154 Back Check 180 Degree Fire Rated Hydraulic Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Gold
DC‑069 CE‑EN1154 Back‑Check 180‑Degree Fire‑Rated Hydraulic Door Closer
DC‑069 built‑in back‑check overhead hydraulic fire‑rated door closer manufactured by WINGTEC. Robust cast‑aluminum‑alloy housing dimension L178×W42×H63mm, equipped with reinforced steel arm assembly, precision gear‑shaft, fixed‑force EN3 spring, piston and premium imported leak‑proof sealing gaskets, filled with imported German FUCHS hydraulic oil. Fixed EN3 power‑size rating for door weight 40‑65KG, max door width up to 950 mm. Max 180‑degree opening angle, built‑in hydraulic back‑check buffer to restrain over‑swing and prevent wall impact, two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation, optional mechanical hold‑open positioning function. CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, passes 500,000‑cycle durability test. Supports standard‑arm, top‑jamb and parallel‑arm universal overhead mounting. Specially engineered for European‑spec commercial and residential fire‑door projects complying with EU CPR construction‑product regulations. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door‑sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale CE‑compliant European‑market fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | CE‑Marked Cast‑Aluminium‑Alloy EN1154 Fire‑Rated Overhead Hydraulic Door Closer With Built‑In Back‑Check |
| Operation | Hydraulic‑spring auto‑closing with built‑in hydraulic back‑check over‑swing buffer, overhead surface‑mount, non‑handed fit, optional hold‑open positioning, max 180° opening angle, two‑valve adjustable closing & latching speed, CE‑Marked, BS‑EN1154 & EN1634 fire‑safety certified |
| Material | Cast‑aluminum‑alloy housing, reinforced steel arm assembly, precision gear‑shaft, fixed‑force EN3 spring, piston, high‑grade anti‑leakage gaskets, imported FUCHS hydraulic oil |
| Core Functions | Fixed EN3 power rating, built‑in back‑check to avoid door‑wall impact, dual‑valve independent closing‑latching speed tuning, non‑handed universal mounting, optional hold‑open, EN1634 120‑min fire‑rated, 500,000‑cycle service life |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, European‑Spec Office‑Retail‑Apartment Commercial‑Residential Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
European‑Spec Commercial & Residential Installations
DC‑069 CE‑CPR compliant overhead door closer with built‑in back‑check buffer is purpose‑built for European‑spec office, retail and apartment fire‑rated door‑sets, fully meeting EU Construction‑Products‑Regulation fire‑safety hardware requirements. Fixed EN3 spring delivers stable auto‑closing performance for 40‑65KG doors up to max 950mm door width. Integrated hydraulic back‑check cushions excessive opening travel and protects door leaf, hinges and surrounding wall trim from impact damage. True non‑handed universal mounting removes separate left‑right‑hand SKU stocking burden for large‑volume European tender projects. CE‑Marked with BS‑EN1154 and EN1634 120‑minute fire‑resistance certification, satisfies European fire‑door assembly compliance requirements.
Multi‑Material Door New‑Build & Retrofit
This CE‑compliant back‑check hydraulic door closer uses premium imported anti‑leak gaskets and German FUCHS hydraulic oil for long‑term stable closing performance. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated interior‑exterior door‑sets for new‑construction and retrofit renovation European commercial‑residential hardware assignments. Supports standard‑arm, top‑jamb and parallel‑arm overhead mounting options. Complete mounting bracket and screw accessories included for quick field fitting.
Architectural Hardware Tender Specification Projects
Multiple finish color options match popular European residential and commercial exterior hardware aesthetics. Datasheet, installation drawings and full CE‑CPR compliance documentation are supplied for tender‑submission documentation for EU‑market commercial‑residential building projects. Optional mechanical hold‑open variant can be selected subject to local fire‑code restrictions. Custom surface finishes and custom‑packing are available for large‑volume B2B orders.
Product Characteristics
Heavy‑duty cast‑aluminum‑alloy housing dimension L178×W42×H63mm plus reinforced steel arm assembly, high‑quality anti‑leak sealing gaskets, filled with imported German FUCHS hydraulic oil; CE‑CPR marked construction hardware solution optimized for European market fire‑door operation
Fixed EN3 power‑rating for door weight 40‑65KG, max door width up to 950 mm, full 180‑degree maximum opening angle; built‑in hydraulic back‑check buffer restrains door over‑swing to prevent wall and frame impact damage
Classic overhead arm‑type surface‑mount installation, true non‑handed left‑right universal fit; two‑valve independent adjustment for closing speed and latching speed; optional mechanical hold‑open positioning function
CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance, passes 500,000‑cycle durability test, meets EU CPR construction‑product regulation requirements
Universal overhead arm‑type mounting (standard‑arm / top‑jamb / parallel‑arm); suitable for wooden, metal, steel and fire‑rated interior‑exterior door assemblies
Full‑set arm‑type installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale European‑project bulk tender orders
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, steel arm and internal back‑check hydraulic‑components.
Bulk wholesale supply for architectural construction and European‑market CE‑CPR compliant fire‑safety‑door tender projects; optional hold‑open variant and multiple surface‑finish custom options available upon request.
2D installation drawing and product‑performance‑specification datasheet including CE‑EN compliance statement available for tender‑submission documentation.
Frequently Asked Questions
What certifications does DC‑069 hold?
DC‑069 carries CE‑Mark complying with EU CPR regulation, fully complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, and passes 500,000‑cycle durability test for European‑market overhead door‑control hardware.
What door weight and dimension fits DC‑069?
DC‑069 adopts fixed EN3 spring power, suitable for door weight range 40‑65KG and maximum door width up to 950 mm, max opening angle reaches full 180‑degree. Overall housing dimension L178 × W42 × H63 mm.
What is the function of built‑in back‑check on DC‑069?
Built‑in hydraulic back‑check provides cushioning effect when door opens excessively, preventing door leaf slamming hard against wall or door frame and avoiding hardware / trim damage. Hold‑open function is available as optional upgrade subject to local EU fire‑code regulations.
