CE EN1154 Fire Rated Sliding Arm Concealed Hydraulic Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Gold

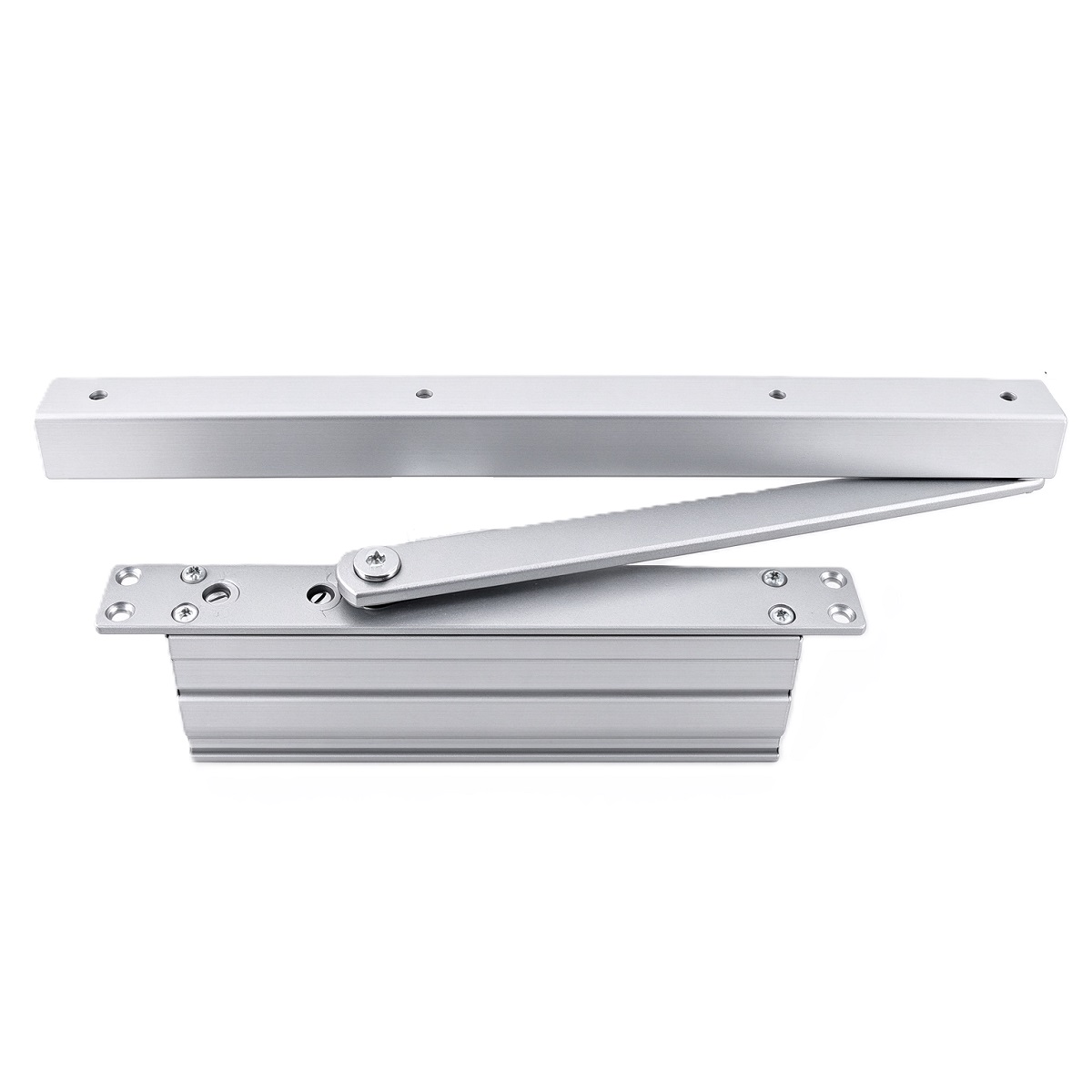

DC‑072 CE‑EN1154 Fire‑Rated Sliding‑Arm Concealed Hydraulic Door Closer
DC‑072 sliding‑arm guide‑rail concealed overhead hydraulic fire‑rated door closer manufactured by WINGTEC. Extruded aluminum‑alloy housing dimension L260×W28×H55mm, precision sliding‑arm guide‑rail mechanism, high‑quality imported leak‑proof sealing gaskets, filled with imported German FUCHS hydraulic oil. Fixed EN3 power‑size rating for door weight 40‑65KG, max door width up to 950 mm. Max 180‑degree opening angle, two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation, compact overhead concealed sliding‑arm guide‑rail mounting solution for aesthetic‑focused door‑frame layouts. CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, passes 500,000‑cycle durability test. Suited for wooden, metal, steel and fire‑rated interior‑exterior door‑sets, widely adopted for European‑spec commercial‑residential fire‑door projects complying with EU‑CPR construction‑product regulations. Full‑set sliding‑arm installation accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale CE‑compliant European‑market fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | CE‑Marked Aluminum‑Alloy Sliding‑Arm Guide‑Rail Concealed EN1154 Fire‑Rated Hydraulic Overhead Door Closer |
| Operation | Hydraulic‑spring auto‑closing with sliding‑arm guide‑rail concealed overhead mounting, non‑handed fit, max 180° opening angle, two‑valve adjustable closing & latching speed, CE‑Marked, BS‑EN1154 & EN1634 fire‑safety certified |
| Material | Extruded aluminum‑alloy housing, precision sliding‑arm guide‑rail assembly, piston, high‑grade imported anti‑leakage sealing gaskets, imported FUCHS hydraulic oil |
| Core Functions | Fixed EN3 spring power rating, sliding‑arm low‑profile concealed installation, dual‑valve independent closing‑latching speed tuning, non‑handed universal mounting, EN1634 120‑min fire‑rated, 500,000‑cycle service life |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, European‑Spec Office‑Hotel‑Apartment Commercial‑Residential Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
European‑Spec Aesthetic‑Focused Commercial & Residential Installations
DC‑072 CE‑CPR compliant sliding‑arm guide‑rail concealed overhead door closer is purpose‑built for European‑spec office, hotel and apartment fire‑rated door‑sets where visible standard‑arm hardware compromises interior aesthetics. Fixed EN3 spring delivers stable auto‑closing performance for 40‑65KG doors up to max 950mm door width. Low‑profile sliding‑arm guide‑rail layout reduces protruding hardware for clean door‑frame appearance. True non‑handed universal mounting removes separate left‑right‑hand SKU stocking burden for large‑volume European tender projects. CE‑Marked with BS‑EN1154 and EN1634 120‑minute fire‑resistance certification, satisfies European fire‑door assembly compliance requirements.
Multi‑Material Door New‑Build & Retrofit
This CE‑compliant sliding‑arm concealed hydraulic door closer uses premium imported anti‑leak gaskets and German FUCHS hydraulic oil for long‑term stable closing performance. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated interior‑exterior door‑sets for new‑construction and retrofit renovation European commercial‑residential hardware assignments. Requires appropriate door‑header space for sliding‑arm guide‑rail fit‑out. Complete sliding‑arm mounting bracket and screw accessories included for professional field fitting.
Architectural Hardware Tender Specification Projects
Multiple finish color options match popular European residential and commercial exterior hardware aesthetics. Datasheet, installation drawings, header‑space requirement notes and full CE‑CPR compliance documentation are supplied for tender‑submission documentation for EU‑market commercial‑residential building projects. Custom surface finishes and custom‑packing are available for large‑volume B2B orders.
Product Characteristics
Compact extruded aluminum‑alloy housing dimension L260×W28×H55mm, precision sliding‑arm guide‑rail mechanism, high‑quality imported anti‑leak sealing gaskets, filled with imported German FUCHS hydraulic oil; CE‑CPR marked low‑profile aesthetic hardware optimized for European‑market fire‑door projects
Fixed EN3 power‑rating for door weight 40‑65KG, max door width up to 950 mm, full 180‑degree maximum opening angle
Unique sliding‑arm guide‑rail overhead concealed mounting layout for reduced visual protrusion; true non‑handed left‑right universal fit; two‑valve independent adjustment for closing speed and latching speed
CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance, passes 500,000‑cycle durability test, meets EU CPR construction‑product regulation requirements
Sliding‑arm concealed overhead installation; suitable for wooden, metal, steel and fire‑rated interior‑exterior door assemblies
Full‑set sliding‑arm installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale European‑project bulk tender orders
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, sliding‑arm guide‑rail assembly and internal hydraulic‑components.
Bulk wholesale supply for architectural construction and European‑market CE‑CPR compliant fire‑safety‑door tender projects; multiple surface‑finish custom options available upon large‑volume request.
2D installation drawing, header‑space requirement notes and product‑performance‑specification datasheet including CE‑EN compliance statement available for tender‑submission documentation.
Frequently Asked Questions
What certifications does DC‑072 hold?
DC‑072 carries CE‑Mark complying with EU CPR regulation, fully complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, and passes 500,000‑cycle durability test for European‑market sliding‑arm concealed overhead door‑control hardware.
What door weight and dimension fits DC‑072?
DC‑072 adopts fixed EN3 spring power, suitable for door weight range 40‑65KG and maximum door width up to 950 mm, max opening angle reaches full 180‑degree. Overall housing dimension L260 × W28 × H55 mm.
What special installation requirement applies to DC‑072?
DC‑072 is sliding‑arm guide‑rail concealed overhead type. It needs sufficient door‑header space to accommodate the guide‑rail assembly. Please refer to official dimension drawing before ordering and site preparation. It is non‑handed for both left‑handed and right‑handed doors.
