- Product Information

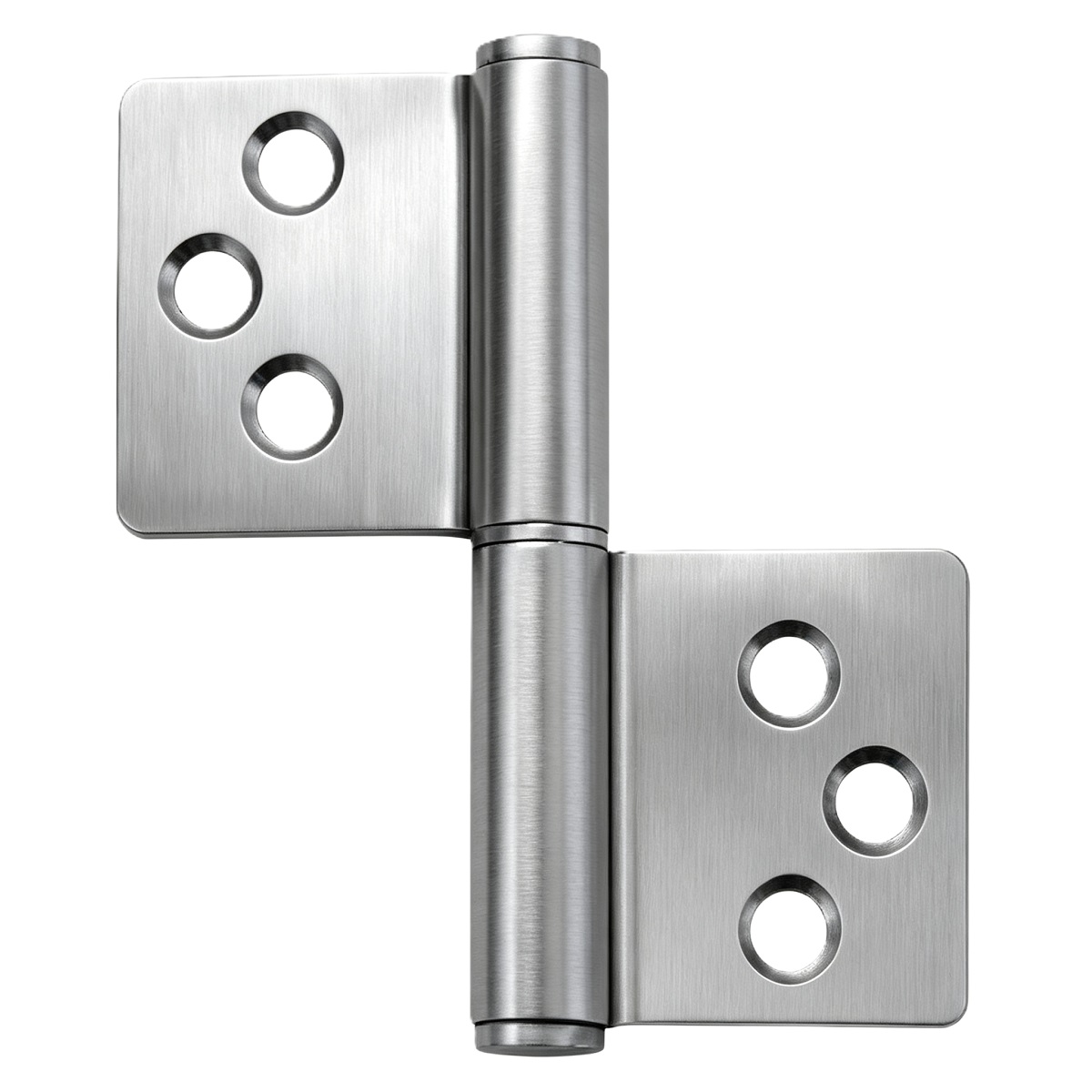

Short‑Leaf Offset Lift‑Off Flag Hinge SS‑FG‑09 (Rebated Door Compatible)
| Model No. | Dimension(H × W × T) |
|---|
3.0mm Thickness Hinges: 60 ~ 80Kgs Per Door
Recommendation: 3 pieces per door
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
Compact‑size rebated swing doors, acoustic‑sealed rebated door assemblies
Commercial swing doors requiring lift‑off disassembly with limited installation space
School, hospital, office, retail store public‑access compact door projects
Service doors, narrow‑mount flag‑type hinge retrofit applications
Coastal / high‑humidity projects(SUS316 option)
Rebated Door Compatibility‑Optimized short‑leaf offset structure for rebated‑edge swing‑door installation, well‑suited for compact acoustic & fire‑rated rebated door projects.
Short‑Leaf Offset Compact Structure‑75.5x70x3.0mm offset flag‑leaf design for narrow mounting space condition.
Lift‑Off Removable Function‑Entire door can be lifted off without removing fixing screws for fast installation & maintenance.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, meet different budget and anti‑corrosion requirement
Engineering Load‑Rating Reference‑Clear door‑weight suggestion for project quotation & hardware selection
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
