- Product Information

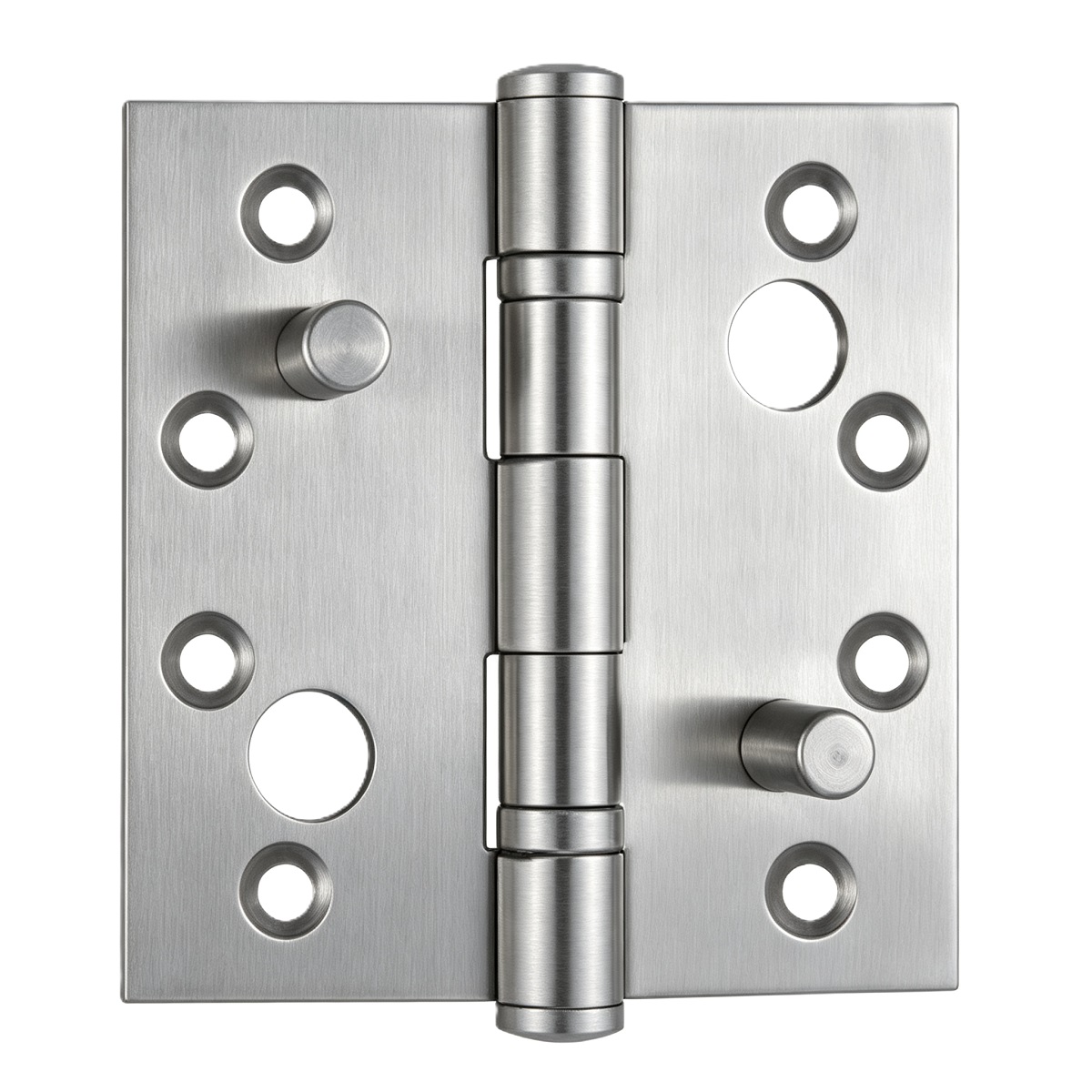

Security Butt Hinge With Security Studs SS404030‑S2 (Anti‑Removal Security Design)
| Model No. | Dimension(H × W × T) |
|---|
2.5mm Thickness Hinges: 40 ~ 60Kgs Per Door
3.0mm Thickness Hinges: 60 ~ 80Kgs Per Door
Recommendation: 3 pieces per door
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
High‑security commercial swing doors, anti‑intrusion public access doors
Office, school, hospital, retail store security‑required door assemblies
Building entrance doors, high‑risk premise security door retrofit
Coastal / high‑humidity projects(SUS316 option)
Security Stud Anti‑Removal Design‑Built‑in security studs interlock two hinge leaves, door cannot be lifted out even if hinge pin is removed, improves door anti‑theft performance.
Multi‑Size Variant Options‑4 common dimension specifications for different door size & weight demands.
Stable Butt‑Hinge Construction‑Precision machined butt hinge structure for smooth silent swing operation.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, meet different budget and anti‑corrosion requirement
Engineering Load‑Rating Reference‑Clear door‑weight suggestion for project quotation & hardware selection
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
