Storm Door Closer Automatic Rebounder Buffer Commercial Pneumatic Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Bronze

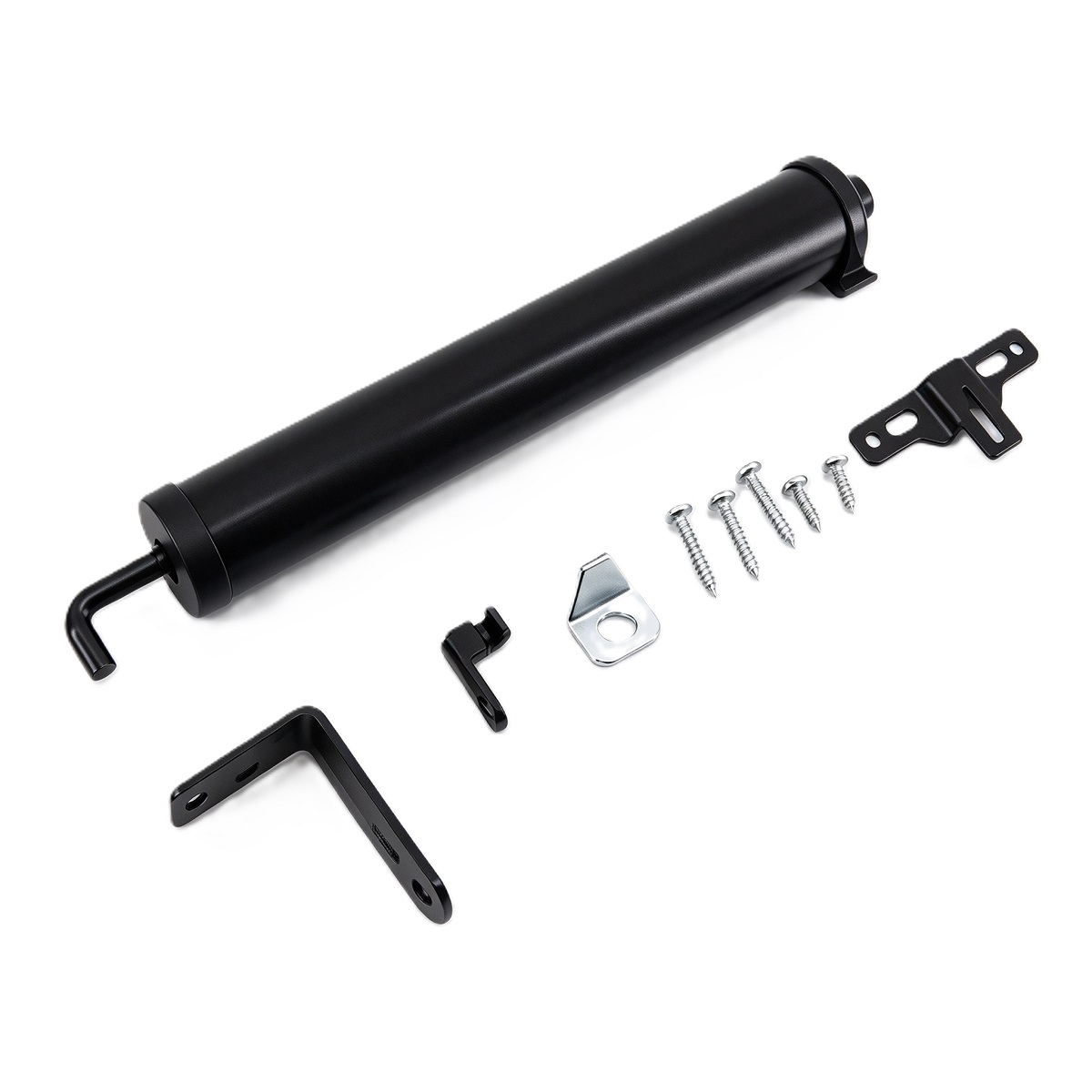

DPC‑003 Storm Door Closer Automatic Rebounder Buffer Commercial Pneumatic Door Closer
DPC‑003 barrel‑style pneumatic storm door closer manufactured by WINGTEC. Light‑weight aluminum alloy tube dimension 32Φ x 230mm, adopting slip‑in no‑pin end‑plug and door‑bracket connection structure, factory pre‑lubricated internal spring‑air‑damping assembly. Features field‑adjustable closing speed control and practical fast‑latch function, supports full 90‑degree maximum opening angle. Specially popular for Australia and New Zealand residential storm‑screen door projects. Suitable for out‑swinging wooden, metal and vinyl lightweight exterior door assemblies, fits new installation and old hardware retrofit replacement. Complete mounting brackets and fixing screw hardware pack are included. Monthly production capacity reaches 200,000 units for B2B wholesale Oceania‑market residential screen‑storm door hardware bulk orders.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | Barrel‑Type Pneumatic Storm‑Screen Door Automatic Rebounder Buffer Closer |
| Operation | Spring‑powered air‑damping soft auto‑closing, slip‑in no‑pin bracket mounting, adjustable closing speed, fast‑latch feature, max 90° opening angle, factory pre‑lubricated, exterior residential application |
| Material | 32Φ x 230mm aluminum alloy tubular cylinder, internal helical spring, air‑damping piston assembly, steel mounting brackets and complete fixing hardware |
| Core Functions | Pneumatic cushioned soft closing avoids slamming, field‑tunable closing speed, fast‑latch mechanism, slip‑in no‑pin quick‑fit installation, pre‑lubricated long‑term performance, new‑build & retrofit replacement compatible |
| Application | Out‑Swinging Screen Door, Storm Door, Light‑Duty Wooden / Metal / Vinyl Exterior Door Assemblies, Australia New‑Zealand Residential New‑Build & Renovation Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
Australia & New‑Zealand Storm & Screen Door Installations
DPC‑003 pneumatic barrel door closer is purpose‑built for Australian and New‑Zealand residential out‑swinging storm and screen doors. Unique slip‑in no‑pin end‑plug mounting design simplifies on‑site assembly work. Air‑spring cushioned soft closing eliminates violent slamming to protect screen mesh, door leaf and surrounding trim. Adjustable closing speed adapts to variable outdoor wind conditions, built‑in fast‑latch feature ensures reliable door latching. Perfect for brand‑new housing installation and existing storm‑screen door hardware replacement retrofit assignments.
Light‑Duty Exterior Door New‑Build & Retrofit
This 32Φ x230mm aluminum‑alloy pneumatic closer comes factory pre‑lubricated to reduce early‑stage wear risk. It works reliably for lightweight wooden, metal and vinyl out‑swinging exterior doors. Full mounting bracket and screw accessories supplied for quick field fitting. Widely adopted in Oceania residential housing and renovation projects for home, warehouse, storage‑room and auxiliary out‑swing door sets.
Residential Hardware Wholesale & Distributor Projects
Multiple finish selections match mainstream Oceania residential exterior hardware styling. Product datasheet and step‑by‑step installation instruction documents are available for distributor resale tender documentation. Supports bulk B2B procurement for door manufacturers, home‑improvement distributors and residential construction bulk orders. Custom colors and custom packing can be arranged upon request.
Product Characteristics
Light‑duty 32Φ x 230mm aluminum‑alloy barrel‑type pneumatic cylinder, internal helical spring plus air‑damping piston assembly, factory pre‑lubricated for Oceania residential storm‑screen door exterior usage
Soft pneumatic‑cushioned closing prevents hard slamming; field‑adjustable closing‑speed tuning, practical fast‑latch locking feature; maximum opening angle up to full 90‑degree
Unique slip‑in no‑pin end‑plug and door‑bracket quick‑fit mounting structure; complete steel mounting brackets and full fixing‑hardware kit included for on‑site installation
Developed for out‑swinging storm‑screen doors, lightweight wooden / metal / vinyl exterior door assemblies; works for both new‑build and retrofit‑replacement applications
Multiple finish selections to coordinate with residential exterior hardware decor; compact tubular barrel appearance keeps neat visual effect when fitted on door frame
Full installation hardware pack included; monthly capacity 200,000 units for B2B wholesale Oceania‑market residential‑hardware bulk orders
Warranty & Customization
Standard quality warranty covering manufacturing defects of aluminum tube, mounting brackets and internal spring‑piston pneumatic sealing components.
Bulk wholesale supply for residential door manufacturers, hardware distributors and Oceania housing‑construction projects; custom finish color and custom packing options available upon request.
Product datasheet, step‑by‑step installation instruction documents available for distributor and project tender‑submission documentation.
Frequently Asked Questions
What door types fit DPC‑003 pneumatic barrel closer?
DPC‑003 is specially engineered for Australia‑New‑Zealand style out‑swinging storm doors and screen doors, also compatible with lightweight wooden, metal or vinyl exterior door assemblies. It applies to residential new‑build and retrofit‑replacement hardware assignments.
What is slip‑in no‑pin mounting design?
Slip‑in no‑pin structure enables the pneumatic barrel end‑plug to directly slip‑fit into the door bracket without extra pin‑shaft assembling. It speeds‑up field installation and simplifies later‑time maintenance replacement work for storm‑screen doors.
Can DPC‑003 be used for fire‑rated doors?
DPC‑003 is a residential light‑duty pneumatic storm‑screen door closer and it is NOT fire‑rated. Please choose our UL‑listed hydraulic overhead door‑closer series for fire‑safety fire‑door assemblies.
