Pneumatic Storm Door Closer Aluminum Barrel Screen Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Bronze

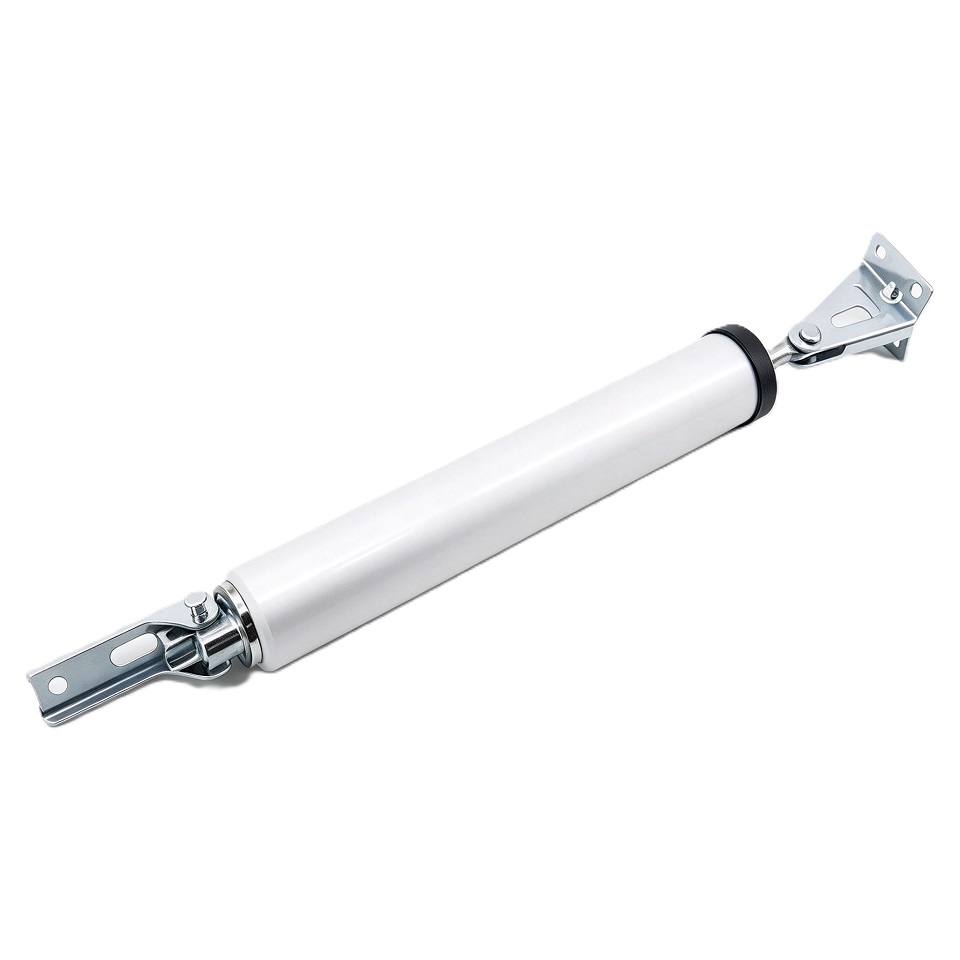

DPC‑001 Pneumatic Storm Door Closer Aluminum Barrel Screen Door Closer
DPC‑001 barrel‑style pneumatic storm & screen door closer manufactured by WINGTEC. Light‑weight aluminum alloy tubular cylinder construction with internal helical spring and air‑damping piston system, factory pre‑lubricated for stable service life. Supports adjustable closing speed and adjustable latching power, achieves full 90‑degree maximum opening angle. Compatible with overhead jamb bracket or side jamb bracket installation. Designed for out‑swinging wooden, metal, storm and screen doors, fits both new installation and replacement retrofit jobs. Multiple finish selections match residential exterior hardware aesthetics, full mounting hardware set supplied. Widely adopted in Southeast Asia and global residential light‑duty exterior door projects. Monthly production capacity reaches 200,000 units for B2B wholesale screen‑storm door hardware bulk orders.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | Aluminum Barrel‑Style Pneumatic Storm & Screen Door Closer |
| Operation | Spring‑powered with air‑damping soft closing, surface mount, adjustable closing speed and latching power, max 90° opening angle, factory pre‑lubricated, overhead or side jamb mounting available |
| Material | Aluminum alloy tubular cylinder, internal helical spring, air‑damping piston unit, steel mounting brackets and complete fixing hardware |
| Core Functions | Pneumatic cushioned soft closing prevents slamming, field‑adjustable closing speed and latching force, dual mounting bracket options, pre‑lubricated for long‑term performance, suitable for new‑install and retrofit replacement |
| Application | Out‑Swinging Screen Door, Storm Door, Light‑Duty Wooden / Metal Exterior Door Assemblies, Residential New‑Build & Renovation Hardware Projects, Southeast Asia & Global Residential Market |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
Residential Screen & Storm Door Installations
DPC‑001 barrel‑pneumatic door closer is engineered for out‑swinging residential screen doors and storm doors. Internal spring plus air‑damping structure delivers soft, non‑slamming closing action to protect screen mesh, door frame and trim. Both closing speed and latching power are field adjustable to adapt for windy outdoor conditions. Choose overhead jamb bracket or side jamb bracket according to on‑site door frame condition. Perfect for brand‑new residential door installation as well as old hardware replacement retrofit work.
Light‑Duty Exterior Door New‑Build & Retrofit
This aluminum‑alloy pneumatic closer comes factory pre‑lubricated to reduce early‑stage wear. It fits light‑weight wooden and metal exterior out‑swinging doors. Complete mounting bracket and screw accessories are included for quick field fitting. Widely adopted in Southeast‑Asia residential housing projects and global residential renovation assignments.
Residential Hardware Wholesale & Distributor Projects
Multiple finish options match popular residential exterior hardware styling. Datasheet and step‑by‑step installation instructions are provided for distributor resale documentation. Supports bulk B2B procurement for door manufacturers, home‑improvement distributors and residential construction tender orders.
Product Characteristics
Light‑duty aluminum‑alloy barrel‑type pneumatic cylinder, built‑in helical spring and air‑damping piston assembly, factory pre‑lubricated for reliable exterior residential door usage
Air‑cushioned soft‑closing action avoids hard slamming; field‑adjustable closing‑speed and latching‑power tuning; maximum opening angle up to 90‑degree

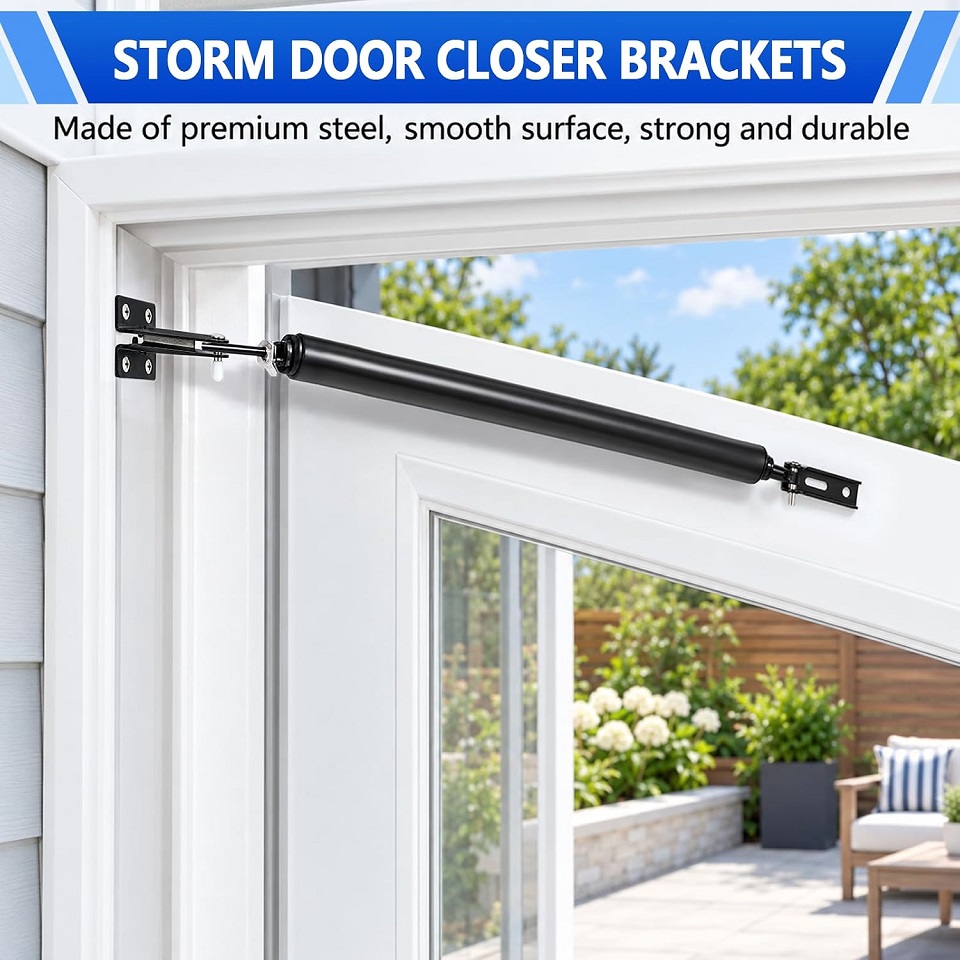

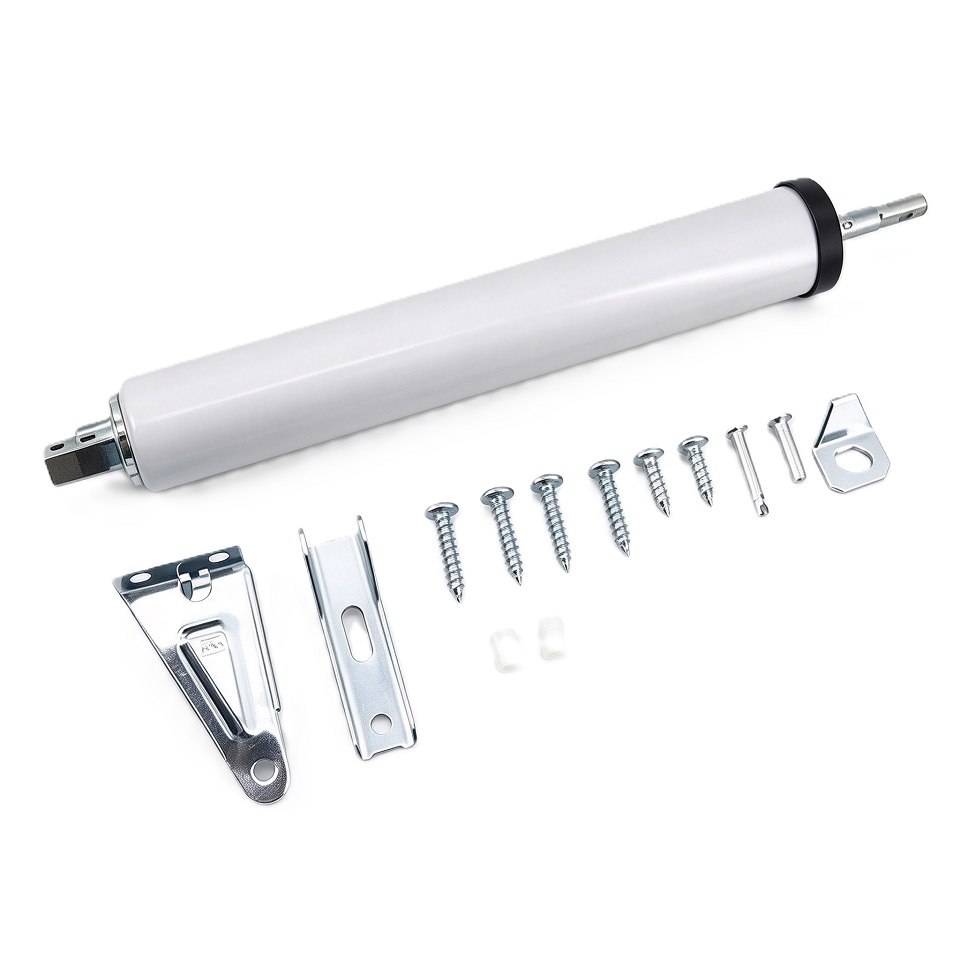

Two mounting solutions: overhead jamb bracket or side jamb bracket, supplied with steel mounting brackets and full fixing hardware kit for on‑site installation
Designed for out‑swinging screen doors, storm doors and light‑duty wooden / metal exterior door assemblies; works for both new‑build and retrofit‑replacement applications
Multiple finish selections to coordinate with residential exterior hardware decor; compact tubular appearance for neat visual effect on door frame
Full installation hardware pack included; monthly capacity 200,000 units for B2B wholesale residential‑hardware bulk orders
Warranty & Customization
Standard quality warranty covering manufacturing defects of aluminum tube, mounting brackets and internal spring‑piston pneumatic components.
Bulk wholesale supply for residential door manufacturers, hardware distributors and housing‑construction projects; custom finish color and custom packing options available upon request.
Product datasheet, step‑by‑step installation instruction documents available for distributor and project documentation.
Frequently Asked Questions
What door types fit DPC‑001 pneumatic barrel closer?
DPC‑001 is designed for out‑swinging screen doors, storm doors and light‑duty wooden or metal exterior door assemblies. It is widely used for residential new‑build and retrofit replacement projects, especially popular in Southeast Asian housing markets.
What is the difference between overhead jamb and side jamb mounting?
Overhead jamb mounting installs the unit at top door frame; side jamb mounting fits on the side frame. DPC‑001 includes compatible bracket parts for both installation styles, you can choose according to actual door‑frame structure.
Can DPC‑001 be used for fire‑rated doors?
DPC‑001 is a residential light‑duty pneumatic screen‑storm door closer and it is NOT fire‑rated. Please select our UL‑listed hydraulic overhead door‑closer series for fire‑safety fire‑door assemblies.
