Quiet CE EN1154 Heavy Duty Commercial Fire Rated Hydraulic Overhead Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Antique Brass

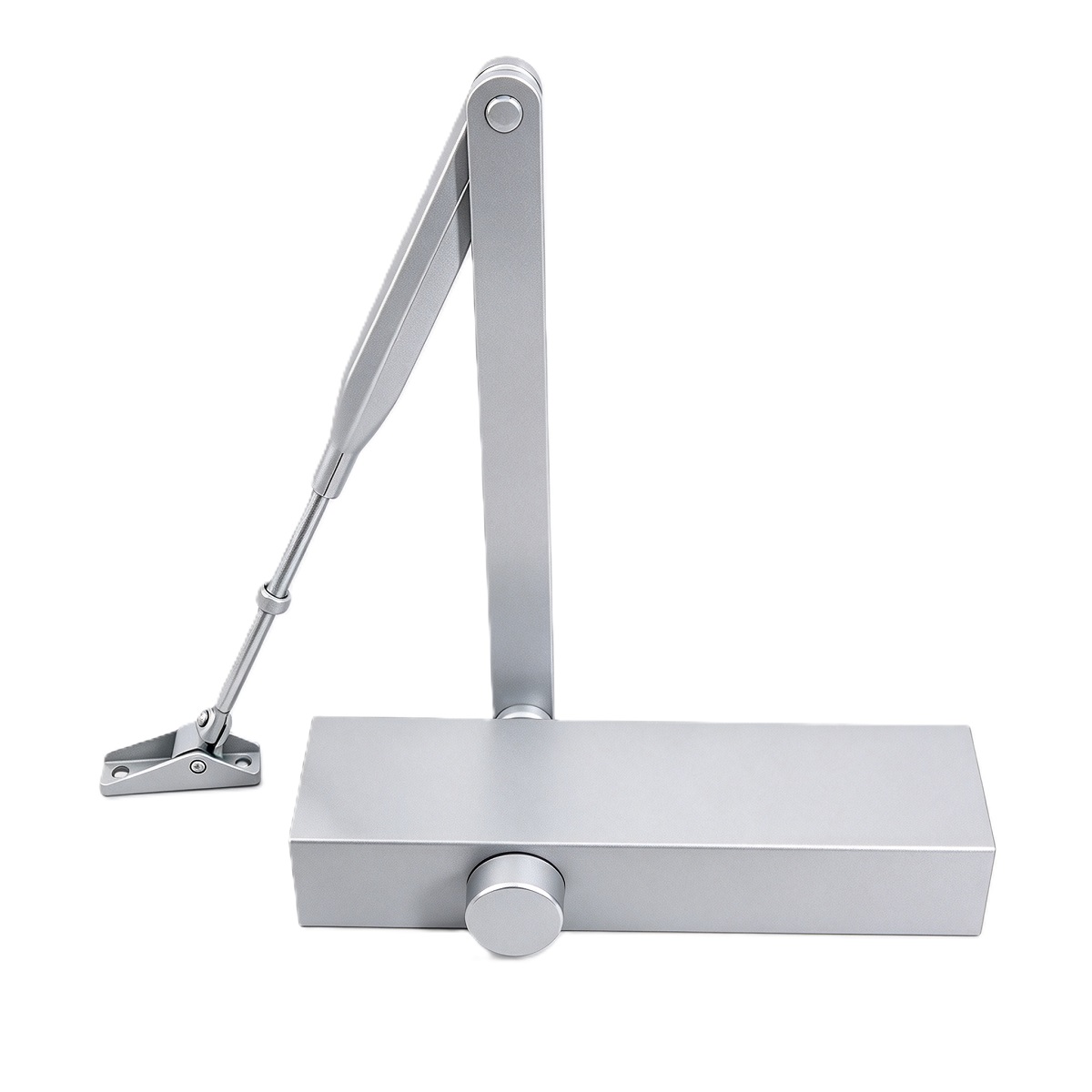

DC‑013 Quiet CE‑EN1154 Heavy‑Duty Commercial Fire‑Rated Hydraulic Overhead Door Closer
DC‑013 quiet‑operation heavy‑duty overhead hydraulic fire‑rated door closer manufactured by WINGTEC. Robust cast‑aluminum‑alloy housing dimension L237×W60×H40mm, reinforced steel arm assembly, precision gear‑shaft, adjustable EN2‑EN5 spring unit, piston and premium leak‑proof sealing gaskets, filled with imported German FUCHS hydraulic oil for low‑noise smooth closing cycles. Field‑adjustable EN2‑EN5 power‑size rating for door weight 40‑100KG, max door width up to 1250 mm. Max 180‑degree opening angle, two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation, optional mechanical hold‑open positioning function. CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, passes 500,000‑cycle durability test. Supports standard‑arm, top‑jamb and parallel‑arm universal overhead mounting. Specially optimized for noise‑sensitive high‑traffic European hotel, hospitality and commercial fire‑door projects complying with EU‑CPR construction‑product regulations. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door‑sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale CE‑compliant European‑market fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | CE‑Marked Cast‑Aluminium‑Alloy Quiet‑Operation EN1154 Heavy‑Duty Fire‑Rated Overhead Hydraulic Door Closer |
| Operation | Low‑noise hydraulic‑spring auto‑closing with field‑adjustable EN2‑EN5 spring force, overhead surface‑mount, non‑handed fit, optional hold‑open positioning, max 180° opening angle, two‑valve adjustable closing & latching speed, CE‑Marked, BS‑EN1154 & EN1634 fire‑safety certified |
| Material | Cast‑aluminum‑alloy housing, reinforced steel arm assembly, precision gear‑shaft, adjustable EN2‑EN5 spring unit, piston, high‑grade anti‑leakage gaskets, imported FUCHS hydraulic oil |
| Core Functions | Field‑adjustable EN2‑EN5 spring power rating, hospitality‑grade quiet smooth closing performance, dual‑valve independent closing‑latching speed tuning, non‑handed universal mounting, optional hold‑open, EN1634 120‑min fire‑rated, 500,000‑cycle service life |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, European‑Spec Hotel‑Hospital‑Office‑High‑Traffic Commercial‑Residential Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
European‑Spec Hospitality & High‑Traffic Commercial Installations
DC‑013 CE‑CPR compliant quiet‑operation heavy‑duty overhead door closer is purpose‑built for noise‑sensitive European hotel, hospitality and high‑traffic commercial fire‑rated door‑sets, fully meeting EU Construction‑Products‑Regulation fire‑safety hardware requirements. Field‑adjustable EN2‑EN5 spring power adapts for varying 40‑100KG door weights up to max 1250mm door width. Optimized internal hydraulic‑mechanical structure delivers low‑noise smooth closing performance critical for guest room and public corridor door‑sets. True non‑handed universal mounting removes separate left‑right‑hand SKU stocking burden for large‑volume European hospitality tender projects. CE‑Marked with BS‑EN1154 and EN1634 120‑minute fire‑resistance certification, satisfies European heavy‑duty fire‑door assembly compliance requirements.
Multi‑Material Heavy‑Weight Door New‑Build & Retrofit
This CE‑compliant quiet‑operation heavy‑duty hydraulic door closer uses premium imported anti‑leak gaskets and German FUCHS hydraulic oil for long‑term stable low‑noise closing performance under frequent high‑traffic conditions. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated heavy‑weight interior‑exterior door‑sets for new‑construction and retrofit renovation European hospitality and commercial hardware assignments. Supports standard‑arm, top‑jamb and parallel‑arm overhead mounting options. Complete mounting bracket and screw accessories included for quick field fitting.
Architectural Hardware Tender Specification Projects
Multiple finish color options match popular European hospitality and commercial exterior hardware aesthetics. Datasheet, installation drawings and full CE‑CPR compliance documentation are supplied for tender‑submission documentation for EU‑market hotel‑commercial building projects. Optional mechanical hold‑open variant can be selected subject to local EU fire‑code restrictions. Custom surface finishes and custom‑packing are available for large‑volume B2B orders.
Product Characteristics
Heavy‑duty cast‑aluminum‑alloy housing dimension L237×W60×H40mm plus reinforced steel arm assembly, high‑quality anti‑leak sealing gaskets, filled with imported German FUCHS hydraulic oil; hospitality‑optimized quiet‑closing CE‑CPR‑marked heavy‑duty fire‑door hardware for European‑market high‑traffic hotel projects
Field‑adjustable EN2‑EN5 power‑rating for door weight 40‑100KG, max door width up to 1250 mm, full 180‑degree maximum opening angle; specially refined internal mechanism for low‑noise smooth door‑closing suited for noise‑sensitive guest‑area premises
Classic overhead arm‑type surface‑mount installation, true non‑handed left‑right universal fit; two‑valve independent adjustment for closing speed and latching speed; optional mechanical hold‑open positioning function
CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance, passes 500,000‑cycle durability test, meets EU CPR construction‑product regulation requirements
Universal overhead arm‑type mounting (standard‑arm / top‑jamb / parallel‑arm); suitable for heavy‑weight wooden, metal, steel and fire‑rated interior‑exterior door assemblies
Full‑set arm‑type installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale European‑hotel‑commercial bulk tender orders
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, steel arm and internal quiet‑operation hydraulic‑components.
Bulk wholesale supply for architectural construction and European‑market CE‑CPR compliant hospitality‑focused fire‑safety‑door tender projects; optional hold‑open variant and multiple surface‑finish custom options available upon large‑volume request.
2D installation drawing and product‑performance‑specification datasheet including CE‑EN compliance statement available for tender‑submission documentation.
Frequently Asked Questions
What certifications does DC‑013 hold?
DC‑013 carries CE‑Mark complying with EU CPR regulation, fully complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, and passes 500,000‑cycle durability test for European‑market quiet‑operation heavy‑duty overhead door‑control hardware.
What door weight and dimension fits DC‑013?
DC‑013 features field‑adjustable EN2‑EN5 spring power, suitable for door weight range 40‑100KG and maximum door width up to 1250 mm, max opening angle reaches full 180‑degree. Overall housing dimension L237 × W60 × H40 mm.
What makes DC‑013 suited for hotel projects?
DC‑013 adopts optimized quiet‑operation internal hydraulic‑mechanical assembly to reduce closing‑impact noise, ideal for guest‑rooms and corridors where noise must be minimized. Mechanical hold‑open is optional upgrade subject to local EU fire‑code regulations.
