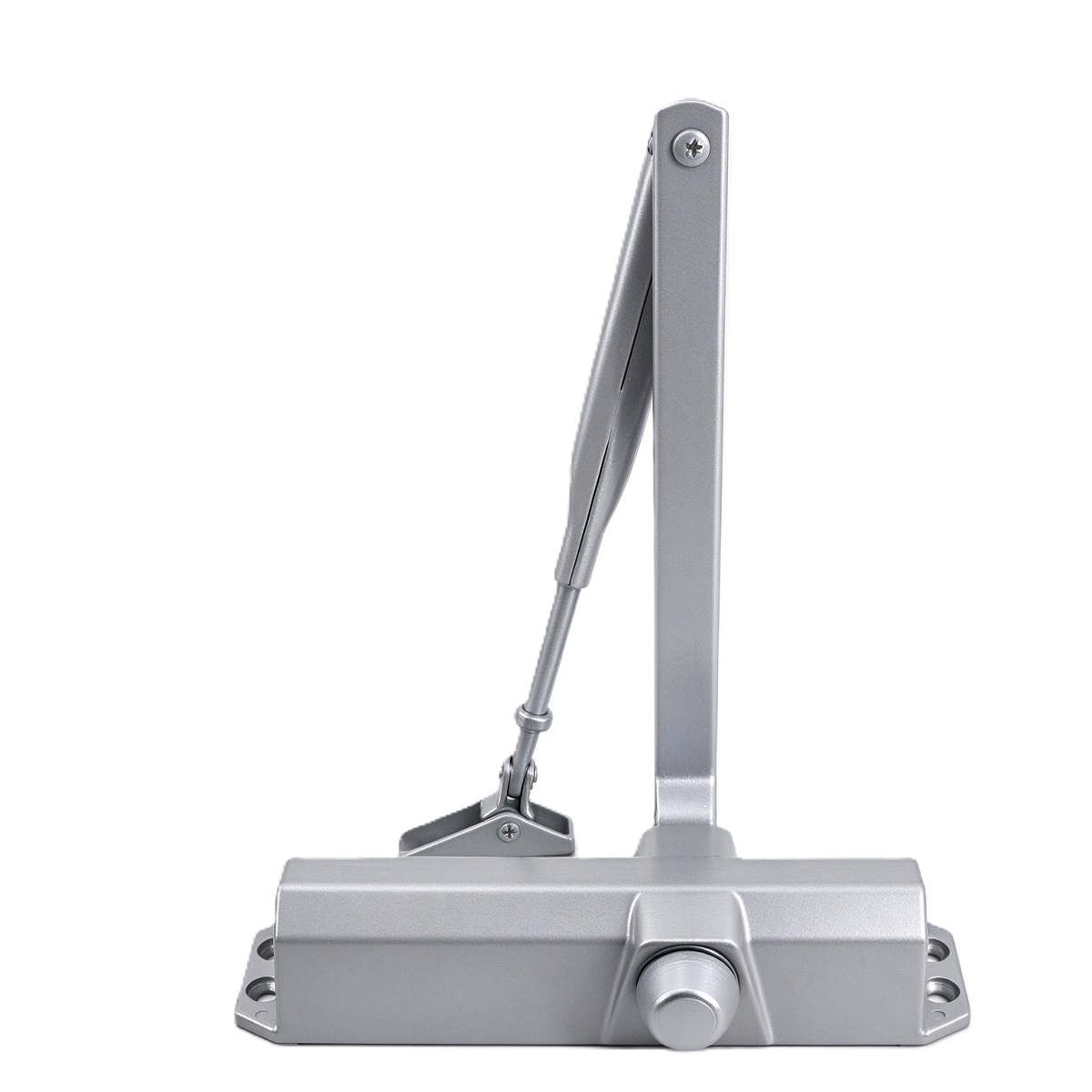

CE EN1154 Adjustable Speed Fire Rated Aluminium Overhead Hydraulic Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Gold
DC‑014 CE‑EN1154 Adjustable‑Speed Fire‑Rated Aluminium Overhead Hydraulic Door Closer
DC‑014 adjustable‑power overhead hydraulic fire‑rated door closer manufactured by WINGTEC. Light‑weight cast‑aluminum‑alloy housing dimension L218×W55×H45mm, steel arm assembly, precision gear‑shaft, adjustable EN2‑EN4 spring unit, piston and premium leak‑proof sealing gaskets, filled with imported German FUCHS hydraulic oil. Field‑adjustable EN2‑EN4 power‑size rating for door weight 40‑80KG, max door width up to 1100 mm. Max 180‑degree opening angle, two‑valve independent adjustable closing speed and latching speed. True non‑handed left‑right universal installation, optional mechanical hold‑open positioning function. CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, passes 500,000‑cycle durability test. Supports standard‑arm, top‑jamb and parallel‑arm universal overhead mounting. Optimized for European‑spec commercial‑residential fire‑door projects complying with EU‑CPR construction‑product regulations. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door‑sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale CE‑compliant European‑market fire‑safety hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | CE‑Marked Compact Cast‑Aluminium‑Alloy EN1154 Adjustable‑Power Fire‑Rated Overhead Hydraulic Door Closer |
| Operation | Hydraulic‑spring auto‑closing with field‑adjustable EN2‑EN4 spring force, overhead surface‑mount, non‑handed fit, optional hold‑open positioning, max 180° opening angle, two‑valve adjustable closing & latching speed, CE‑Marked, BS‑EN1154 & EN1634 fire‑safety certified |
| Material | Cast‑aluminum‑alloy housing, steel arm assembly, precision gear‑shaft, adjustable EN2‑EN4 spring unit, piston, high‑grade anti‑leakage gaskets, imported FUCHS hydraulic oil |
| Core Functions | Field‑adjustable EN2‑EN4 spring power rating, dual‑valve independent closing‑latching speed tuning, non‑handed universal mounting, optional hold‑open, EN1634 120‑min fire‑rated, 500,000‑cycle service life |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, European‑Spec Apartment‑Office‑Retail‑Commercial‑Residential Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
European‑Spec Compact Commercial & Residential Installations
DC‑014 CE‑CPR compliant compact adjustable‑power overhead door closer is purpose‑built for European‑spec apartment, office and retail fire‑rated door‑sets with limited header installation space, fully meeting EU Construction‑Products‑Regulation fire‑safety hardware requirements. Field‑adjustable EN2‑EN4 spring power adapts for varying 40‑80KG door weights up to max 1100mm door width. Compact body footprint suits narrow‑header real‑world site conditions. True non‑handed universal mounting removes separate left‑right‑hand SKU stocking burden for large‑volume European tender projects. CE‑Marked with BS‑EN1154 and EN1634 120‑minute fire‑resistance certification, satisfies European fire‑door assembly compliance requirements.
Multi‑Material Door New‑Build & Retrofit
This CE‑compliant compact adjustable‑power hydraulic door closer uses premium imported anti‑leak gaskets and German FUCHS hydraulic oil for long‑term stable closing performance. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated interior‑exterior door‑sets for new‑construction and retrofit renovation European commercial‑residential hardware assignments. Supports standard‑arm, top‑jamb and parallel‑arm overhead mounting options. Complete mounting bracket and screw accessories included for quick field fitting.
Architectural Hardware Tender Specification Projects
Multiple finish color options match popular European residential and commercial exterior hardware aesthetics. Datasheet, installation drawings and full CE‑CPR compliance documentation are supplied for tender‑submission documentation for EU‑market commercial‑residential building projects. Optional mechanical hold‑open variant can be selected subject to local fire‑code restrictions. Custom surface finishes and custom‑packing are available for large‑volume B2B orders.
Product Characteristics
Compact‑size cast‑aluminum‑alloy housing dimension L218×W55×H45mm plus steel arm assembly, high‑quality anti‑leak sealing gaskets, filled with imported German FUCHS hydraulic oil; CE‑CPR marked compact‑body hardware optimized for European‑market fire‑door projects with limited header‑space
Field‑adjustable EN2‑EN4 power‑rating for door weight 40‑80KG, max door width up to 1100 mm, full 180‑degree maximum opening angle
Classic overhead arm‑type surface‑mount installation, true non‑handed left‑right universal fit; two‑valve independent adjustment for closing speed and latching speed; optional mechanical hold‑open positioning function
CE‑Marked, complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance, passes 500,000‑cycle durability test, meets EU CPR construction‑product regulation requirements
Universal overhead arm‑type mounting (standard‑arm / top‑jamb / parallel‑arm); suitable for wooden, metal, steel and fire‑rated interior‑exterior door assemblies
Full‑set arm‑type installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale European‑project bulk tender orders
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, steel arm and internal adjustable‑spring hydraulic‑components.
Bulk wholesale supply for architectural construction and European‑market CE‑CPR compliant fire‑safety‑door tender projects; optional hold‑open variant and multiple surface‑finish custom options available upon large‑volume request.
2D installation drawing and product‑performance‑specification datasheet including CE‑EN compliance statement available for tender‑submission documentation.
Frequently Asked Questions
What certifications does DC‑014 hold?
DC‑014 carries CE‑Mark complying with EU CPR regulation, fully complies with BS‑EN1154 and EN1634 120‑minute fire‑resistance standard, and passes 500,000‑cycle durability test for European‑market compact overhead door‑control hardware.
What door weight and dimension fits DC‑014?
DC‑014 features field‑adjustable EN2‑EN4 spring power, suitable for door weight range 40‑80KG and maximum door width up to 1100 mm, max opening angle reaches full 180‑degree. Overall housing dimension L218 × W55 × H45 mm.
Is hold‑open available for DC‑014?
Mechanical hold‑open positioning function is an optional upgrade variant. Please comply with local EU fire‑code requirements when applying hold‑open feature on fire‑rated door assemblies.
