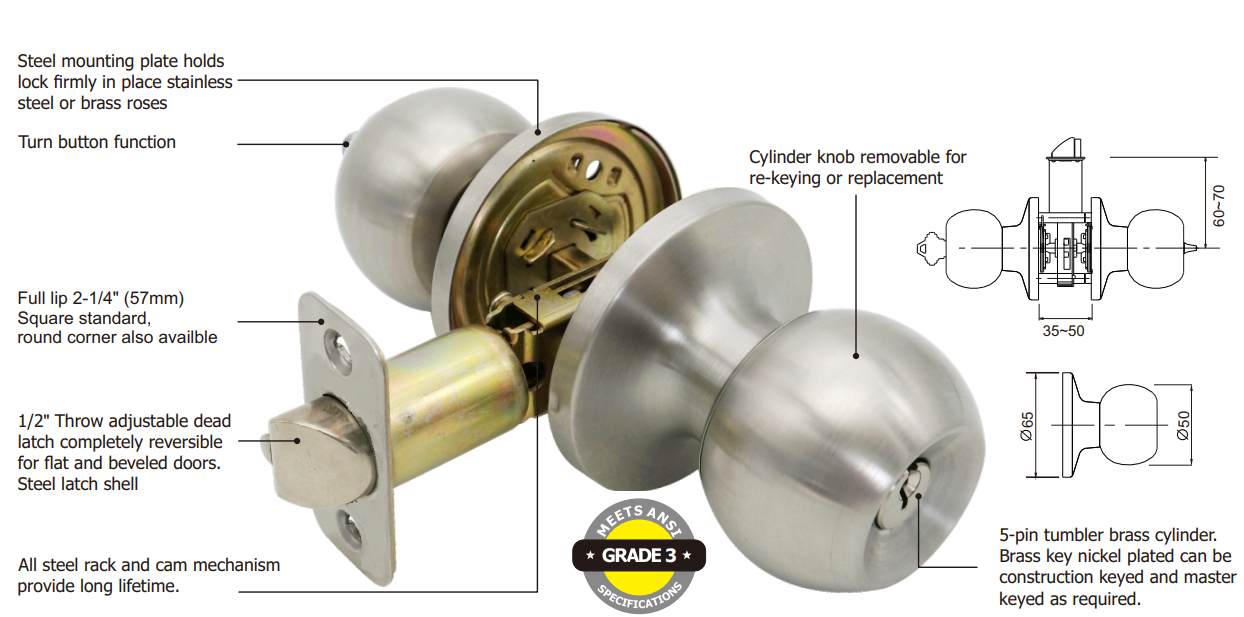

Door Prep: Cross bore 2-1/8"(54mm), Edge bore 1"(25mm), Latch face 1"x2-1/4"(25.4x57mm).

Door Thick : Fit doors 1-3/8"(35mm) to 2"(50mm) thick.

Latch: Adjustable 2-3/8"(60mm) or 2-3/4"(70mm); 6 way latch. (Fits 2-3/8" and 2-3/4" backset latch bolt + Square corner & 1/4" Radius Latch plate with

            re-changeable Type + Square & Radius Strike Plate, both required).

Handing: Completely reversible.

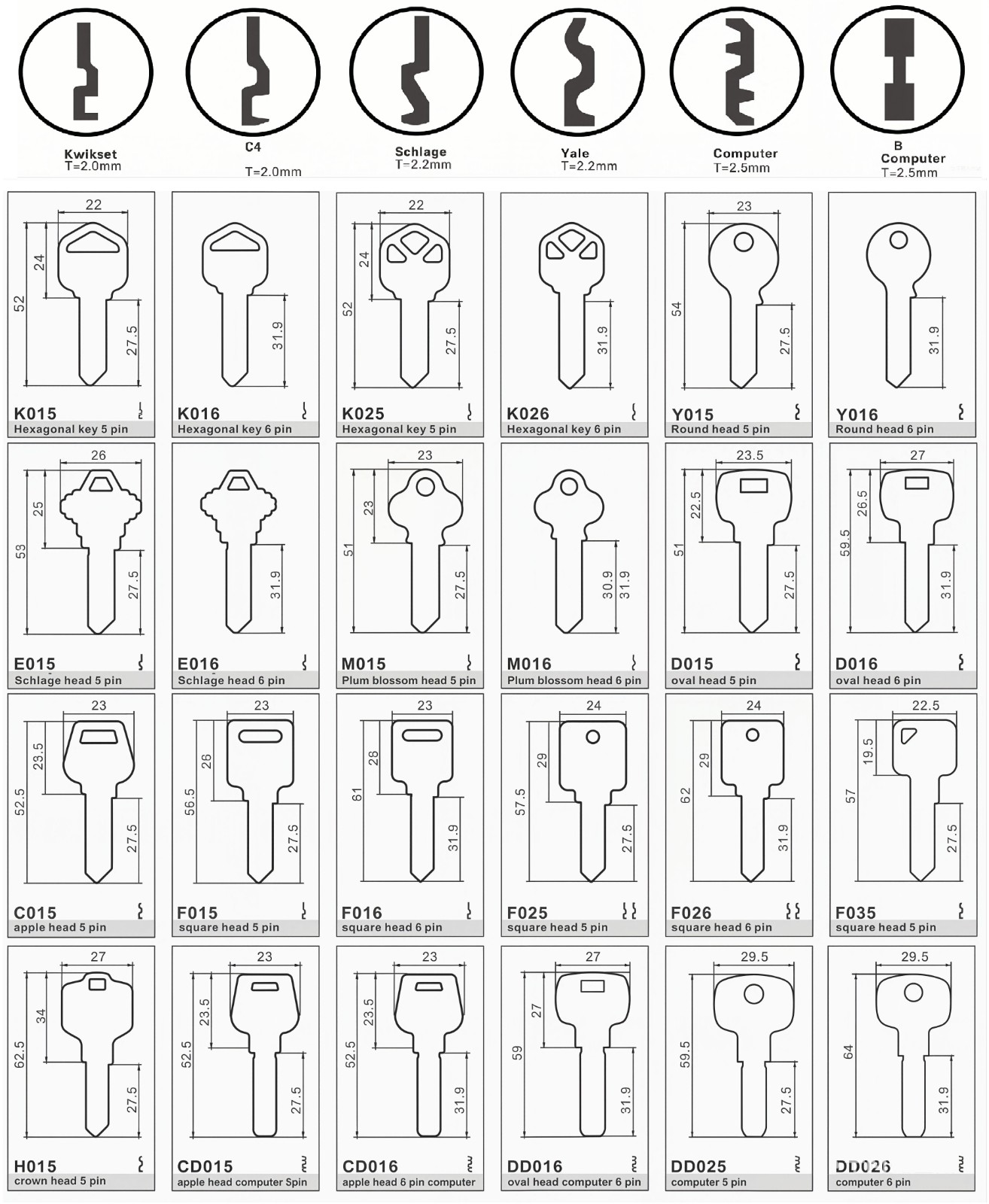

Cylinder: 5-pin removable core, Schlage C Keyway or Kwikset, or YALE or C4 keyway and other optional.

Faceplate: Square corner 1"x-2/4"(25.4x57mm) standard, radius corner also available.

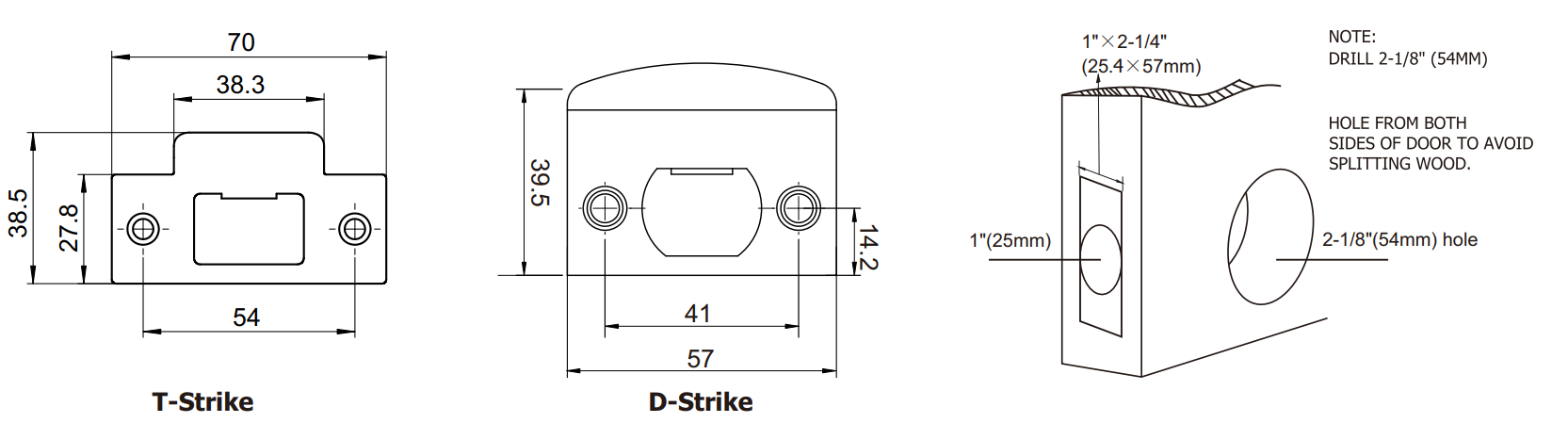

Strikes: T-Strike 1-1/2"x2-3/4" (38x70mm) standard, D-Strike 1-1/2" x 2-1/4"(39.5x57mm) optional.

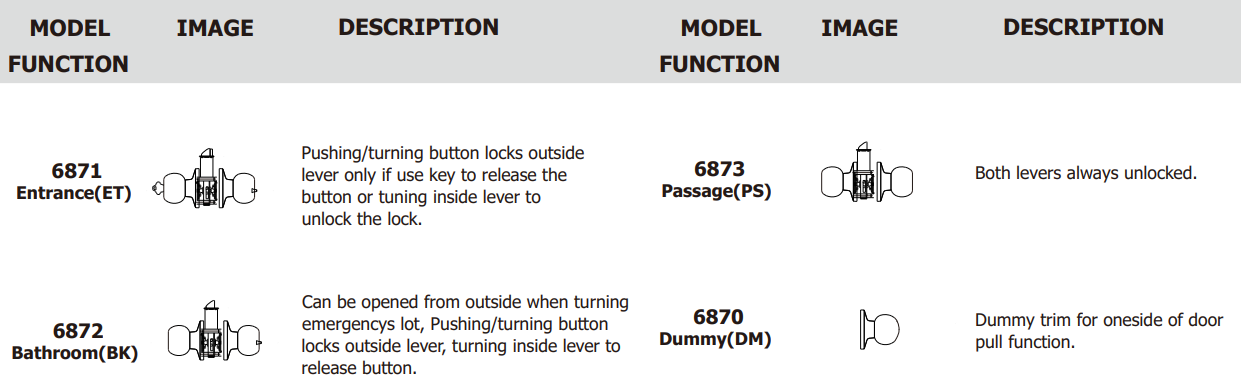

Function: DM(0:Dummy), ET(1:Entrance), BK(2:Privacy), PS(3:Passage).

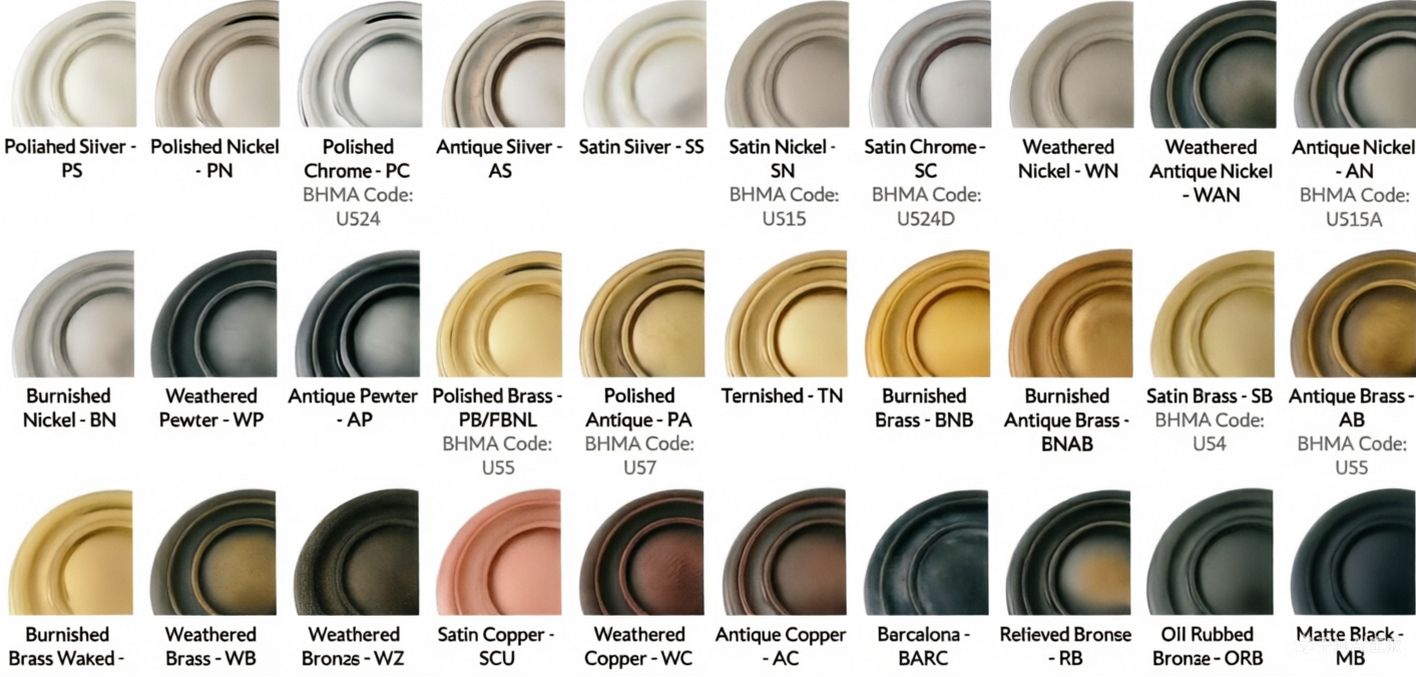

Remark: Not all finish available in all products.
