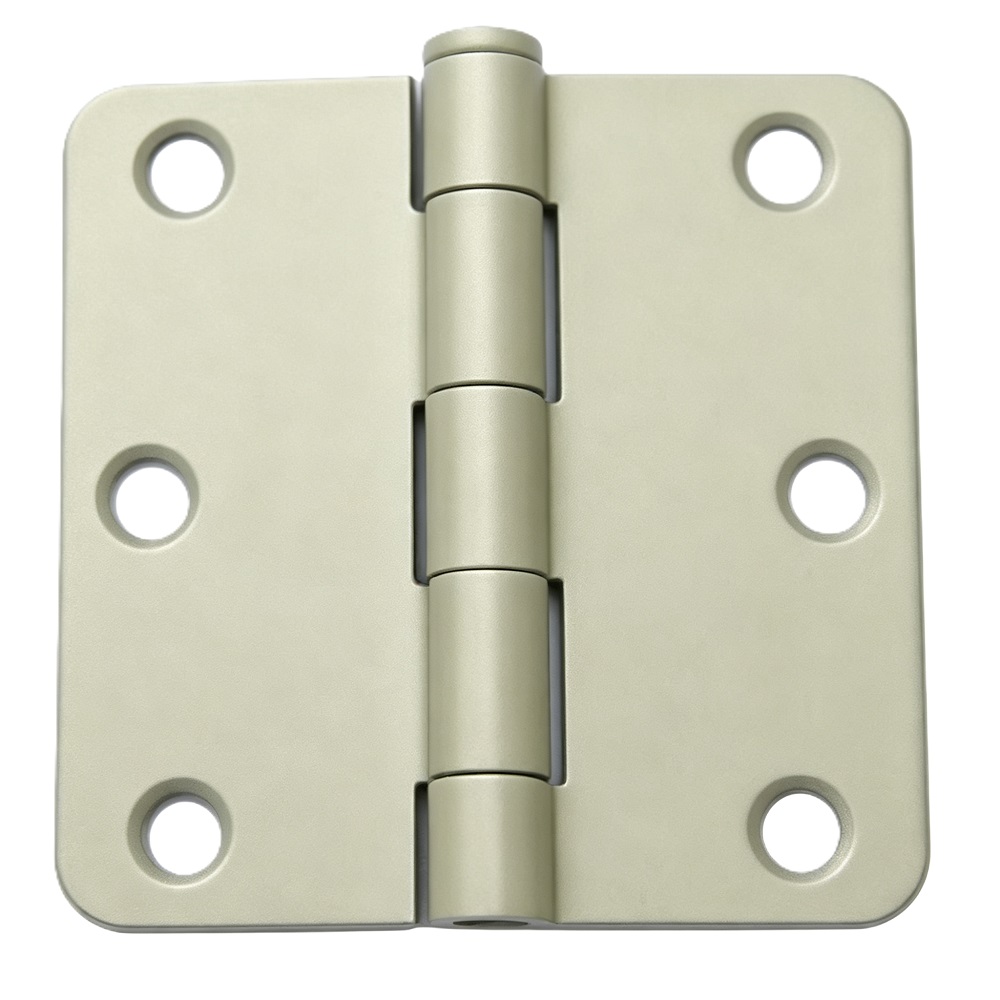

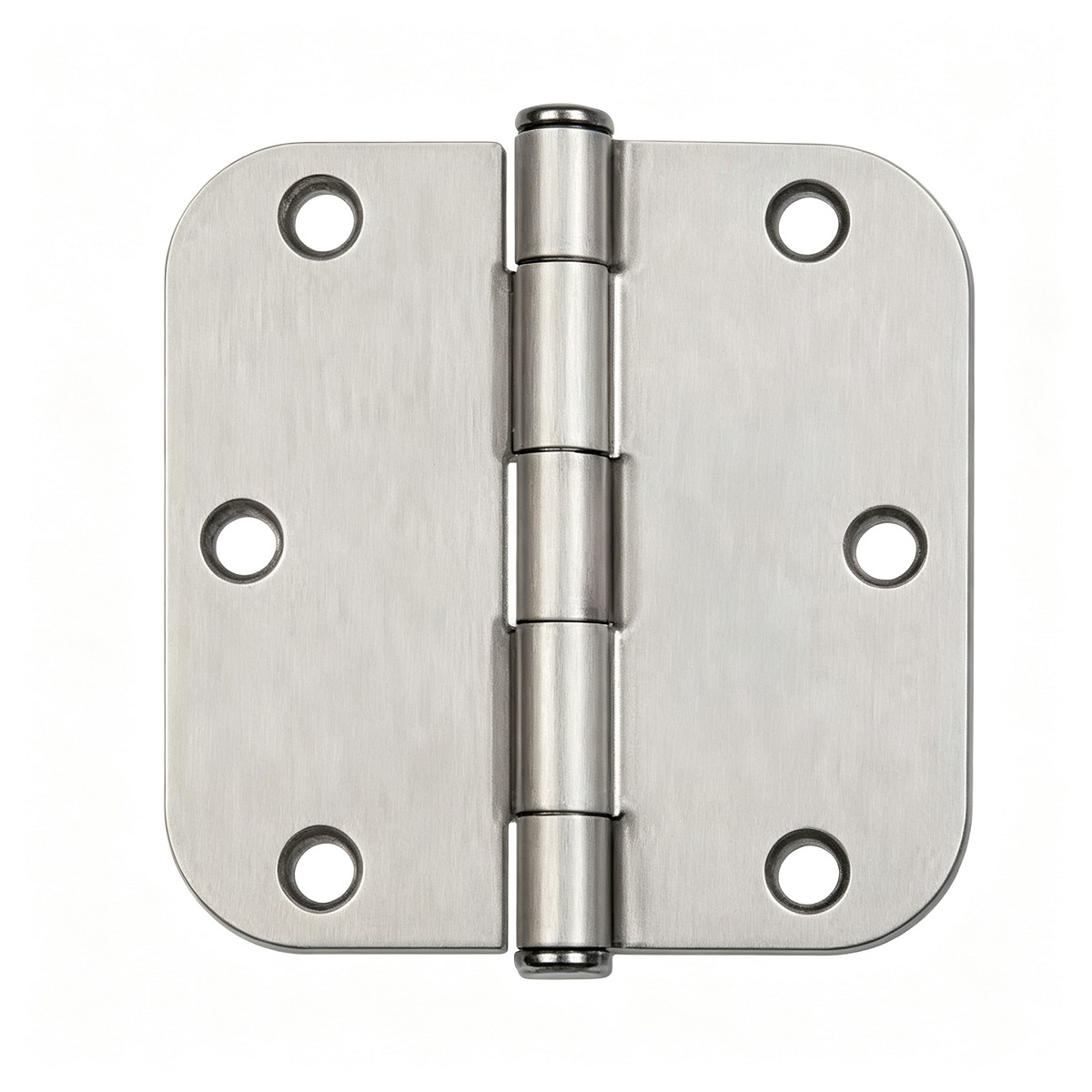

RH‑RC‑35 3.5 Inch Rounded‑Corner Residential Butt Hinge
VIEW OPTION
APPEARANCE
Please select item to display preview
Select view option to view product information
SURFACE FINISHES
Please select finish option
SPEC NOTE
Select variant to view specification
Product Description
RH‑RC‑35 3.5 Inch Rounded‑Corner Residential Butt Hinge, 3‑1/2"×3‑1/2"×2.0mm, cold‑rolled steel material, rounded corner leaf design with six countersunk screw holes. Classic north‑american standard residential butt hinge for interior wooden doors. Multiple decorative electroplated finishes available.
Installation recommendation: 3 pieces per residential door.
Installation recommendation: 3 pieces per residential door.
Specification & Dimension Table
| Model No. | Dimension (H × W × T) | Rated Door Weight |
|---|---|---|
| RH‑RC‑35 | 3‑1/2" × 3‑1/2" × 2.0mm | 25‑40Kgs |
Load‑Rating Recommendation
2.0mm leaf thickness: 25 ~ 40Kgs per door
Installation advice: 3 pieces per residential interior door
Finish Explanation
| Code | Full Finish Name | Process Description |
|---|---|---|
| SN | Satin Nickel | Steel substrate, electro‑plated satin nickel, matte nickel appearance |
| SC | Satin Chrome | Steel substrate, electro‑plated satin chrome, anti‑abrasive silver chrome surface |
| MB | Matte Black | Steel substrate, electro‑plated matte black nickel / black chrome, metallic black finish (not powder coating) |
| SB | Satin Brass | Steel substrate, electro‑plated satin brass, brushed brass‑gold tone |
Application Scenarios
North‑American style residential interior wooden doors
Apartment & housing project door hardware
General‑purpose interior door butt hinge
Product Advantages
Rounded‑Corner Leaf Profile‑Classic US residential hinge outline, 6‑hole countersunk mounting.
Cold‑Rolled Steel Construction‑Cost‑effective, high mechanical strength for residential door projects.
Decorative Electroplated Finishes‑SN/SC/MB/SB premium electroplating options match popular north‑american hardware styles.
Multi‑knuckle Hinge Pin‑Smooth daily opening‑closing performance.
OEM Acceptable‑Custom logo, special packing for bulk project orders.
