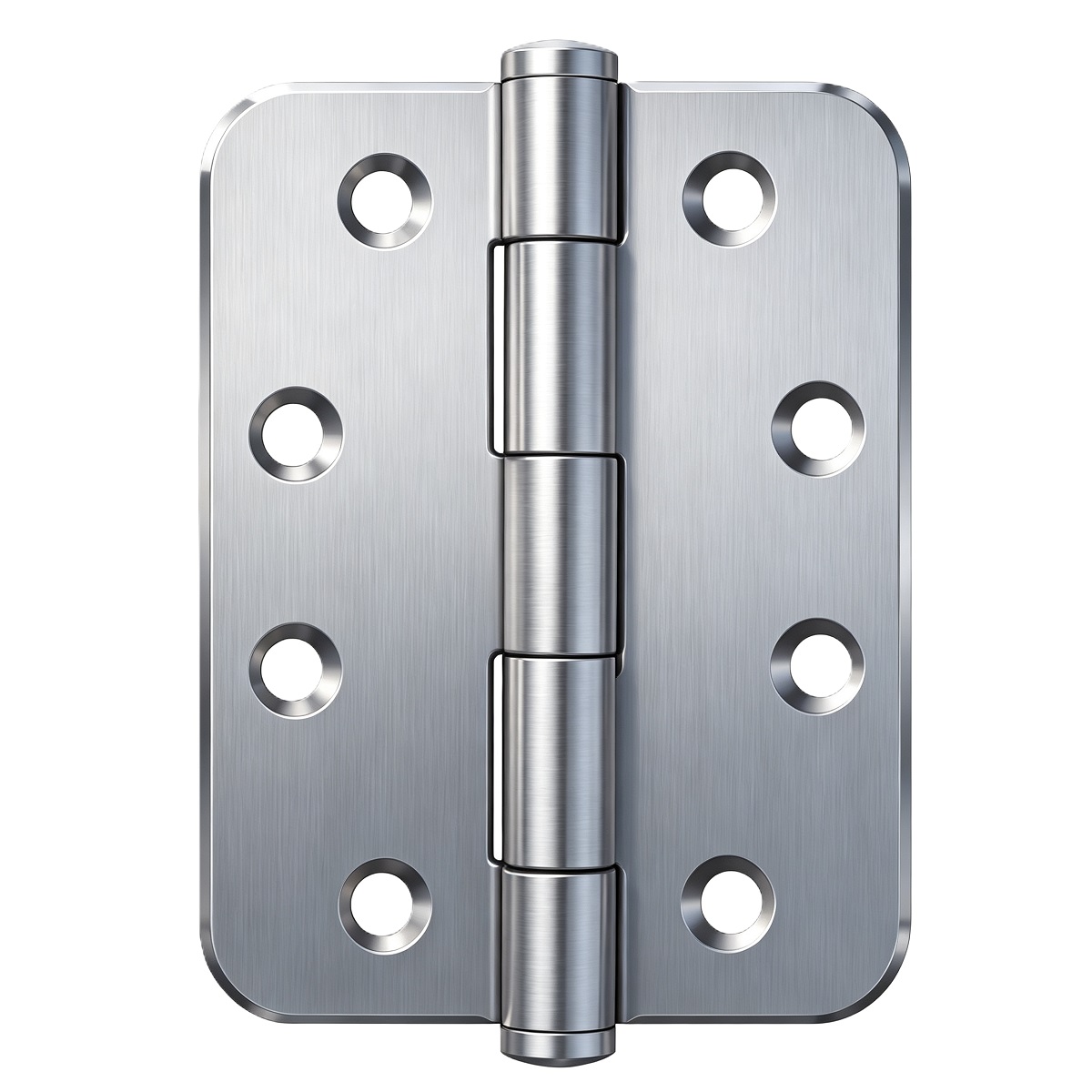

Round Corner Plain Joint Butt Hinge RC‑Series | Stainless Steel Radius Corner Door Hinge

Stainless Steel Round‑Corner Plain‑Joint Butt Hinge Model RC‑Series

MODEL SELECT

VIEW OPTION

APPEARANCE

Please select item to display preview

Select model to view product information

MATERIAL GRADE

SURFACE FINISHES

Please select finish option

MATERIAL & SPEC NOTE

Select variant to view specification

RC‑series round‑corner plain‑joint butt hinge features smooth radius rounded plate corners, eliminating sharp‑edge risk. Classic plain joint 3‑knuckle construction without washer or bearing. Wide imperial size range from 3.5"‑6", thickness 2.0‑4.0mm. Multiple stainless steel grades and surface finishes for interior wooden & metal door projects. Recommend 3 pieces per door.

Model No.	Dimension(H × W × T)

2.0mm Thickness Hinges: 25 ~ 40Kgs Per Door
2.5mm Thickness Hinges: 40 ~ 60Kgs Per Door
3.0mm Thickness Hinges: 60 ~ 80Kgs Per Door
3.5mm Thickness Hinges: 80 ~ 120Kgs Per Door
4.0mm Thickness Hinges: 120 ~ 150Kgs Per Door
Recommendation: 3 pieces per door

Material Grade	Application Environment
SUS201	Cost‑effective stainless steel for indoor dry‑environment commercial projects.
SUS304	General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment.
SUS316	Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment.

Interior wooden door & metal door, safety‑focused projects
School, hospital, childcare premises, public‑building projects
Architectural door hardware requiring rounded‑corner safety design
Coastal / high‑humidity projects(SUS316 option)

Round / Radius Corner Plate‑Smooth rounded corners removes sharp edges, improves safety for public‑access premises.
Plain‑Joint 3‑Knuckle Structure‑Proven reliable rotation, economical general‑purpose hinge solution.
Comprehensive Size Selection‑Multiple imperial sizes & thickness covers light‑medium‑heavy door weight range.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, meet different budget and anti‑corrosion requirement
Engineering Load‑Rating Reference‑Clear door‑weight suggestion for project quotation & hardware selection
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
