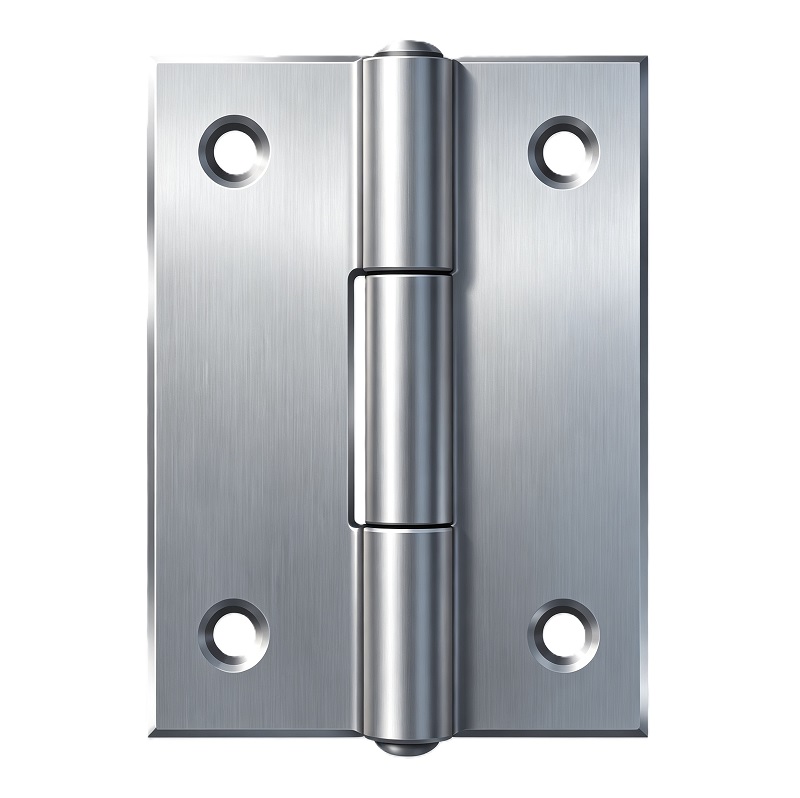

Riveted‑Pin Butt Hinge Model SS‑RT‑05
MODEL SELECT
VIEW OPTION
APPEARANCE
Please select item to display preview
Select model to view product information
MATERIAL GRADE
SURFACE FINISHES
Please select finish option
MATERIAL & SPEC NOTE
Select variant to view specification
Product Description
SS‑RT‑series riveted‑pin butt hinge, non‑removable riveted pin structure for anti‑theft purpose. Stainless‑steel butt hinge widely used for wooden door, metal door, cabinet and interior commercial architectural projects. Full‑range dimension & thickness options with load‑rating guidance for engineering selection.
Specification & Dimension Table
| Model No. | Dimension(H × W × T) |
|---|
Load‑Rating Recommendation
1.2mm Thickness Hinges: 10 ~ 15Kgs Per Door
1.5mm Thickness Hinges: 15 ~ 25Kgs Per Door
2.0mm Thickness Hinges: 25 ~ 40Kgs Per Door
Recommendation: 3 pieces per door
Material Grade Application Scope
| Material Grade | Application Environment |
|---|---|
| SUS201 | Indoor dry environment, interior wooden door, cabinet door, cost‑sensitive domestic projects |
| SUS304 | Most commercial indoor‑outdoor general projects, office, hotel, public building doors, moderate‑humidity environment |
| SUS316 | Coastal salt‑spray, high‑humidity corrosive environment, seaside projects, swimming‑pool surrounding doors |
Application Scenarios
Interior wooden door & metal door
Office & hotel commercial building projects
Cabinet door, shutter & louver door
Public‑facility engineering door hardware
Product Advantages
Riveted Non‑Removable Pin‑Anti‑theft structure, pin cannot be disassembled after installation
Multi‑grade Stainless Steel‑SUS201 / SUS304 / SUS316 optional for different anti‑corrosion requirement
Complete Dimension Range‑25 size variants for different door weight & opening size
Engineering Load‑Rating Reference‑Clear door weight suggestion for project quotation & selection
6 Surface Finishes Available‑SS, PSS, MB, PVD, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
