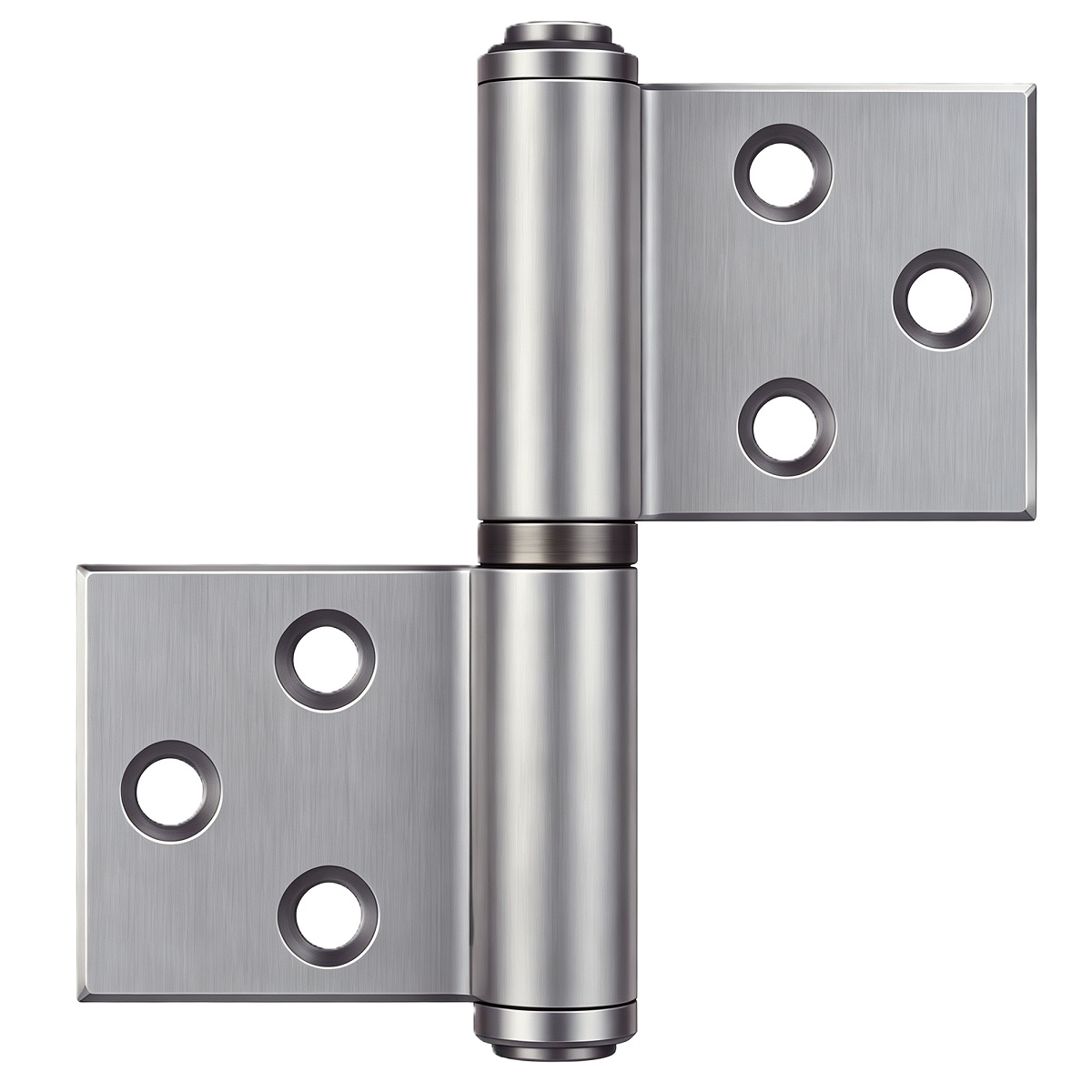

Stainless Steel Offset Lift‑Off Flag Hinge Model L8‑Series
MODEL SELECT
VIEW OPTION
APPEARANCE
Please select item to display preview
Select model to view product information
MATERIAL GRADE
SURFACE FINISHES
Please select finish option
MATERIAL & SPEC NOTE
Select variant to view specification
Product Description
L8‑Series Offset Lift‑Off Flag Hinge, flag‑style split leaf construction with offset design delivers extra swing clearance. Lift‑off removable mechanism allows full door removal without loosening mounting screws. Dimension 127 x 45 x 3.0mm, heavy‑duty 3.0mm leaf thickness. Multiple stainless steel grades & surface finishes for offset‑clearance commercial door projects. Recommend 3 pieces per door.
Specification & Dimension Table
| Model No. | Dimension(H × W × T) |
|---|
Load‑Rating Recommendation
3.0mm Thickness Hinges: 60 ~ 80Kgs Per Door
Recommendation: 3 pieces per door
Material Grade Application Scope
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
Application Scenarios
Commercial doors requiring offset swing clearance
School, hospital, office, retail store public‑access door projects
Quick‑remove service doors, flag‑type hinge retrofit applications
Coastal / high‑humidity projects(SUS316 option)
Product Advantages
Offset Flag‑Leaf Structure‑Flag‑style offset leaf provides extra swing clearance for special door‑frame mounting conditions.
Lift‑Off Removable Function‑Entire door can be lifted off without removing fixing screws for fast installation & maintenance.
Heavy‑Duty 3.0mm Leaf‑127x45mm dimension, rated up to 80kg door weight for medium‑heavy commercial doors.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, meet different budget and anti‑corrosion requirement
Engineering Load‑Rating Reference‑Clear door‑weight suggestion for project quotation & hardware selection
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
