- Product Information

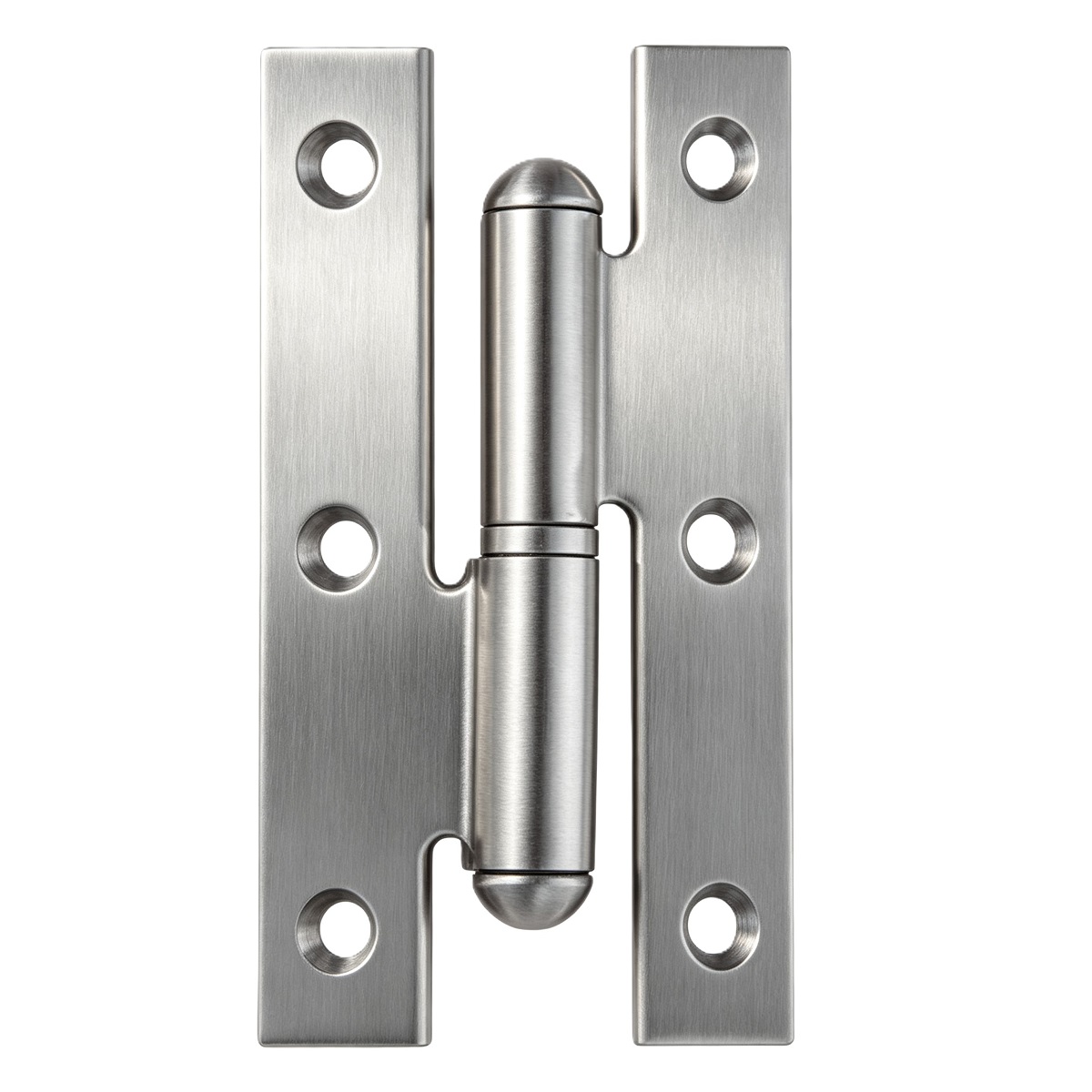

H‑Type Lift‑Off Butt Hinge SS‑HH‑Series (Detachable Removable Door Hinge)
| Model No. | Dimension (H × W × T) |
|---|
2.0mm Thickness Hinges: 25 ~ 40Kgs Per Door
2.5mm Thickness Hinges: 40 ~ 60Kgs Per Door
Recommendation: 3 pieces per door
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
Interior doors requiring easy lift‑off / quick door removal
Residential room doors, office interior doors
Commercial light‑medium duty door assemblies
Coastal / high‑humidity projects(SUS316 option)
H‑Shape Lift‑Off Design‑Door can be lifted upward and detached without screw dismounting, convenient for installation & maintenance.
Multiple Size Options‑4 available dimensions covering common interior door requirements.
Two Leaf Thickness Options‑2.0mm & 2.5mm for different door weight range 25‑60Kgs.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, cover different budget and corrosion‑resistance demand.
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
