- Product Information

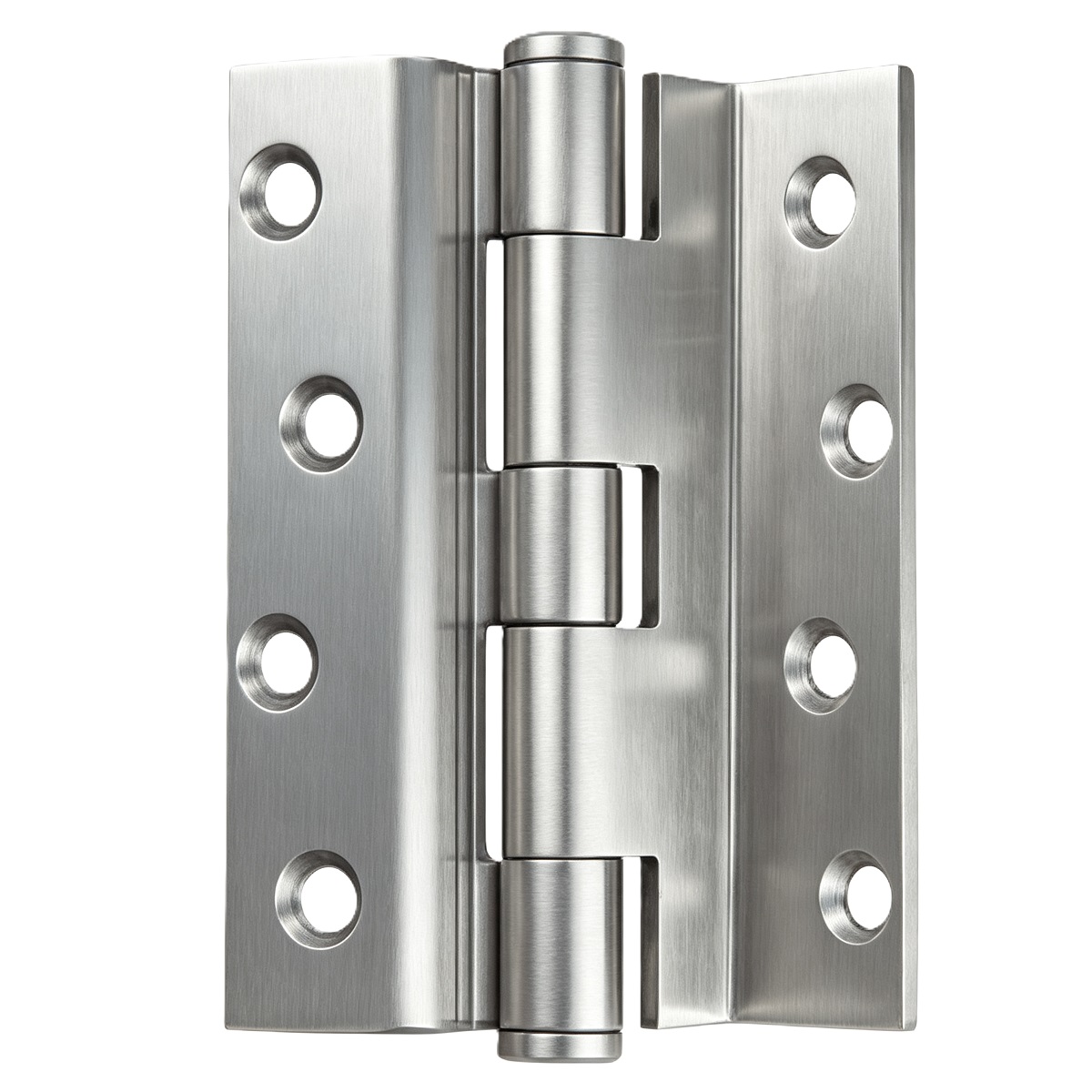

Cranked Offset Butt Hinge CK2‑Series (Rebated Door Hinge)
| Model No. | Dimension(H × W × T) |
|---|
3.0mm Thickness Hinges: 60 ~ 80Kgs Per Door
Recommendation: 3 pieces per door
| Material Grade | Application Environment |
|---|---|
| SUS201 | Cost‑effective stainless steel for indoor dry‑environment commercial projects. |
| SUS304 | General‑purpose anti‑corrosion stainless steel for hotel, office, public‑building commercial door projects, indoor & moderate‑humidity outdoor environment. |
| SUS316 | Marine‑grade anti‑corrosion material, suitable for coastal, high‑salt‑spray and high‑humidity harsh environment. |
Rebated / offset‑set‑back commercial swing doors
Office, hotel, education building interior door systems
Public architectural rebated door assemblies
Coastal / high‑humidity projects(SUS316 option)
Cranked Offset Leaf Design‑Optimized geometry for rebated door frame installation, solves offset‑set‑back door closing clearance issue.
5‑Knuckle Butt Hinge Structure‑Stable load distribution, smooth silent door swing performance.
US‑Standard Inch‑Size Footprint‑3.5"×3.0" / 4.0"×3.0", 3.0mm thick leaf for heavy‑door load‑bearing.
3 Grade Stainless Steel Optional‑SUS201 / SUS304 / SUS316, meet different budget and anti‑corrosion requirement
Engineering Load‑Rating Reference‑60‑80Kgs per door, 3‑hinge installation suggestion for project quotation.
6 Surface Finishes Available‑SS, PSS, BP, GP, AB, AC to match diverse door‑finish requirement
OEM Supported‑Custom logo engraving & special packing for bulk project orders
