UL Listed Classical 4 Ball Bearing Fire Rated Stainless Steel Butt Door Hinge
- Product Information
Satin Stainless
Polished Stainless
Polished Brass
Antique Brass

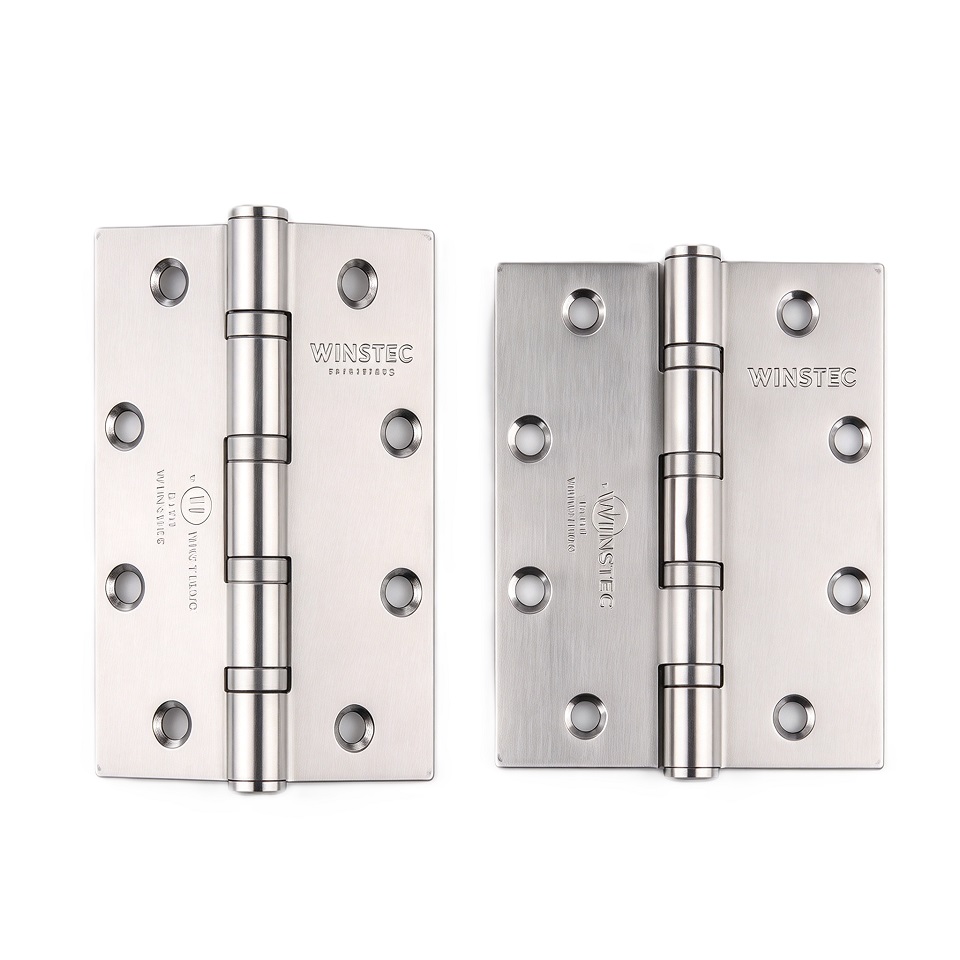

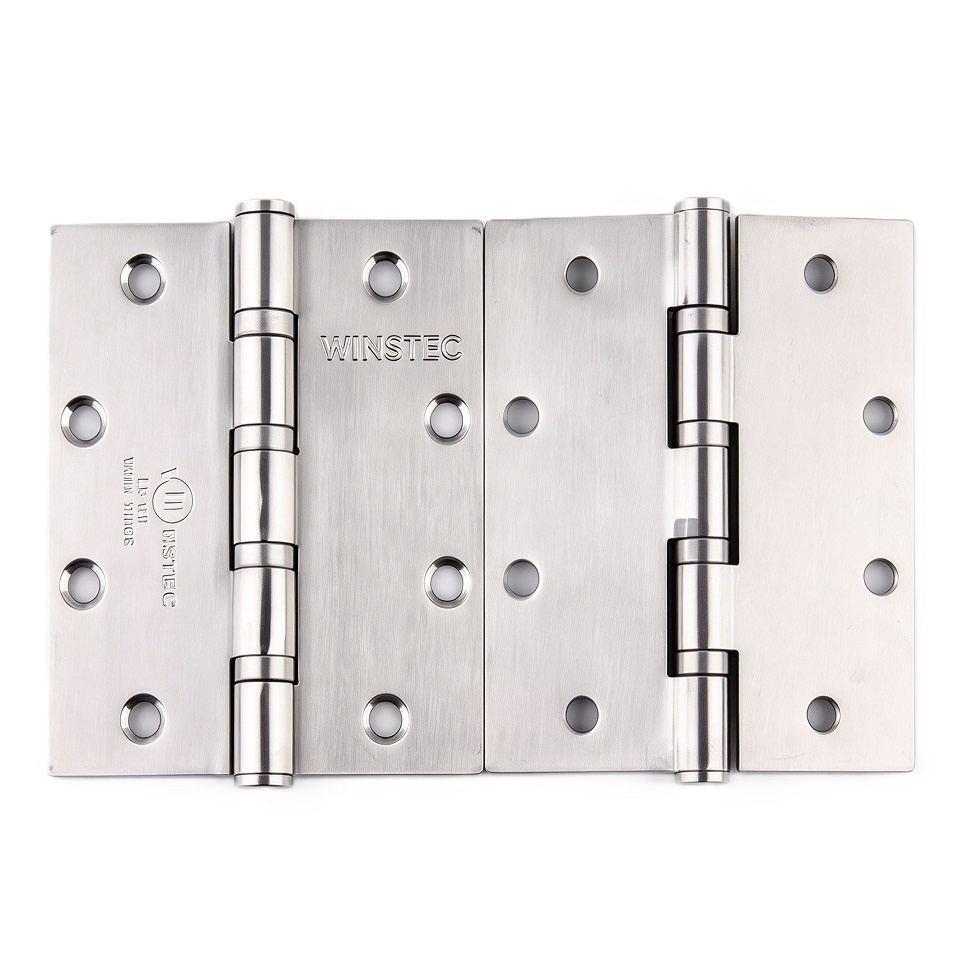

SS006FR UL‑Listed Classical 4‑Ball‑Bearing Fire‑Rated Stainless Steel Butt Door Hinge
SS006FR classical 4‑ball‑bearing fire‑rated stainless steel butt door hinge manufactured by WINGTEC. Premium stainless‑steel 201/304/316 material construction, built‑in four precision ball‑bearing assembly delivers smooth silent door swing performance. Available in 5x4,5x4.5,5x5 inch sizes with 3.4‑4.6mm leaf thickness, maximum support door weight up to 120KG. Standard full‑mortise butt installation design, non‑handed reversible for left‑hand / right‑hand door application, multiple decorative surface finish selections. UL‑Listed UL10C 3‑Hour fire‑rated, fully complies with ANSI/BHMA‑156.1‑2000 and EN1935 standard, completes 200,000‑cycle heavy‑duty durability test. Complete matching screw accessories supplied. Optimized for North‑American and European commercial fire‑door project requirements, suitable for wooden, metal, steel fire‑rated interior‑exterior door assemblies. Monthly production capacity reaches 200,000 units for B2B wholesale architectural UL‑compliant fire‑safety butt hinge tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | UL‑Listed Classical 4‑Ball‑Bearing Fire‑Rated Stainless Steel Full‑Mortise Butt Door Hinge |
| Operation | 4‑ball‑bearing smooth silent swing, full‑mortise butt installation, reversible non‑handed left‑right fit, UL‑Listed UL10C & ANSI/BHMA‑156.1‑2000 & EN1935 fire‑safety certified |
| Material | Stainless‑steel 201 / 304 /316 hinge leaf, high‑precision 4‑unit ball bearing assembly, corrosion‑resistant surface finishing |
| Core Functions | 4‑ball‑bearing silent swing, reversible non‑handed installation, multi‑size & multi‑finish option, max 120kg load capacity, 3‑hour fire‑rated, 200,000‑cycle heavy‑duty durability |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, Hotel‑Office‑Multi‑Unit Commercial‑Residential Fire‑Door Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 100 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 2 Hinges / White Box, Standard Export Carton |
Application Scenarios
Commercial & Multi‑Unit Fire‑Door Installations
SS006FR UL‑listed classical 4‑ball‑bearing fire‑rated butt hinge is purpose‑built for hotel, office and multi‑unit residential fire‑rated door‑sets. Four‑ball‑bearing construction delivers long‑term quiet and stable door swing. Supports maximum 120KG door weight, multiple inch‑size and thickness options match various fire‑door configurations. Reversible non‑handed design eliminates separate left‑right‑hand SKU inventory pressure for large‑volume tender projects. UL‑Listed UL10C, ANSI/BHMA‑156.1‑2000 and EN1935 dual‑region certifications satisfy North‑American and European fire‑safety code requirements for stainless‑steel fire‑rated butt hinge assemblies.
Multi‑Material Door New‑Build & Renovation
This classical 4‑ball‑bearing stainless‑steel fire‑rated butt hinge uses anti‑corrosion stainless‑steel substrate and precision ball‑bearing components for stable low‑noise swing performance. Passed strict 200,000‑cycle heavy‑traffic durability test. Works reliably for wooden, metal, steel fire‑rated interior‑exterior door‑sets on new‑construction and retrofit renovation commercial‑residential hardware assignments.
Architectural Hardware Tender Specification Projects
Full set of matching mounting screw accessories included, standard full‑mortise butt mounting, reversible non‑handed configuration. Wide range of decorative surface finishes available. UL certification reports, datasheet and installation drawings can be provided for tender‑submission documentation for commercial‑residential fire‑safety building projects.
Product Characteristics
Premium grade 201/304/316 stainless‑steel hinge leaf with 4‑unit precision ball‑bearing internal assembly; anti‑corrosion surface treatment for long‑term silent swing performance for fire‑rated door operation
Multiple dimension options:5"x4",5"x4.5",5"x5", leaf thickness 3.4‑4.6mm; maximum load‑bearing capacity up to 120KG per hinge pair
Classic full‑mortise butt hinge installation, true reversible non‑handed left‑right universal fit; rich optional decorative surface finishes match different interior decoration themes
UL‑Listed UL10C 3‑Hour fire‑rated, complies with ANSI/BHMA‑156.1‑2000 & EN1935, passes 200,000‑cycle heavy‑duty durability test
Standard full‑mortise butt‑type mounting; fire‑safety optimized for wooden, metal, steel fire‑rated interior‑exterior door assemblies

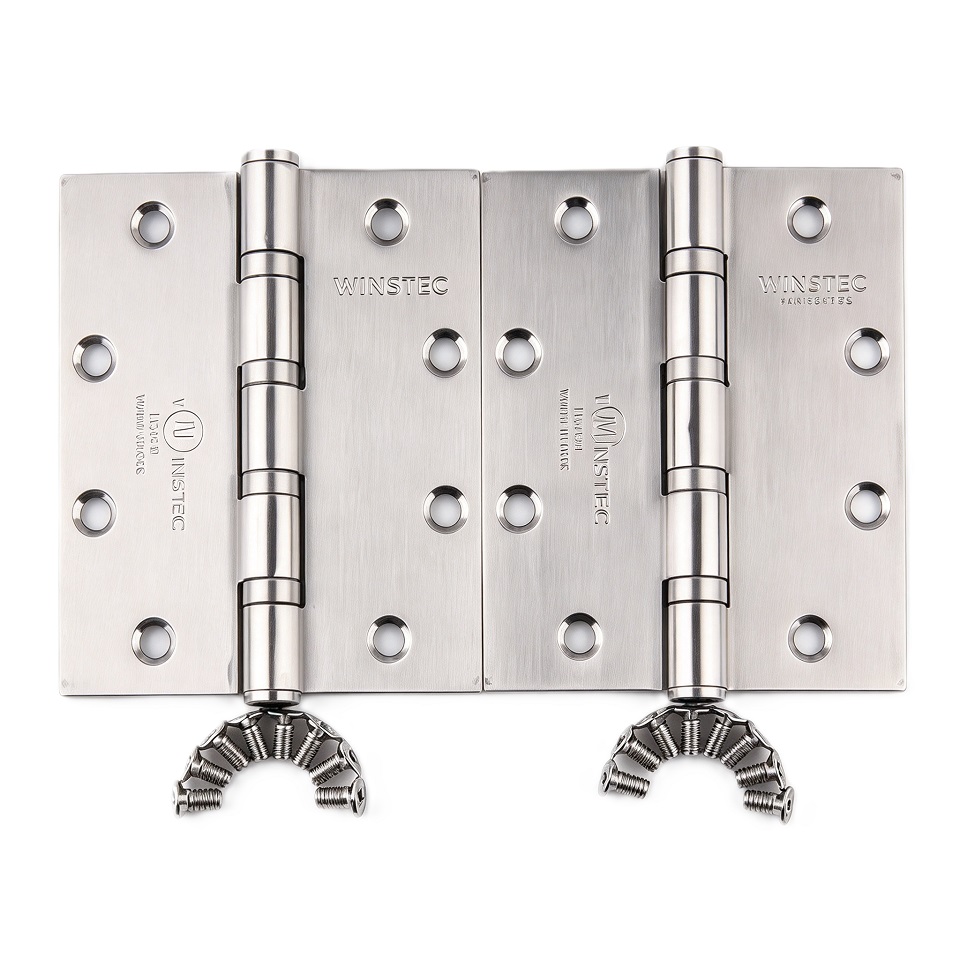

Complete matching mounting screw accessories supplied; monthly capacity 200,000 units for B2B wholesale fire‑door hinge bulk tender orders
Warranty & Customization
Standard quality warranty against manufacturing defects of stainless‑steel hinge leaf and internal precision ball‑bearing components
Bulk wholesale supply for architectural construction and fire‑safety‑door tender projects; custom finish, custom size variant options are available
2D installation drawing and product‑performance‑specification datasheet including UL‑ANSI‑EN compliance statement available for tender‑submission documentation
Frequently Asked Questions
What certifications does SS006FR hold?
SS006FR is UL‑Listed UL10C 3‑Hour fire‑rated, fully complies with ANSI/BHMA‑156.1‑2000 and EN1935 standard, and completes 200,000‑cycle heavy‑duty durability test for 4‑ball‑bearing fire‑rated butt hinge hardware.
What door weight fits SS006FR fire‑rated butt hinge?

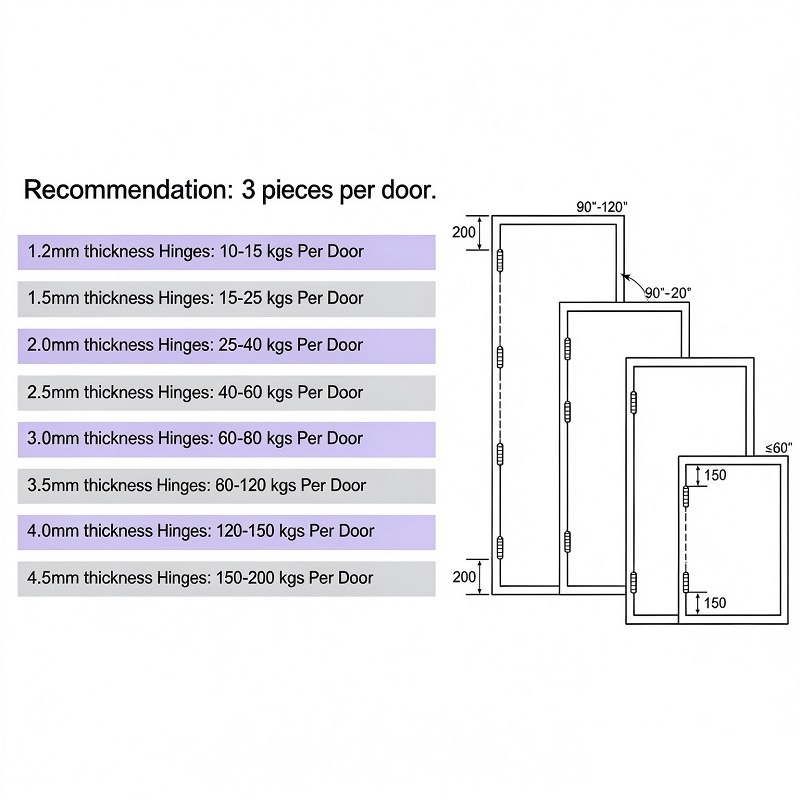

SS006FR four‑ball‑bearing butt hinge can support door weight up to 120KG per hinge pair, compatible with 5‑inch series multiple leaf dimension and thickness specifications.
Can SS006FR be used for both left‑hand and right‑hand doors?
Yes, SS006FR adopts reversible non‑handed design, one hinge SKU fits both left‑hand and right‑hand full‑mortise door installation, helping reduce project inventory SKU quantity. It must be installed according to local fire‑code requirements for fire‑door assemblies.
