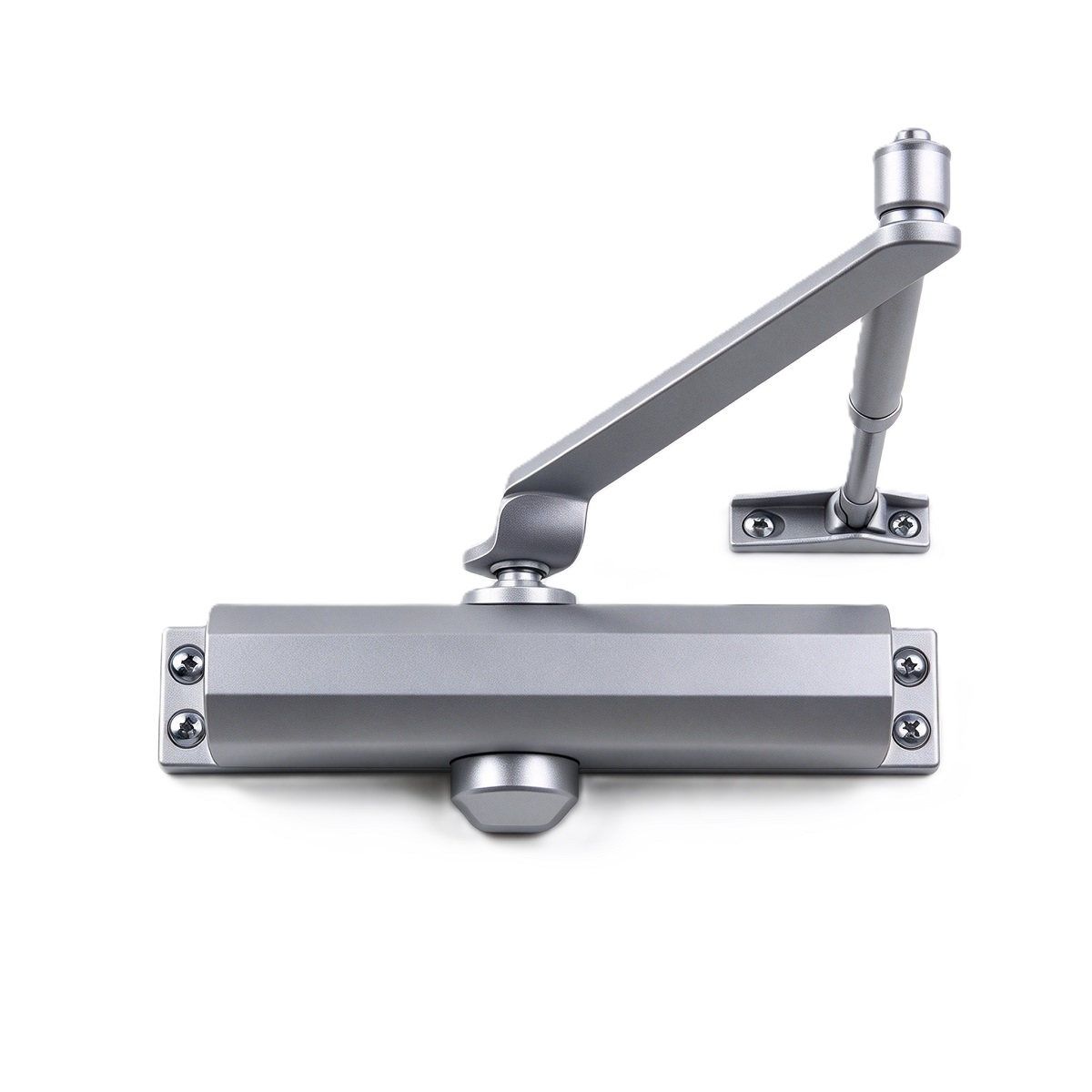

UL Listed Light Duty Compact Fire Rated Surface Mount Hydraulic Interior Door Closer
- Product Information
Silver
Black Aluminium
White Aluminium
Gold
DC‑061 UL‑Listed Light‑Duty Compact Fire‑Rated Aluminium‑Alloy Surface‑Mount Hydraulic Interior Door Closer
DC‑061 compact light‑duty overhead surface‑mount hydraulic fire‑rated interior door closer manufactured by WINGTEC. Precision‑cast compact aluminum‑alloy housing, steel arm assembly, precision gear‑shaft, light‑duty spring unit, piston and premium leak‑proof sealing gaskets, filled with imported German FUCHS hydraulic oil. Light‑duty power‑size rating for door weight 20‑45KG, max door width up to 850 mm. Max 180‑degree opening angle, two‑valve independent adjustable closing speed and latching speed for soft, quiet door closure. True non‑handed left‑right universal installation. UL‑Listed(File‑No.R40717), complies with UL10C 3‑Hour Fire‑Rated standard, passes 500,000‑cycle durability test. Supports regular‑arm and top‑jamb overhead mounting. Optimized for North‑American‑spec apartment units, hotel guest‑rooms, small‑office and utility‑room fire‑rated interior door‑sets complying with NFPA‑80 fire‑safety codes. Suitable for wooden, metal, steel and fire‑rated interior‑exterior door‑sets. Full‑set mounting accessories are supplied. Monthly production capacity reaches 200,000 units for B2B wholesale UL‑compliant North‑American‑market fire‑safety hardware tender projects.
Product Specification
Model No:
DC‑061
Brand:
WINGTEC
Material:
Compact Cast Aluminum Alloy Housing, Steel Arm, Precision Gear‑Shaft, Light‑Duty Spring, Piston, Anti‑Leakage Sealing Gaskets, FUCHS Hydraulic Oil
Available Finishes:
Silver, Black Aluminium, White Aluminium, Gold, Antique Brass, Dark Bronze, Matt Bronze, Brown
Certification:
UL‑Listed(File‑No.R40717), UL10C 3‑Hour Fire‑Rated Verified
Power Size:
Light‑Duty Fixed
Door Spec:
20‑45KG, Max Door Width up to 850mm
Max Opening Angle:
180 Degree
Special Feature:
Compact Low‑Profile Housing, Light‑Duty Interior‑Focused Design, Two‑Valve Speed Adjustment, Quiet Soft Latching, Non‑Handed Universal Fit, Regular‑Arm & Top‑Jamb Mount‑Compatible, UL10C 3‑Hour Fire‑Rated
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | UL‑Listed Compact Cast‑Aluminium‑Alloy Light‑Duty Fire‑Rated Surface‑Mount Hydraulic Overhead Interior Door Closer |
| Operation | Hydraulic‑spring auto‑closing with light‑duty fixed spring force, overhead surface‑mount, non‑handed fit, max 180° opening angle, two‑valve adjustable closing & latching speed for quiet soft latching, UL‑Listed UL10C 3‑Hour fire‑safety certified |
| Material | Compact precision‑cast aluminum‑alloy housing, steel arm assembly, precision gear‑shaft, light‑duty spring unit, piston, high‑grade anti‑leakage gaskets, imported FUCHS hydraulic oil |
| Core Functions | Light‑duty fixed spring power rating, dual‑valve independent closing‑latching speed tuning, quiet soft‑latching performance, non‑handed universal mounting, UL10C 3‑Hour fire‑rated, 500,000‑cycle service life |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Door Assemblies, North‑American‑Spec Apartment‑Hotel‑Guest‑Room‑Small‑Office‑Utility‑Room Hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 200 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
North‑American‑Spec Apartment & Hotel Guest‑Room Installations
DC‑061 UL‑Listed compact light‑duty overhead interior door closer is purpose‑built for North‑American‑spec apartment units, hotel guest‑rooms, small‑office and utility‑room fire‑rated interior door‑sets, fully complying with UL10C 3‑Hour fire‑safety and NFPA‑80 building‑code requirements. Light‑duty fixed spring power delivers quiet soft‑latching closing performance for lightweight 20‑45KG interior doors up to max 850mm door width. Slim compact low‑profile housing blends neatly with interior decoration aesthetics. True non‑handed universal mounting removes separate left‑right‑hand SKU stocking burden for large‑volume hospitality and multi‑family tender projects. UL‑Listed(File‑No.R40717) 3‑hour fire‑rated certification satisfies North‑America light‑duty interior fire‑door assembly compliance requirements.
Multi‑Material Interior Door New‑Build & Retrofit Renovation
This UL‑compliant compact light‑duty hydraulic interior door closer uses premium imported anti‑leak gaskets and German FUCHS hydraulic oil for stable low‑noise closing performance under light‑to‑medium interior‑traffic cycles. Passed 500,000‑cycle durability test. Works reliably for wooden, metal, steel and fire‑rated interior‑exterior door‑sets for new‑construction and retrofit renovation North‑American hospitality and multi‑family hardware assignments. Compatible with regular‑arm and top‑jamb overhead mounting configurations. Complete mounting bracket and screw accessories included for quick professional field fitting.
Architectural Hardware Tender Specification Projects
Multiple finish‑color selections match mainstream North‑American hospitality and multi‑family residential interior building hardware aesthetic requirements. Datasheet, multi‑mode installation drawings and full UL‑Listed compliance documentation can be supplied for tender‑submission documentation for North‑American‑market building‑project bidding. Custom surface finishes and custom‑packing solutions are available for large‑volume B2B orders.
Product Characteristics
Compact low‑profile precision‑cast aluminum‑alloy housing plus steel arm assembly, high‑quality anti‑leak sealing gaskets, filled with imported German FUCHS hydraulic oil; UL‑Listed light‑duty interior fire‑door hardware optimized for North‑American‑market hotel, apartment and utility‑room projects.
Light‑duty fixed spring power‑rating for lightweight door weight 20‑45KG, max door width up to 850 mm, full 180‑degree maximum opening angle; two‑valve independent adjustment delivers quiet soft‑slam‑free latching performance for interior guest‑room doors.
Compact overhead surface‑mount installation layout, true non‑handed left‑right universal fit; compatible with regular‑arm and top‑jamb mounting kits.
UL‑Listed(File‑No.R40717), complies with UL10C 3‑Hour Fire‑Rated standard, passes 500,000‑cycle durability test, meets North‑American fire‑safety building‑hardware regulatory requirements including NFPA‑80.
Regular‑arm & top‑jamb compatible surface‑mount overhead installation; suitable for wooden, metal, steel and fire‑rated interior‑exterior door assemblies.
Full‑set surface‑mount installation accessories included for professional on‑site fitting; monthly capacity 200,000 units for B2B wholesale North‑American‑project bulk tender orders.
Warranty & Customization
Standard quality warranty against manufacturing defects of aluminium housing, steel arm and internal light‑duty‑spring hydraulic‑components.
Bulk wholesale supply for architectural construction and North‑American‑market UL‑Listed fire‑safety‑door tender projects; multiple surface‑finish custom options available upon large‑volume request.
2D installation drawing and product‑performance‑specification datasheet including UL compliance statement available for tender‑submission documentation.
Frequently Asked Questions
What certifications does DC‑061 hold?
DC‑061 is UL‑Listed(File‑No.R40717), complies with UL10C 3‑Hour Fire‑Rated standard, and passes 500,000‑cycle durability test for North‑American‑market compact light‑duty interior overhead door‑control hardware, conforming to NFPA‑80 fire‑door requirements.
What door weight and dimension fits DC‑061?
DC‑061 adopts light‑duty fixed spring power, suitable for lightweight door weight range 20‑45KG and maximum door width up to 850 mm, max opening angle reaches full 180‑degree, ideal for hotel guest‑room and apartment interior fire doors.
What mounting options are available for DC‑061?
DC‑061 supports regular‑arm and top‑jamb two overhead mounting configurations. It is non‑handed for both left‑handed and right‑handed doors, designed for compact‑profile interior hospitality and multi‑family fire‑rated door assemblies.
