Stainless Steel Universal Double Leaf Door Coordinator Device
- Product Information
Satin SS
Polished SS
Matt Black
Antique Brass

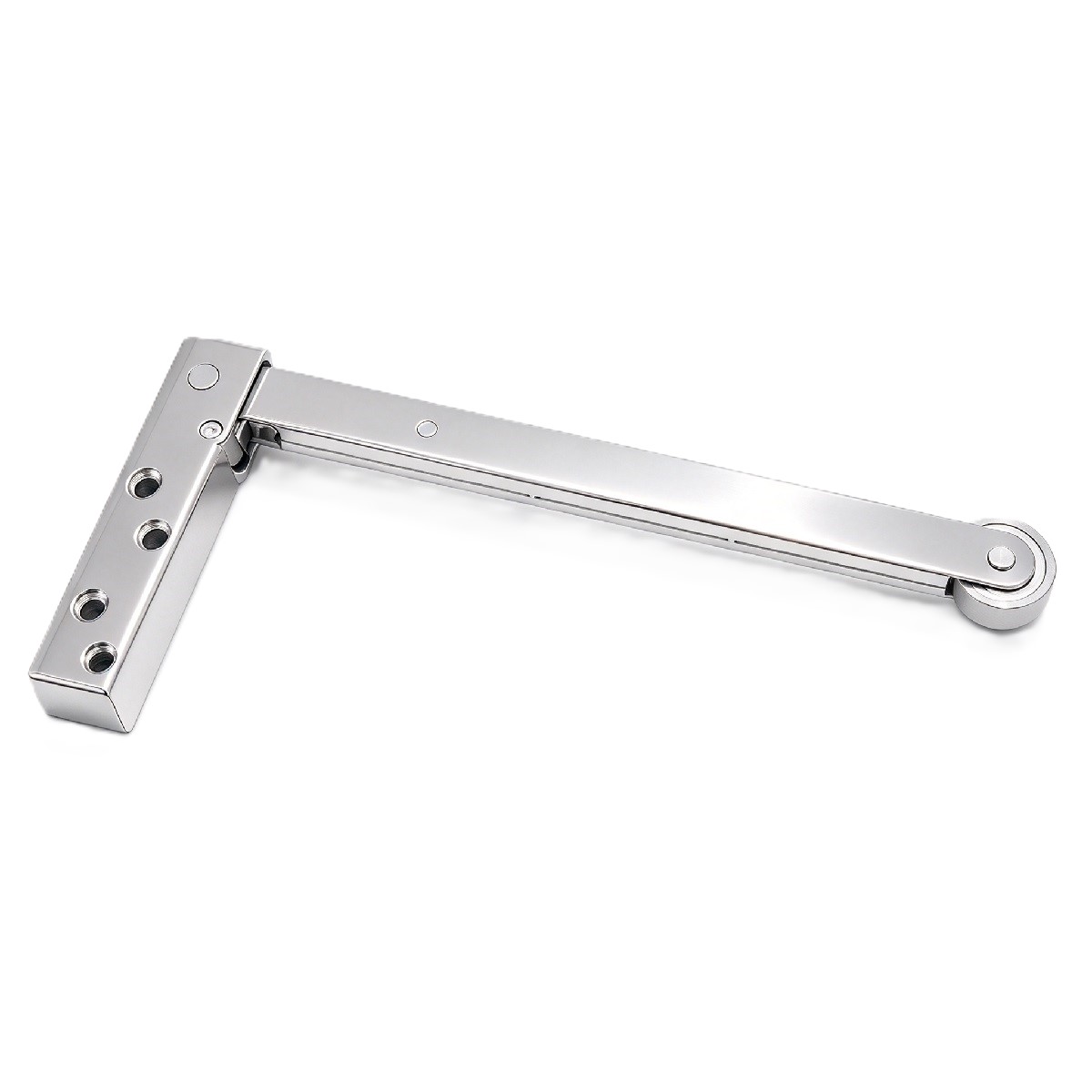

DR002B Stainless‑Steel Universal Double‑Leaf Door Coordinator Device
DR002B overhead‑mount universal mechanical double‑leaf door coordinator manufactured by WINGTEC. Constructed from select SUS201 / SUS304 / SUS316 stainless‑steel, overall dimension 280x90mm. This surface‑mount mechanical door sequencer controls closing sequence for paired double‑leaf door assemblies, ensuring the inactive leaf closes before the active leaf for reliable latch engagement. Wear‑resistant nylon roller wheel plus long‑term self‑lubricated internal mechanical assembly delivers smooth operation under frequent heavy‑traffic cycles. Compliant with BS‑EN, CE, UL, ANSI, BHMA, ISO and SGS verification standards. Simple overhead surface installation with complete mounting fastener kit included. Compatible with wooden, metal, steel and fire‑rated interior‑exterior double‑leaf door sets, widely deployed in hospitals, schools, offices and multi‑purpose public institutional building projects. Monthly production capacity reaches 200,000 units for B2B wholesale commercial‑institutional door‑control hardware tender projects.
Product Specification
Technical Parameter
| Specification | Parameter |
|---|---|
| Product Type | Stainless‑Steel Universal Mechanical Overhead Double‑Leaf Door Coordinator / Door Sequencer |
| Operation | Pure‑mechanical gravity‑powered sequential closing control, overhead surface‑mount installation, true non‑handed universal fit, zero external power needed, manages closing sequence for paired double‑leaf door assemblies |
| Material | Optional Stainless‑Steel Grade 201 / 304 / 316, wear‑resistant nylon roller wheel, self‑lubricated internal mechanical components, full mounting fastener set |
| Core Functions | Enforces correct double‑leaf door closing sequence, prevents latch mis‑engagement, anti‑rust stainless‑steel build, low‑maintenance, compatible with overhead hydraulic door‑closer systems |
| Application | Wooden / Metal / Steel / Fire‑Rated Interior‑Exterior Double‑Leaf Door Assemblies, Hospital‑School‑Office‑Public Institutional building hardware Projects |
| Production Capacity | 200,000 Units / Month |
| MOQ | 500 PCS |
| Sample Time | 5‑7 Working Days |
| Lead Time | 30‑35 Days |
| Packing | 1 Set / White Box, Standard Export Carton |
Application Scenarios
Institutional Public‑Building Double‑Leaf Door Installations
DR002B stainless‑steel door coordinator is purpose‑built for hospital, school and office public‑building paired double‑leaf door assemblies. Gravity‑driven mechanical sequencer guarantees the inactive door leaf closes before active leaf, eliminating latch jamming and mis‑closure risk when used together with overhead fire‑rated door closers. Non‑handed universal design lowers inventory SKU burden for large‑volume institutional tender projects. Product meets BS‑EN, CE, UL, ANSI, BHMA, ISO and SGS standards for global commercial building hardware specifications.
Multi‑Material Double‑Door New‑Build & Retrofit
DR002B offers grade‑selectable 201 / 304 / 316 stainless‑steel for different anti‑corrosion requirements; 316 grade suits coastal high‑salt‑air environments. Nylon roller plus self‑lubricated internals sustain smooth performance under heavy‑traffic usage. Works for wooden, metal, steel and fire‑rated interior‑exterior double‑leaf doors for new‑construction and existing‑hardware retrofit assignments. Full mounting fastener kit supplied for quick overhead surface fitting.
Architectural Hardware Tender Specification Projects
Overhead surface‑mount installation with complete hardware kit. Multiple surface‑finish selections to harmonize with project‑site door hardware aesthetics. Datasheet, installation drawings and multi‑standard compliance documentation are available for tender‑submission for global public‑institutional building bidding projects. Custom stainless‑steel grade and custom finishing can be arranged for large‑volume B2B orders.
Product Characteristics
Heavy‑duty stainless‑steel construction, optional SUS201 / SUS304 / SUS316 grades for varied anti‑corrosion requirements, suitable for interior‑exterior double‑leaf door hardware applications
Pure gravity‑driven mechanical sequencing mechanism, no electrical power or wiring required; enforces proper closing sequence to avoid latch mis‑alignment on paired double‑leaf door assemblies
Overhead surface‑mount layout, true non‑handed universal fit; supplied with complete mounting‑screw fastener kit for on‑site professional installation
Overall dimension 280×90mm; wear‑resistant nylon roller wheel plus self‑lubricated internal mechanical components for low‑maintenance long‑term heavy‑cycle service life
Multi‑standard compliance: BS‑EN, CE, UL, ANSI, BHMA, ISO & SGS verified; compatible with wooden, metal, steel and fire‑rated double‑leaf interior‑exterior door‑sets, works cooperatively with overhead door‑closer hardware
Rich finish choices for architectural aesthetic matching; monthly capacity 200,000 units for B2B wholesale global institutional‑commercial bulk tender orders
Warranty & Customization
Standard quality warranty covering manufacturing defects of stainless‑steel housing, nylon roller wheel and internal mechanical sequencing components.
Bulk wholesale supply for architectural construction and public‑institutional double‑door hardware tender projects; custom stainless‑steel grade and custom surface‑finish options available upon large‑volume request.
Product datasheet, installation instructions and multi‑standard compliance documents are ready for tender‑submission project‑documentation.
Frequently Asked Questions
What application is DR002B door coordinator for?
DR002B mechanical overhead door coordinator is designed for paired double‑leaf door assemblies in hospitals, schools, offices and public‑institutional buildings. It controls closing sequence to ensure inactive leaf closes prior to active leaf, preventing latch‑failure issues, works together with overhead hydraulic door closers.
How to choose stainless‑steel grade for DR002B?
SUS201: cost‑effective for indoor dry‑environment projects; SUS304: general‑purpose for interior‑exterior normal conditions; SUS316: recommended for coastal, salt‑spray high‑corrosion‑risk environments.
Does DR002B require power supply or wiring?
No. DR002B is pure gravity‑mechanical door sequencer without any electronic parts. It relies on mechanical structure, no power cable is needed for installation and operation.
