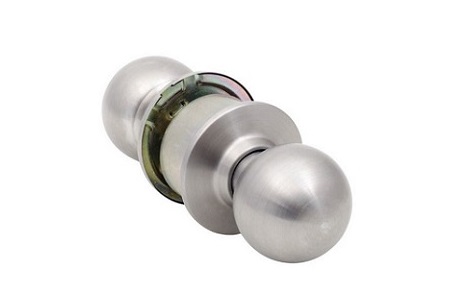

8 Series Door Knob
Meet with ANSI A156.2 Grade 3 Exceeds 250,000 Cycles

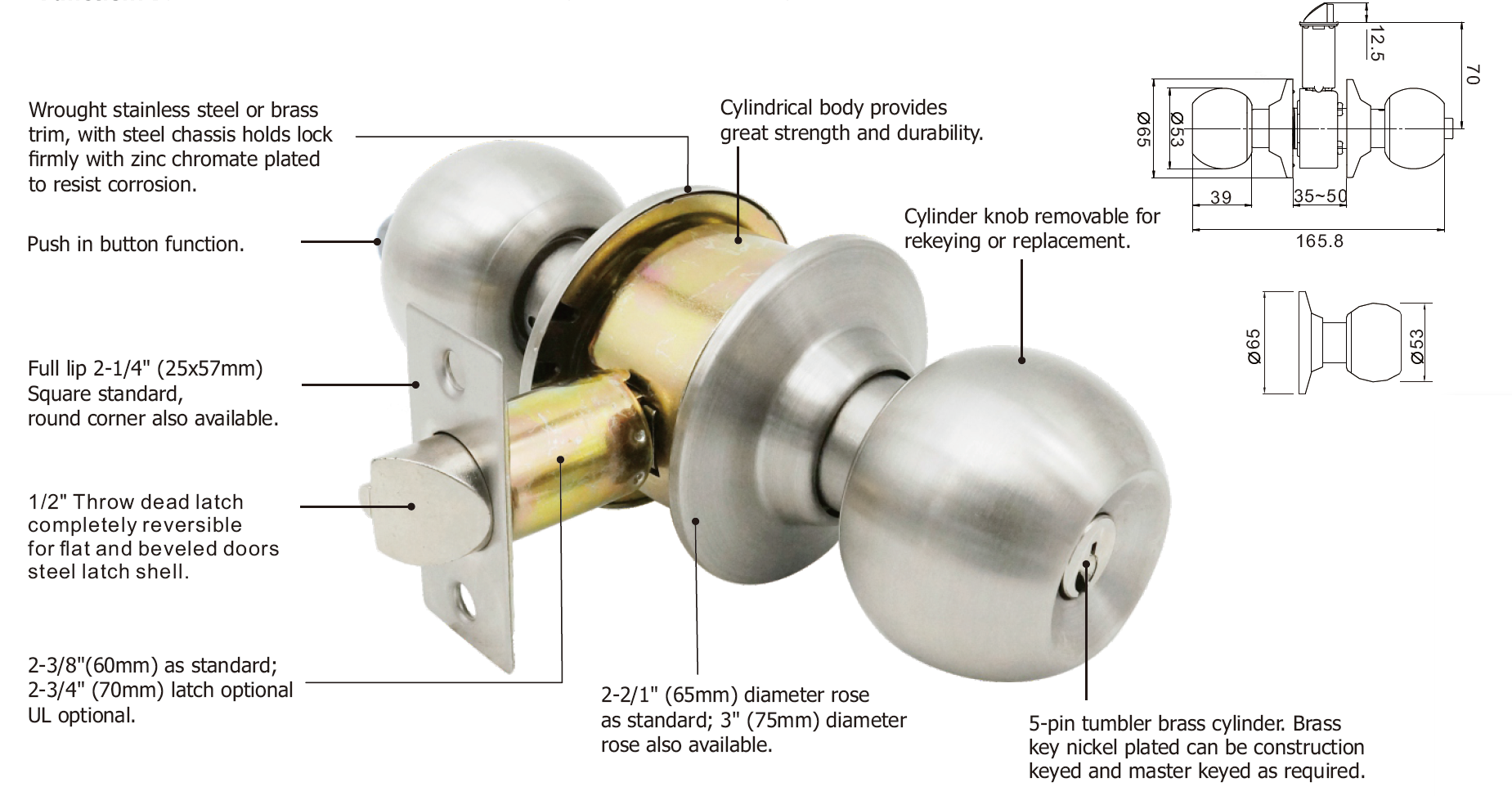

- Product Information
Door Prep: Cross bore 2-1/8"(54mm), Edge bore 1"(25mm), Latch face 1"x2-1/4"(25.4.x57mm).
Door Thick : Fit doors 1-3/8"(35mm) to 2"(50mm) thick.
Backset: 2-3/4"(70mm) standard. 2-3/8"(60mm) optional.
Latch: 2-3/4"(70mm) or 2-3/8"(60mm) fixed standard, adjustable 60/70mm optional.
Cylinder: 5-pin or 6-pin removable core, Schlage C Keyway or Kwikset, or YALE or C4 keyway and other optional.
Faceplate: Square corner 1"x2-1/4"(25.4x57mm) standard, radius corner also available.
Strikes: T-Strike 1-1/2"x2-3/4" (38x70mm) standard, D-Strike 1-1/2" x 2-1/4"(39.5x57mm) optional.

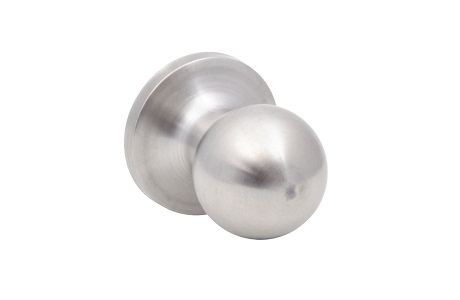

Function: DM(0:Dummy), ET(1:Entrance), BK(2:Privacy), PS(3:Passage), ST(4:Storeroom).
- 8 Series Door Knob Finish Optional
Remark:Not all finish available in all products
PS PN PC AS SS SN SC WN WAN
Polished Silver Polished Nikel Polished Chrome Antique Silver Satin Silver Satin Nikel Satin Chrome Weathered Weathered
BHMA Code: BHMA Code: BHMA Code: Nikel Antique Nikel
US26 US15 US26D
AN BN WP AP PB/PBNL PA TN BNB BNAB
Antique Nikel Burnished Nikel Weathered Pewter Antique Pewter Polished Brass Polished Antique Tarnished Burnished Burnished
BHMA Code: BHMA Code: BHMA Code: Brass Antique Brass
US15A US3 US7
