Structure: 304 stainless steel or Solid brass construction.

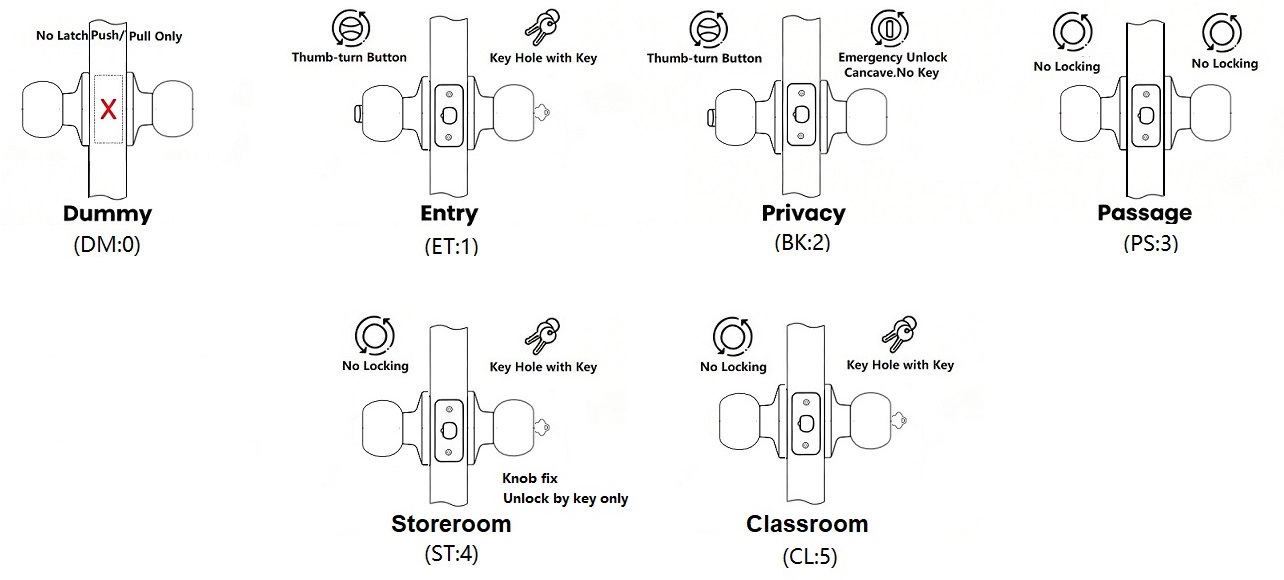

Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.

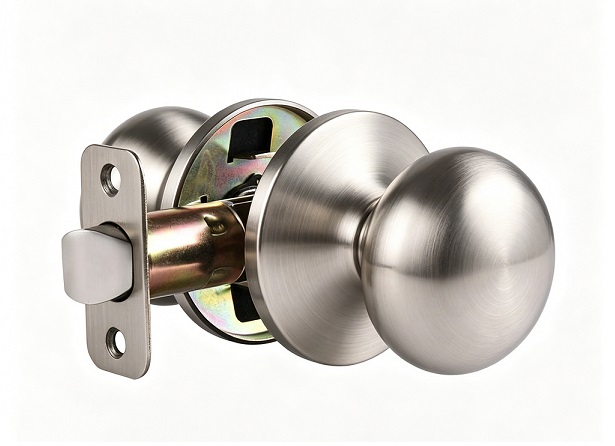

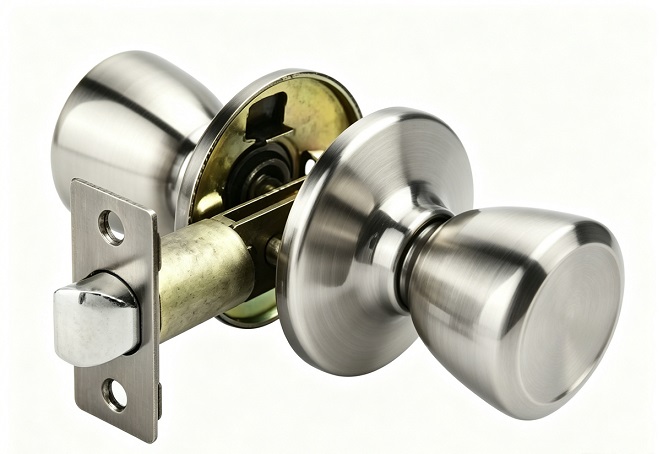

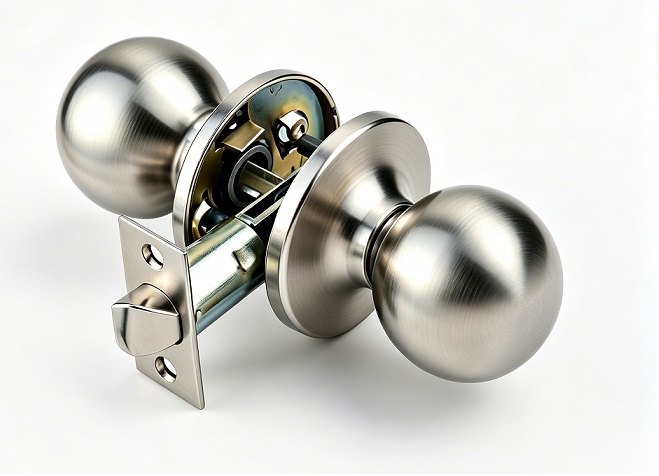

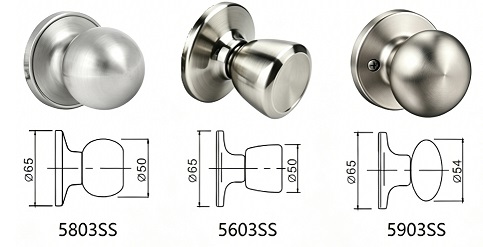

Knob Style: 6 different knob styles available to meet customer´s need.

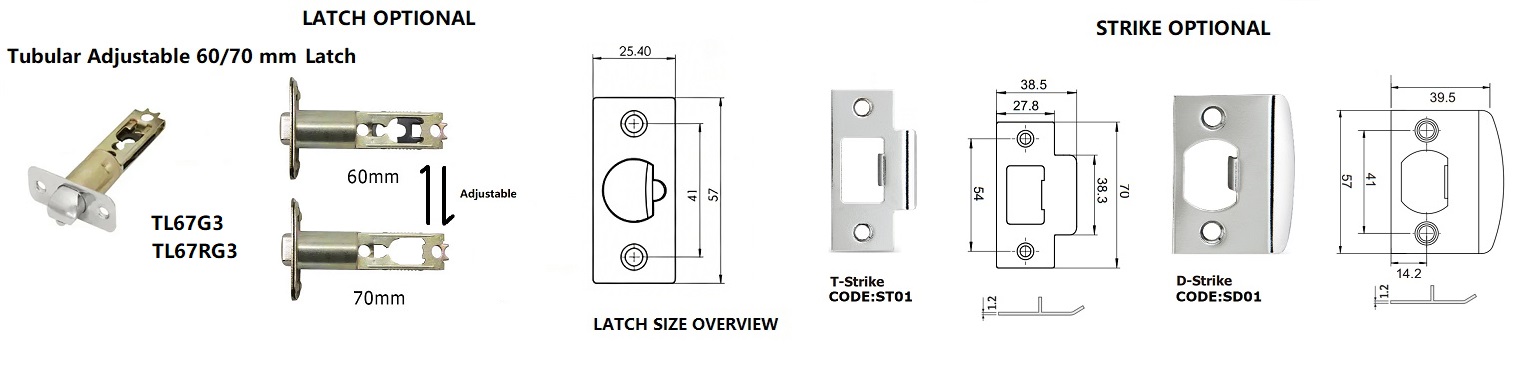

Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard; Drive-in or 6 Way latch also available as request;

Rosette: Small Rose (65mm) as standard

Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.

Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)

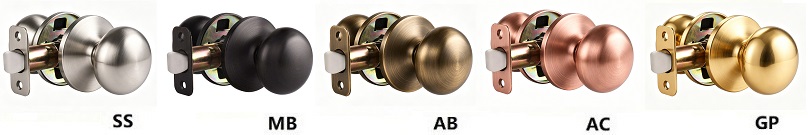

Remark: Not all finish available in all products.
