3874SS
- Product Information

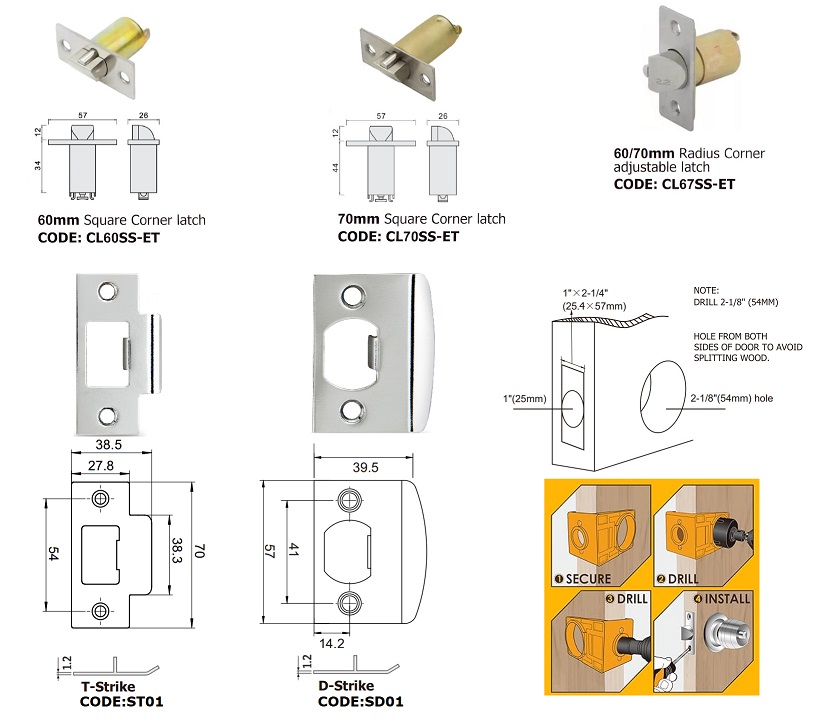

Door Prep: Cross bore 2-1/8"(54mm), Edge bore 1"(25mm), Latch face 1"x2-1/4"(25.4.x57mm).
Door Thick : Fit doors 1-3/8"(35mm) to 2"(50mm) thick.
Backset: 2-3/4"(70mm) standard. 2-3/8"(60mm) optional.
Latch: 2-3/4"(70mm) or 2-3/8"(60mm) fixed standard, adjustable 60/70mm optional.
Cylinder: 5-pin or 6-pin removable core, Schlage C Keyway or Kwikset, or YALE or C4 keyway and other optional.
Faceplate: Square corner 1"x2-1/4"(25.4x57mm) standard, radius corner also available.
Strikes: T-Strike 1-1/2"x2-3/4" (38x70mm) standard, D-Strike 1-1/2" x 2-1/4"(39.5x57mm) optional.
Function: ST(4:Storeroom)

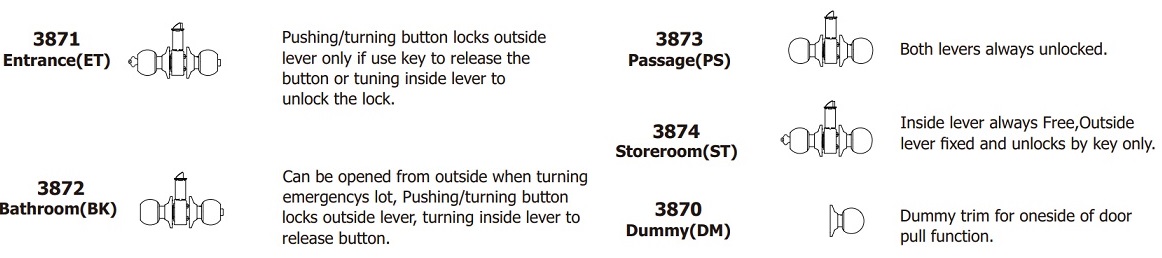

| Function Optional |

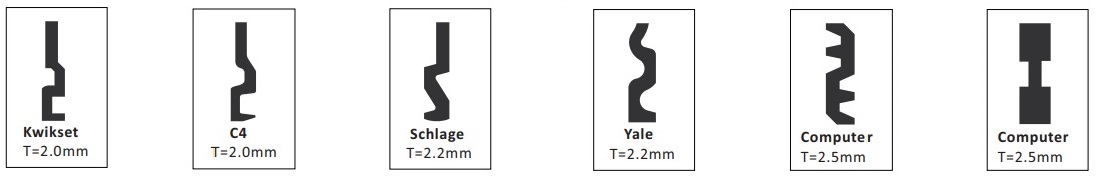

| Keyway Optional |

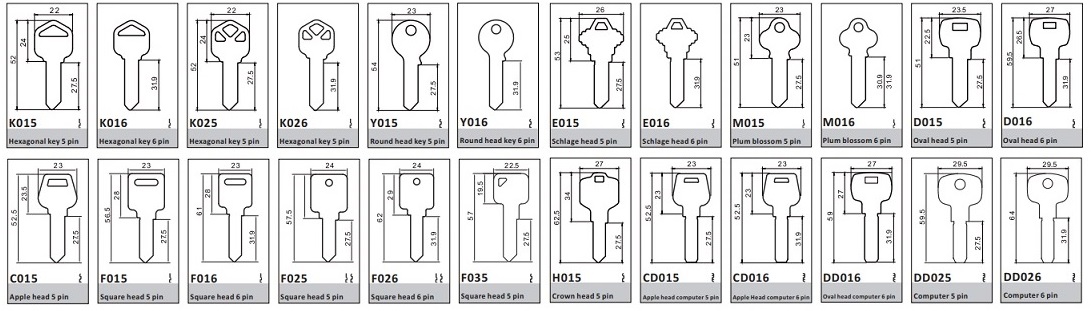

| Key Pattern Optional |

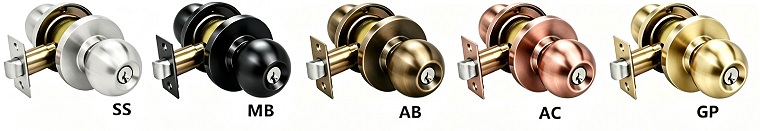

- Finish Optional
Remark:Not all finish available in all products

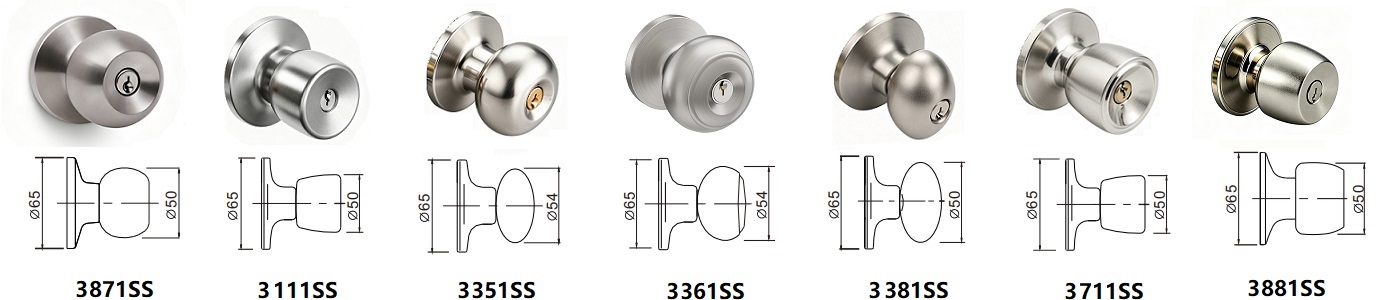

- Knob Style Optional
- Latch&Strike Optional
| Package Optional |
| Model No. | Packing Way | Inner Packing | Outter Caton | ||||||||
| Length (CM) | Width (CM) | Height (CM) | QTY (Pc) | Weight ( KG) | Length (CM) | Width (CM) | Height (CM) | QTY (Pcs) | Weight (KG) | ||
- Product Resources
