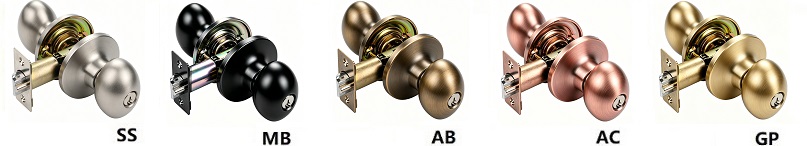

Stainless Steel Oval Ball Knob Lock with Keys
- Product Information
Door Prep: Cross bore 2-1/8"(54mm), Edge bore 1"(25mm), Latch face 1"x2-1/4"(25.4x57mm).
Door Thick : Fit doors 1-3/8"(35mm) to 2"(50mm) thick.

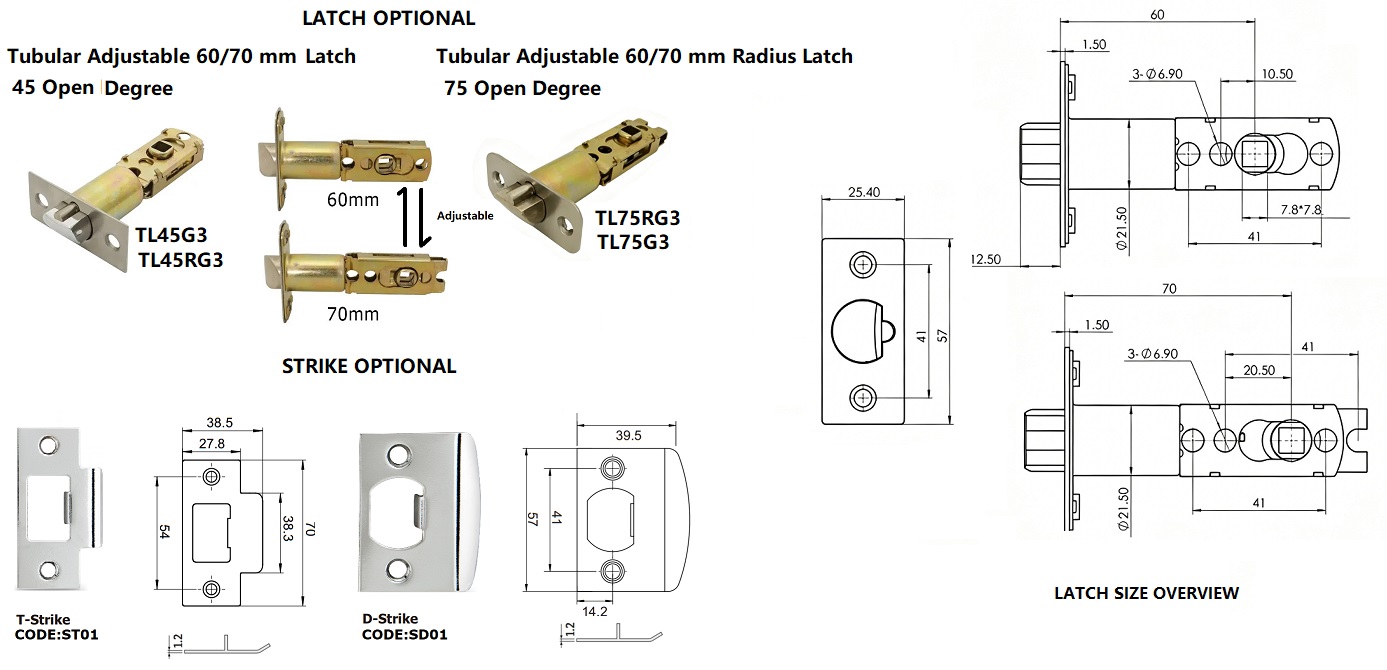

Latch: Adjustable 2-3/8"(60mm) or 2-3/4"(70mm); 6 way latch. (Fits 2-3/8" and 2-3/4" backset latch bolt + Square corner & 1/4" Radius Latch plate with
re-changeable Type + Square & Radius Strike Plate, both required).
Handing: Completely reversible.

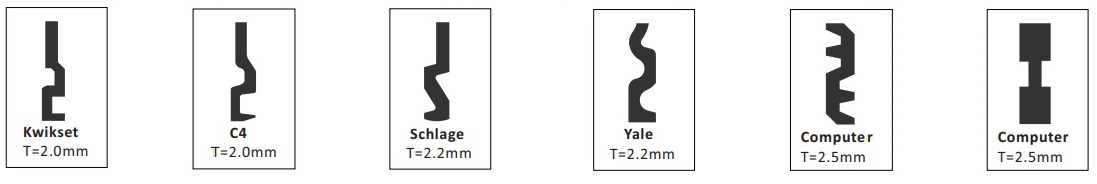

Cylinder: 5-pin removable core, Schlage C Keyway or Kwikset, or YALE or C4 keyway and other optional.
Faceplate: Square corner 1"x-2/4"(25.4x57mm) standard, radius corner also available.
Strikes: T-Strike 1-1/2"x2-3/4" (38x70mm) standard, D-Strike 1-1/2" x 2-1/4"(39.5x57mm) optional.

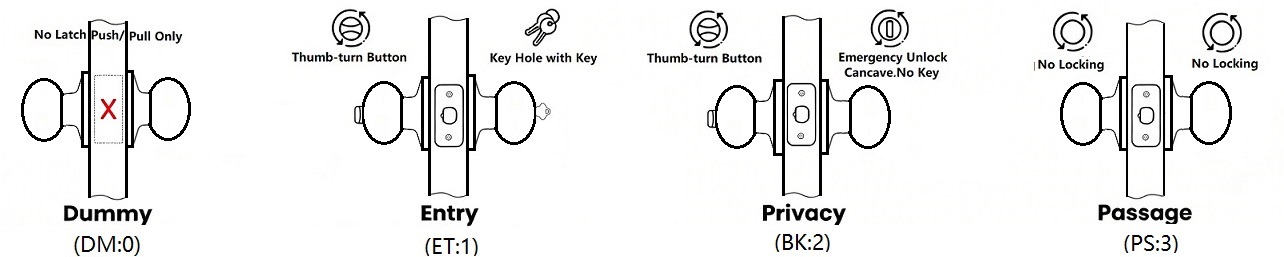

Function: ET(1:Entrance)
| Function Optional |
| Keyway Optional |

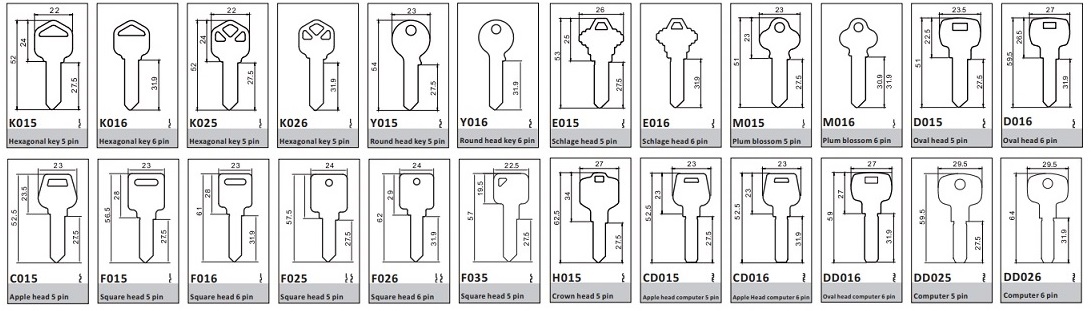

| Key Pattern Optional |
- Finish Optional
Remark: Not all finish available in all products.
- Knob Style Optional
- Latch&Strike Optional
- Package Optional
| Model No. | Packing Way | Inner Packing | Outter Caton | ||||||||
| Length (CM) | Width (CM) | Height (CM) | QTY (Pc) | Weight ( KG) | Length (CM) | Width (CM) | Height (CM) | QTY (Pcs) | Weight (KG) | ||

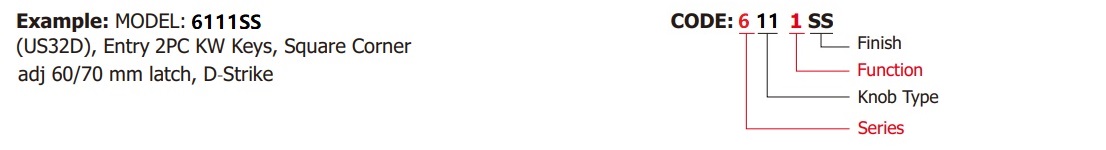

| How To Order? |
| Transportation |
- Product Resources
